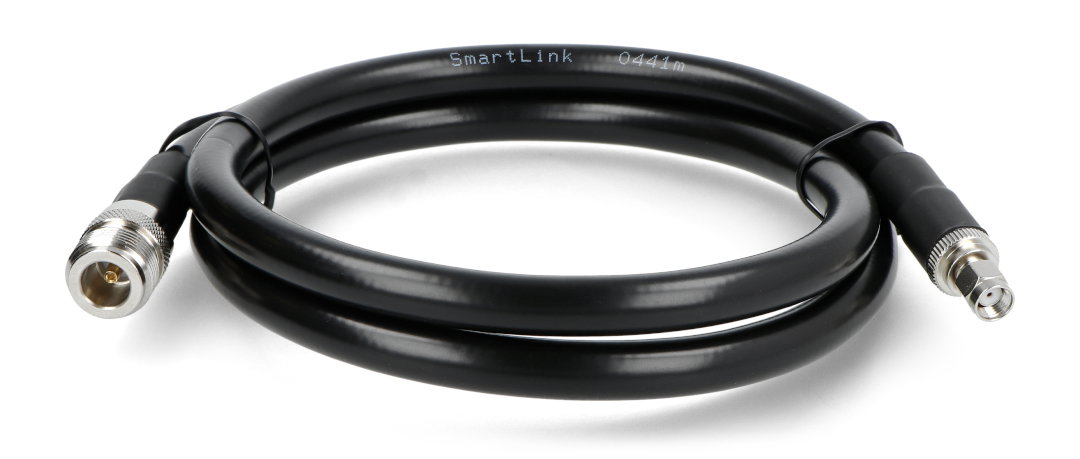

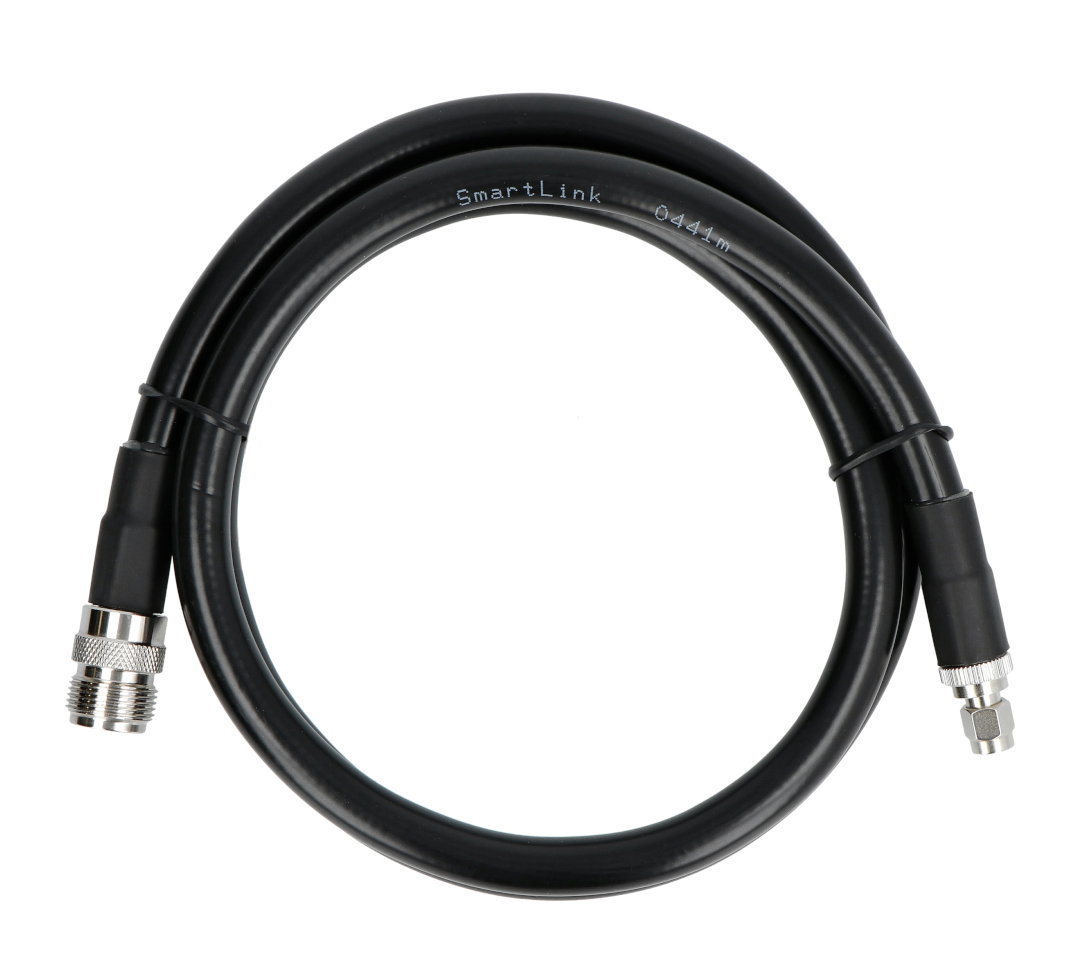

RF antenna cable CFD400 - RP-SMA F/M - 1m - for SenseCAP M1 and fiberglass antenna - Seeedstudio 321990875
RF CFD400 antenna cable intended for use with SenseCAP M1 network gateway and fiberglass antennas. The use of such a cable significantly improves data transmission , allows for better coverage and ensures low signal loss . The cable is approximately 100 cm (+/- 3 cm) long and has RP-SMA F / M connectors at its ends.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: RF antenna cable CFD400 - RP-SMA F / M - 1m - for SenseCAP M1 and fiberglass antenna - Seeedstudio 321990875
RF CFD400 antenna cable intended for use with SenseCAP M1 network gateway and fiberglass antennas . The use of such a cable significantly improves data transmission , allows for better coverage and ensures low signal loss . The cable is approximately 100 cm (+/- 3 cm) long and has RP-SMA F / M connectors at its ends.
CFD400 RF antenna cable - RP-SMA F / M - for SenseCAP M1 and fiberglass antenna - Seeedstudio 321990875.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
RF antenna cable CFD400 - RP-SMA F / M.
Special features of the cable
- It has low insertion loss, which is typically 0.45 dB at 900 MHz
- Low VSWR, typically 1.1 dB at 900 MHz
- Made of solid materials that allow the cable to be used outdoors
We also offer compatible RF Explorer antennas and the SenseCAP M1 gateway !
Technical specification of the cable
- Cable type: antenna
- Compatible devices: SenseCAP M1 and fiberglass antennas
- Manufacturer part number: RF CFD400-BLACK
- Frequency range: 0 Hz to 6000 MHz
- Impedance: 50 Ohm
- VSWR: Typical: 1.1 dB @ 900 MHz; Maximum: ≤1.5 dB @ 6 GHz
- Signal Strength Loss: Typical: 0.15 dB @ 900 MHz; Maximum: ≤1.5 dB @ 6 GHz
- Capacitance: 76 pF / m2
- Velocity of Propagation: 85%
- Cable Connectors: 1: NF type - female; 2: RP-SMA type - male
- Insulation resistance: > 1000 MOhm
- Breakdown voltage: 2.5 kV
- Cable length: 100 cm +/- 3 cm
- Cable outer diameter: 10.3 mm
- Bending radius: minimum 25.4 mm
- Sheath material: PE
- Conductor material: copper
- Sheath material: tinned copper wire
Useful links
| Name | Value |
|---|---|
| Cable length | 1.0 m |
| Antenna - Connector type | RP-SMA |
| Antenna - Type: | Adapter |
| Smart Home | Antenna |
| Width | 17 cm |
| Height | 15.5 cm |
| Depth | 3 cm |
| Weight | 0.178 kg |
