SenseCAP S2110 Sensor Builder - Grove sensors to RS485 converter - Seeedstudio 114992986

Index: SEE-22927
SenseCAP S2110 Sensor Builder is an open source tool for creating RS485 sensors using Grove sensors. It also allows you to build a custom industrial-grade LoRaWAN sensor that connects to the SenseCAP cloud using the SenseCAP Data Logger. SenseCAP S2110 Sensor Builder is based on Xiao RP2040 with dual-core ARM Cortex M0+ processor, equipped with one Grove connector and one RS485 connector, allowing to connect with more than 500 Grove sensors and various Modbus RS485 sensors.
SenseCAP S2110 Sensor Builder - Grove sensors to RS485 converter - Seeedstudio 114992986
€22.90
€18.62 tax excl.
Waiting time: 4-6 weeks
Temporarily unavailable
PayPal payment
Manufacturer: Seeedstudio

Product description: SenseCAP S2110 Sensor Builder - Grove to RS485 sensor converter - Seeedstudio 114992986

SenseCAP S2110 Sensor Builder is an open source tool for creating RS485 sensors using Grove sensors . It also allows you to build a custom industrial-grade LoRaWAN sensor that connects to the SenseCAP cloud using the SenseCAP Data Logger. Data performance can be monitored from the SenseCAP dashboard and the SenseCAP Mate app. IoT platforms such as Helium, TTN, LORIOT, etc. are also supported. SenseCAP S2110 Sensor Builder is based on Xiao RP2040 with dual-core ARM Cortex M0+ processor, equipped with one Grove connector and one RS485 connector, allowing to connect with more than 500 Grove sensors and various Modbus RS485 sensors.

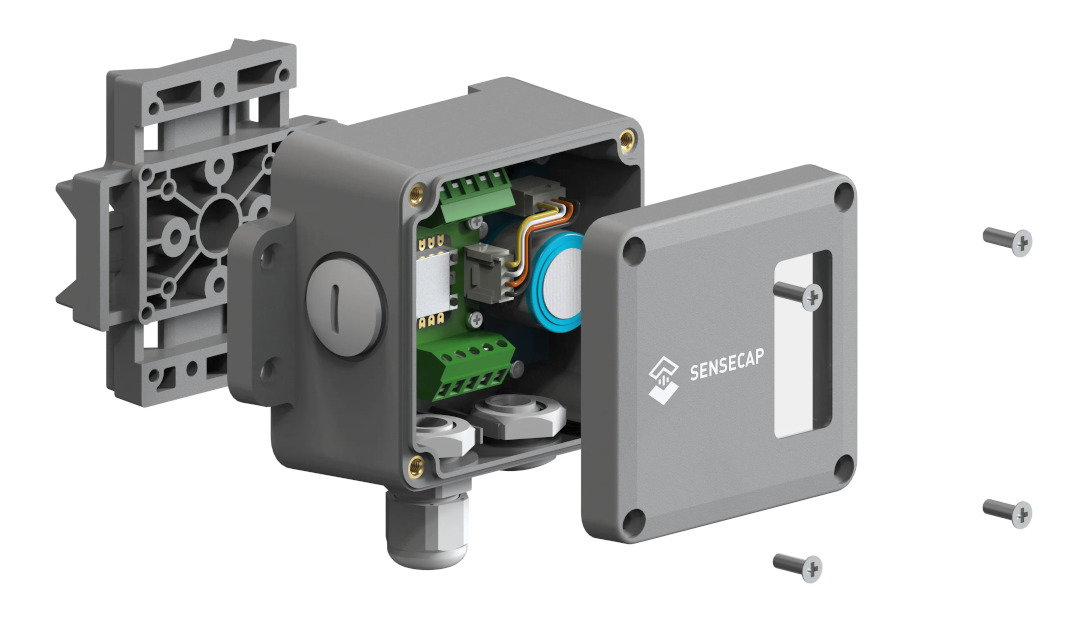

Construction of the SenseCAP RS485 sensor Construction of the SenseCAP RS485 sensor.
SenseCAP communication path


SenseCAP communication path.

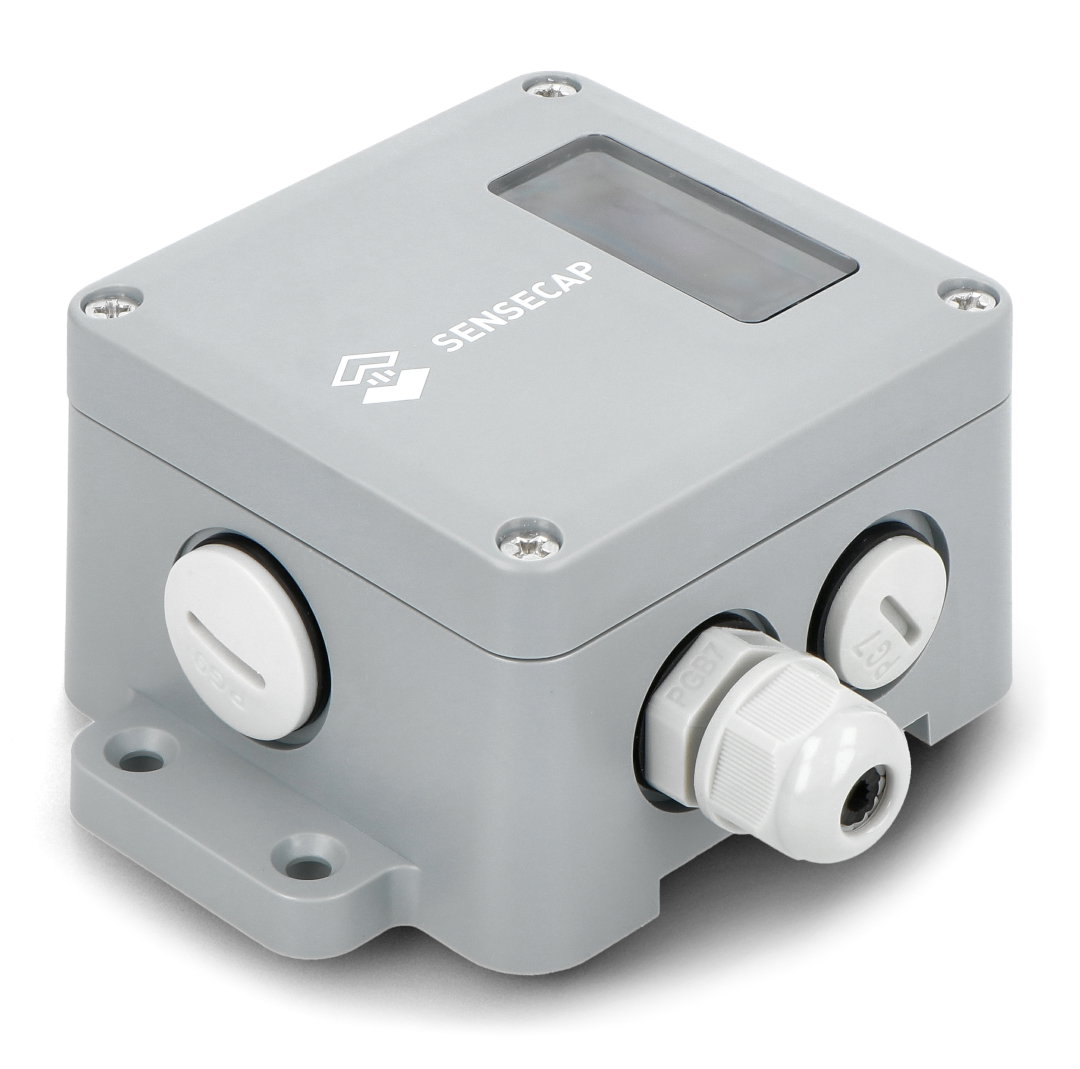

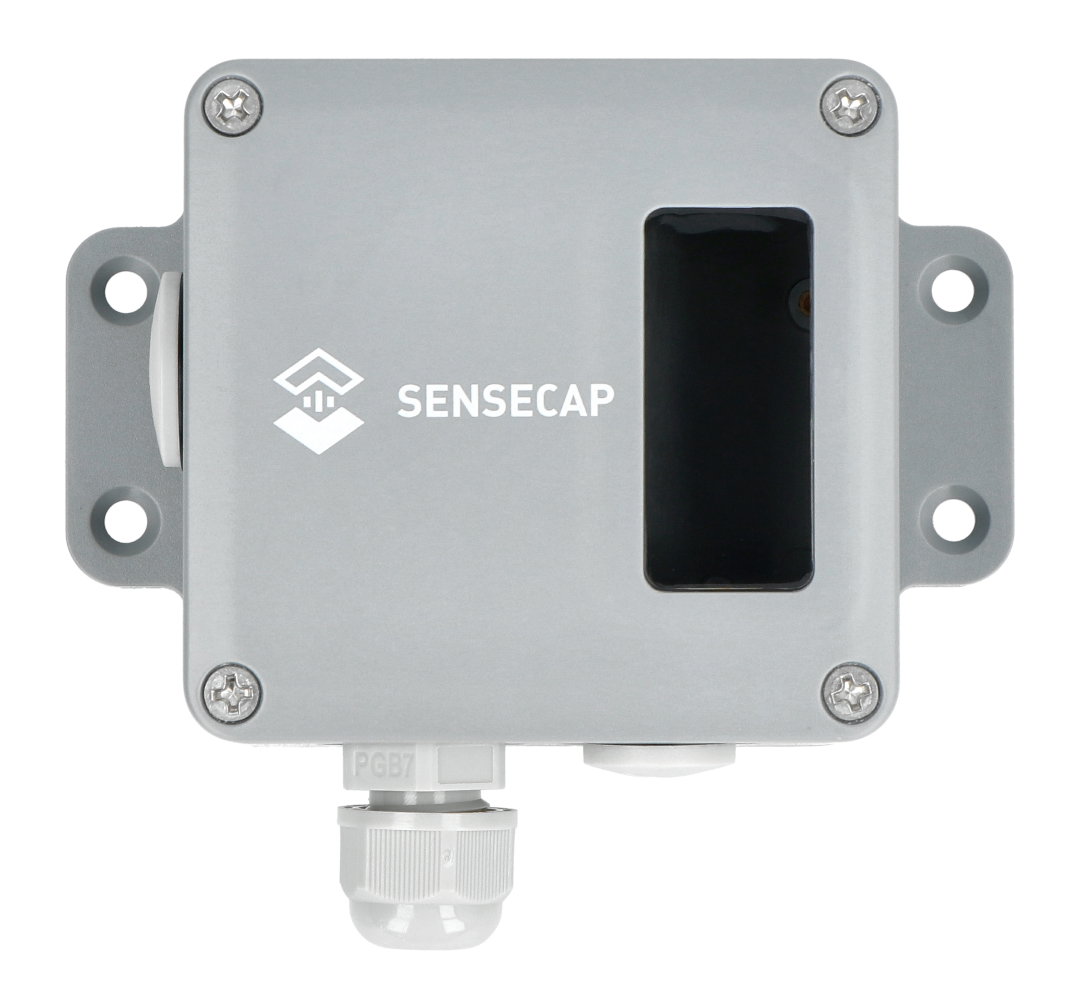

SenseCAP S2110 Sensor Builder SenseCAP S2110 Sensor Builder.

Main Features of SenseCAP S2110 Sensor Builder

  • Easy creation of industrial Modbus RS485 sensors - thanks to the open source code and IP66 housing, you can easily convert over 500 available Grove sensors to industrial Modbus RS485 sensors. The six most popular Grove environmental sensors are already fully compatible with native firmware, the base of sensors will be constantly expanded.
  • Compatibility with SenseCAP Data Logger and IoT platform - sensors can be converted to SenseCAP LoRaWAN sensors using SenseCAP Data Logger.
  • Support for third-party data logger and IoT platform - in addition to the SenseCAP Data Logger, data loggers supporting Modbus RS485 from other manufacturers can be used.
  • Industrial Grade Outdoor Enclosure - IP66 waterproof enclosure with window and waterproof vent reserved for light and gas sensors, also comes with a customized mounting panel, suitable for pole and wall mounting.
  • Powered by Xiao RP2040 - based on Xiao RP2040 ARM Cortex M0+ dual-core processor.

Create an external LoRaWAN SenseCAP sensor

SenseCAP S2110 can be connected to SenseCAP native firmware and data logger via RS485 to get a ready-made external LoRaWAN SenseCAP sensor - check .

Industrial Modbus RS485 LoRaWAN sensor

Mount the Grove sensor in the SenseCAP Sensor Builder Converter for an industrial Modbus RS485 sensor. The sensor can be connected to the SenseCAP LoRaWAN network using the SenseCAP Data Logger or to a third-party IoT network.

Grove to RS485 sensor converter Grove to RS485 sensor converter.

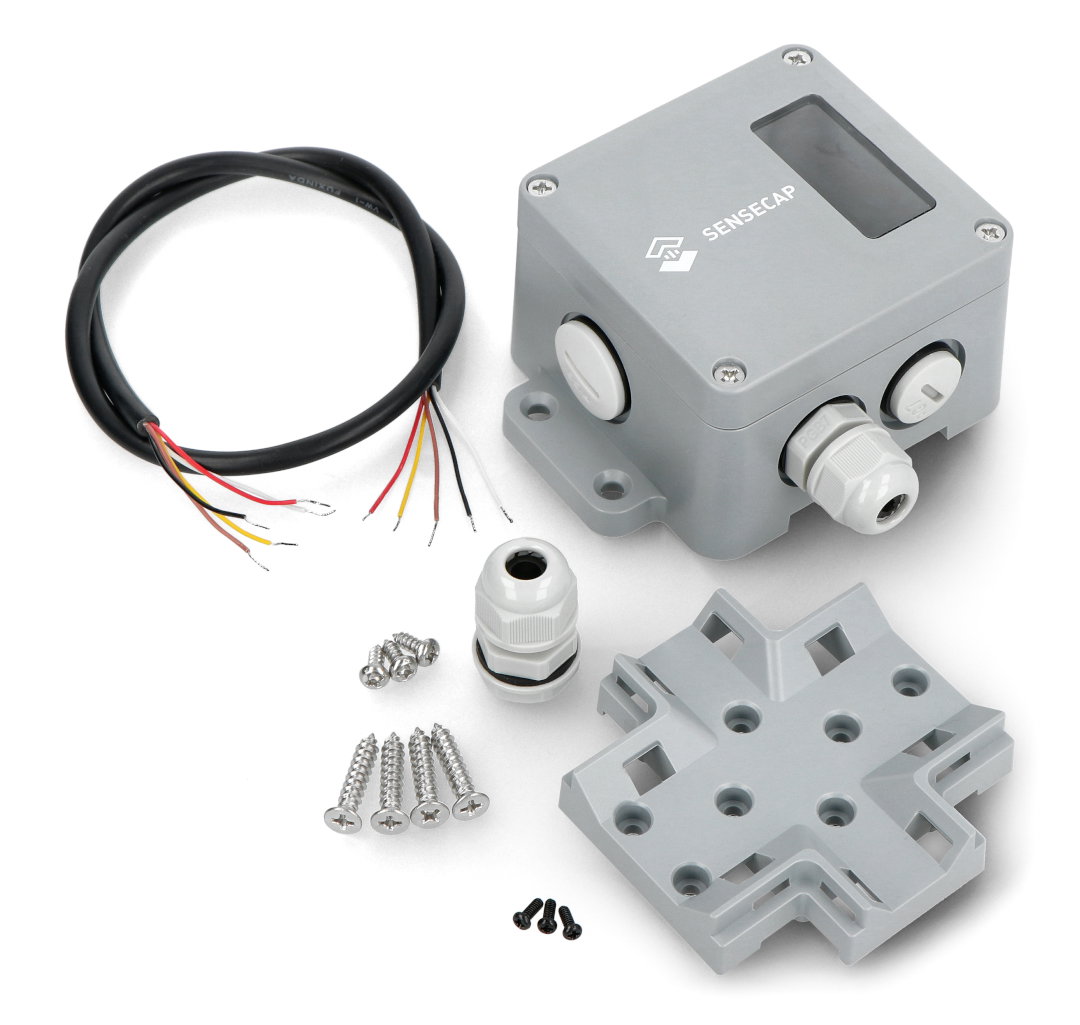

Kit Contents Kit contents.

The manufacturer has prepared a detailed user guide that makes it much easier to get started with the device.

Kit contents

  • SenseCAP S2110 Sensor Builder - Grove to RS485 sensor converter - Seeedstudio 114992986
  • Mounting pad
  • A set of mounting screws
  • RS485 cable

Package width 10 cm
Package height 7 cm
Package depth 7 cm
Package weight 0.178 kg
