Product description: SenseCAP Sensor Hub 4G Data Logger - with built-in battery
SenseCAP Sensor Hub 4G Data Logger - with a built-in rechargeable battery from Seeedstudio , it is an easy to set up industrial 4G class mobile station.The Sensor Hub uses the MODBUS-RTU RS485 protocol to communicate with sensors and is able to collect data from multiple sensors simultaneously. Designed to industry standards and IP66 rated, the Sensor Hub is suitable for outdoor use and harsh environments, resistant to UV radiation, rain and dust, etc. Built-in GNSS enables the location of the device. The Sensor Hub is a powerful 4G data logger that can connect to sensors via RS485 protocol. It is designed to industry standards, robust and stable. It has 10 MB of built-in memory for local storage of over 700,000 measurements, in the absence of network connection. The high-capacity lithium battery ensures operation of the devices for up to 2 weeks after a power outage or in rainy weather.

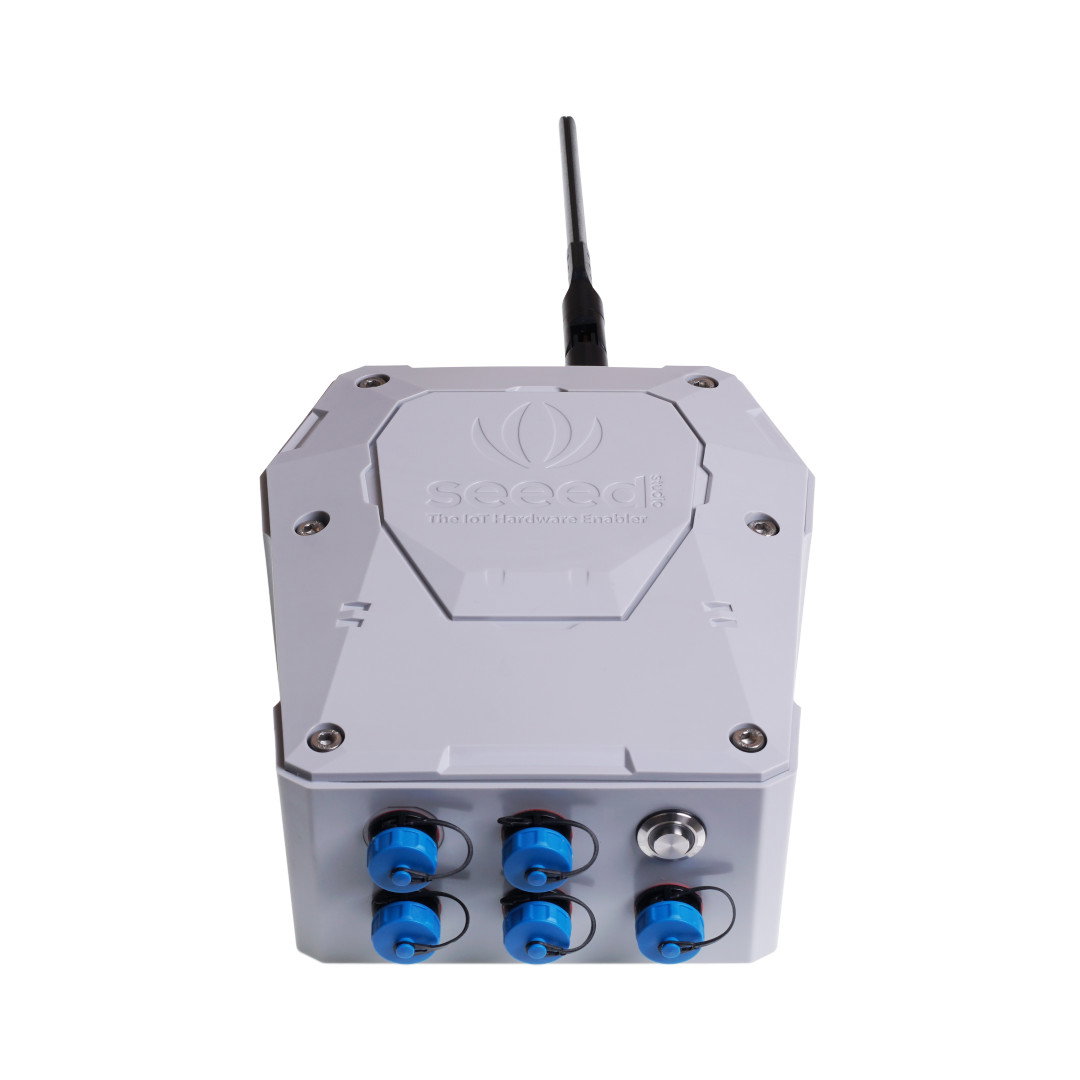

SenseCAP Sensor Hub 4G Data Logger.

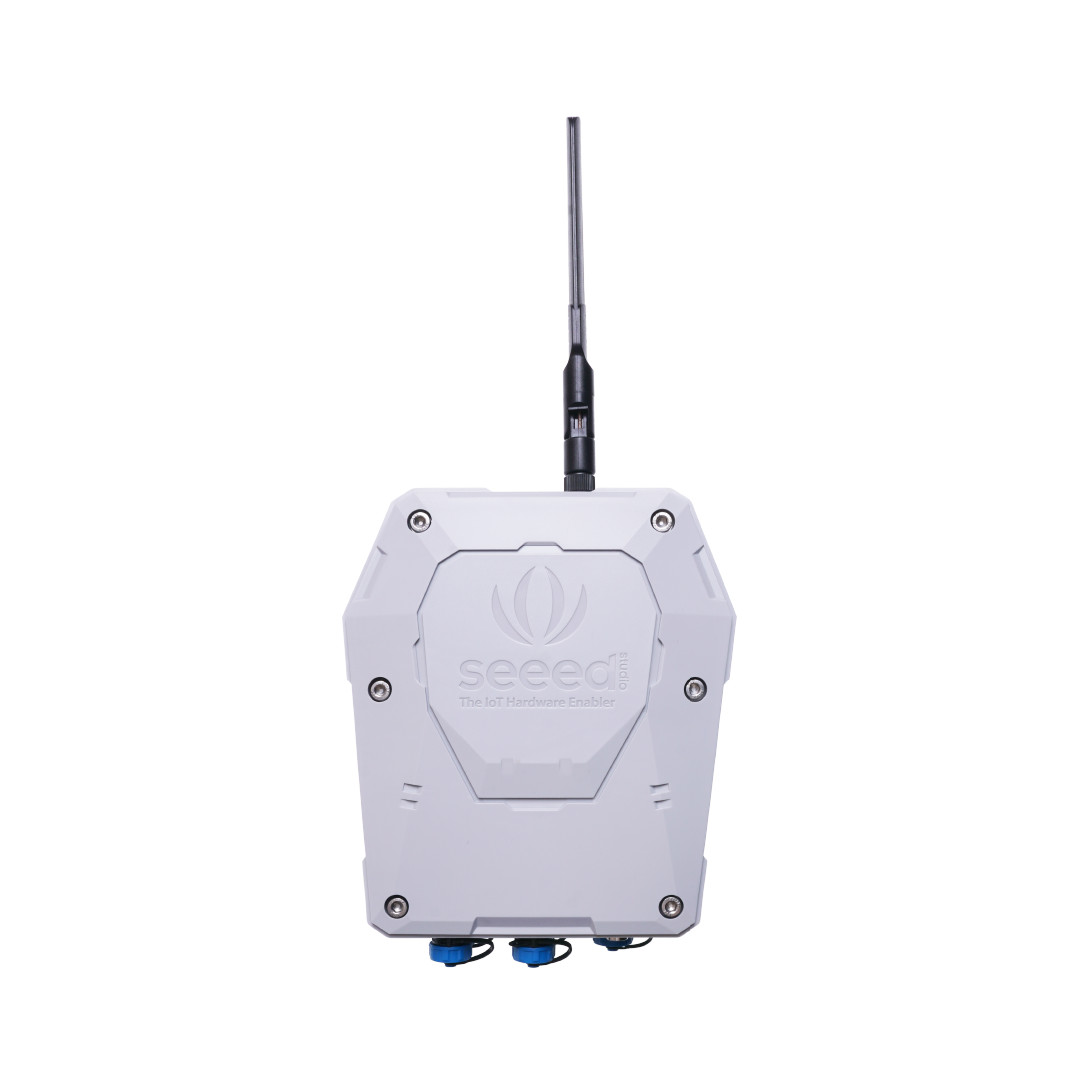

SenseCAP Sensor Hub.
product specification
- It collects data from different environments simultaneously
- Supports local data storage
- It supports sensors based on the MODBUS-RTU RS485 standard
- Sends data to any server (SenseCAP or private user server)
- It supports communication: 4G / 3G / 2G and global LTE frequency bands
- It has built-in GPS positioning functions
- It enables remote communication and device maintenance
- Ease of installation and implementation, does not require engineering facilities
- Provides industry standards suitable for the harsh outdoor environment
- Dimensions: 21.5 x 17.5 cm
Examples of places of application
- Smart farming
- Smart city
- Intelligent buildings
- Intelligent industry
- Environmental monitoring

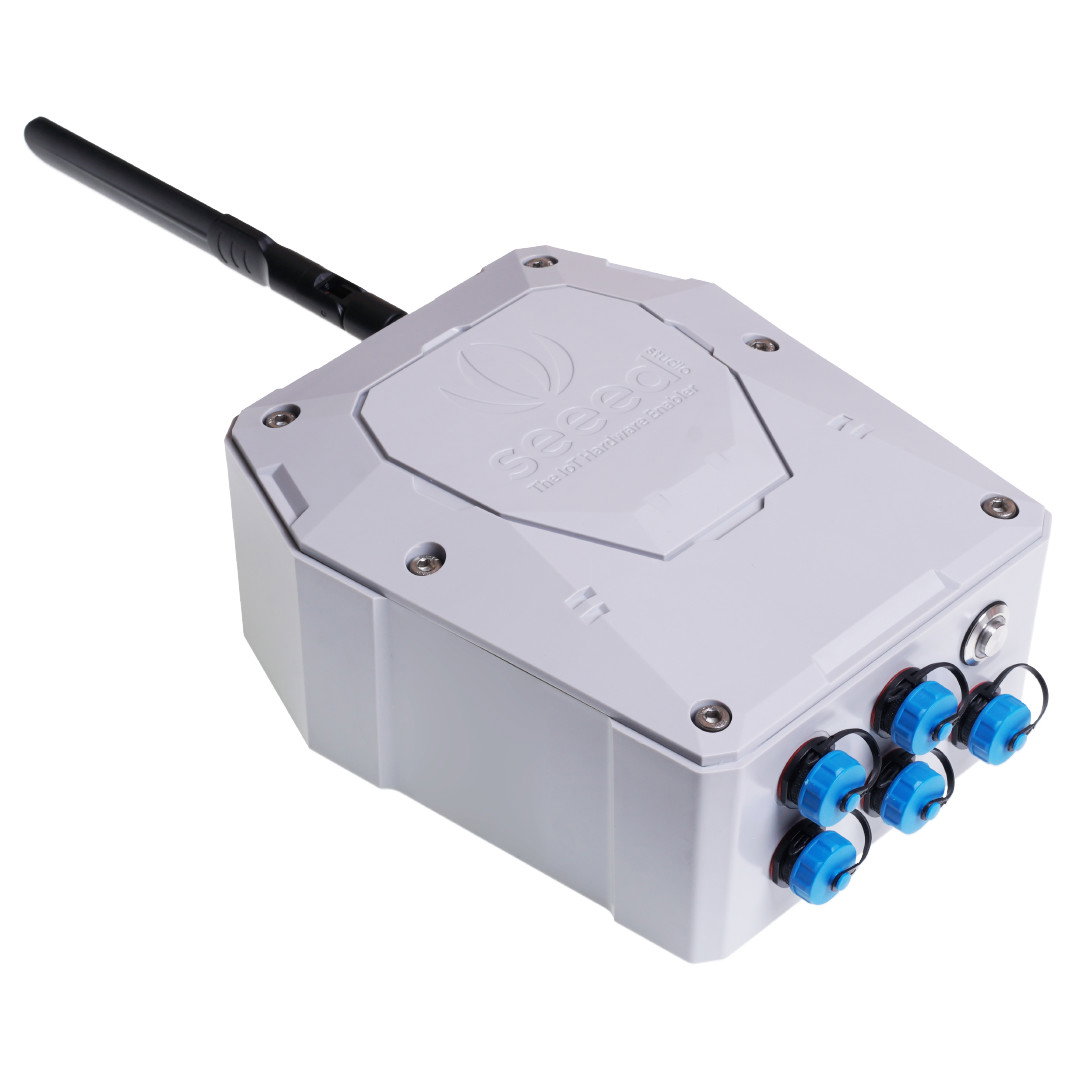

SenseCAP Sensor Hub 4G Data Logger - with built-in battery.
