Arduino Nano ESP32 with headers - ABX00083

Index: ARD-23337 EAN: 7630049203969
Arduino Nano ESP32 is equipped with a well-known, efficient system, which is ESP32-S3. It combines the support of the Arduino ecosystem with the capabilities of ESP and support for both Arduino and MicroPython. The module gives endless possibilities in creating IoT projects, thanks to WiFi and Bluetooth communication. This version of the board is equipped with pre-soldered connectors. The u-Blox NORA-W106 (ESP32-S3) chip with a clock speed of up to 240 MHz, is equipped with 384 kB of ROM and 512 kB of SRAM. The board also has 128 MB (16 MB) of external Flash memory.
Arduino Nano ESP32 with headers - ABX00083
€23.90
€19.43 tax excl.
Available
Shipping in 24 hours
PayPal payment
Arduino Nano ESP32 - headers:
Manufacturer: Arduino

Product description: Arduino Nano ESP32 with connectors - ABX00083

Arduino Nano ESP32 is equipped with a well-known, efficient chip, which is ESP32-S3 . It combines the support of the Arduino ecosystem with the capabilities of ESP and support for both Arduino and MicroPython. The module gives endless possibilities in creating IoT projects, thanks to WiFi and Bluetooth communication. This version of the board is equipped with pre-soldered connectors. The u-Blox NORA-W106 (ESP32-S3) chip with a clock speed of up to 240 MHz, is equipped with 384 kB of ROM and 512 kB of SRAM. The board also has 128 MB (16 MB) of external Flash memory.

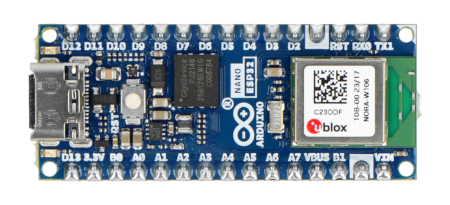

Arduino Nano ESP32 with connectors Arduino Nano ESP32 with connectors - ABX00083.
Small size Arduino Nano ESP32 board

Small size Arduino Nano ESP32 board.

Main features of the Arduino Nano ESP32

  • Small footprint : The Arduino Nano ESP32 board is designed in line with the previous models of the Nano family, making it ideal for compact projects.
  • Wireless communication : equipped with the ESP32-S3 chip that provides WiFi and Bluetooth wireless connectivity, it is an ideal solution for IoT projects.
  • Support for Arduino and MicroPython : seamlessly change the language from Arduino to MicroPython in a few simple steps. For more information on programming with MicroPython, see the documentation.
  • Compatible with Arduino IoT Cloud : create IoT projects quickly and easily with just a few lines of code. The Arduino IoT Cloud app keeps you secure by allowing you to monitor and control your IoT project from anywhere.
  • HID support : allows you to simulate a mouse and keyboard via USB. This feature allows you to create new ways to interact with your computer.
  • Plug and Play Debugging : The board supports debugging via the Arduino IDE 2, without the need for external modules.

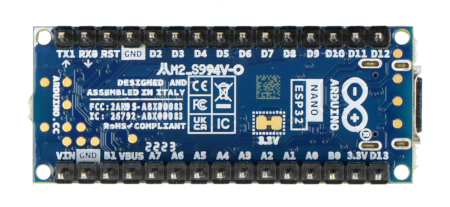

Arduino Nano ESP32

Build more advanced IoT projects faster with the Arduino ESP32 . The combination of Arduino support with ESP32 capabilities in a compact board is the perfect solution for demanding creators. Bring your ideas to life with ease and precision with the Arduino Nano ESP32. The board is equipped with 14 digital pins, 8 analog pins and 5 PWM pins. It is powered with the voltage from 5 V to 18 V, and the logic voltage is 3.3 V. The current efficiency of digital pins is 40 mA.

Arduino Nano ESP32 with connectors Arduino Nano board based on the ESP32-S3 chip.

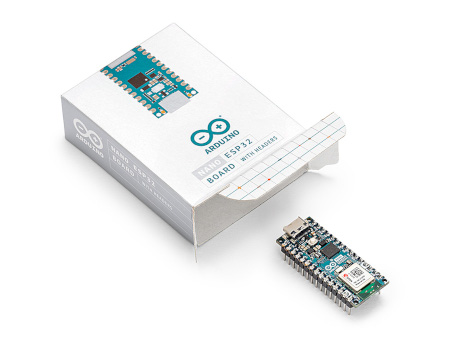

Arduino Nano ESP32 Arduino Nano ESP32 - version with connectors.

Arduino Nano ESP32 specification

  • Chip: u-blox NORA-W106 (ESP32-S3)
  • Clock speed: up to 240 MHz
  • ROM memory: 384KB
  • SRAM memory: 512KB
  • External Flash Memory: 128MB (16MB)
  • Connector: USB Type-C
  • Leads:
    • built-in LED: pin 13
    • 14x digital inputs/outputs
    • 8x analog inputs
    • 5x PWM
    • external interrupts on all digital pins
  • Wireless connectivity: WiFi / Bluetooth
  • Interfaces:
    • UART: 1x, D0 (TX), DC (RX)
    • I2C: 1x, A4 (SDA), A5 (SCL)
    • SPI: D11 (COPI), D12 (CIPO), D13 (SCK), any GPIO as CS
  • I/O Voltage: 3.3V
  • Supply voltage: from 5 V to 18 V
  • Source current per I/O pin: 40mA
  • Sink current per I/O pin: 28 mA
  • Dimensions: 45x18mm

UC - Microcontroller ESP32-S3
UC - Core Tensilica
UC - Flash 16 MB
UC - RAM 512 kB
UC - core 2. Dual Core
UC - Digital pins 14
UC - analog in 8
UC - freq 240 MHz
UC - PWM 5
UC - WiFi yes
UC - USB USB C
UC - Bluetooth yes
UC - I2C yes
UC - UART yes
UC - Connector USB typ C
UC - SPI interface yes
Package width 6 cm
Package height 8 cm
Package depth 2.5 cm
Package weight 0.018 kg

Be the first to ask a question about this product!

Product reviews

Arduino Nano ESP32 with headers - ABX00083

5/5

Average grade

16

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.

Zdjęcia użytkowników

Bart 01.04.2024 Confirmed purchase Translated review
The best Arduino I've ever had
Karol 25.03.2024 Confirmed purchase Translated review
Very good module. It's great that there is a NANO ESP32 version because it allows for a seamless transition from Arduino Nano with AVR to Arduino Nano ESP32 without the need to create new PCBs (the pinouts are exactly the same as in the AVR version). Overall, I recommend it 👍 the only thing that hurts is the price, because compared to other ESP32 boards - the price is significant ;)
Artur 09.03.2024 Confirmed purchase Translated review
Great quality and performance. Original is original.
Kacper 26.02.2024 Confirmed purchase Translated review
Very nice surprise. USB type C, definitely an advantage. The programming environment is slightly more complicated than in the case of RP Pico, but I guess it's not such a big drawback. ESP-NOW connection works flawlessly and is easy to configure. There is a bit of confusion in the pin numbering, but after reading the instructions, it can be mastered. One of the biggest advantages is the power supply voltage range. I definitely recommend it.
Piotr 11.12.2023 Confirmed purchase Translated review
The device is as efficient as possible and the factory-soldered pins save time. I also discovered that it has overvoltage protection - I accidentally treated it with 7V. It switched to another mode (I assume it was overvoltage defense mode) and after unplugging and reconnecting it continued to work.
Paweł 14.11.2023 Confirmed purchase Translated review
Everything is OK. After installing the drivers in Arduino, the IDE works and already works with the home network.
Jerzy 16.10.2023 Confirmed purchase Translated review
quality
Krzysztof 26.09.2023 Confirmed purchase Translated review
Quick :)
Vyacheslav 01.09.2023 Confirmed purchase
Love it
Piotr 04.04.2024 Confirmed purchase
Henryk 11.03.2024 Confirmed purchase
Marek 19.12.2023 Confirmed purchase
Leszek 19.12.2023 Confirmed purchase
Marcin 13.12.2023 Confirmed purchase
Edward 16.11.2023 Confirmed purchase
Matthias 20.10.2023 Confirmed purchase
