Product description: Grove - temperature and humidity sensor SHT31
The module is equipped withSHT31temperatureand humidity sensor. It allows to measurefrom -40°C to 125°C with0.3°C accuracyand from0% to100% RH with2% accuracy. On the board there isa Grove connectorfor easy connection of the module to theBase Shieldcover, a compatible cable is included. It communicates through the I2C interface. Power supply voltage isfrom 3.3 V to 5 V.
|
Product compatible with ArduinoandRaspberry Pi. The manufacturer provides auser guide forArduino and Raspberry Pi. |

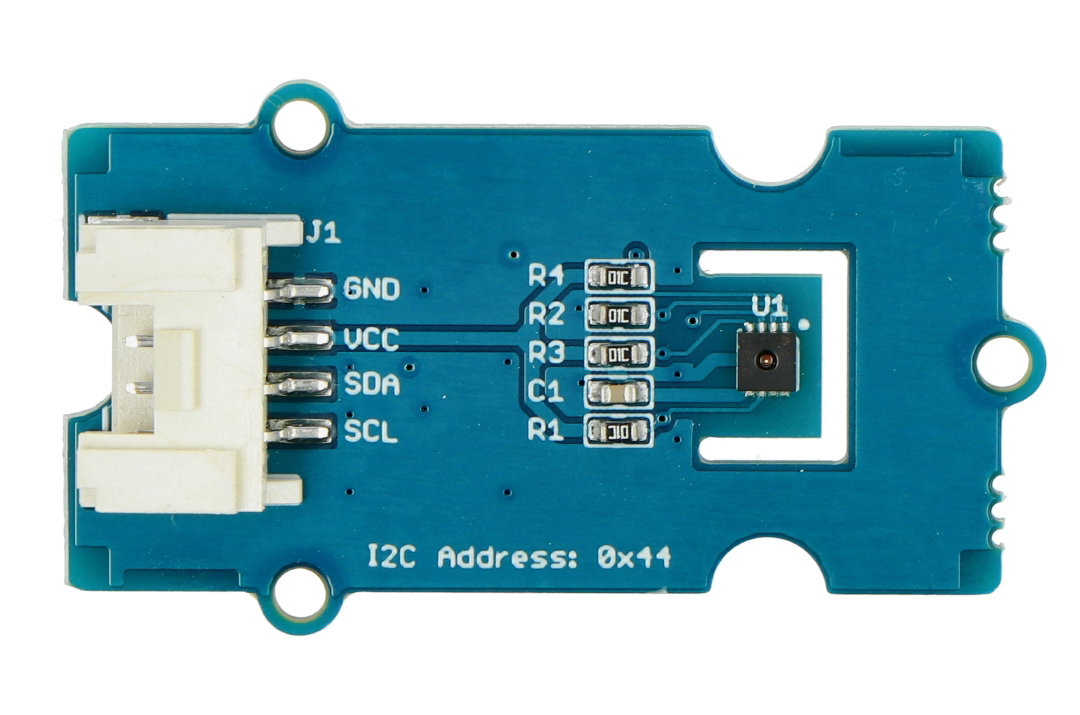

Sensor leads
The module is equipped with a Grove connector that allows you to easily connect it with a Base Shield cap. The sensor communicates via the I2C interface.
| Pin | Description |
|---|---|
| GND | The weight of the system. |
| VCC | Supply voltage from 3.3 V to 5 V. |
| SDA | I2C interface data pin. |
| SCL | I2C interface clock pin. |
Temperature sensor specifications
- Supply voltage: 3.3 V to 5 V
- Power consumption: 100 uA
- The deal: SHT31
- Measurement range:
- temperature: from -40°C to 125°C
- humidity: 0% to 100% RH
- Accuracy of measurement:
- temperature: ± 0.3°C
- humidity: ± 2%
- Communication: I2C
- Dimensions: 40 x 20 mm
- Weight: 4 g

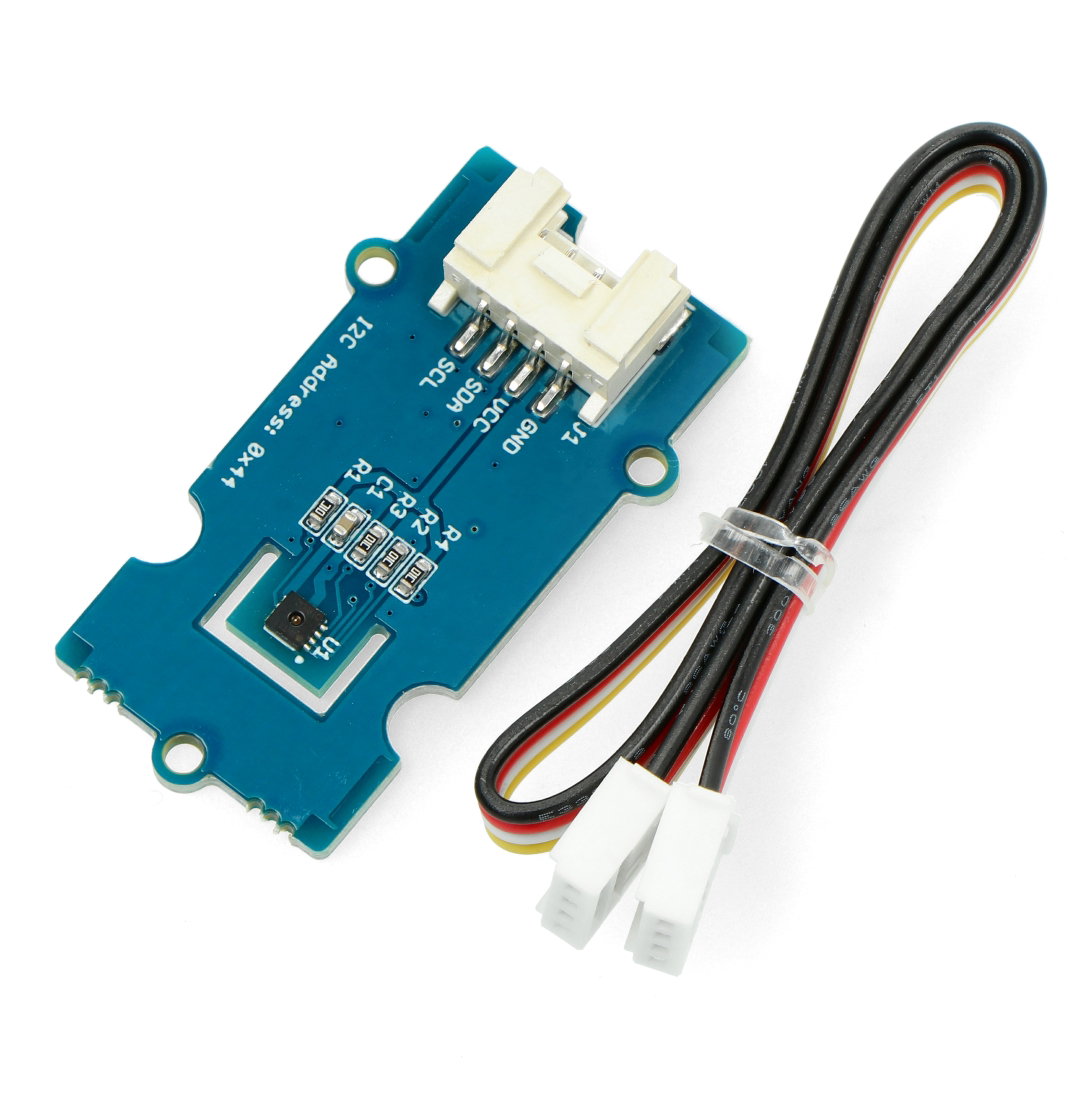

The set includes
- SHT31 temperature and humidity sensor
- Grove cable
