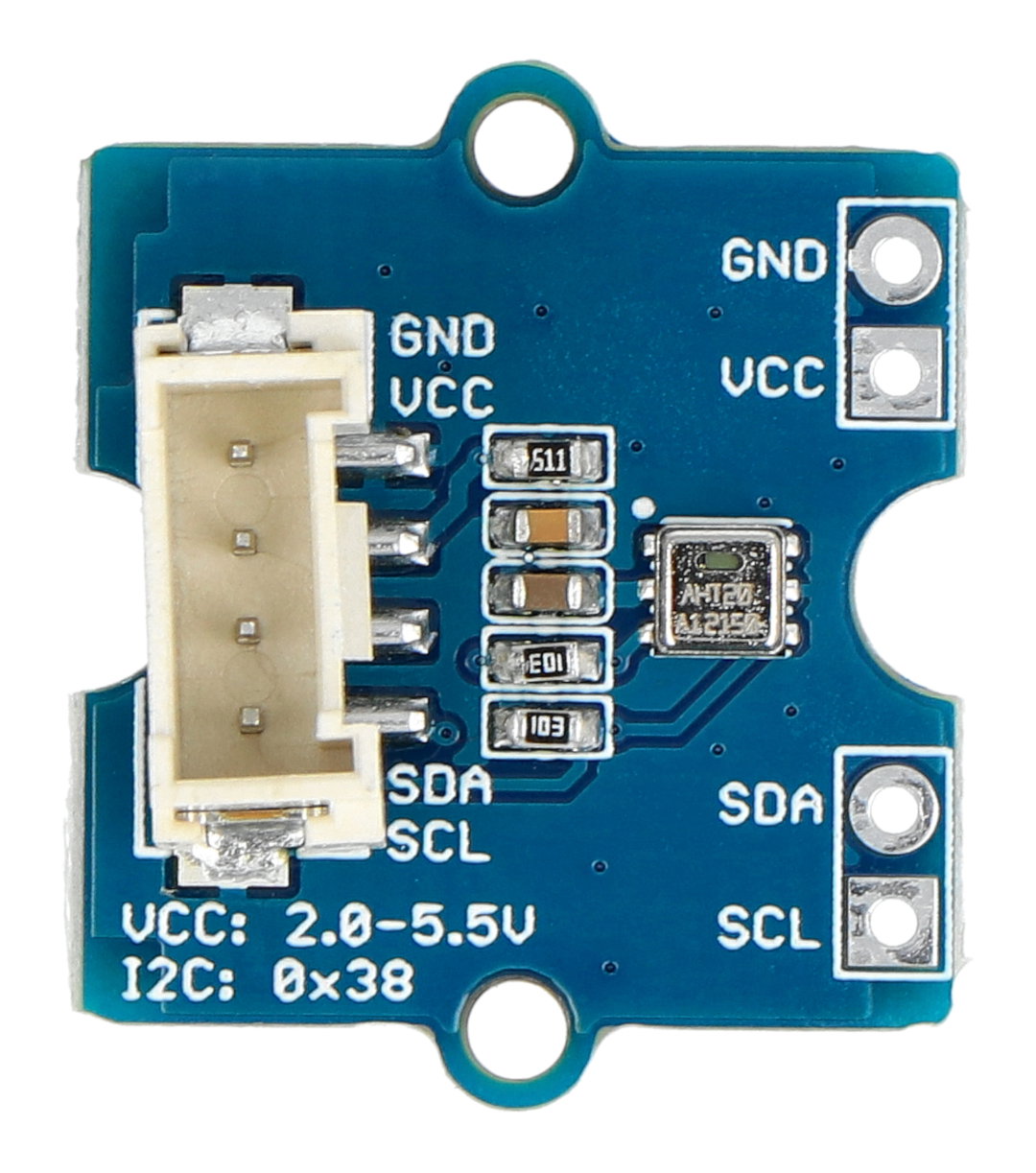

Grove AHT20 - temperature and humidity sensor - I2C - - Seeedstudio 101990644
The Grove AHT20 is a new generation sensor, enabling even more accurate measurements. The AHT20 has a newly designed ASIC with an improved MEMS semiconductor moisture sensor and a built-in standard temperature sensor. The module has a Grove connector with I2C interface.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Product description: Grove - temperature and humidity sensor MPX5700AP
The GroveAHT20is a new generation sensor, enabling even more accurate measurements. The AHT20 has a newly designedASICwith an improved MEMS semiconductor moisture sensoranda built-in standard temperature sensor. The module has a Grove connector with I2C interface.
Main features of the module
- Wide measurement range
- Grove I2C digital output
- 4-pin interface

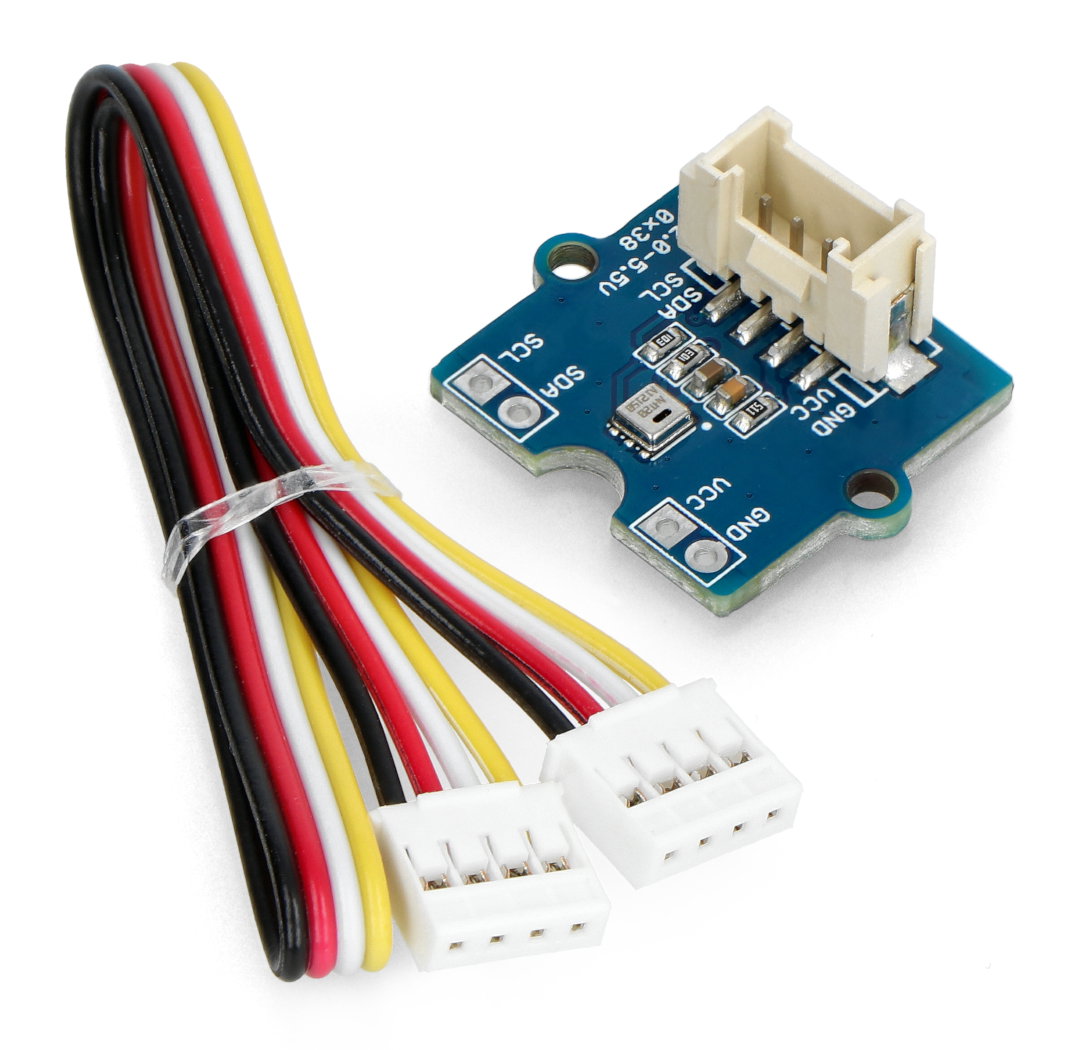

Set contents.
Technical specification
- Operating voltage: 2.0 V to 5.5 V DC
- Temperature measuring range: -40°C to 85°C
- Measuring range of humidity: from 0 to 100% RH
- Accuracy of temperature measurement: ± 0.3°C
- Accuracy of humidity measurement: ± 2% RH
- Resolution of the measurement
- temperatures: 0.01°C
- humidity: 0.024% RH
- Interface: Grove I2C
- Dimensions: 24 x 20 x 12 mm
Useful links
| Name | Value |
|---|---|
| Interface | Digital I / O |
| Sensor - type | temperature, humidity |
| Sensor - Temperature to | 85 °C |
| Sensor - Temperature accuracy | +/- 0.3 °C |
| Sensor - Temperature from | -40 °C - 120 °C |
| Width | 11.5 cm |
| Height | 1 cm |
| Depth | 13.5 cm |
| Weight | 0.011 kg |
