3-axis magnetometer - TLV493D - STEMMA QT/Qwiic - Adafruit 4366

Index: ADA-23830
3-axis magnetometer manufactured by Adafruit and equipped with an efficient TLV493D system. The maximum data transfer rate is up to 1 Mb/s . The module is used when detecting elements with attached magnets or when building a joystick.
3-axis magnetometer - TLV493D - STEMMA QT/Qwiic - Adafruit 4366
€8.50
€6.91 tax excl.
Goods pending acceptance - available within a few days
Waiting for delivery
PayPal payment
Manufacturer: Adafruit

Product description: 3-axis magnetometer - TLV493D - STEMMA QT / Qwiic - Adafruit 4366

3-axis magnetometer manufactured by Adafruit and equipped with an efficient TLV493D system. The maximum data transfer rate is up to 1 Mb/s . The module is used when detecting elements with attached magnets or when building a joystick. Unfortunately, it is not sensitive enough to be used as a compass or to detect the Earth's magnetic field. The maximum data transfer rate is up to 1 Mb/s and the resolution is 12-bit .

Product compatible with Arduino and Raspberry Pi !

The manufacturer has also prepared a detailed user guide that will help you start working with the module. Check!

3-axis magnetometer - TLV493D - STEMMA QT / Qwiic - Adafruit 4366.

The magnetometer belongs to the group of IMU type sensors used in automation and robotics.

Special features of the sensor

  • Linear Bx, By and Bz field measurement up to +130 mT
  • Perfect X/Y measurement matching for accurate angle detection
  • 12-bit data resolution for each measurement direction
  • Perfect for detecting small magnets
  • It is used in the construction of a joystick

What is a magnetometer?

What is a magnetometer? What is a magnetometer used for? This is a special research device used to determine the magnetic field - measure its direction and size. In colloquial terms, a magnetometer is a digital compass that you can also use to detect magnetic north.

Also check out the article on our blog - Magnetometer – how does it work and what is it for?

Technical specifications of the sensor

  • Type: magnetometer
  • Built-in chip: TLV493D
  • Measurement range: 3-axis X, Y, Z
  • Communication interface: I2C bus
  • Interface address: 0x5E
  • Measurement resolution: 12-bit
  • Maximum data transfer rate: up to 1 Mbps
  • Module supply voltage: 3 V to 5 V DC

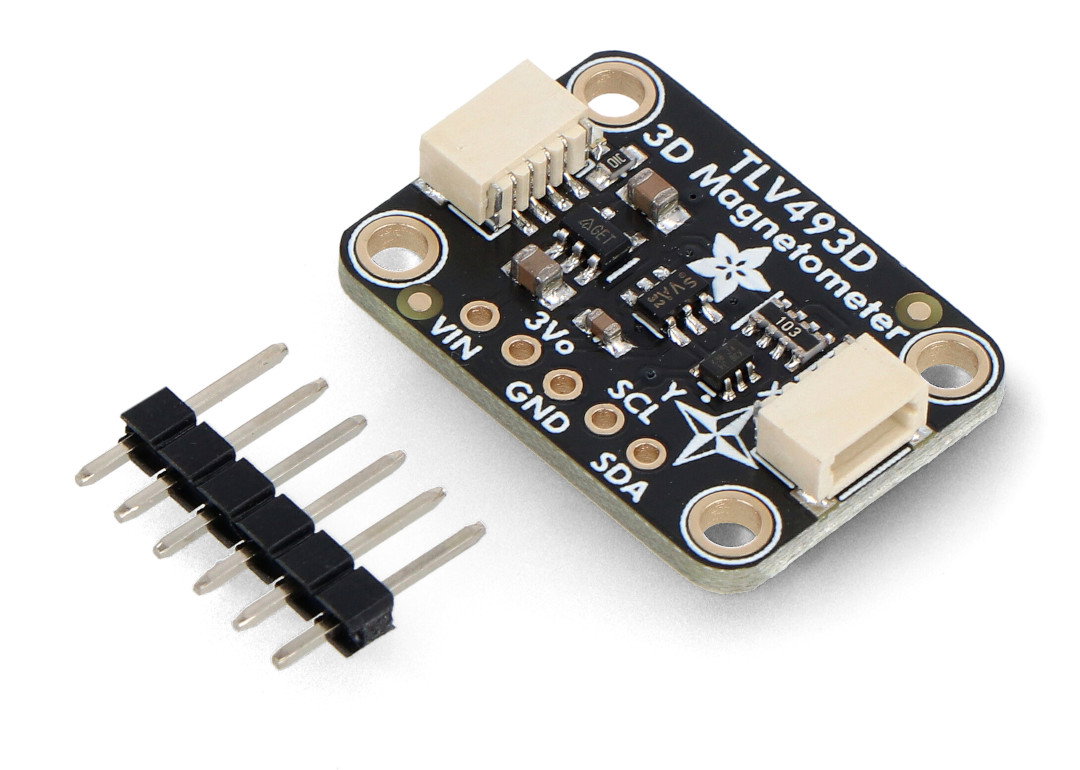

  • Pinouts: STEMMA QT / Qwiic connectors, solder pads
  • Board dimensions: 25.4 x 17.8 x 4.6 mm
  • Weight: 1.8 g

Set contents.

Package width 7.5 cm
Package height 9 cm
Package depth 1 cm
Package weight 0.003 kg
