Product description: LED dice - educational kit for learning soldering - Attiny404 - Soldered 333140
The Soldered LED Dice is an educational electronics kit that allows you to build a miniature, interactive LED dice . When powered on and shaken, the system randomly lights up LEDs , simulating the throw of a classic dice. The device is based on an Attiny404 microcontroller , programmed in the Arduino IDE, and thanks to a built-in vibration sensor , it responds to movement. It is powered by a CR2032 battery, making it fully portable . Additionally, the kit includes a keychain ring for carrying the dice on your keyring.
LED dice - educational kit for learning soldering - Attiny404 - Soldered 333140.

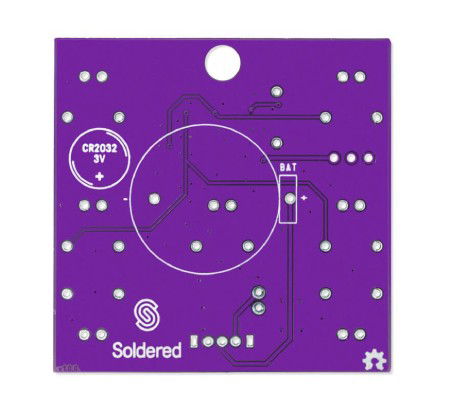

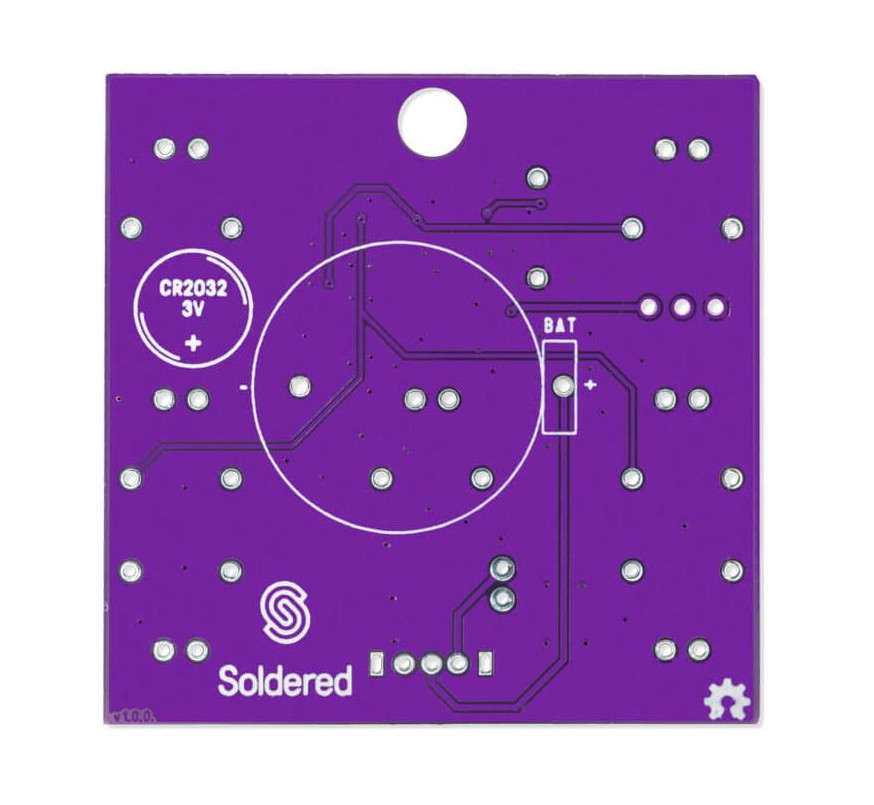

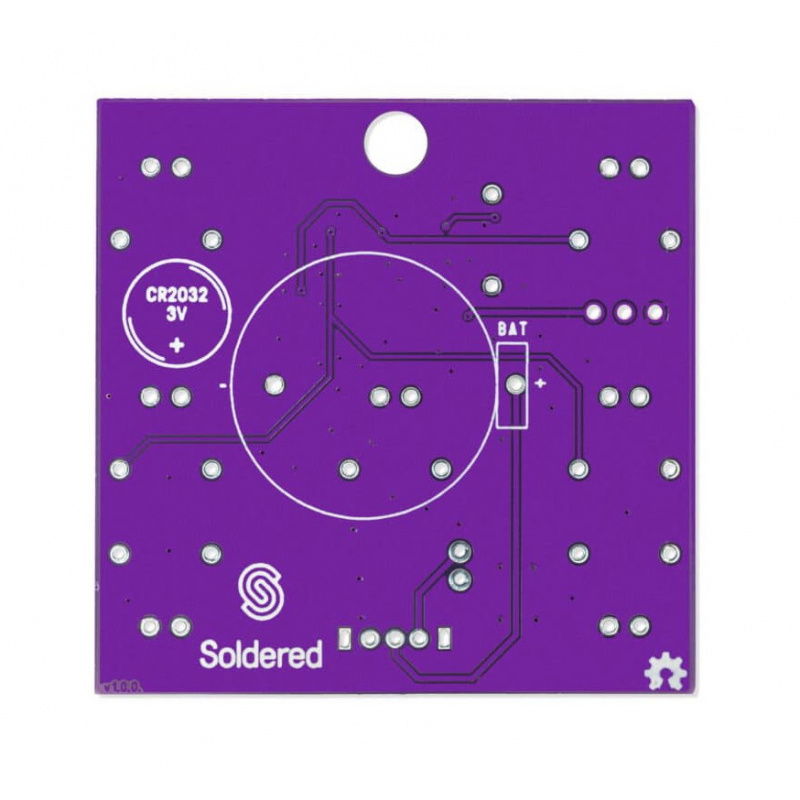

On the back of the board there is a place for a CR2032 battery.
Main features of the LED dice set
- Ready-made SMD components: most SMD components are pre-soldered for easy assembly
- Learning through play: the perfect kit for learning soldering and electronics basics
- Vibration support: SW-18020P sensor responds to shaking and activates randomization
- Arduino IDE Programming: Attiny404 microcontroller programmed in Arduino IDE
- Open project: full documentation available on GitHub repository
- Portability: battery operation and the included keychain allow you to carry the set with you at all times
Practical applications
- Learning soldering and basic electronics for children and adults
- A Weekend DIY Project for Hobbyists
- Mobile game of chance for your keychain - always at hand
- The perfect educational kit for workshops and school classes
- A gift for every fan of electronics and programming
Soldering and programming - learning electronics from scratch

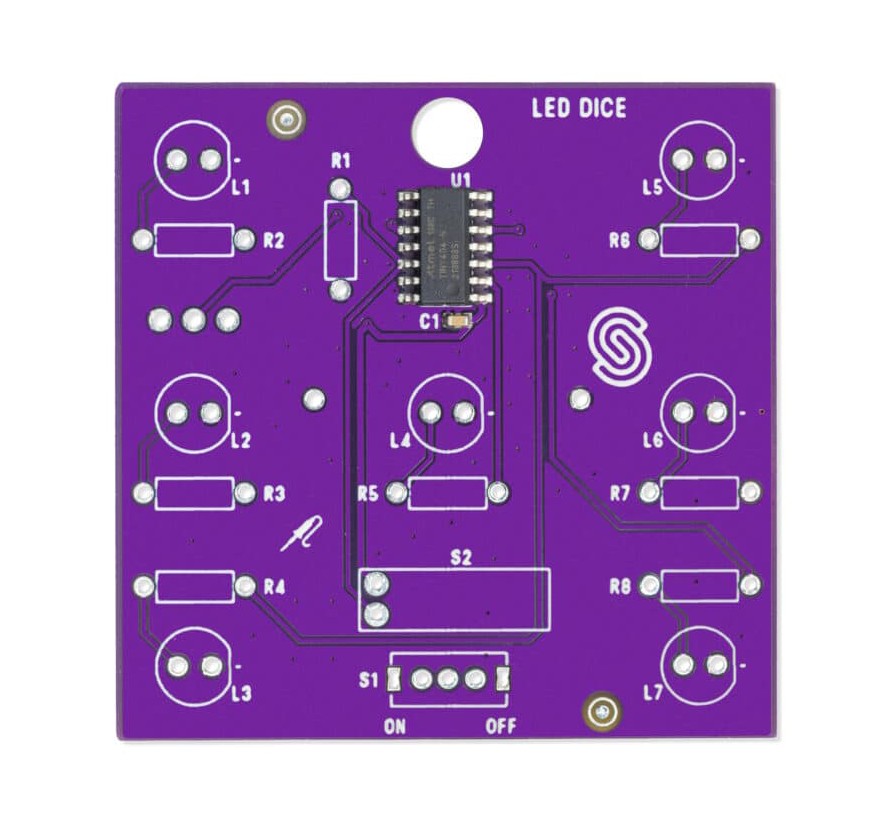

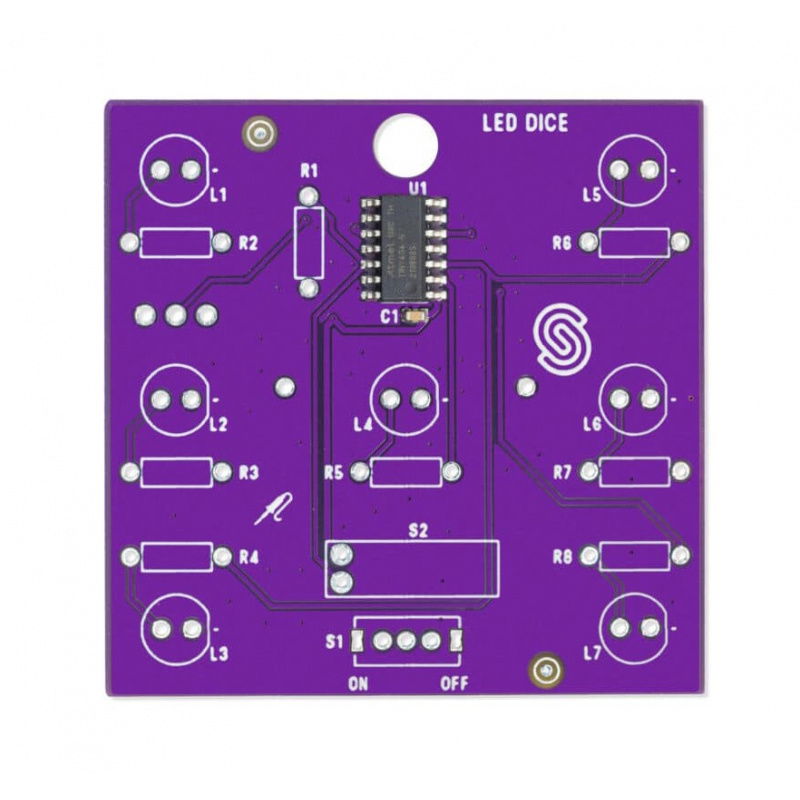

The LED Dice kit was designed with education in mind – both in electronic assembly and the basics of microcontroller programming. Thanks to clear markings on the PCB , the soldering process is intuitive even for those without prior experience. The Attiny404 microcontroller is pre-programmed , but the project is open-source , allowing for code modification and functionality expansion. It's a great introduction to the world of Arduino and embedded system design.

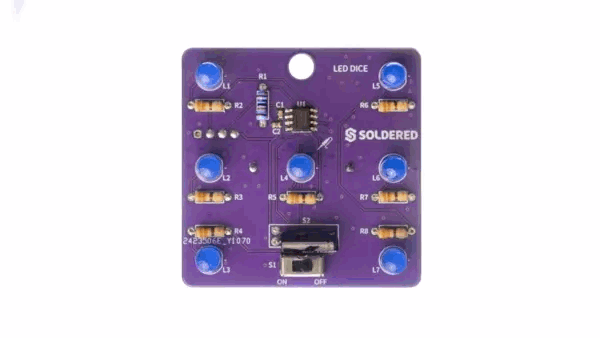

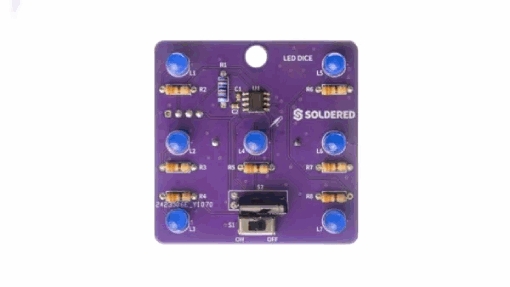

After turning it on and shaking the board, the selected LEDs light up randomly.

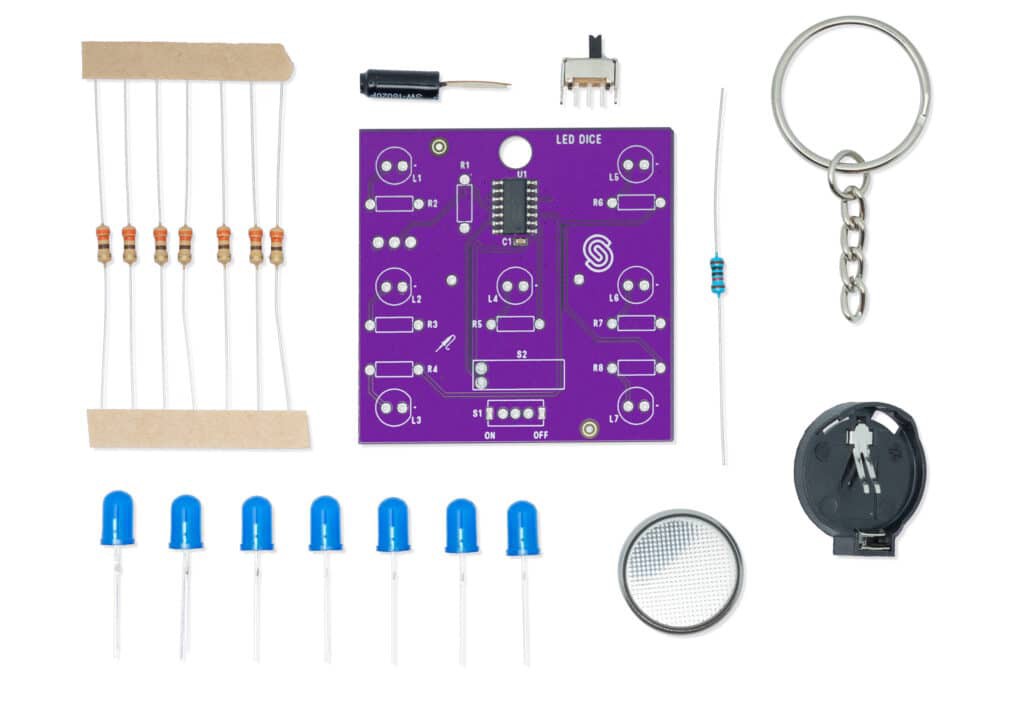

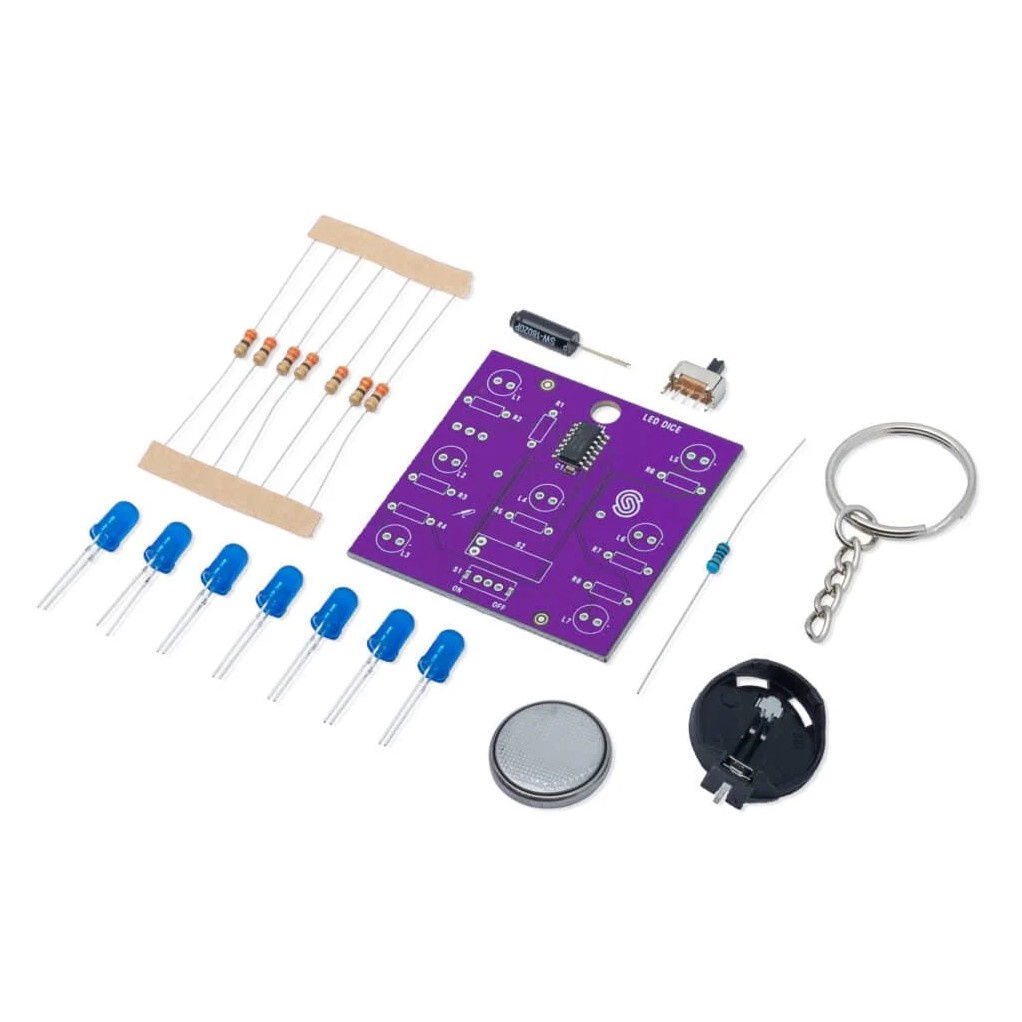

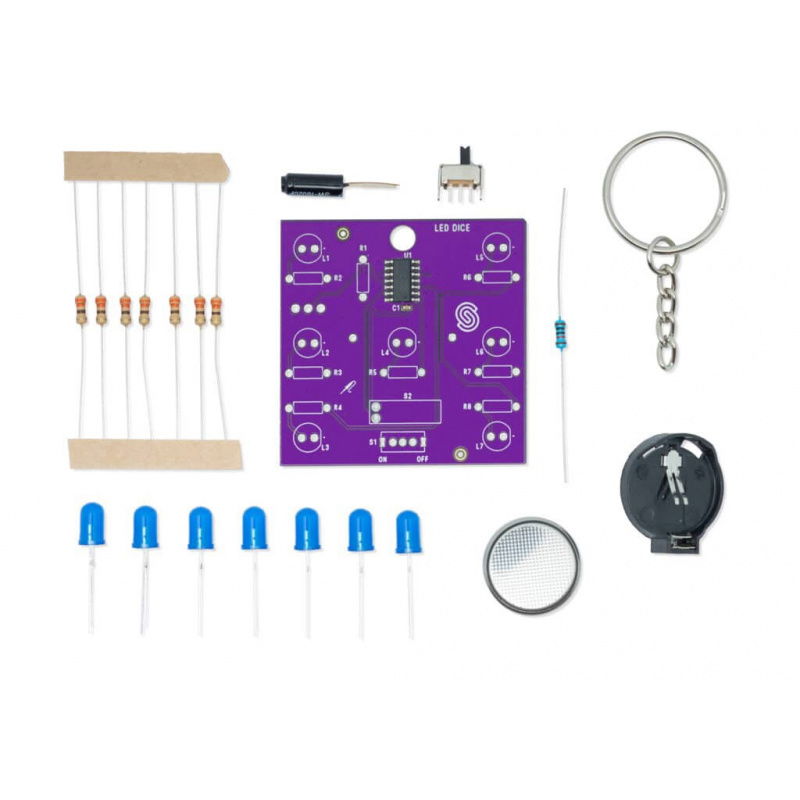

Elements included in the set.
LED dice technical specifications
- Microcontroller: Attiny404, programmed in Arduino IDE
- Number of LEDs: 7 pcs.
- Resistors: 7 x 330 Ω, 1 x 10 kΩ
- Vibration sensor: SW-18020P
- Switch: included
- Power supply: CR2032 battery (included)
- Battery holder: PCB mounted
- Additional: key ring

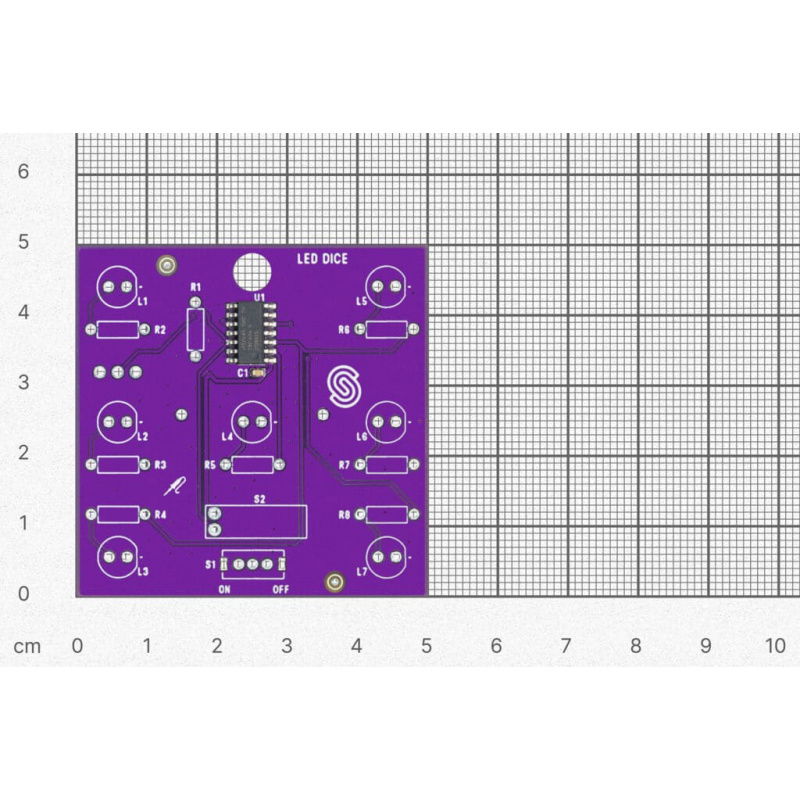

- Dimensions: 50 x 50 mm
Contents of the set
- 1x PCB with markings
- 1x Attiny404 Microcontroller (pre-flashed)
- 7x LEDs
- 7x 330 Ohm Resistor
- 1x 10kΩ resistor
- 1x Switch
- 1x Vibration Sensor SW-18020P
- 1x Battery holder
- 1x CR2032 Battery
- 1x Keychain ring
