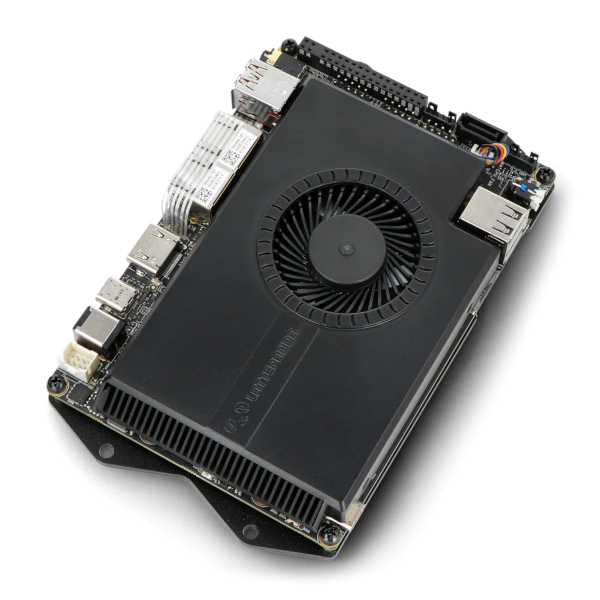

LattePanda Sigma - 32 GB RAM - M.2 NVMe - Intel Core i5-1340P
LattePanda Sigma is another version of the popular single board computer (SBC). The minicomputer is based on the 13th generation Intel processor - Intel Core i5-1340P with 12 cores and 16 threads. It is clocked from 1.9 GHz to 4.6 GHz for Performance-Core cores. The Intel Iris Xe Graphics graphics chip is also integrated in the processor. The board is equipped with 32 GB of LPDDR5 6400 MHz RAM . M.2 and SATA 6 Gb/s connectors allow for the installation of SSD and HDD drives. It is possible to use Windows 10, 11 and Linux .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: LattePanda Sigma - 32 GB RAM - M.2 NVMe - Intel Core i5-1340P
LattePanda Sigma is another version of the popular single board computer (SBC). The minicomputer is based on the 13th generation Intel processor - Intel Core i5-1340P with 12 cores and 16 threads. It is clocked from 1.9 GHz to 4.6 GHz for Performance-Core cores. The Intel Iris Xe Graphics graphics chip is also integrated in the processor. clocked from 400 MHz to 1450 MHz. The board is equipped with 32 GB of dual-channel LPDDR5 6400 MHz RAM . M.2 (NVMe/SATA) and SATA 6 Gb/s connectors allow for the installation of SSD and HDD drives. Additional WiFi , 4G, 5G modules allow you to expand the minicomputer's capabilities with wireless communication. The many available pins also include USB3.2, Thunderbolt 4, Ethernet, HDMI, and eDP. The ATmega32U4-MU coprocessor is compatible with Arduino and allows the use of GPIO connectors to connect sensors and many other modules. It is possible to use Windows 10, 11 and Linux .
The manufacturer has prepared a detailed user's guide , which makes it much easier to start working with the minicomputer - check it out!
Product description: LattePanda Sigma - 32 GB RAM - M.2 NVMe - Intel Core i5-1340P
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

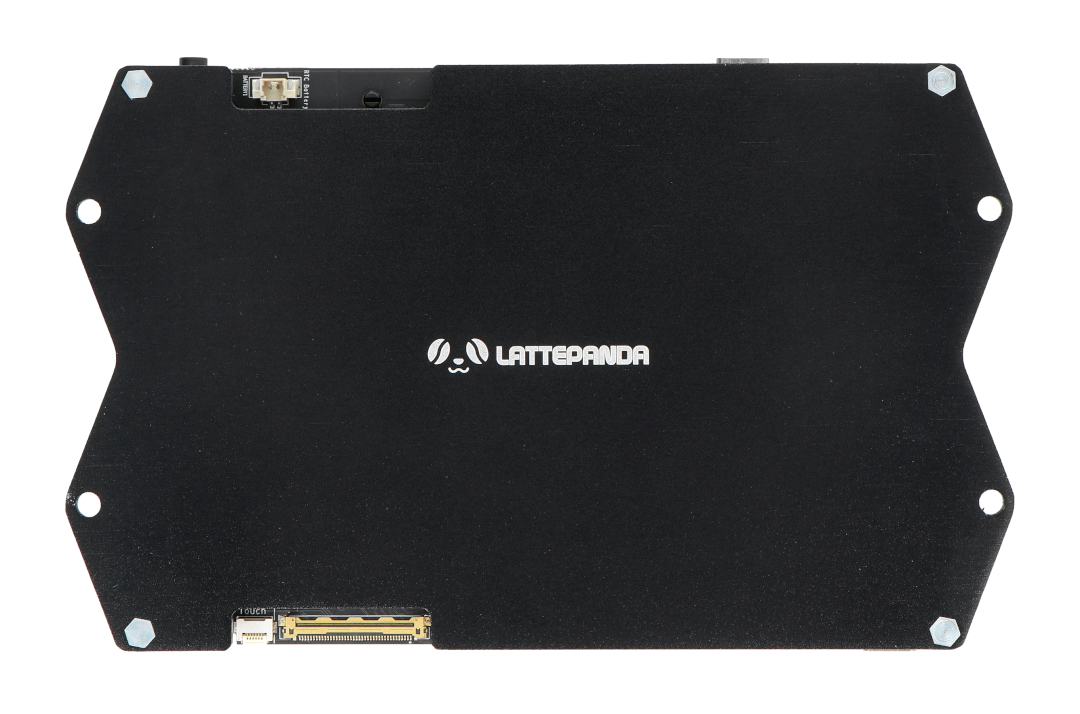

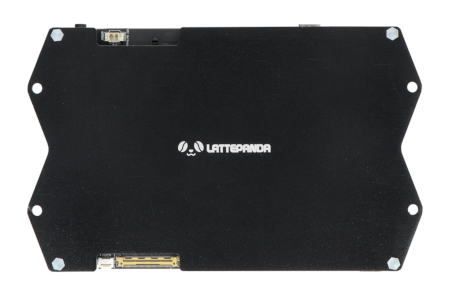

The bottom side of the computer is protected with a metal plate.
Main features of LattePanda Sigma
- The 13th generation Intel processor - Intel Core i5-1340P with 12 cores and 16 threads is characterized by very good performance.
- Fast RAM - 32 GB of dual-channel LPDDR5 memory clocked at 6400 MHz allows you to use many applications at the same time while maintaining high speed.
- Wireless communication possibilities - built-in M.2 connectors allow the use of WiFi, as well as 4G and 5G modules.
- Multiple video outputs - HDMI 2.1, USB Type C (DP 1.4a with resolution up to 8K) and eDP for use in embedded systems.
- High data transfer speed - 2 x USB3.2 Gen 2, 2 x Thunderbolt 4, 2 x Ethernet 2.5GbE guarantee fast data transfer between devices.
- The built-in Atmega32U4-MU coprocessor - compatible with Arduino - thanks to the GPIO connectors allows you to connect sensors or actuators.
- Support for Windows 10 and Windows 11 operating systems, as well as Linux systems: Ubuntu, Promox VE.

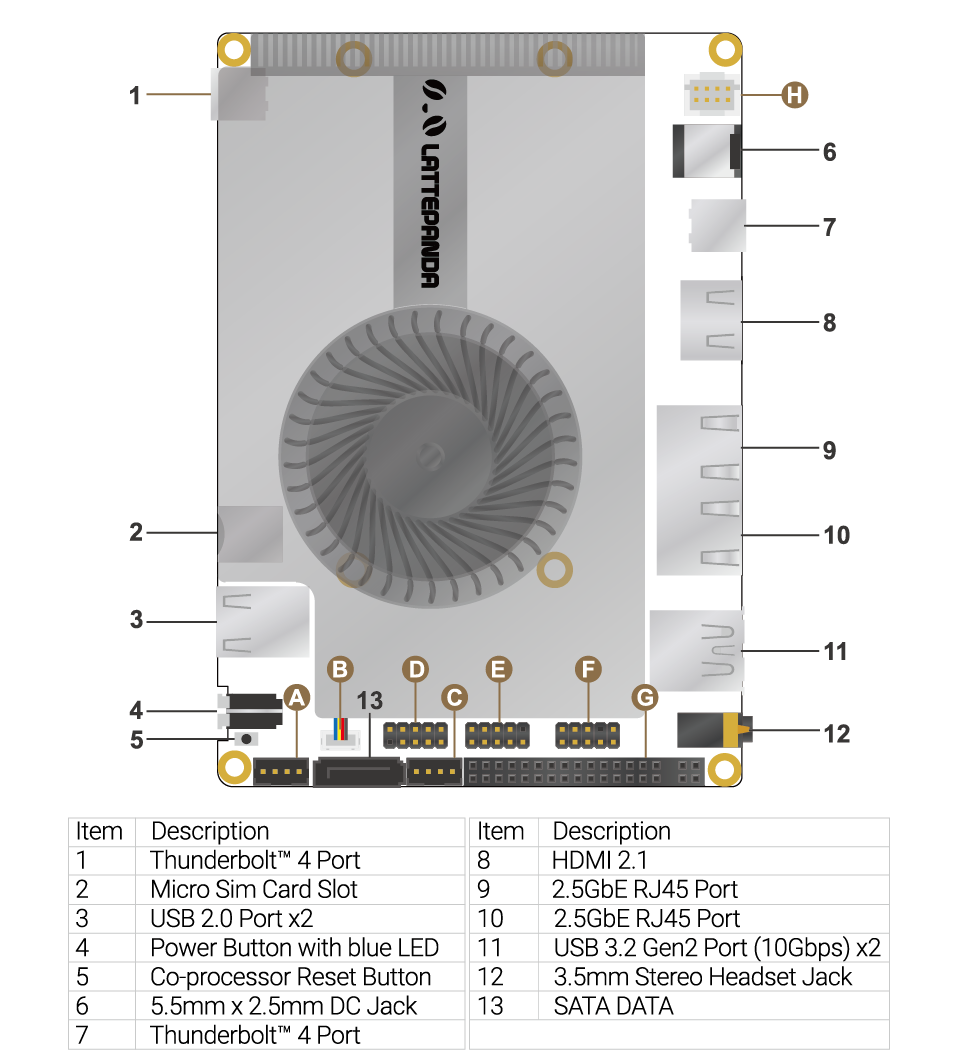

Pinout layout on the LattePanda board
- Thunderbolt 4
- Micro SIM card slot
- 2 x USB 2.0
- Power button with LED
- Coprocessor reset button
- Power connector 5.5 mm x 2.5 mm DC Jack
- Thunderbolt 4
- HDMI 2.1
- Ethernet 2.5GbE RJ45
- Ethernet 2.5GbE RJ45
- 2 x USB 3.2 Gen 2
- 3.5mm audio jack
- SATA data connector
A detailed description of the pinouts can be found in the documentation .

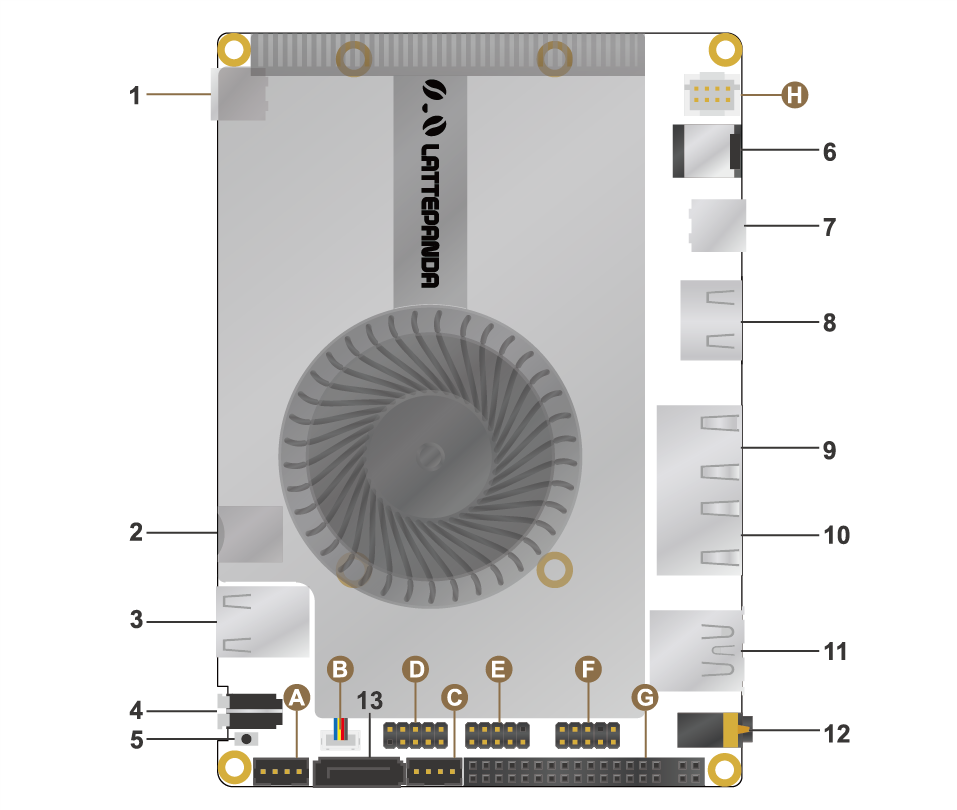

Many pins of the LattePanda Sigma minicomputer.

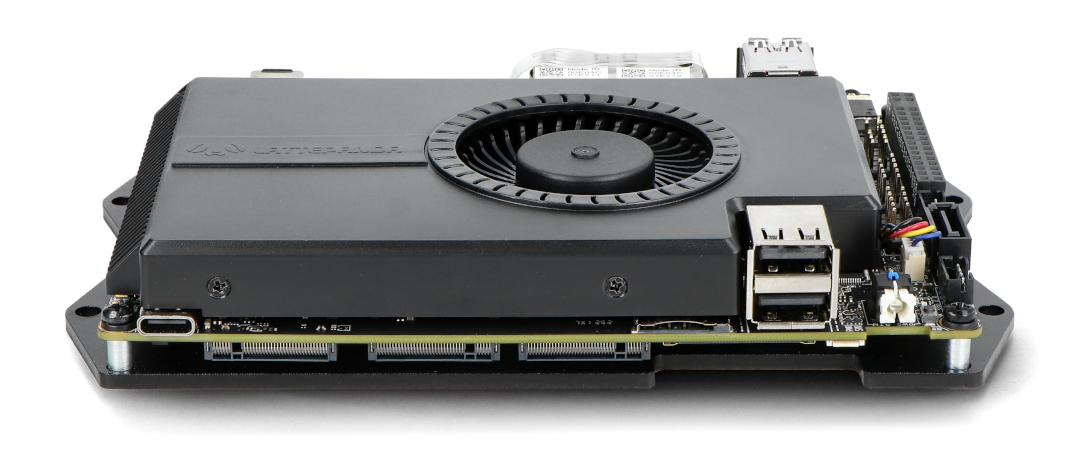

A small fan is responsible for cooling the computer.
What is needed to run LattePanda?
- M.2 or SATA disk - for installing the operating system and storing data
- Power supply - a dedicated 90 W power supply is included in the set
- External monitor - connected to the HDMI or USB Type C (Thunderbolt) port
- HDMI/USB Type C cable - required to connect the monitor, it is also possible to use an eDP display
- Keyboard and mouse - to control the minicomputer
- Operating system - e.g. Windows 10, Windows 11 or Linux
The manufacturer has prepared a guide for easier installation of the operating system.
LattePanda Sigma minicomputer communication
Despite its compact dimensions, the minicomputer offers many interfaces known from PC computers. These include:
- USB type A : 2 x USB2.0, 2 x USB3.2 Gen2 (10 Gb/s)
- USB Type C : 2 x Thunderbolt 4 (40 Gb/s)
- Ethernet : 2 x 2.5GbE RJ45 10/100/1000/2500 Mb/s with WOL function
- M.2 connectors - allow you to connect SSD drives and wireless communication modules
- SATA connector - allows the use of 2.5" and 3.5" SSD and HDD drives
- GPIO - pins of the ATmega32U4-MU coprocessor can be used to operate many peripheral devices, including: sensors, buttons and engines

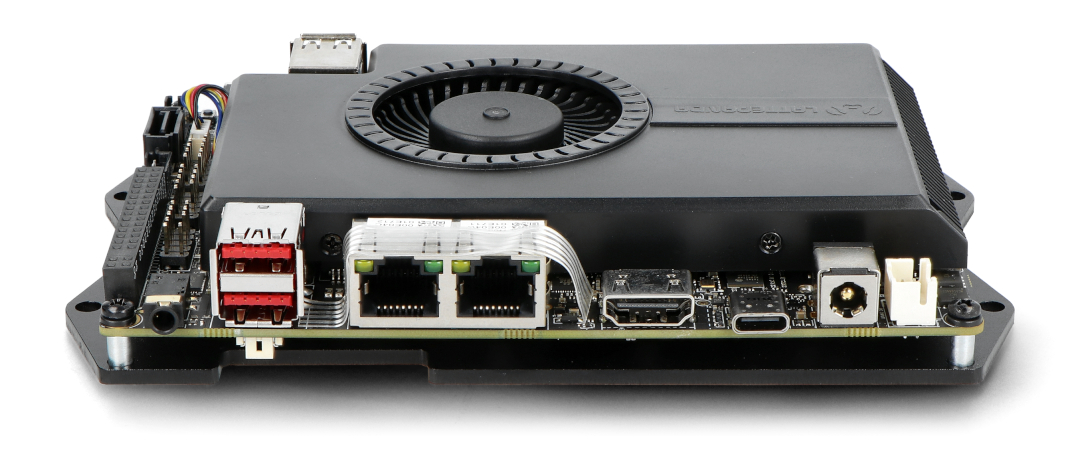

LattePanda Sigma is equipped with many connectors known from PC computers.
Technical specifications of LattePanda Sigma
| Processor | Intel Core i5-1340P |
|---|---|
| Number of cores | 12 (16 threads) |
| Operating Systems | Windows Linux |
| CPU clock speed | from 1.9 GHz to 4.6 GHz |
| Graphic layout | Intel Iris Xe Graphics |
| RAM | 32 GB LPDDR5-6400 (dual-channel) |
| Coprocessor | Atmega32U4-MU compatible with Arduino |
| GPIO socket | 34-pin female connector |
| Security | TPM 2.0 |
| USB interfaces | 2 x USB2.0 type A 2 x USB3.2 Gen2 Type A 2 x Thunderbolt 4 - USB Type C connector |
| Network interface | 2 x Ethernet ports 10/100/1000/2500 Mb/s |
| Video | 1 x HDMI 2.1 1 x DP 1.4a - USB type C connector 1 x eDP 1.4b display connector |
| Audio | microphone and headphone connector - 3.5 mm Jack |
| M.2 connectors | 2 x M.2 M key - PCIe 4.0 x4, PCIe 3.0 x4 1 x M.2 B key - SATA III/PCIe 3.0 x1, 4G, 5G communication modules 1 x SATA 6Gb/s port 1 x M.2 E key - for CNVio/PCIe WiFi modules |
| Power connectors | 1 x DC Jack 5.5 mm x 2.1 mm - 12 V to 20 V 1 x USB Type C - PD 20V |
| Additional pins | 1 x 4-pin USB2.0 connector - 2.0 mm pitch 1 x 4-pin fan connector - 1.27 mm pitch 1 x 9-pin connector - front panel - 2.54 mm pitch 1 x 9-pin connector - audio input/output - 2.54 mm pitch 1 x COM - RS232, RS485 |
| RTC battery | CR1220 - 3V |
| Working temperature | from 0℃ to 45℃ |
| Plate dimensions | 146 x 102 x 24 mm |

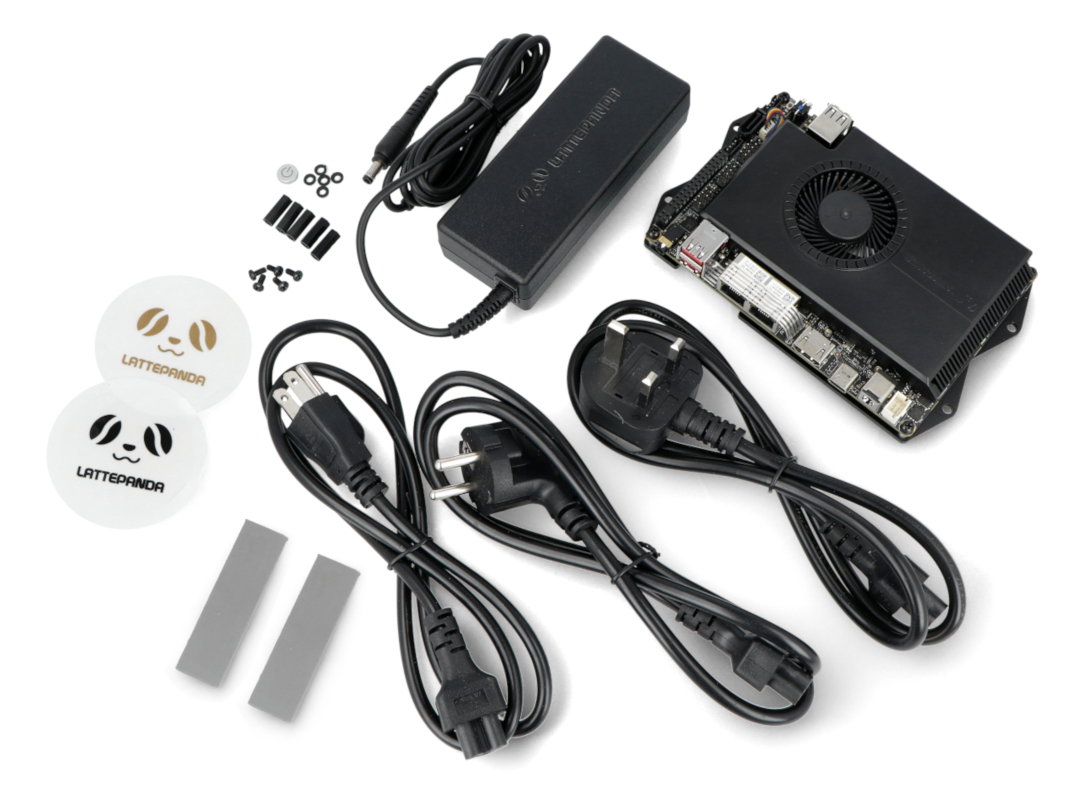

Elements included in the set.
Set contents
- 1 x LattePanda Sigma - 32 GB RAM - M.2 NVMe - Intel Core i5-1340P
- 1 x Cooling fan (built-in)
- 1 x Metal bottom protection plate
- 2 x Thermopad for M.2 SSD
- 1 x DC Jack Power Adapter
- 3 x Power Cord (EU, US, UK)
- 1 x RTC Battery
- 1 x User Manual
Useful links
| Name | Value |
|---|---|
| UC - RAM | 32 GB |
| UC - Ethernet | yes |
| UC - HDMI | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector |
|
| UC - SPI interface | yes |
| UC - LCD interface | yes |
| UC - Linux | yes |
| UC - Windows | yes |
| Width | 23.5 cm |
| Height | 34 cm |
| Depth | 9 cm |
| Weight | 1.675 kg |
