Product description: VL53L3CX time-of-flight - I2C distance and ambient light sensor - 500 cm - Pololu 3416
Digitalsensorfortime-of-flightdistance measurementand ambient light intensity measurement. The measurement range isfrom 1 cm to 500 cmwith a resolution of1 mm. It usesI2C(TWi) bus to communicate, and is powered by2.6 to 5.5 V. The module does not provide a direct distance measurement - it returns data in the form of ahistogram, which can be processed using algorithms provided by the ST language. The sensor is equipped withpassive elementsnecessary for proper operation. Connectors are populargoldpinconnectors that allow to connect the sensor withwiresor directly plug it intocontact board. Kit contains connectors for individual soldering.

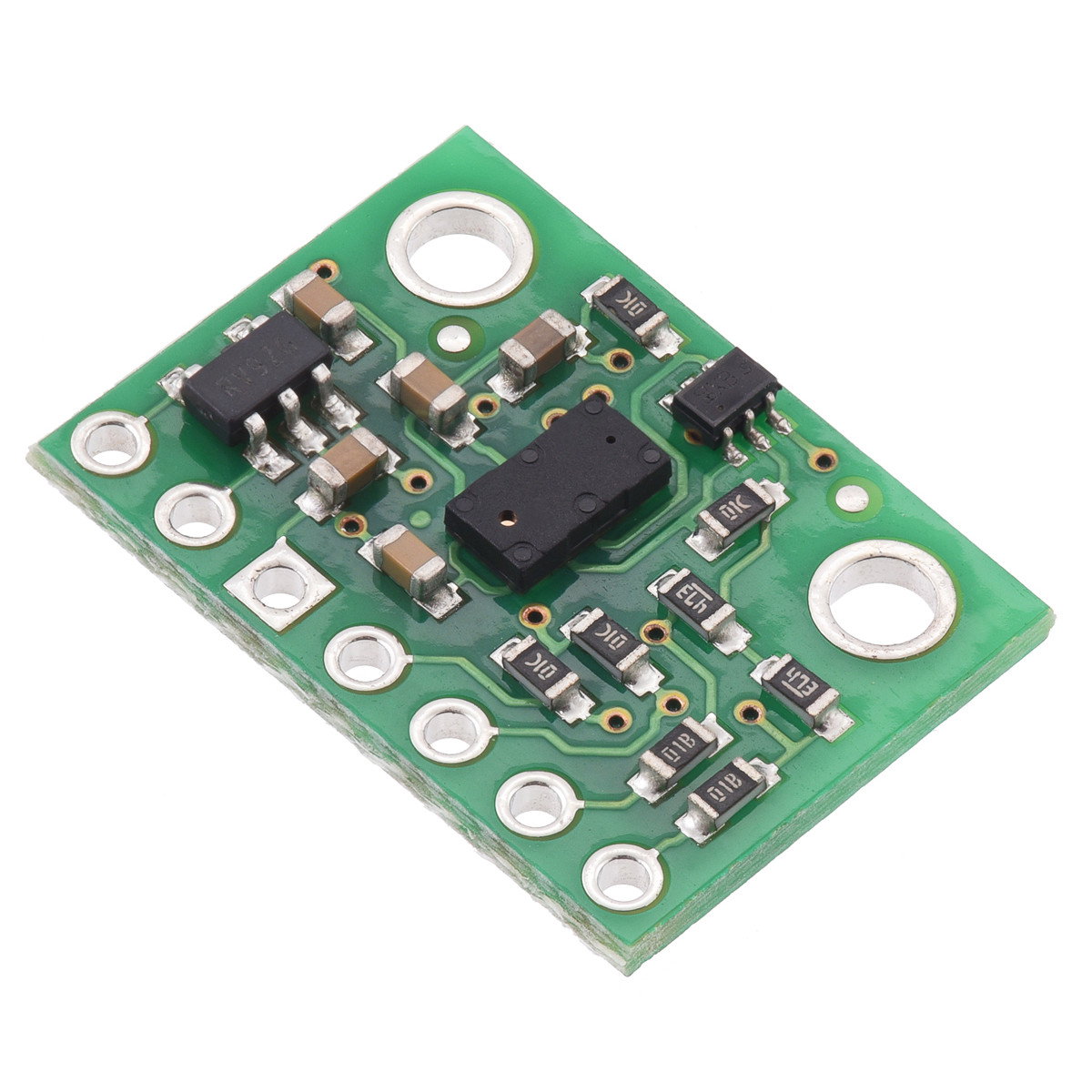

Ambient light and distance sensor produced by Pololu.
Powered by voltage from 2,6V to 5,5V.

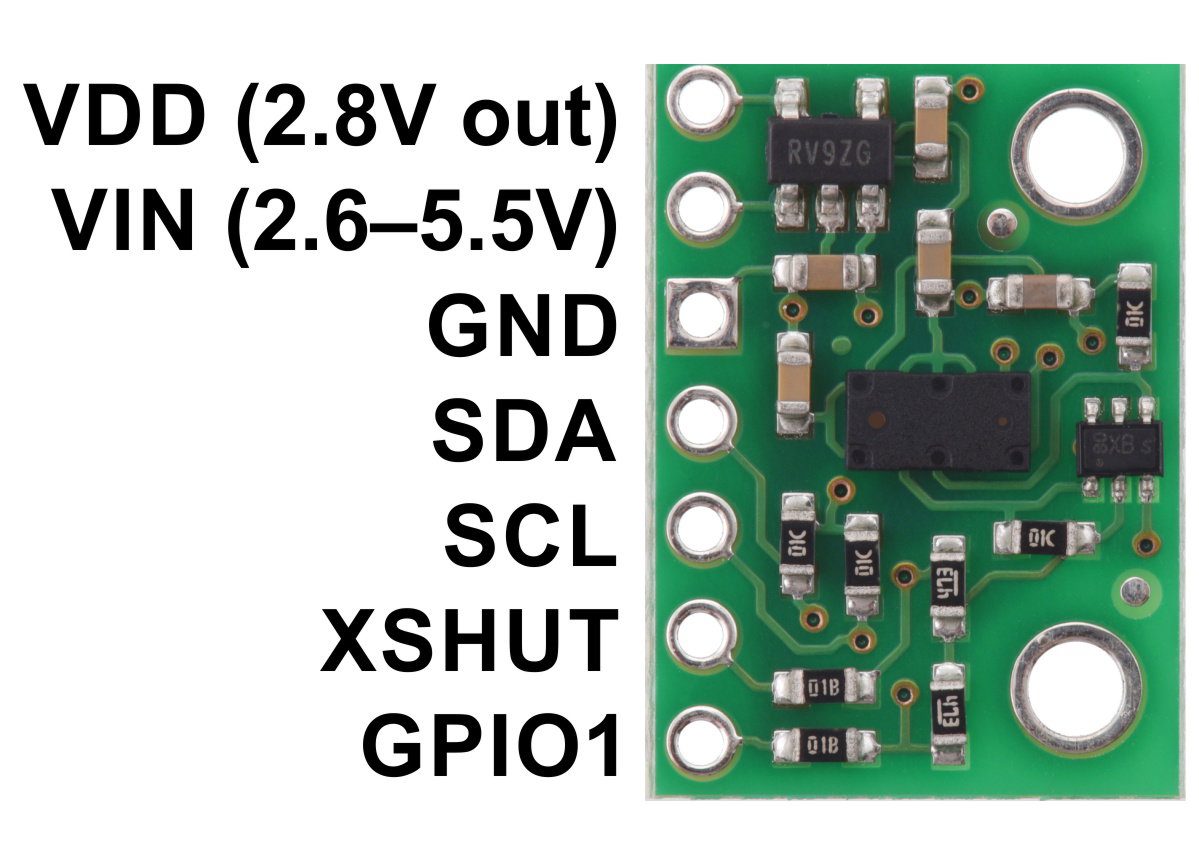

Description of sensor leads
- VDD- adjustable sensor output voltage 2.8 V
- VIN- module power supply voltage in the range of 2.6 V to 5.5 V
- GND- system ground
- SDA- data line of I2C communication interface
- SCL- I2C communication interface clock line
- XSHUT- pin switching off the module activated by low state. Default pin is VDD
- GPIO1- programmable interrupt output
Technical specification
- Supply voltage: 2.6 V to 5.5 V
- Current consumption: 15 mA
- Communication interface: I2C (TWI)
- Interface address: 0x52
- Minimum measurement range: 1 cm
- Maximum measurement range: up to 500 cm
- Resolution: 1 mm
- Emitted wavelength: 940 nm
- Viewing angle (FOV): 25°
- Operating temperature range: -20°C to 85°C
- Housing: lead-free LGA

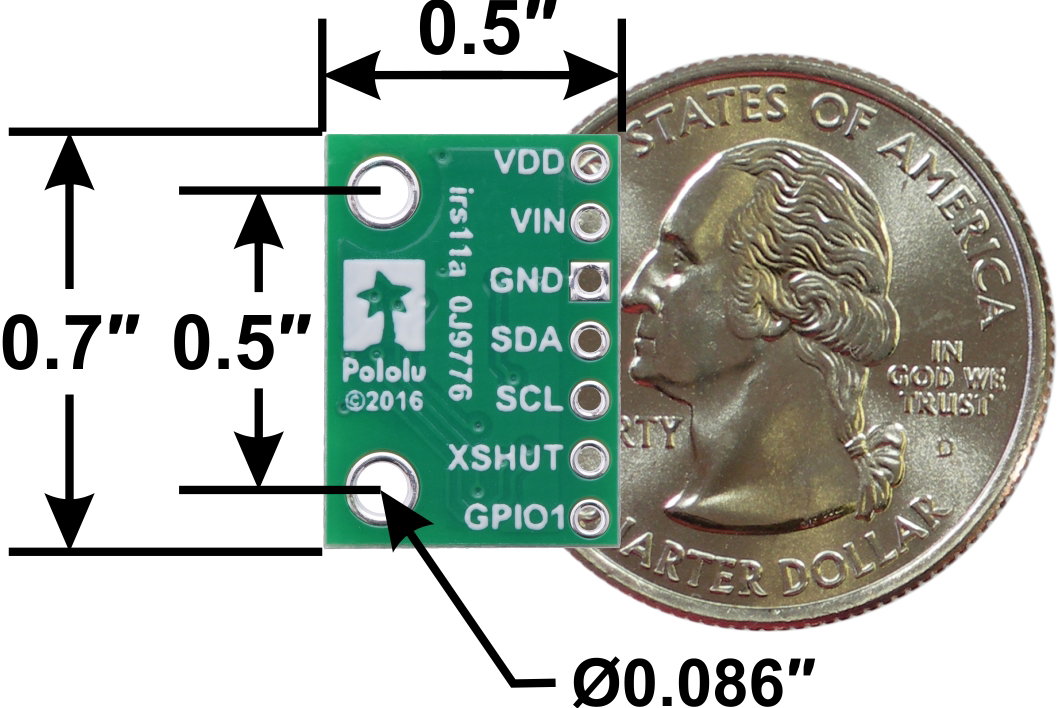

- Module dimensions: 13 x 18 x 2 mm
- Weight: 0.5 g
The module has mounting holes which allow for comfortable sensor mounting.

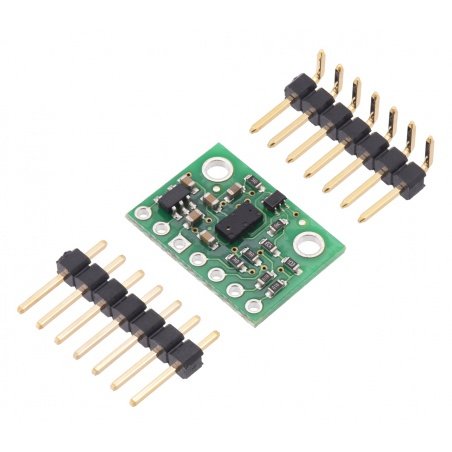

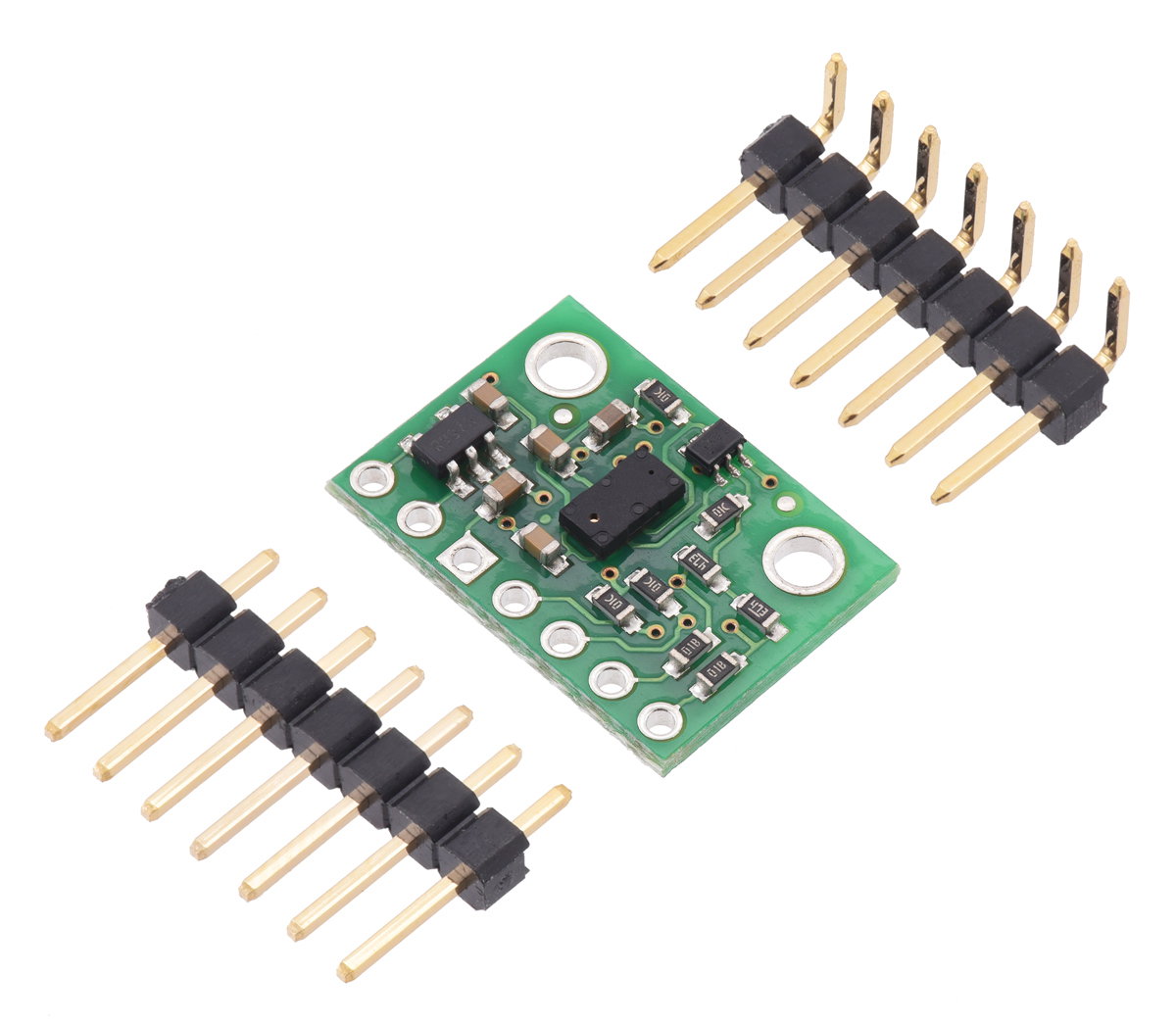

Straight and angle goldpin strips are included in the set.
Set contents
- Ambient light and distance sensor
- Straight goldpin socket 1x7 pin
- Corner goldpin 1x7 pin
