DRV8256E - single-channel motor controller 48V/1,9A - Pololu 4038
A small, single-channel DC motor driver. The DRV8256E module developed by Pololu is powered from 4.5 V to 48 V. Continuous current per channel is 1.9 A (momentary up to 6.4 A for 1 second). It allows simple control of speed and direction of motor rotation, using only two microcontroller pins. The controller is also equipped with protection against reverse polarity, too low voltage, too high current and too high temperature.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: DRV8256E - single channel motor driver 48 V / 1,9 A - Pololu 4038
A small, single-channel DC motor driver. The DRV8256E module developed by Pololu is powered from 4.5 V to 48 V. Continuous current per channel is 1.9 A (momentary up to 6.4 A for 1 second). It allows simple control of speed and direction of motor rotation, using only two microcontroller pins. The controller is also equipped with protection against reverse polarity, too low voltage, too high current and too high temperature.

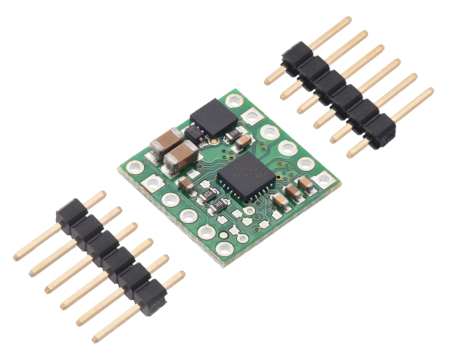

Single channel DC motor driver - DRV8256E.
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.

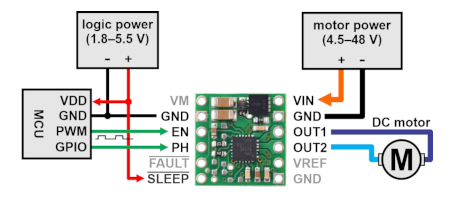

Connection of DRV8256E motor driver.
Connection of DRV8256E motor controller
Supply motor voltage from 4.5 V to 48 V to the VIN pin. In a typical application, it is sufficient to connect two control lines: PHASE direction selection and PWM speed control to the ENABLE pin. Both lines are internally pulled up to ground through a resistor. SLEEP pin allows to switch the chip into low power mode. A low state must be specified to enter sleep mode.
DRV8256E truth table
| ENABLE | PHASE | OUT1 | OUT2 | MODE OF OPERATION |
|---|---|---|---|---|
| PWM | 1 | PWM (H/OPEN) | L | Forward / deceleration at PWM speed %. |
| PWM | 0 | L | PWM (H/OPEN) | Reverse / Disengage at PWM speed % PWM |
| 0 | X | OPEN | OPEN | enable / IDLE (output off) |
Outputs of the DRV8256E controller
| Pin | Default state | Description |
|---|---|---|
| VIN | Input voltage from 4.5 V to 48 V. | |
| GND | System ground for the motor and logic. | |
| VM | Pin giving access to the motor power supply after the MOSFET reverse voltage protection. It can be used to power other elements of the system with reverse polarity protection. | |
| OUT1 | Motor 1 output. | |
| OUT2 | Motor 2 output. | |
| EN | LOW | Activates the input for output activation / motor speed control. A high state causes the motor to run. Controlled by PWM. |
| PH | LOW | Phase input to control the direction of rotation of the motor. |
| FAULT | FLOATING | Open-drain, fault output activated by a low state. Pin goes low when current or voltage is exceeded. Must be pulled up with a resistor to default to the high state. |
| SLEEP | LOW | The SLEEP input causes the controller to go into a low power state when the low state is applied. This pin can also be toggled to clear a locked overcurrent or overtemperature fault. |
| VREF | Current limiting threshold reference voltage. |
DRV8256E motor controller specifications
- Number of channels: 1
- Supply voltage: 4.5 V to 48 V
- Continuous current per channel: 1.9 A
- Instantaneous current per channel: 6,4 A
- Maximum PWM frequency: 100 Hz
- Minimum logic voltage: 1.8 V
- Maximum logic voltage: 5,5 V
- Reverse polarity protection
- Dimensions: 15.2 x 15.2 mm
- Weight: 0,6 g
Schematics of the DRV8256E controller.
Useful links
| Name | Value |
|---|---|
| Voltage to | 4.8 |
| Voltage from | 48.0 V |
| Current | 1.9 A |
| Channels | 1 |
| Width | 7.5 cm |
| Height | 0.5 cm |
| Depth | 5 cm |
| Weight | 0.002 kg |
