- New

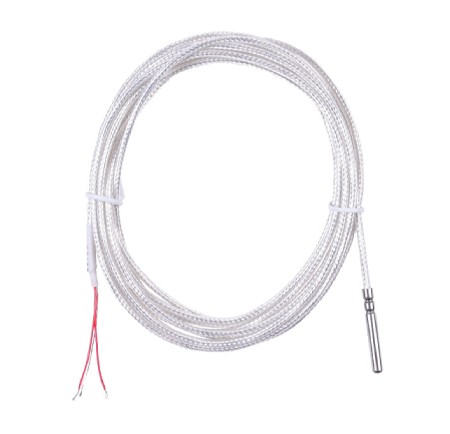

Product description: High temperature measuring probe PT1000 stainless steel - 4 x 30 mm - Seeedstudio 314010819
PT1000 temperature sensor based on RTD technology. Thanks to its construction with a 304 stainless steel probe, it provides resistance to high temperatures and corrosion , as well as waterproofness at the IP68 level. The sensor operates in a wide temperature range from -50°C to 300°C with accuracy class B+ (typical accuracy ± 0.5°C). The use of PTFE cable with silver braiding ensures resistance to electromagnetic interference . PT1000 is ideally suited for applications in various industries, such as food industry, aquaculture, cooling systems or monitoring technological processes. The length of the probe is equal to 30 mm, and the length of the cable is 3 m.
Check out other Seeedstudio products in our offer!
High temperature measuring probe PT1000 stainless steel - 4 x 30 mm - Seeedstudio 314010819.
The probe length is 30 mm and the cable length is 3 m.
Special features of the measuring probe
- Temperature range from -50°C to 300°C
- High measurement accuracy (class B+)
- 304 stainless steel probe, resistant to corrosion and high temperatures
- IP68 protection, water resistance
- PTFE cable, silver braiding, interference resistance
- Compact size, easy to install
- Wide application in liquids, gases and solid surfaces
- Quick response to temperature changes
PT1000 sensor applications
The PT1000 sensor is widely used in temperature monitoring systems , e.g. in the food industry, aquaculture, industrial cooling systems and in temperature control systems in technological processes. It works well with the SenseCAP S2107 , which allows precise and stable measurements in various applications requiring temperature monitoring of liquids, gases and solid surfaces. Thanks to its high noise immunity , the sensor can be used in environments with high vibration or with strong sources of electromagnetic interference.

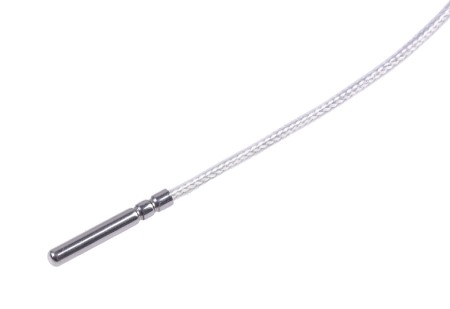

The probe is made of stainless steel.

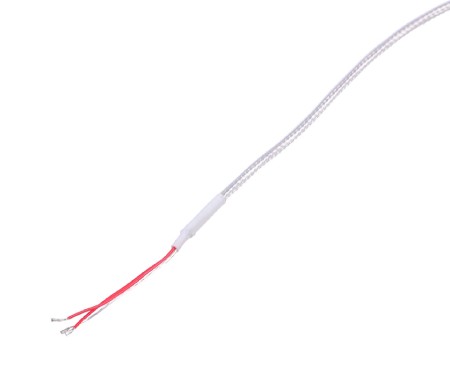

The probe has a PTFE cable with silver braiding.Technical specification of the PT100 measuring probe
- Measuring element: platinum resistor RTD PT1000
- Temperature measurement range: -50°C to 300°C
- Accuracy: Class B+ (typical ±0.5°C)
- Cable: 3-core PTFE with silver braiding
- Probe Housing: 304 Stainless Steel
- Protection class: IP68
- Application: liquid, gas, solid surfaces
- Operating temperature: -50°C to 200°C (cable), -50°C to 300°C (probe)
- Probe dimensions: 4 x 30 mm
- Cable length: 3 m
