Product description: Thermal imaging camera - 256 x 192 px - UNI-T UTi260B
A handheld thermal imaging camera from UNI-T that enables accurate temperature measurements and real-time thermal imaging display . It can be used in various ways, ideally suited to the industrial and construction industries or when checking the electrical installation. The camera can detect a wide range of temperatures from -20°C to as much as 550°C . To perform thermal measurements, it uses an IR lens with a resolution of 256 x 192 px , which records the results on a memory card . The device has 4 display modes: thermal, visual, fusion and picture-in-picture. The camera housing is made of hard material, which guarantees its high durability.

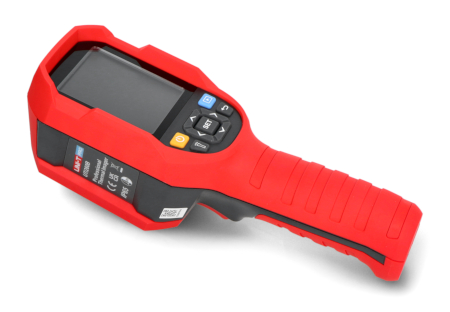

Thermal imaging camera - 256 x 192 px - UNI-T UTi260B.
Handheld thermal imaging camera.
Main features of the UNI-T UTi260B thermal imaging camera
- Accurate temperature measurements and real-time thermal imaging display
- Ability to work in difficult conditions
- Wide range of detected temperatures
- 2.8 inch TFT display
- IR lens with a resolution of 256 x 192 px
- 7 color palettes
- 4 display modes (thermal, visual, fusion and picture-in-picture)
- Automatic high/low temperature alarm
- Automatic hot/cold spot tracking
- Possibility to save images on a micro SD card
- Selectable °C or °F units
- Powered by a Li-Ion battery
Application of the UNI-T UTi260B thermal imaging camera
- Automotive - vehicle inspection
- Industry - machine control
- Photovoltaics - inspection of solar panels
- Plumbing - checking pipelines
- Heating - control of the underfloor heating system
- Electricity - repair of electrical installations
- Electronics - study of electronic circuits and devices
Technical specification of the UNI-T UTi260B thermal imaging camera
- Manufacturer: UNI-T
- Model: UTi260B
- Infrared resolution: 256 x 192 px
- Temperature measurement range: -20°C to 550°C
- Measurement accuracy: ± 2°C
- Thermal sensitivity (NETD): ≤ 50mK
- Spatial resolution (IFOV): 3.8 mrad
- Frame rate: ≤ 25 Hz
- Field of view: 56° x 42°
- Digital camera resolution: 640 x 480 px
- Connectors: USB-C
- Power supply: Li-Ion cell
- Sealing class: IP65
- Dimensions: 236 x 75.5 x 86mm
- Weight: 910g
Kit contents
- Thermal imaging camera - 256 x 192 px - UNI-T UTi260B
- 32GB microSD memory card
- USB-C cable
- User manual in English

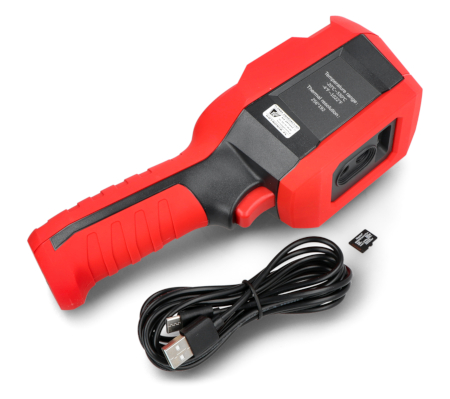

Components included in the set.
