Description
Module with relay that allow for the control of the actuators consuming the current of up to 16 A through the ports of the microcontroller or any development kit, for example, Arduino. The kit includes a cable adapted to DFRobot IO Expansion Shield.
|
The product is compatible with Arduino Sample code and detailed information can be found in the user guide. |

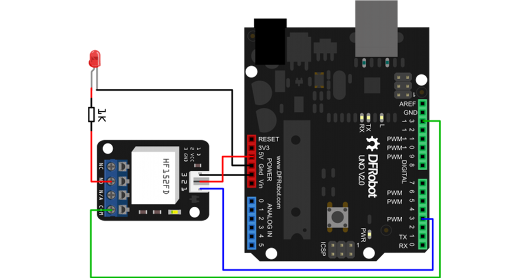

Connection
The sensor works with any microcontroller with digital inputs, including Arduino. Control voltage of the relay is 5 V DC.
Specification
- V2.0
- Control voltage: 5 V DC
- Signal type: digital
- Maximum contacts voltage: 277 V AC /16 A/24 V DC
- Maximum contact current: 16 A
- Delay time: 10 ms
- Dimensions of board: 37 x 29 x 22 mm
Set includes:
- Module with relay
- Connecting cable
