Description

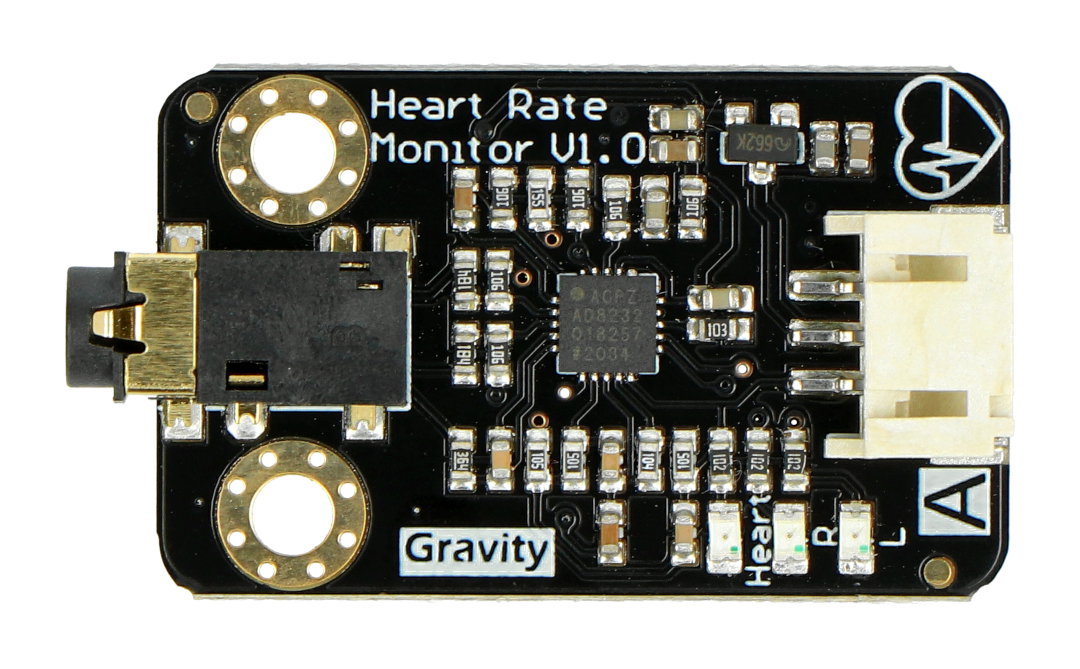

Module for measuring heart rate of the human heart, compatible with Arduino. It works with voltage from 3.3 V to 6 V, the output is the analog signal. The kit includes a probe, 6 biomedical sensors, module with pulsometer AD8232 heart rate monitor and the wire is adapted to DFRobot IO Expansion Shield.
|
The product is compatible with Arduino The manufacturer offers auser guideandexample of the code for Arduino. |
Connection
The sensor has an analog output that should be connected to the output of the A/D converter (analog input inArduino).
Set includes:
- Module with AD8232 heart rate monitor
- Cable with three reed switches
- 6 x biomedical sensors
- Connecting cable forDFRobot IO Expansion Shield
