Product Description: 60:1 6V 130 RPM gear motor

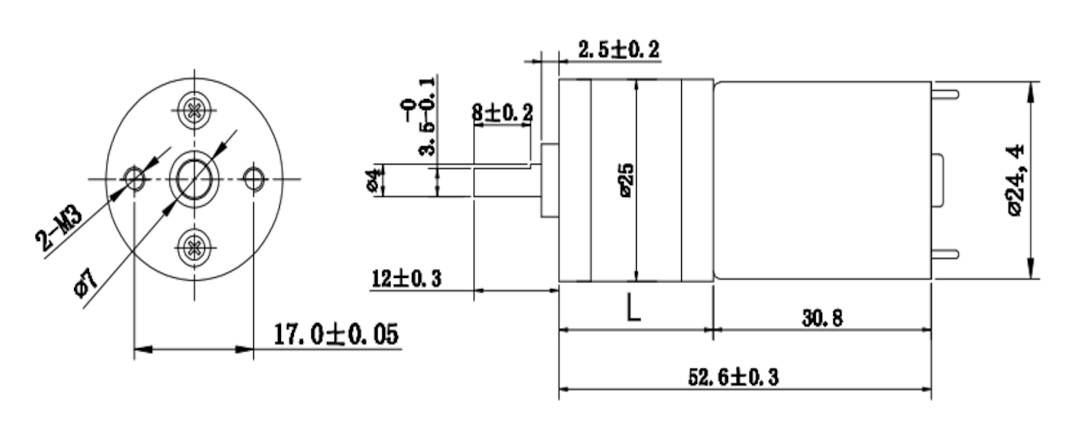

DC motor with 60:1 gear ratio. It is powered with the voltage of 6 V with an average current consumption of 85 mA. It generates 130 revolutions per minute , its torque is 6.5 kg*cm . The motor has a D-type shaft with a diameter of 4 mm . The dimensions of the motor housing are 52.6 x 24.4 mm. Detailed data can be found in the technical drawing .
Accessories
Our offer includes a wide range of accessories for DC motors. Wheels , mounting hubs and motor controllers that you will find with us will allow you to easily and conveniently create various types of projects using a DC motor.

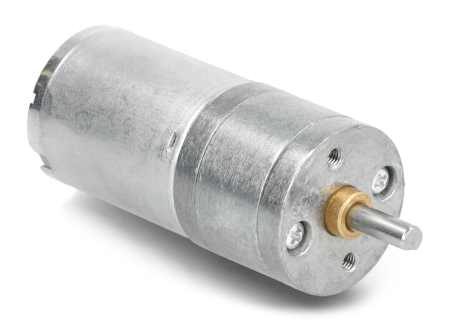

The motor shaft has a diameter of 4 mm.

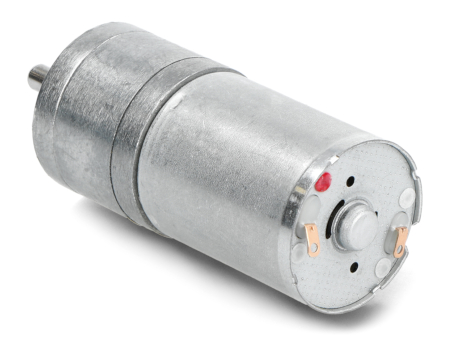

60:1 6V 130 RPM gear motor.
DC motor technical specification
- Gear ratio: 60:1
- Rated Voltage: 6V
- Average current consumption: 85 mA
- Maximum current consumption: 1.1 A
- Idling speed: 130 rpm
- Torque: 6.5kg*cm
- Output shaft diameter: 4mm D-type
- Output shaft length: 8mm
- Dimensions: 52.6 x 24.4mm
- Weight: 100g
In our offer you will find motors with gears with different gear ratios - check it out!
