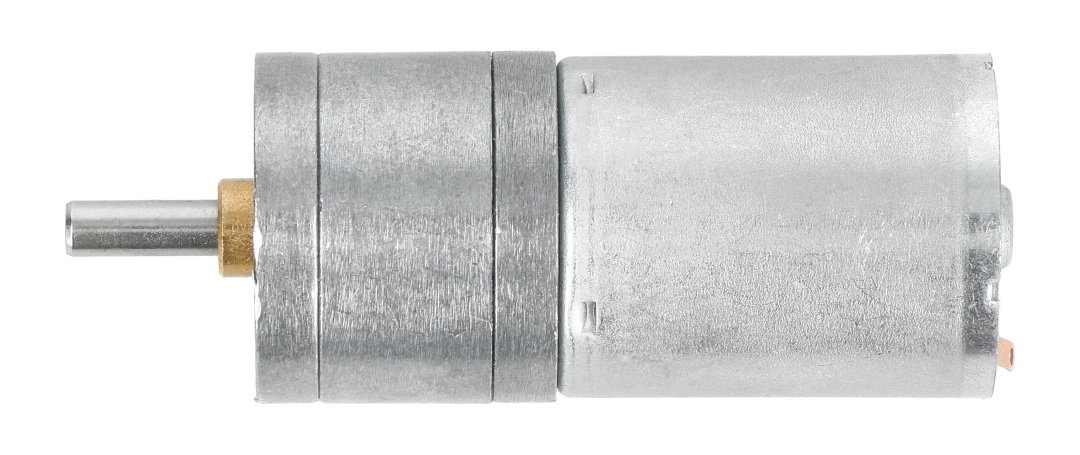

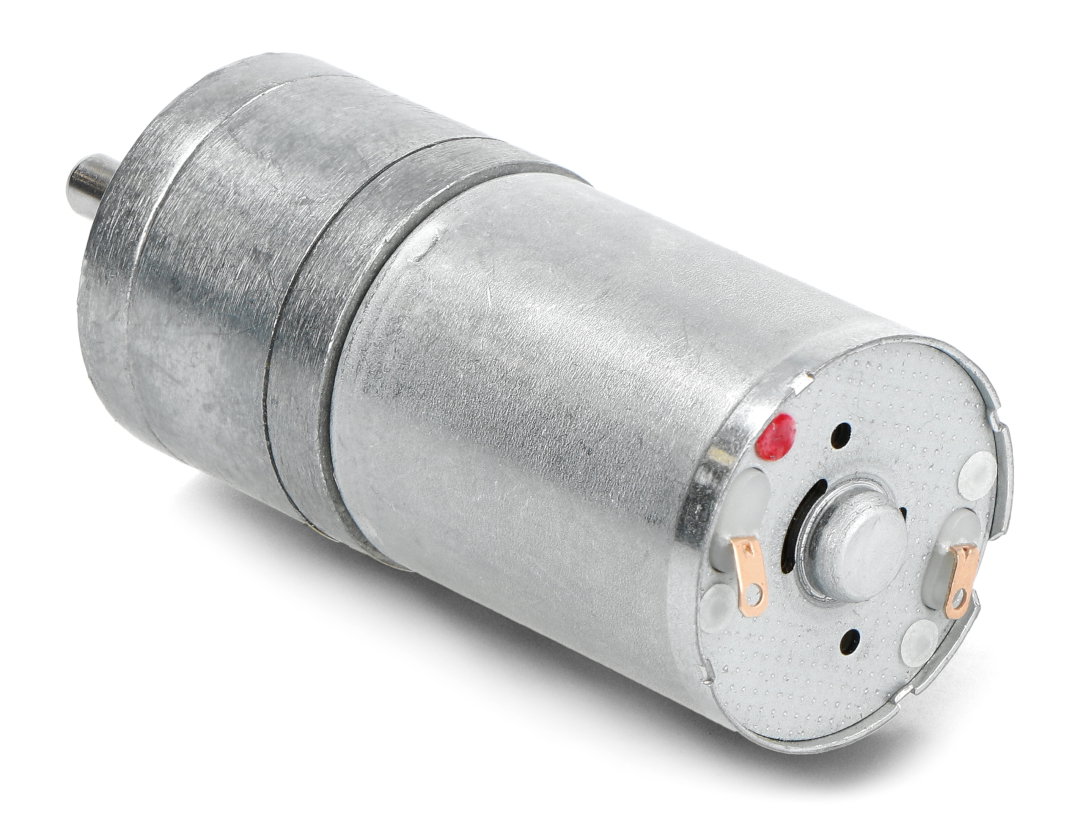

DC motor with 60:1 gear 6V 100RPM
DC motor with 60:1 gear ratio. It is powered with a voltage of 6 V with an average current consumption of 66 mA. It generates 100 revolutions per minute , its torque is 5.8 kg*cm . The motor has a D-type shaft with a diameter of 4 mm . The dimensions of the motor housing are 52.6 x 24.4 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: 60:1 6V 100 RPM gear motor
DC motor with 60:1 gear ratio. It is powered with a voltage of 6 V with an average current consumption of 66 mA. It generates 100 revolutions per minute , its torque is 5.8 kg*cm . The motor has a D-type shaft with a diameter of 4 mm . The dimensions of the motor housing are 52.6 x 24.4 mm. Detailed data can be found in the technical drawing .
Accessories
Our offer includes a wide range of accessories for DC motors. Wheels , mounting hubs and motor controllers that you will find with us will allow you to easily and conveniently create various types of projects using a DC motor.
The motor shaft has a diameter of 4 mm.
60:1 6V 100 RPM gear motor.
DC motor technical specification
- Gear ratio: 60:1
- Rated Voltage: 6V
- Average current consumption: 66 mA
- Maximum current consumption: 1.1 A
- Idling speed: 100 rpm
- Torque: 5.8kg*cm
- Output shaft diameter: 4mm D-type
- Output shaft length: 8mm
- Dimensions: 52.6 x 24.4mm
- Weight: 100g
In our offer you will find motors with gears with different gear ratios - check it out!
Useful links
| Name | Value |
|---|---|
| Voltage to | 6.0 V |
| Voltage from | 6.0 V |
| Motor - current | 66 mA |
| Motor - gear | 60:1 |
| Rotation speed | 100 obr/min |
| Torque | 5.8 kg*cm |
| Motor - shaft | 4 mm |
| Width | 10 cm |
| Height | 7 cm |
| Depth | 2 cm |
| Weight | 0.094 kg |
