37Dx54L Motor with 50:1 Gear 12V 200RPM - Pololu 4743
Polol's engine with a 50:1 gearbox. Its torque is 21 kg*cm and its speed is 200 rpm. The product is powered by 12 V and its current consumption is about 200 mA without load and 5500 mA at stopped shaft.
We could not load the price.
The promotional price does not combine with quantity discounts.
37D x 54L motor with 50:1 12V 200 RPM gearbox
Product description:37Dx 54L motor with 50:1 12V 200 RPM gearbox
Polol'senginewith a 50:1 gearbox. Its torque is 21 kg*cmandits speed is200 rpm. The product is supplied with12 Vand its current consumption is approx. 200 mAwithoutload and 5500 mAwiththe shaft stopped.

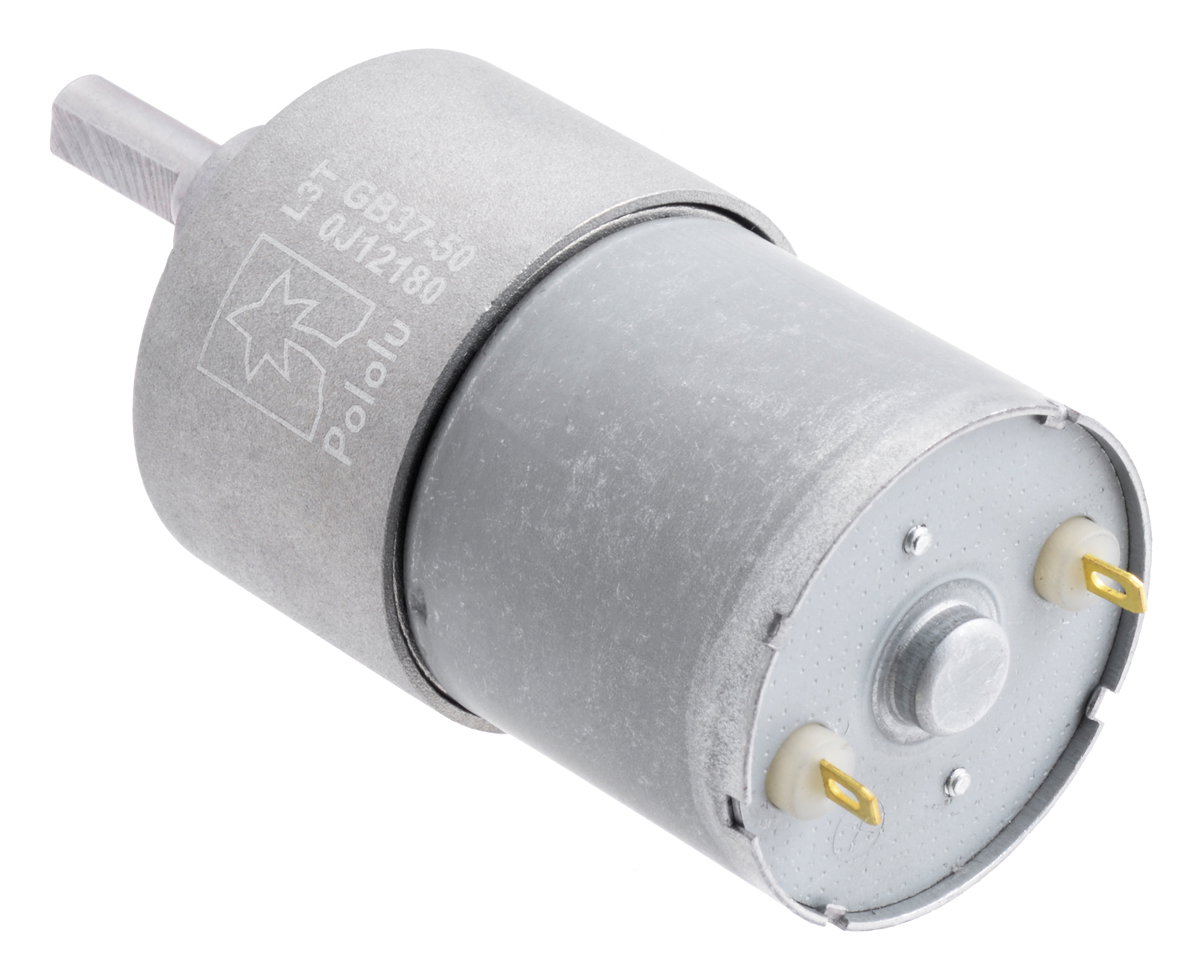

Polol 37D x 54L motor with 50:1 gearbox.
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.
The dimension L for this motor is 24 mm.
Motor dimensions
The motor is 37 mm in diameter and 54 mm long respectively. More detailed data are given in the technical drawing below.
Accessories for motors
In our offer you will also find dedicated accessories:
Accessories for motors

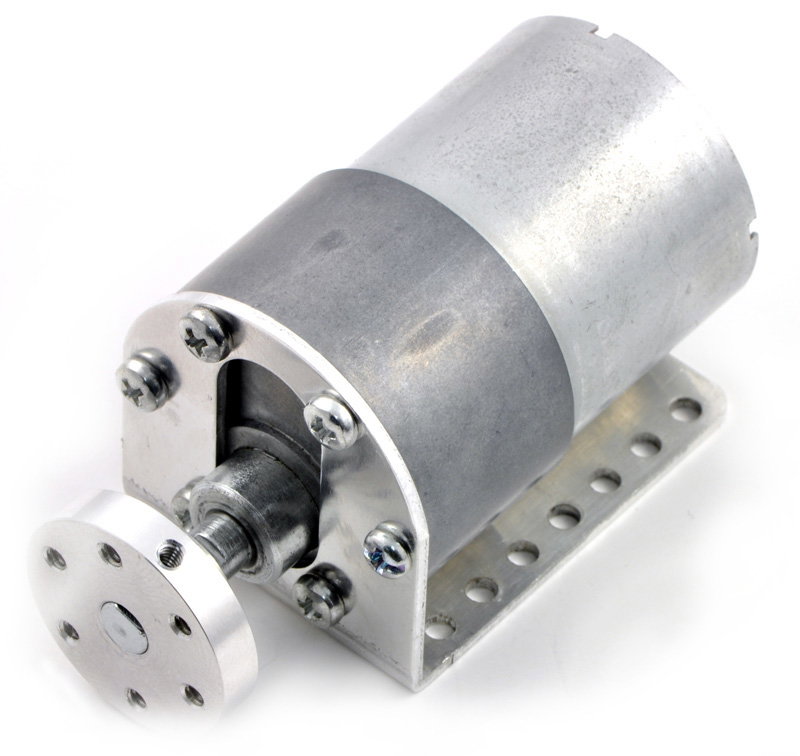

Motor with mounting hub and 37D mounting.
Motor specification 50:1
| General parameter | Value |
|---|---|
| Power supply voltage: | 12 V |
| Gearbox: | 50:1 |
| Dimensions: | 54 x 37 mm |
| Shaft diameter: | 6 mm |
| The weight: | 190 g |
| Parameters for 12 V supply | |
| Speed: | 200 rpm |
| Torque: | 21 kg*cm |
| Average power consumption: | 200 mA |
| Maximum power consumption: | 5500 mA |
Useful links
| Name | Value |
|---|---|
| Diameter | 37 mm |
| Length | 54 mm |
| Voltage to | 12.0 V |
| Voltage from | 12.0 V |
| Motor - current | 200 mA |
| Motor - gear | 50:1 |
| Rotation speed | 200 obr/min |
| Torque | 21,0 kg*cm |
| Mass | 190 g |
| Motor - shaft | 6 mm |
| Voltage nominal | 12 V |
| Width | 10.6 cm |
| Height | 4.5 cm |
| Depth | 4.5 cm |
| Weight | 0.191 kg |
