Product description: Mini Scales Unit - pressure sensor up to 5 kg - HX711 - Unit expansion module - M5Stack U177
The Mini Scales Unit is an extension of the Unit type for precision weighing, ideal for applications in various fields such as scientific experiments and industrial production. The product combines a pressure sensor with a maximum range of up to 5 kg and the HX711 data acquisition system, which ensures high measurement accuracy. Thanks to the use of the STM32F030F4P6 microcontroller and communication via the I2C protocol, the unit can cooperate with many modules at the same time , which allows the creation of advanced measurement systems. The programmable SK6812 RGB LED allows easy visualization of the device status, and the function button allows for quick and easy zero calibration and taring. The Mini Scales Unit module is compatible with popular programming platforms such as Arduino , UIFlow and Python, which allows for easy integration with existing projects.
Also check out the user guide prepared by the manufacturer M5Stack!

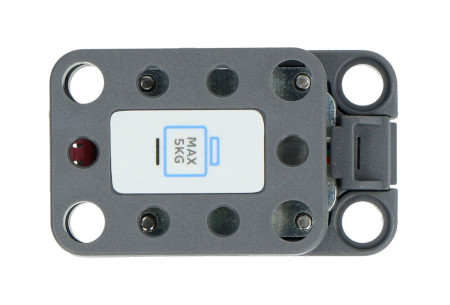

Mini Scales Unit - pressure sensor up to 5 kg - HX711 - Unit expansion module - M5Stack U177.

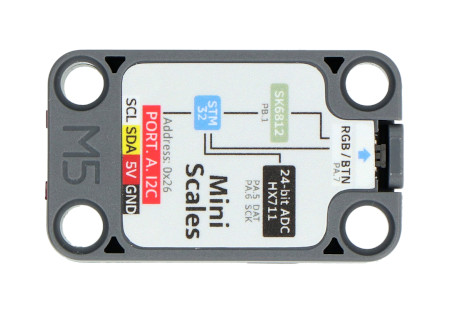

The module is equipped with an STM32F030F4P6 microcontroller and uses the I2C communication protocol.
Special features of the module
- STM32F030F4P6 Processor : 32-bit ARM Cortex-M0 processor.
- I2C communication : possibility of simultaneous use of many devices.
- Programmable SK6812 RGB LED : visualization of the device status.
- Function button : zero calibration and taring adjustment.
- Weighing range up to 5 kg : precise measurements for a wide range of applications.
- Compatibility with Arduino, UIFlow, Python : easy integration into various projects.
- Multiple Applications : Suitable for various fields such as scientific experiments and industrial production.
More sensors in the form of Unit extensions can be found here!
Technical specifications of the Mini Scales Unit
- Type: mini scale
- Weighing range: 5 kg
- ADC chip: HX711
- Microcontroller: STM32F030F4P6, 32-bit ARM Cortex-M0
- I2C address: 0x26
- LED: SK6812 RGB programmable
- Button: for zero calibration and taring adjustment
- Fixing: M3 nut
- Product dimensions: 40 x 24 x 18 mm
- Weight: 15.3 g
Set contents
- 1x Mini Scales Unit - pressure sensor up to 5 kg - HX711 - Unit expansion module - M5Stack U177
- 4x M3 nut
- 1x connecting cable with Grove connector - length 20 cm

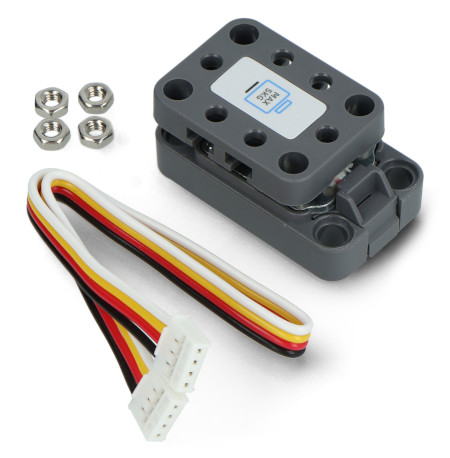

Elements included in the set.
