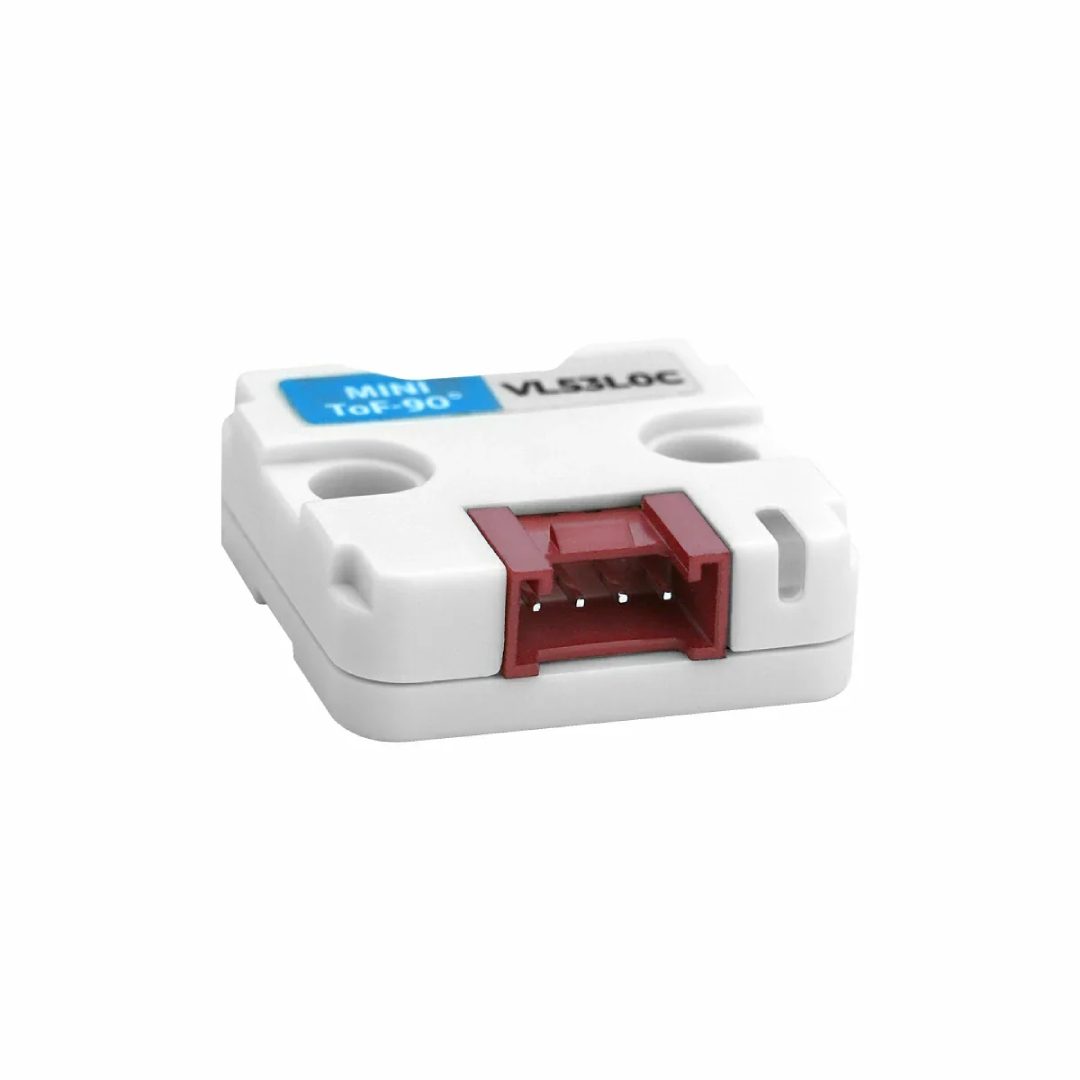

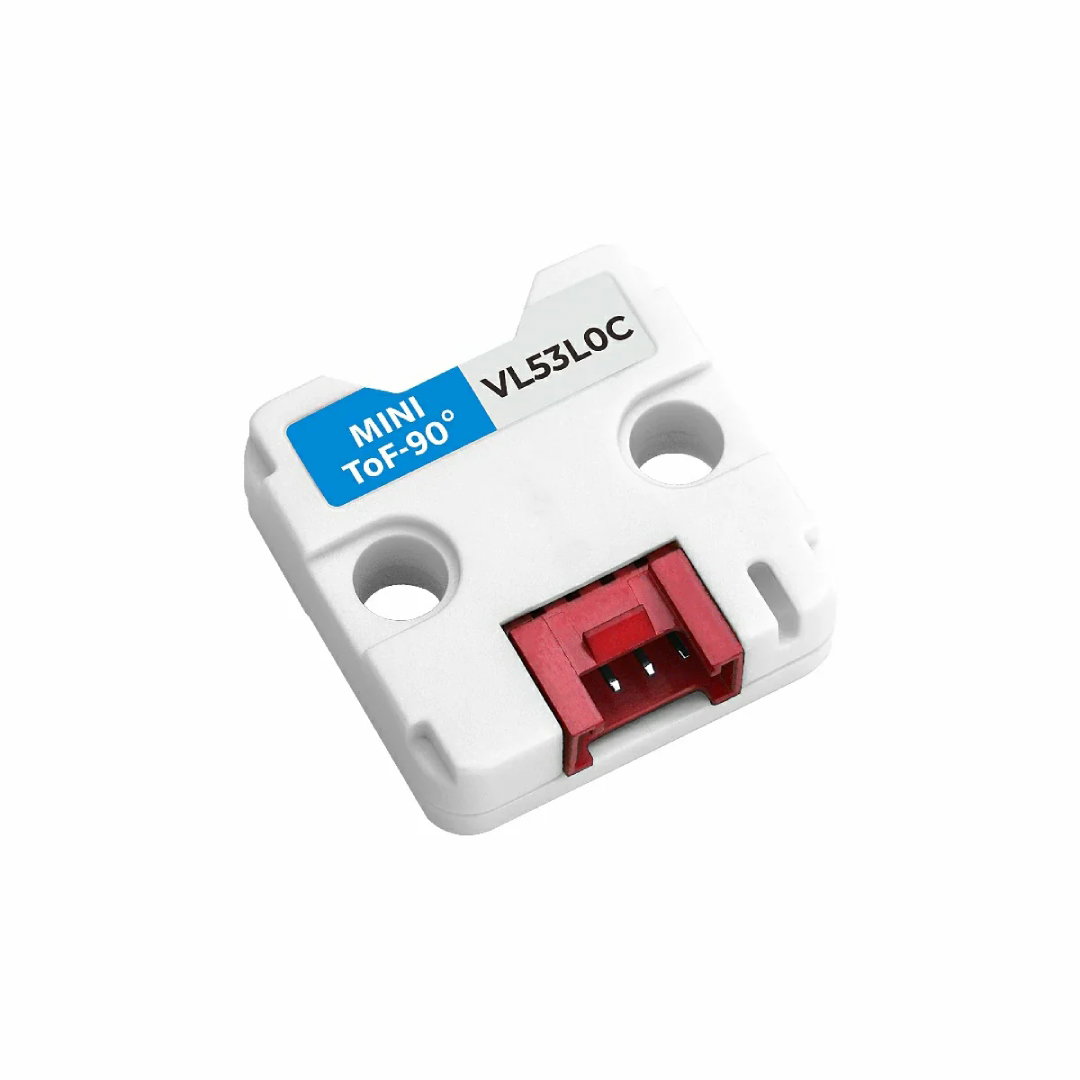

Mini ToF-90° - distance sensor - 3-200cm - VL53L0CXV0DH - expansion module Unit - M5Stack U196
The Mini ToF-90° is an ultra-compact Time of Flight (ToF) distance measurement module equipped with a precision VL53L0X sensor. By rotating the laser module 90° , detection occurs horizontally , enabling use in applications requiring forward measurement, such as mobile robotics or obstacle avoidance systems.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Mini ToF-90° - distance sensor - 3 - 200 cm - VL53L0CXV0DH - Unit expansion module - M5Stack U196
The Mini ToF-90° is an ultra-compact Time of Flight (ToF) distance measurement module equipped with a precision VL53L0X sensor. By rotating the laser module 90° , detection occurs horizontally , enabling applications requiring forward measurement, such as mobile robotics or obstacle avoidance systems. The module measures distances from 3 cm to 200 cm with an accuracy of ±3% and a resolution of 1 mm . Its viewing angle is 25°, and its response time is less than 30 ms. Its I2C interface allows for easy integration with popular development platforms.
Mini ToF-90° - distance measurement module - M5Stack.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
Mini ToF-90° is an ultra-compact Time of Flight (ToF) distance measurement module.
Special features
- Measurement range - detection distance from 3 cm to 200 cm, ideal for close-range applications
- Compact dimensions - small size of 24 x 24 x 8 mm makes it easy to integrate in tight spaces
- 90° optics - directed horizontally, enables "forward" detection, e.g. in mobile robotics
- Class 1 ToF laser - safe for eyesight, uses an invisible beam with a wavelength of 940 nm
- Fast measurement time - response time below 30 ms ensures dynamic detection in real time

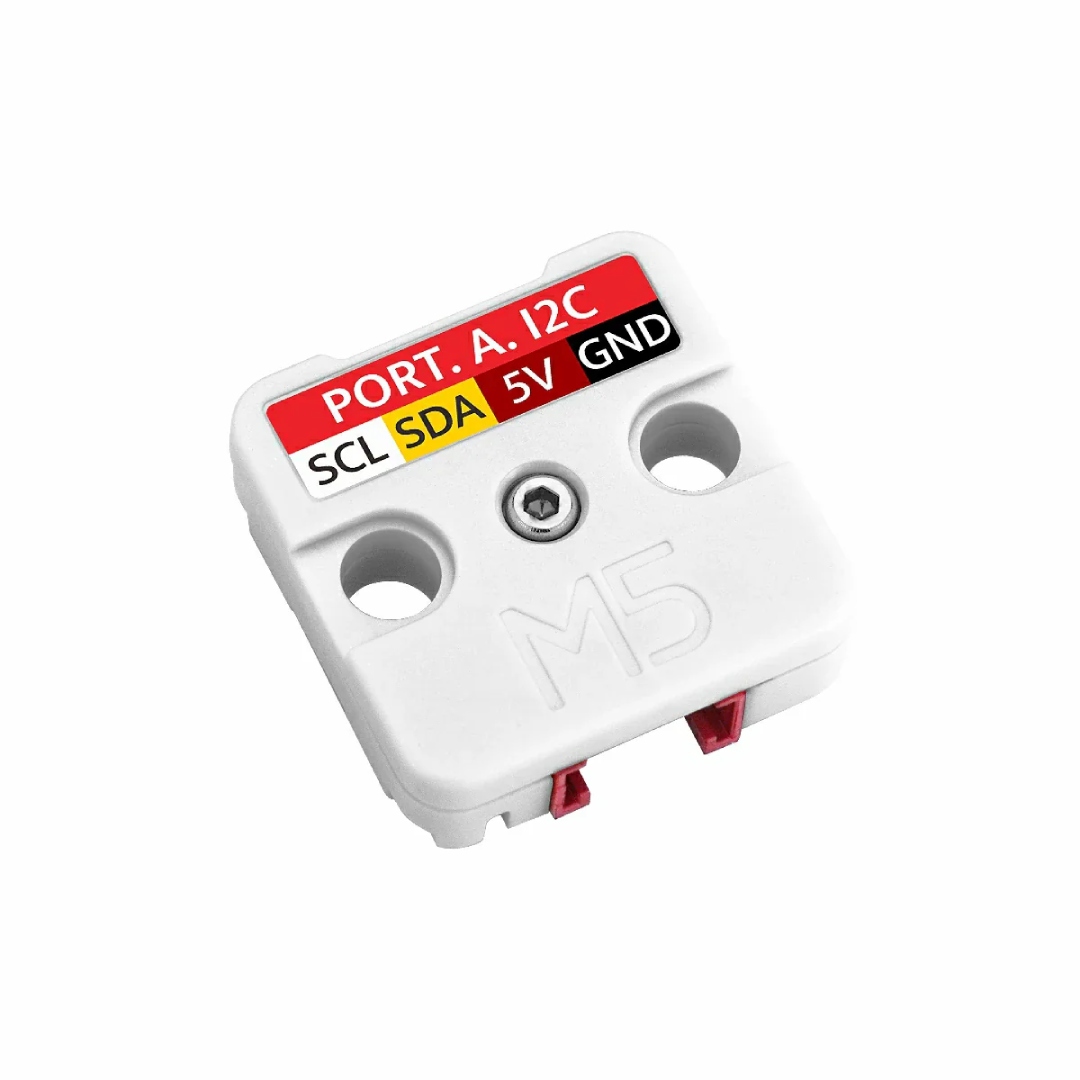

- Communication via I2C - easy integration with microcontrollers thanks to the standard address 0x52
- Software compatibility - support for Arduino IDE, UiFlow1 and UiFlow2 makes programming easier
Application in practice
Mini ToF-90° is used, among others, in:
- Mobile robotics - obstacle avoidance, horizontal distance measurement
- Smart Home systems - e.g. presence detection
- Security and monitoring - motion detection
- Intelligent transport - e.g. automatic gate systems
Technical specifications of the module
- Sensor: VL53L0X
- Measurement range: from 3 cm to 200 cm
- Resolution: 1 mm
- Accuracy: ±3%
- Viewing angle: 25°
- Measurement time: 8 ms to 23 ms
- Light Type: ToF Laser, 940 nm VCSEL (Class 1)
- Interface: I2C (default address: 0x52)
- Power consumption (standby): 15.01 μA (without LED), 1.92 mA (with LED)
- Power consumption (operation): 10.99 mA
- Operating temperature range: 0°C to 40°C
- Dimensions: 24 x 24 x 8 mm
- Weight: 1.7 g
Contents of the set
- 1x Mini ToF Unit 90°
- 1x Grove Cable (20cm)
Detection takes place horizontally, which enables use in applications requiring forward measurement, e.g. in mobile robotics or obstacle avoidance systems.
