Product Description: Raspberry Pi 45W USB-C Power Supply - Official 5.1V/5A USB C Power Supply for Raspberry Pi 5 - White

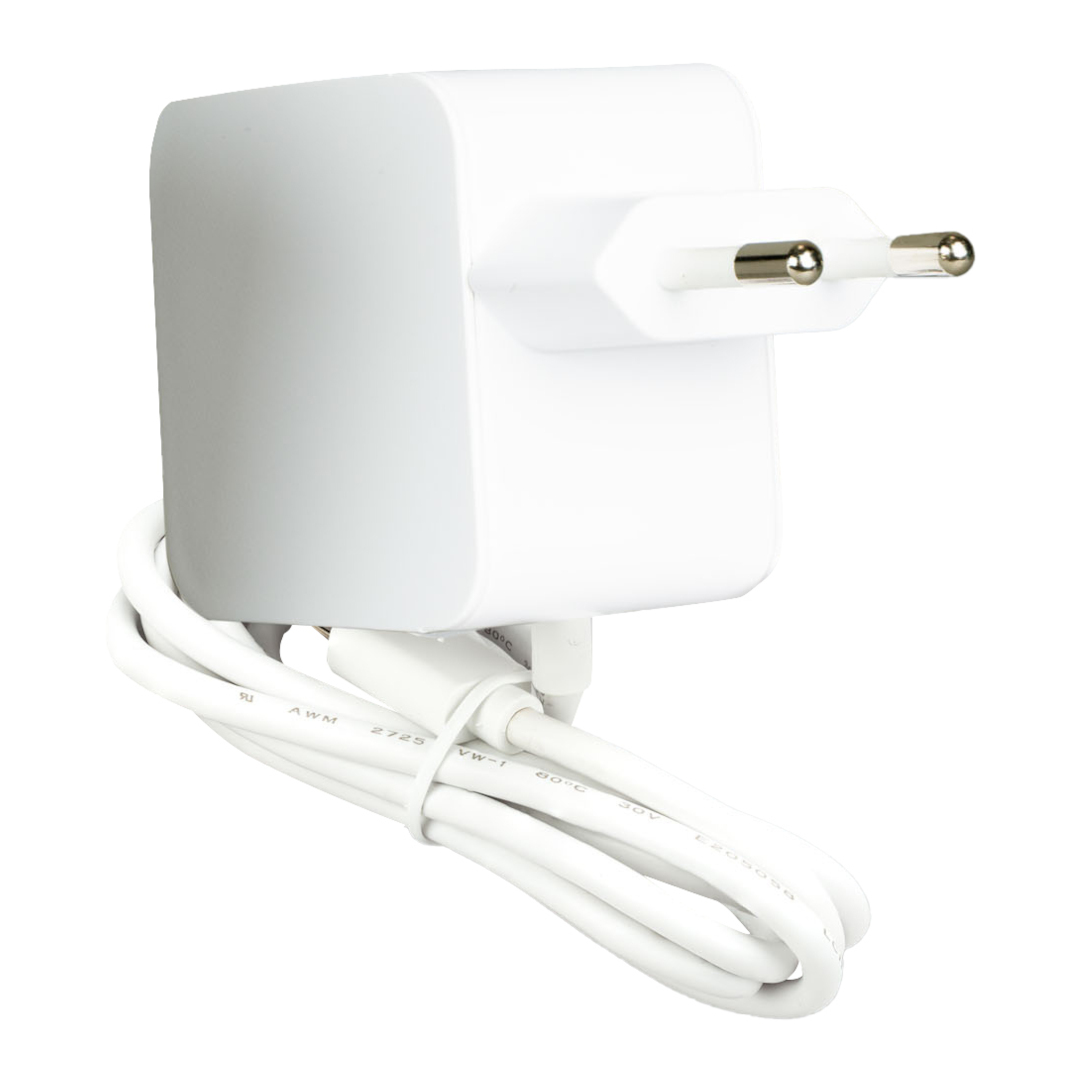

Official Raspberry Pi USB Type-C Power Supply with Power Delivery (PD) support with a capacity of 45 W. At a voltage of 5 V , it provides a maximum current of 5 A , which allows stable powering of the Raspberry Pi 5 along with demanding accessories. It also supports 5 A at 9 V, 3.75 A at 12 V, 3 A at 15 V and 2.25 A at 20 V , so it will also work well in other devices compatible with USB Power Delivery. The power supply is equipped with a high-quality 1.5 m 17 AWG cable , which provides stable voltage and low resistance, which translates into greater efficiency of power transfer. Available in a white housing with an EU plug , it is a versatile solution for many applications, not only for powering the Raspberry Pi.
Additionally, in Raspberry Pi 5, the default current limit on USB ports is 600 mA. After using a power supply with PD function, the limitation is lifted and the current capacity of USB ports increases to 1.6 A.
Raspberry Pi 45W USB-C Power Supply - Official 5.1V/5A USB C Power Supply for Raspberry Pi 5 - White.
The original power supply guarantees safe operation of the Raspberry Pi 5 minicomputer using its full capabilities.
Main features of the power supply
- Maximum power: 45 W - provides stable power for Raspberry Pi and other devices
- USB Power Delivery technology - dynamic adjustment of the output voltage to the device
- 5V / 5A
- 9V / 5A
- 12V / 3.75A
- 15V/3A
- 20V / 2.25A
- Wide input voltage range: 100 V to 240 V AC 50/60 Hz - can be used worldwide
- Wire length: 1.5 m (17 AWG) - low resistance and stable voltage
- Compact Raspberry Pi-style housing - aesthetic appearance matching the brand's devices
Raspberry Pi Power Delivery Technical Specifications
- Power Input: 100V to 240V AC
- Power output:
- 5A / 5V
- 5A / 9V
- 3.75A / 12V
- 3A / 15V
- 2.25A / 20V
- Connector: USB Type-C
- Color: white
- Plug: EU
- Wire Diameter: 17 AWG
- Cable length 1.5 m
Raspberry Pi 5 is equipped with a USB Type-C connector and a power button.
