Product description: Power supply DC 5,5/2,1mm 8V / 6A for Raspberry Pi Build HAT original - white
Original power supply in white color, produced by Raspberry Pi foundation. The power supply has been created to power the Build HAT overlay with the RP2040 microcontroller. When using the Build HAT overlay and the dedicated original 48W power supply, there is no need to power the Raspberry Pi via USB. The output voltage of the power supply is 8 V and its current capacity is 6 A. The maximum power output of the power supply is 48 watts. The power supply comes with a 1.5m long 16 AWG cable terminated with an 11mm long 5.5 / 2.1mm DC connector.
Original power supply guarantees safe operation of Buld HAT overlay with full capabilities.

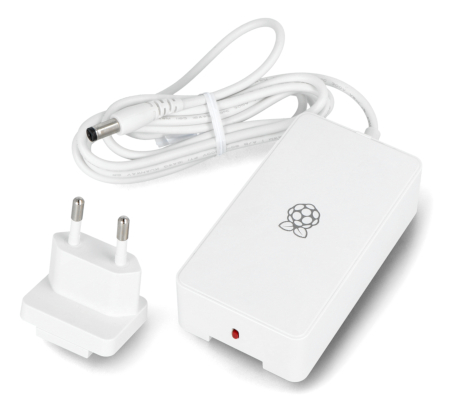

Original Raspberry Pi power supply for Build HAT.

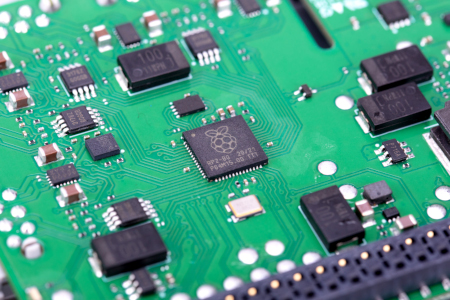

Build HAT with RP2040 Raspberry Pi microcontroller.Power supply specifications for Build HAT
- Power supply voltage: AC 100 V to 240 V / 50 to 60 Hz
- Output voltage: 8 V DC
- Current capacity: 6 A
- Power: max. 48 W
- Plug: DC 5.5 /2.1 mm
- Plug length: 11 mm
- Color: white
- Cable diameter: 16 AWG
- Efficiency: minimum 87.77%
- Protections:
- short-circuit
- overcurrent
- over voltage
- Cable length: 1,5 m
