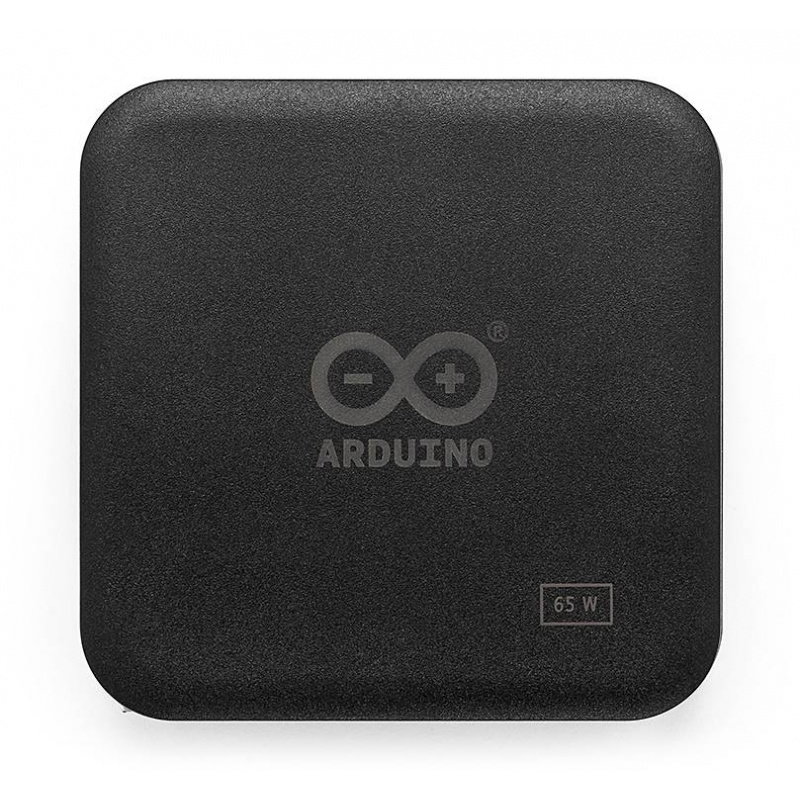

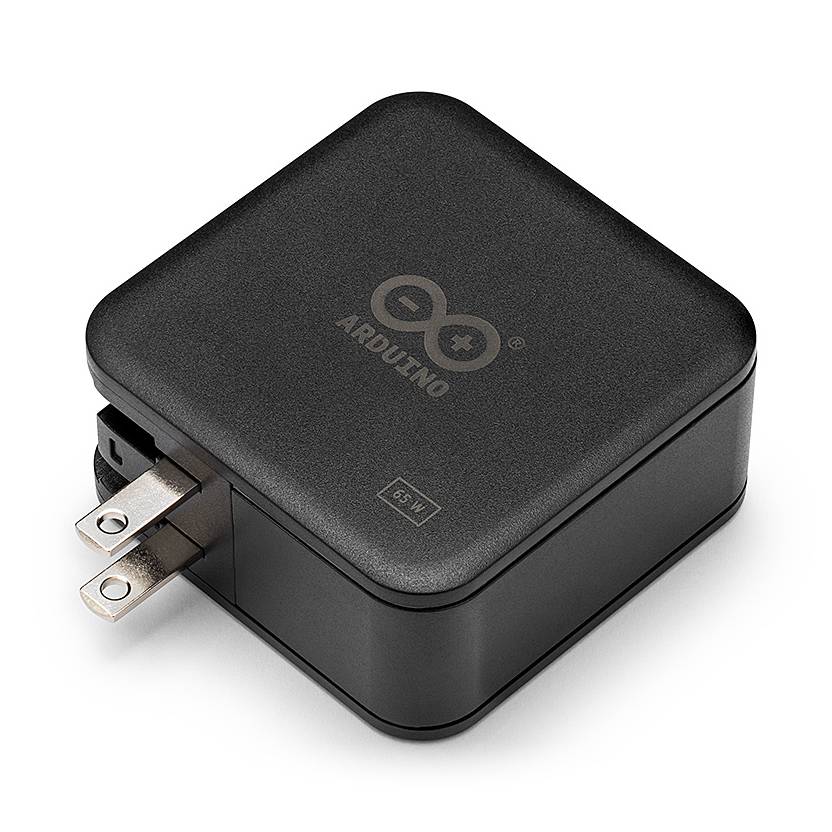

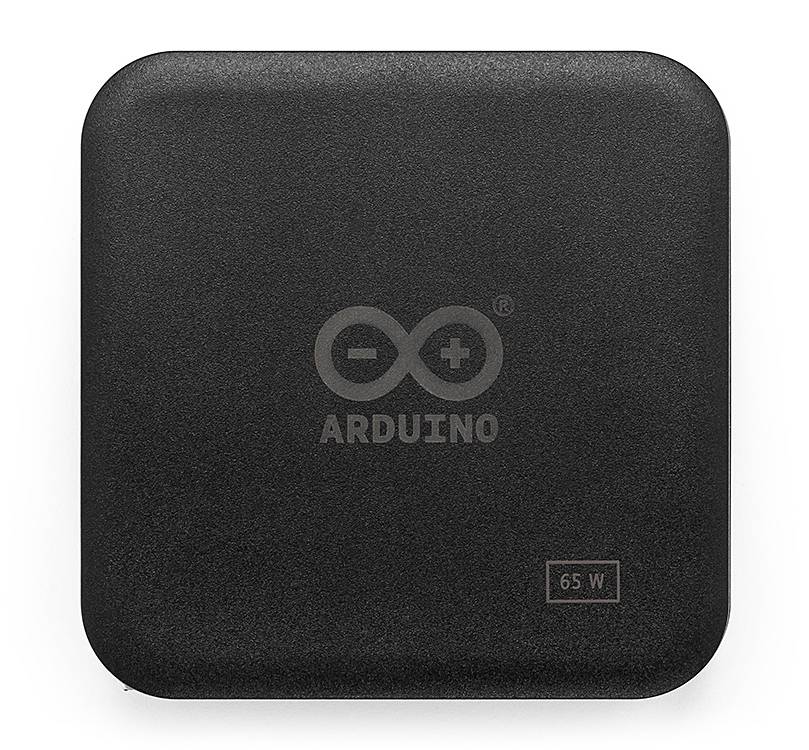

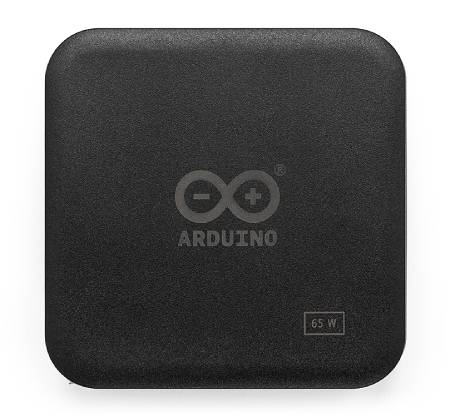

Product Description: Arduino USB-C Power Supply - Official 65W USB C Power Supply for Arduino - TPX00256
This genuine Arduino power supply provides stable power for compatible development boards , USB Type-C hubs, and other electronic devices. The power supply offers five output profiles—from 5V/3A to 20V/3.25A— and can deliver a maximum of 65W of power . A universal input voltage range of 100V to 240V AC and a set of interchangeable EU, UK, and US plugs allow for use in many regions of the world. A 20V/3A USB Type-C to DC adapter is also included, suitable for devices equipped with a compatible power outlet. The compact design makes the power supply easy to transport and suitable for both project work and field use.
Arduino USB-C Power Supply - Official 65W USB C Power Supply for Arduino - TPX00256.
Original Arduino power supply.
Main Features of the Arduino 65W Power Supply
- 65W maximum power : Enables powering more demanding boards, hubs, and compatible USB Type-C devices
- Five output voltage profiles : Support for 5V, 9V, 12V, 15V, and 20V voltages expands application range
- Output current up to 3.25A : full 65W power is available at 20V
- Universal input voltage : works with mains from 100V to 240V AC, allowing use in various countries
- Interchangeable regional plugs : EU, UK and US plugs included
- USB Type-C output : a popular connector that allows you to power devices that meet the supported parameters
- USB Type-C to DC adapter : allows you to power compatible devices via the DC connector with a voltage of 20 V and a current of up to 3 A
- Compact design : the housing measures 64 x 64 x 30 mm, taking up little space during transport and storage
- Original Arduino accessory : the power supply is designed to work with compatible electronic devices and projects
Technical specifications of the power supply for Arduino
- Input voltage: 100V to 240V AC
- Input voltage frequency: 50/60 Hz
- Maximum input current: 1.5 A
- Output Profile 1: 5V DC / 3A
- Output Profile 2: 9V DC / 3A
- Output Profile 3: 12V DC / 3A
- Output Profile 4: 15V DC / 3A
- Output Profile 5: 20V DC / 3.25A
- Maximum output power: 65 W
- Output connector type: USB Type-C
- Dimensions: 64 x 64 x 30 mm (without installed plug)

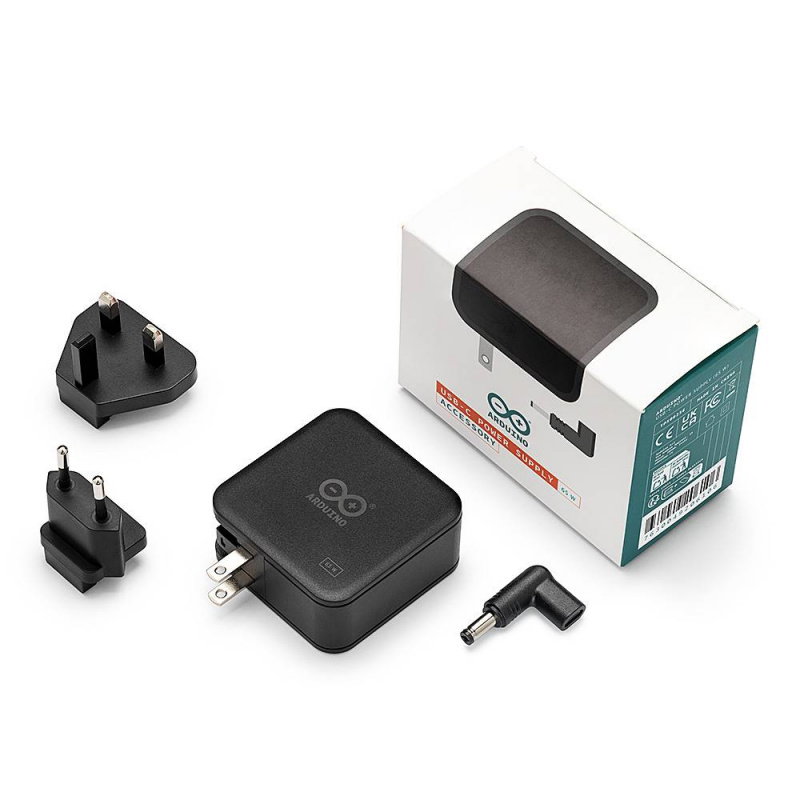

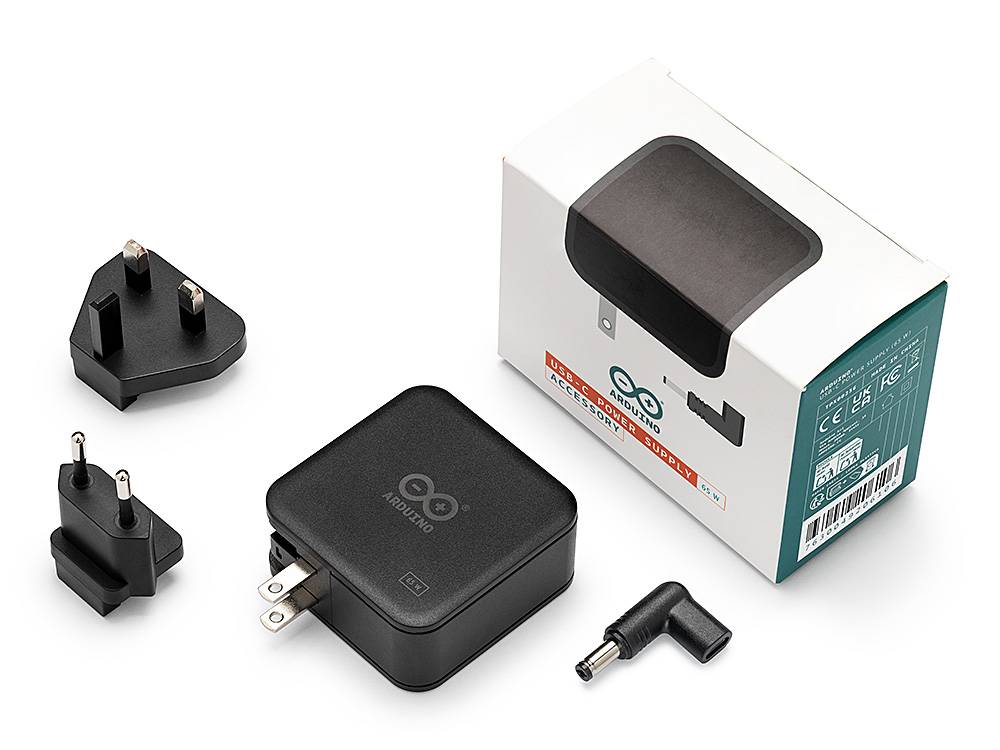

Contents of the set
- 1x Arduino USB Type-C Power Supply 65W
- 3x Replaceable mains plug
Elements included in the set.
