Product Description: Arduino USB-C Power Supply - Official 45W USB C Power Supply for Arduino - TPX00242
The original Arduino power supply is the foundation of a stable prototyping system, tested to work with even the most demanding boards . It offers a total power of 45W , allowing for seamless operation of complex electronics projects. The power supply dynamically adjusts the output voltage within the 5V, 9V, 12V, 15V, and 20V ranges, delivering up to 3A of current (maximum 2.25A at 20V). Support for USB Type-C and five power profiles make it suitable not only for microcontrollers but also for powering laptops and hubs. The polycarbonate housing and advanced safety features protect the equipment against short circuits and overheating. The included interchangeable plugs (EU, UK, US) make it a universal power source, ready for use almost anywhere in the world.

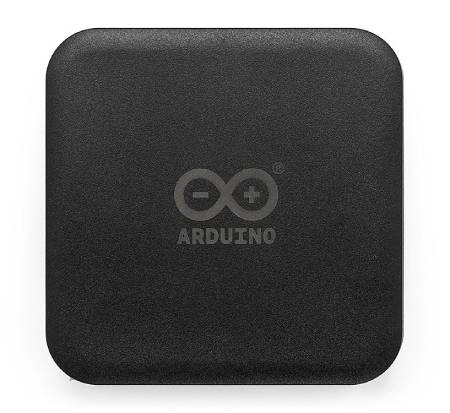

Arduino USB-C Power Supply - Official 45W USB C Power Supply for Arduino - TPX00242.

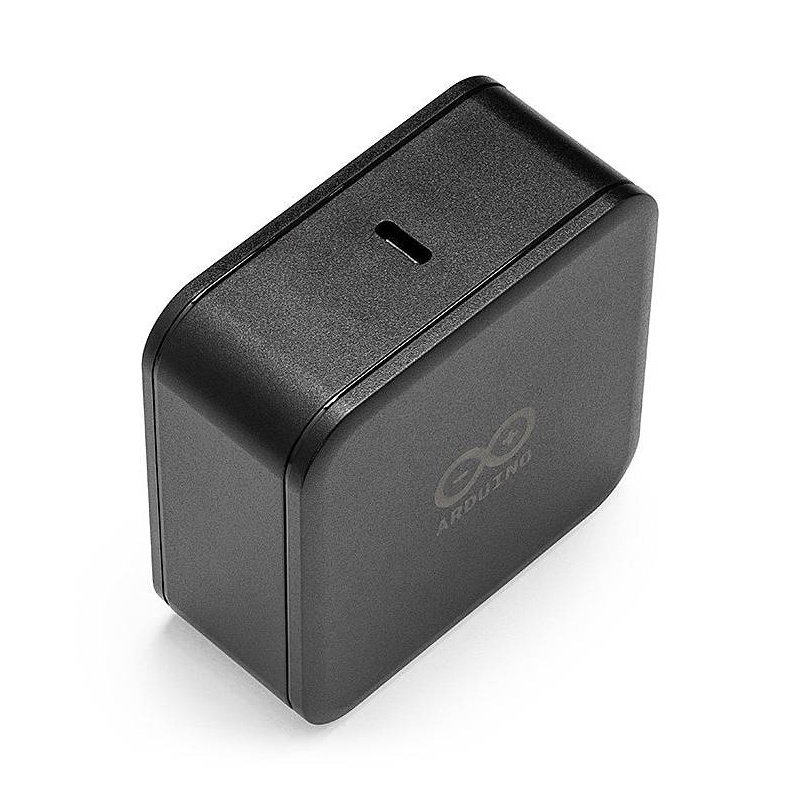

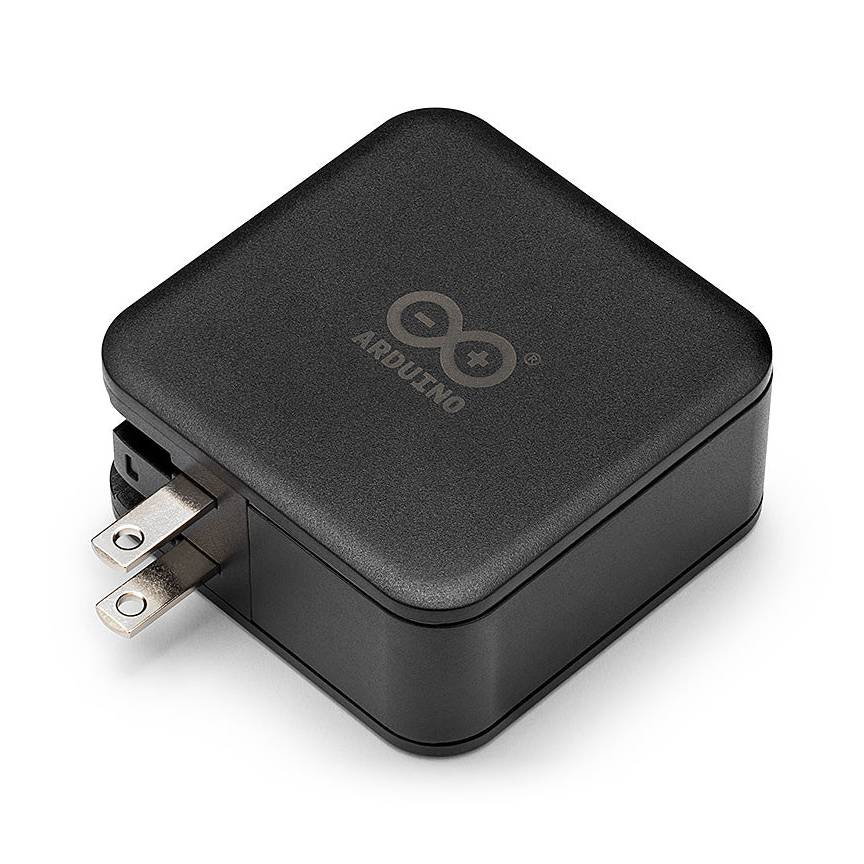

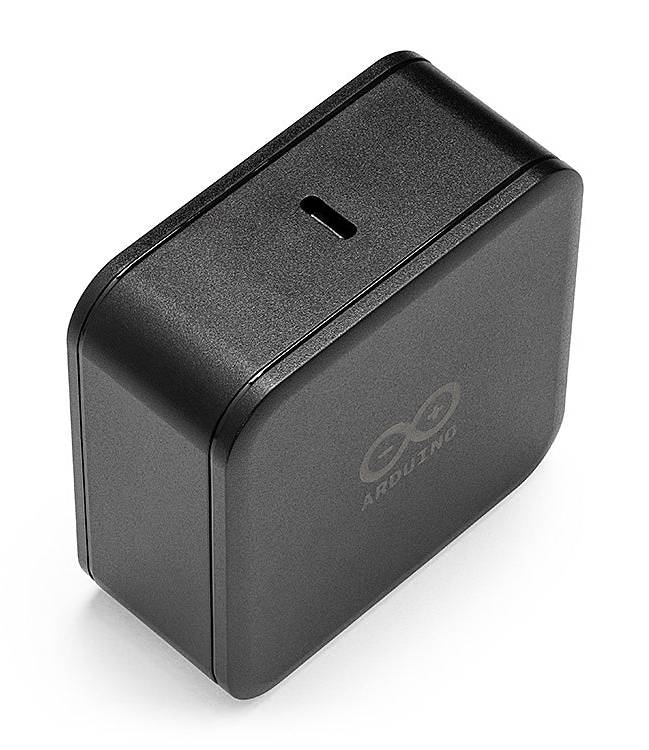

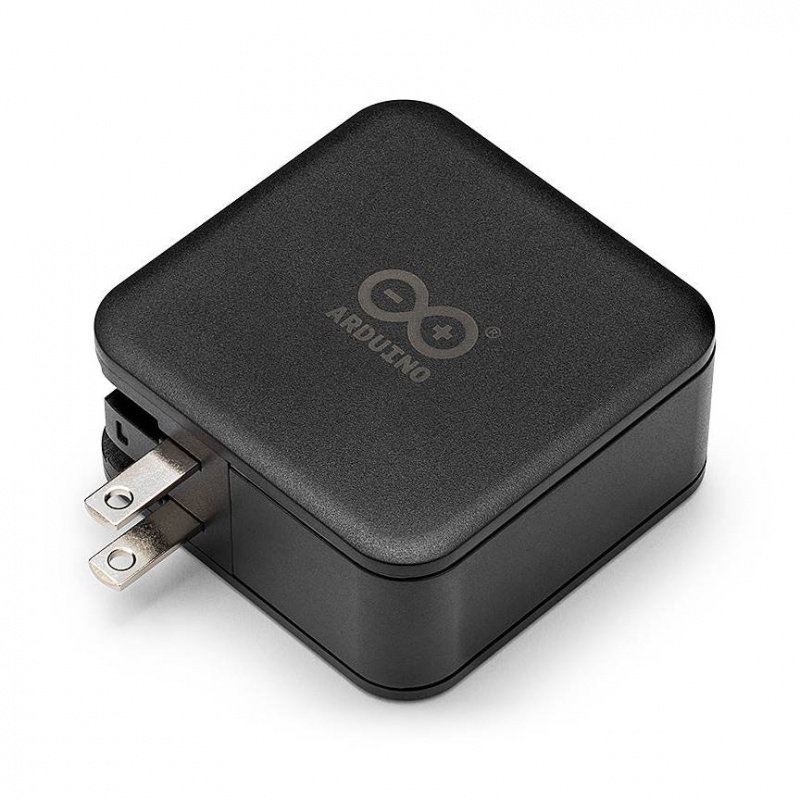

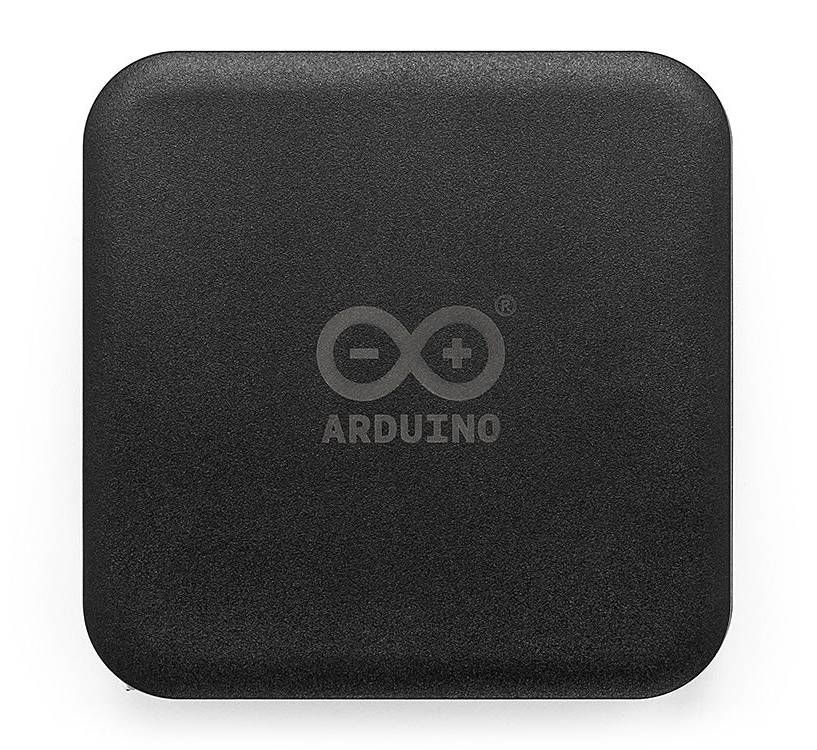

Original Arduino power supply.
Main Features of the Arduino USB Type-C Power Supply
- Official Arduino power supply : designed and tested to work with Arduino boards and devices
- Up to 45W of power : suitable for powering more demanding devices and accessories with a USB Type-C port
- USB Power Delivery 3.0 support : automatically selects the voltage and current profile to suit the needs of the connected device
- PPS support : enables intelligent and flexible adjustment of power supply parameters
- Five output profiles : supports 5V, 9V, 12V, 15V and 20V
- Wide input range : supports mains voltage from 100V to 240V AC
- Interchangeable mains plugs : compatibility with EU, UK and US sockets makes it easy to work in different regions
- Advanced protection : protects against short circuits, overloads, overvoltage and overheating
- Compact housing : small dimensions make it easy to transport and use every day
Technical specifications of the power supply for Arduino
- Nominal input voltage: 100 V to 240 V AC
- Input voltage range: 90V to 264V AC
- Input frequency: 47 Hz to 63 Hz
- Maximum input current: 1.5 A
- Output voltages: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
- Maximum output power: 45 W
- Output connector: USB Type-C
- Supported standards: USB PD 3.0, PPS
- Maximum ripple and noise: 150 mVp-p
- Efficiency: up to 87.73%
- No-load power consumption: ≤ 0.1 W
- Protection: overcurrent, short circuit, overvoltage, thermal
- Operating temperature: 0°C to 35°C
- Storage temperature: -40°C to 70°C
- Operating humidity: 10% RH to 90% RH, non-condensing
- Protection class: II
- Housing material: PC
- Dimensions: 64 x 64 x 30 mm (with plug folded) / 64 x 80.06 x 30 mm (with plug unfolded)
Contents of the set
- 1x Arduino USB Type-C Power Supply 45W
- 3x Replaceable mains plug

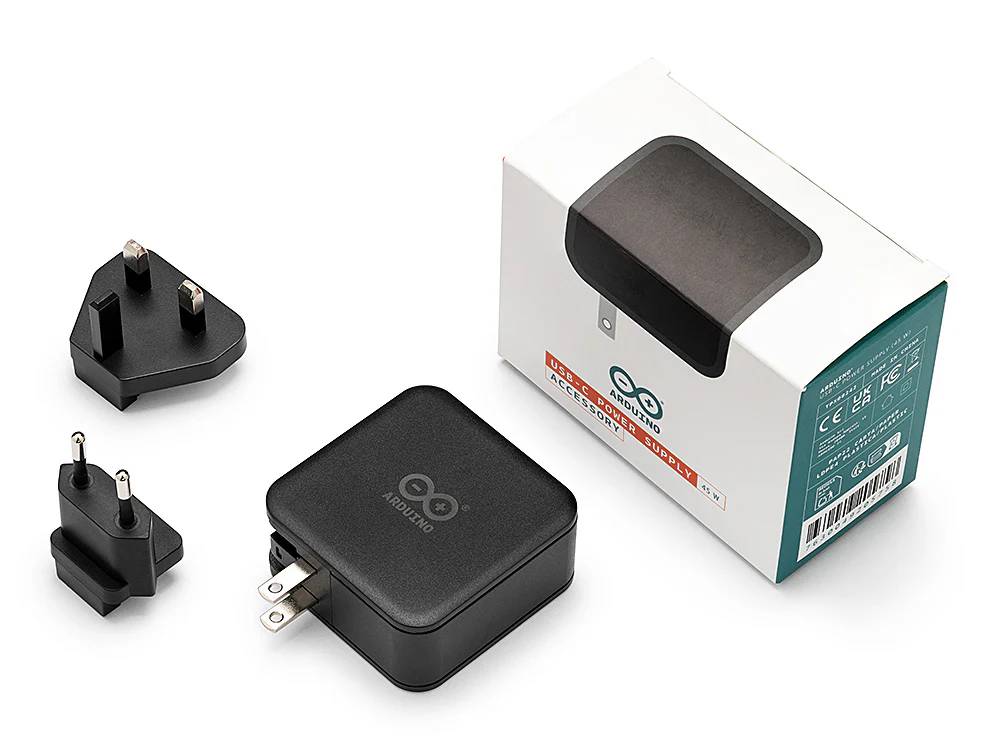

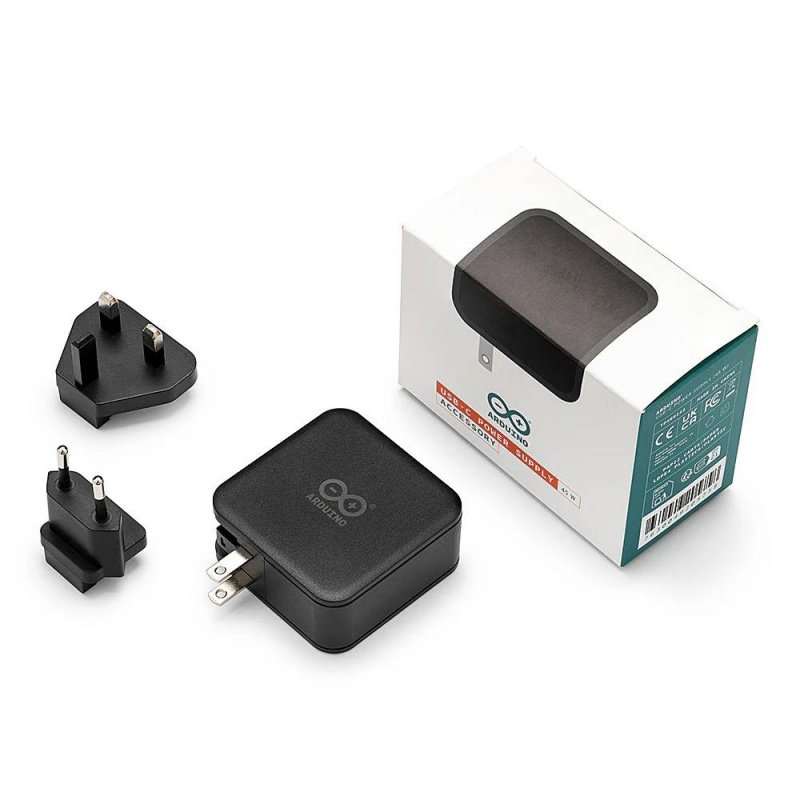

Elements included in the set.
