Product description: Akyga Power Delivery USB-C / USB-A 5 V - 20 V / 3.25 A power supply
The Akyga AK-CH-17 power supply is a universal 65 W USB charger. Thanks to it, you can power both small electrical devices and those much larger ones that require more power to operate. The adapter is equipped with 4 USB ports for the convenience of use and allows you to charge multiple devices at the same time. The adapter is also equipped with 2 USB Type C ports in the Power Delivery 3.0 (PD) standard.

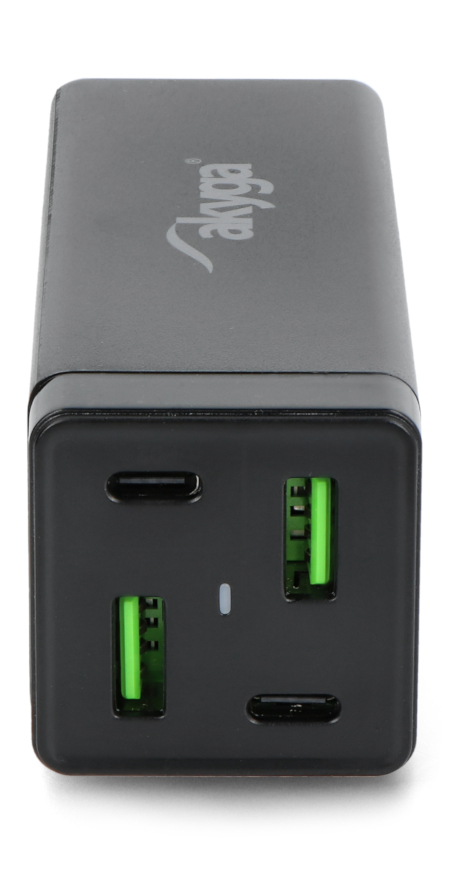

Akyga Power Delivery USB-C / USB-A 5 V - 20 V / 3.25 A.

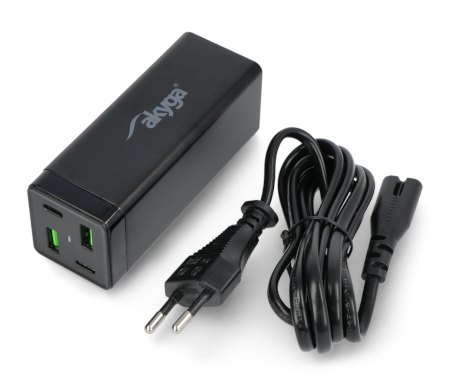

Akyga power supply.
Technical specification of the charger
- Supply voltage: 110 V to 240 V / 50 Hz to 60 Hz
- Current consumption: <2 A
- Mechanical switch: none
- Grounding: none
- Black colour
- Collateral held:
- OVP
- OCP
- OTP
- SCP
- Power Connector: IEC C8
- USB-A power supply parameters:
- 5V / 3A
- 9V / 2A
- 12 V / 1.5 A
- USB C power supply parameters:
- PD1:
- 5V / 3A
- 9V / 3A
- 12 V / 3 A
- 15V / 3A
- 20V / 3.25A
- PPS:
- from 3.3 V to 11 V
- 3 A.
- PD2
- 5V / 3A
- 9V / 2.25A
- 12 V / 1.67 A
- DCP Compatibility: Yes
- Material: ABS
- MTBF 100,000 hrs
- Working temperature: from 5 ° C to 50 ° C
- Product dimensions: 37 x 38 x 102 mm
- Compatibility with:
- CE
- FCC
- RoHS
- REACH
