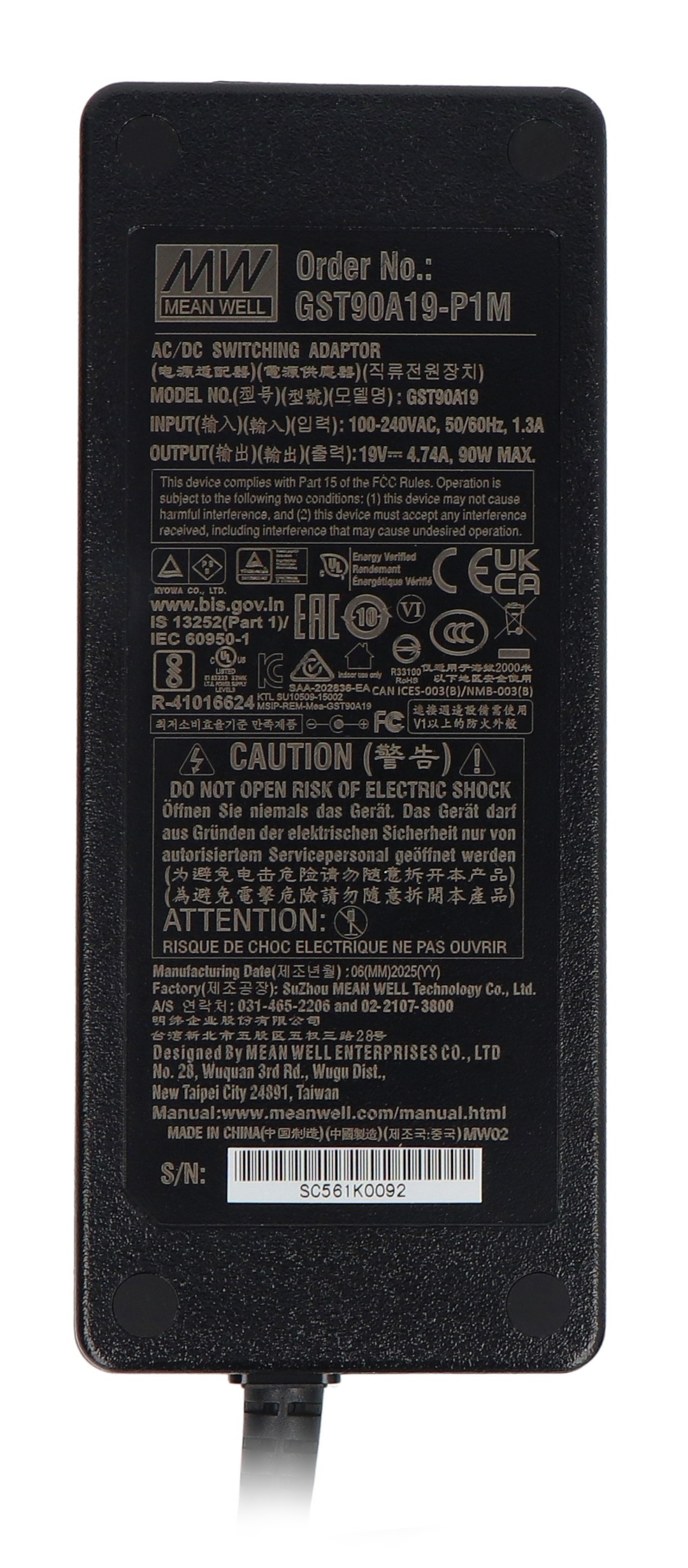

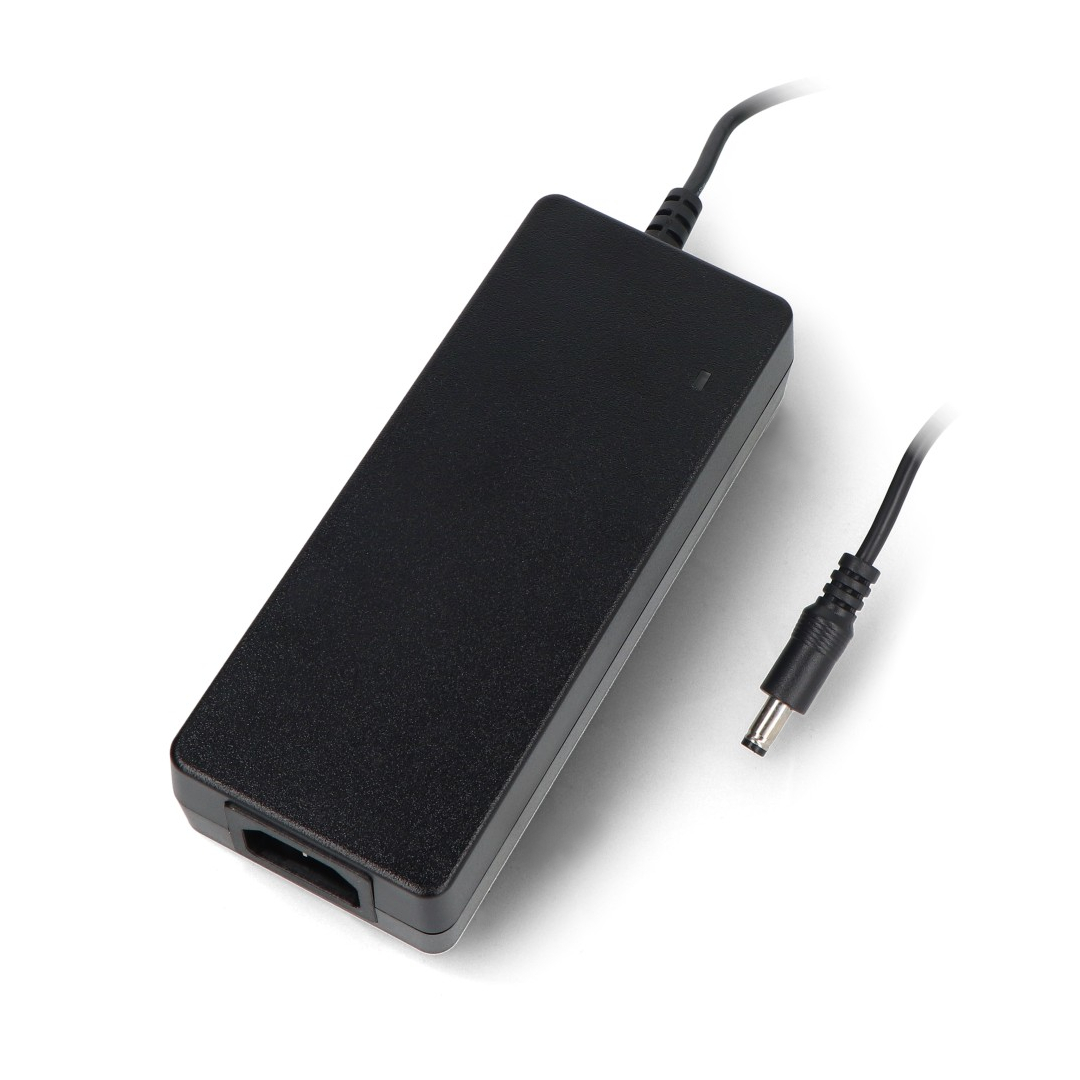

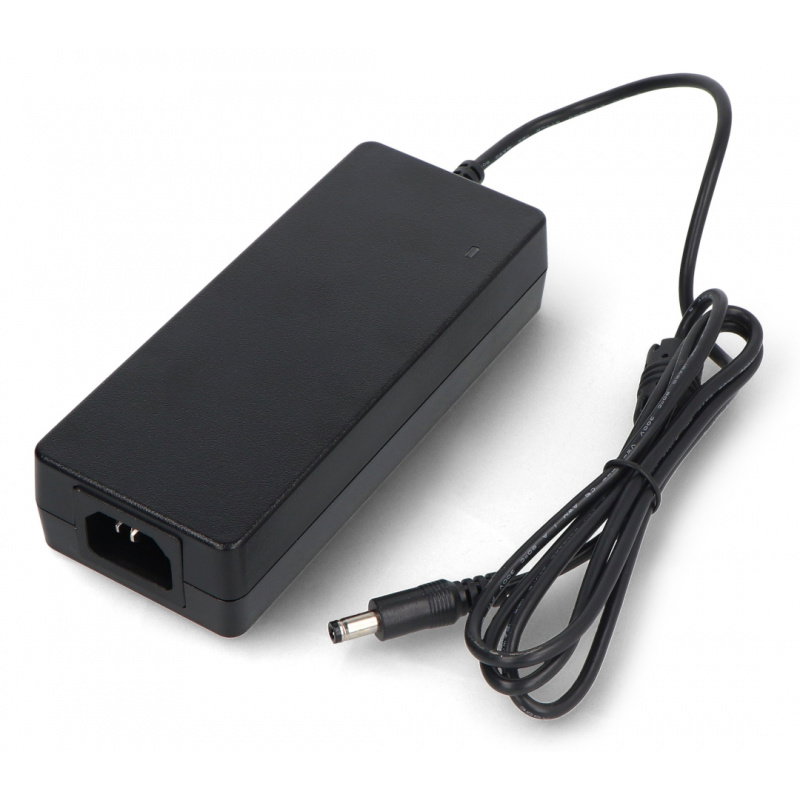

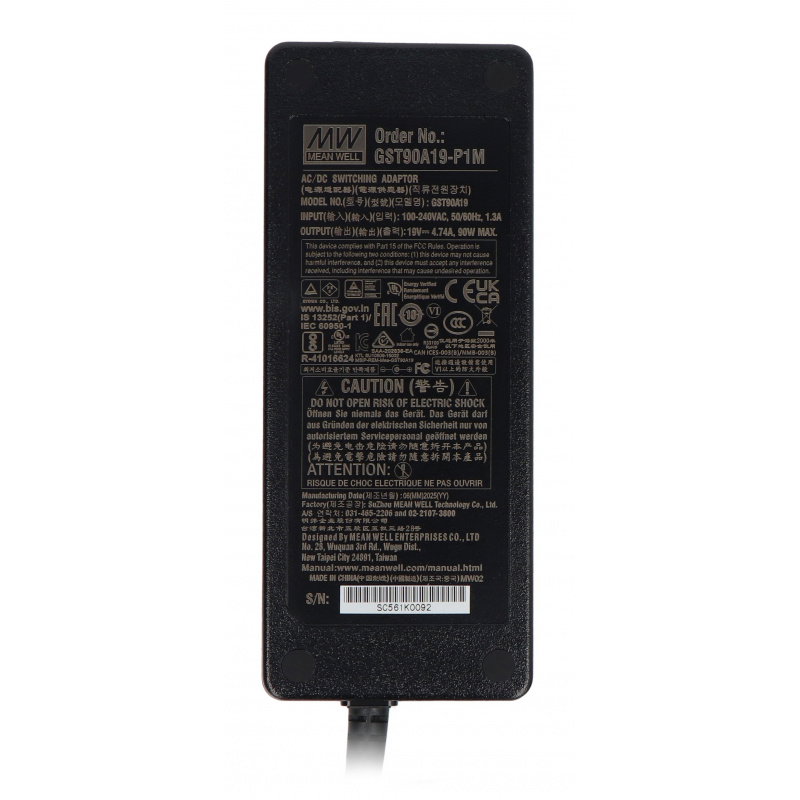

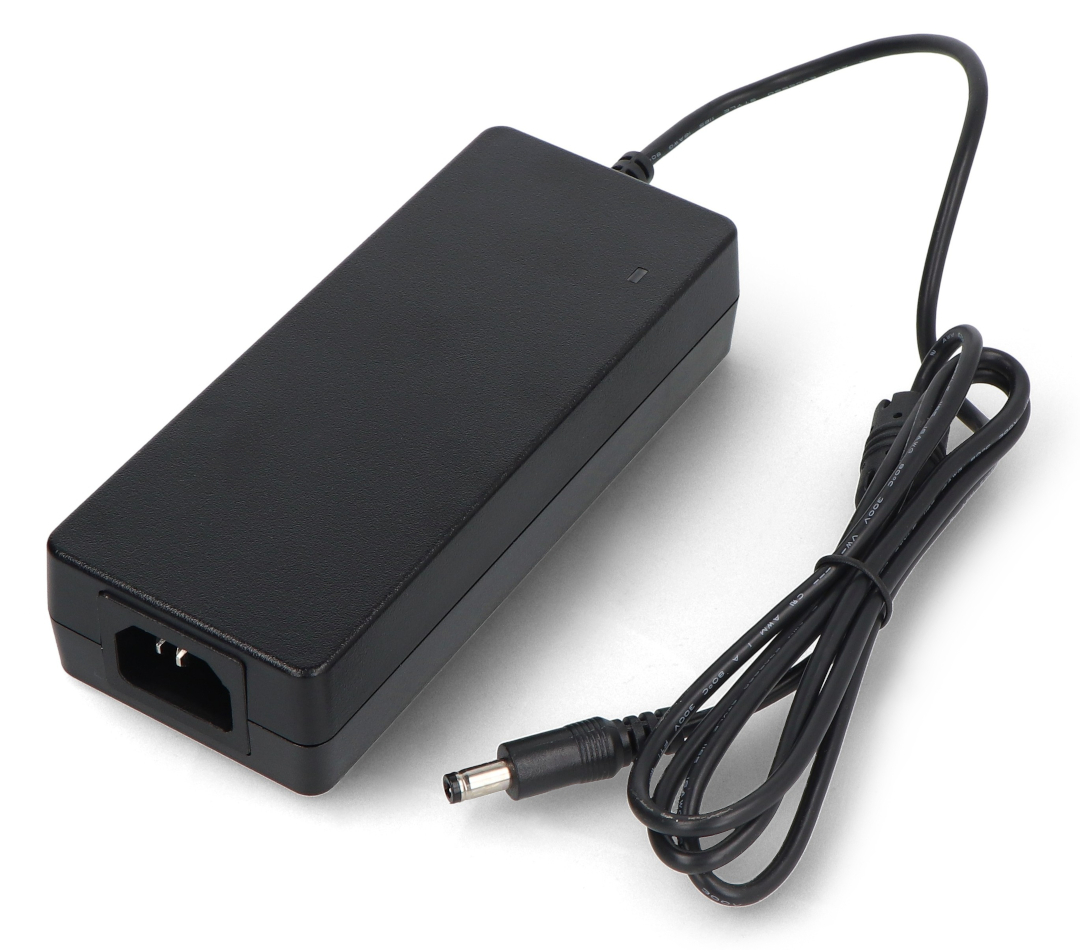

Product description: Mean Well GST90A19-P1M 90W 19V/4.74A Power Supply - 5.5/2.5mm DC Plug
The Mean Well GST90A19-P1M is a reliable 90W desktop AC/DC power supply , providing a stable output voltage of 19V DC and current up to 4.74A . This model is equipped with a standard P1M 5.5/2.5mm DC plug with a positive inner pole, making it compatible with a wide range of electronic , industrial, and telecommunications devices. It supports a wide input voltage range of 90V to 264V AC and 127V to 370V DC , enabling worldwide use. High energy efficiency of 90%, active PFC, and no-load power consumption of less than 0.15W help reduce energy consumption. The power supply also features LED indication and short circuit, overload, overvoltage, and temperature protection , ensuring safe and long-lasting operation.
Mean Well GST90A19-P1M 90W 19V/4.74A Power Supply - 5.5/2.5mm DC Plug.
The kit does not include a power cord . It can be purchased separately.
The power supply has a 5.5 / 2.5 mm plug.
Main features of the power supply
- 90 W output power : stable power supply for devices requiring 19 V DC
- Output voltage 19 V : output current up to 4.74 A
- Wide input voltage range : 90V to 264V AC and 127V to 370V DC
- High energy efficiency : typically 90% at full load
- Energy Efficiency Level VI : low energy consumption and compliance with current requirements
- Active PFC system : improving the quality of the consumed energy and reducing losses
- Power supply protection : short circuit, overload, overvoltage and temperature protection
- LED indication : clear information about the device's operating status
- Closed plastic housing : safe design for desktop and industrial use
- Standard DC plug P1M : 5.5/2.5mm, positive pole inside
Technical specifications of the GST90A19-P1M power supply
- Output power: 90 W
- Output voltage: 19V DC
- Output current: 0 A to 4.74 A
- Voltage tolerance: ±4%
- Ripple and noise: 180 mV pp
- Efficiency: 90%
- AC input voltage: 90V to 264V
- DC input voltage: 127V to 370V
- Input frequency: 47 Hz to 63 Hz
- Power factor: PF > 0.91 at 230 V AC
- No-load power consumption: < 0.15 W
- AC connector type: IEC320-C14
- DC plug: 5.5 / 2.5 mm
- DC cable length: 1200 mm ±50 mm
- Operating temperature: -30°C to 70°C
- Operating humidity: 20% RH to 90% RH
- Protection: short circuit, overload, overvoltage, temperature
- Energy efficiency class: level VI
- Dimensions: 145 x 60 x 32 mm
- Weight: 450 g
Contents of the set
- 1x Mean Well GST90A19-P1M Power Supply
The 90 W power supply provides a voltage of 19 V and a current of 4.74 A.
