Product description: Power Supply Router UPS-15 15 W - IPS
Router UPS-15power supplyunit manufactured by IPS. It provides auniversal output voltage suitable for currentroutermodels, which can be selected via aswitch. It provides automatic charging of the internal battery. The front panel of the unit features a USB port (5 V / 1 A), for charging your mobile device, and LEDs to indicate the operating mode. It features two 5.5 / 2.5 mm output sockets and an 8800 mAh Li-Ion battery. The maximum output voltage is 5 V / 3 A.

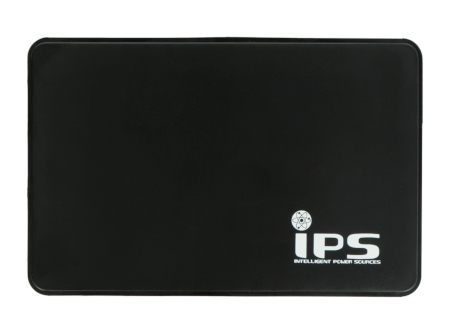

Router UPS-15 from IPS.

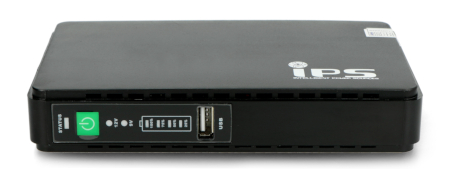

LEDs indicate the operating mode of the device.Indicator of operation
LEDs on the front panel are responsible for indicating operation.
- Status:
- constant green light - operation in AC mains mode
- red - continuous red light - battery buffer operation
- 9 V / 12 V: continuous green lightning - output voltage selection indicator
- Battery 25% - 100%: 4-point battery charge status indicator
Technical specification
- Output power: 15 W
- Input voltage:
- Rated: 230 V AC
- range: from 100 V to 240 V AC
- Frequency: 50 Hz / 60 Hz ± 10% (autoselection)
- Output voltage:
- 5 V / 3 A max
- 9 V / 1,33 A max
- 12 V / 1,25 A max
- Number of output sockets: 2
- Output socket: DC 5.5 x 2.5 mm plug
- USB port: 5 V / 1 A
- Rechargeable battery: Li-Ion
- Color: black
- Dimensions: 159 x 104 x 28 mm

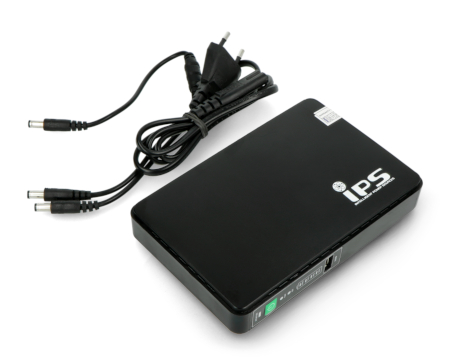

The set includes RouterUPS-15 power supply and power cord.
