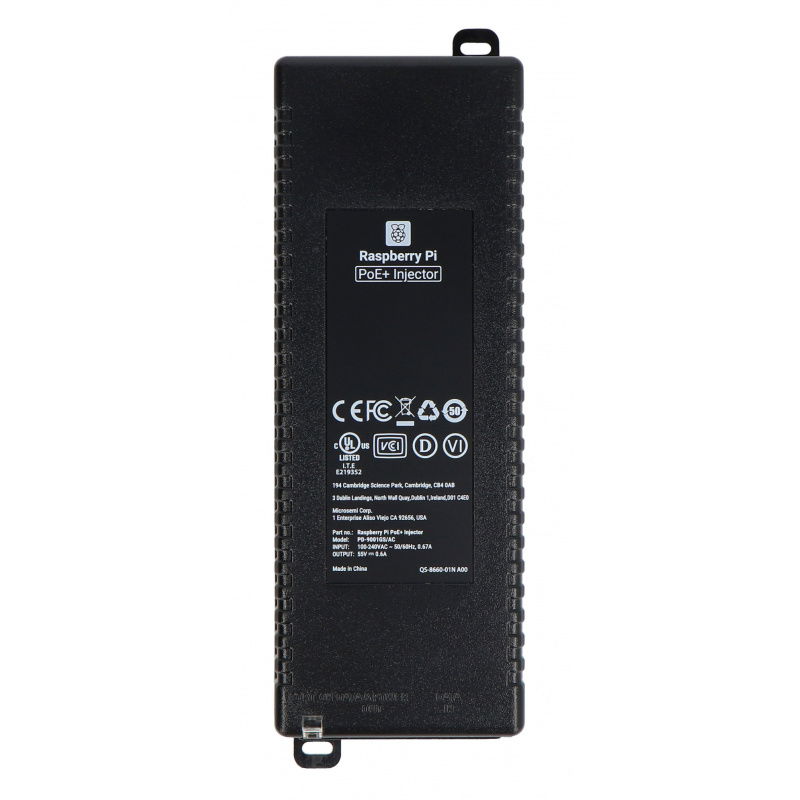

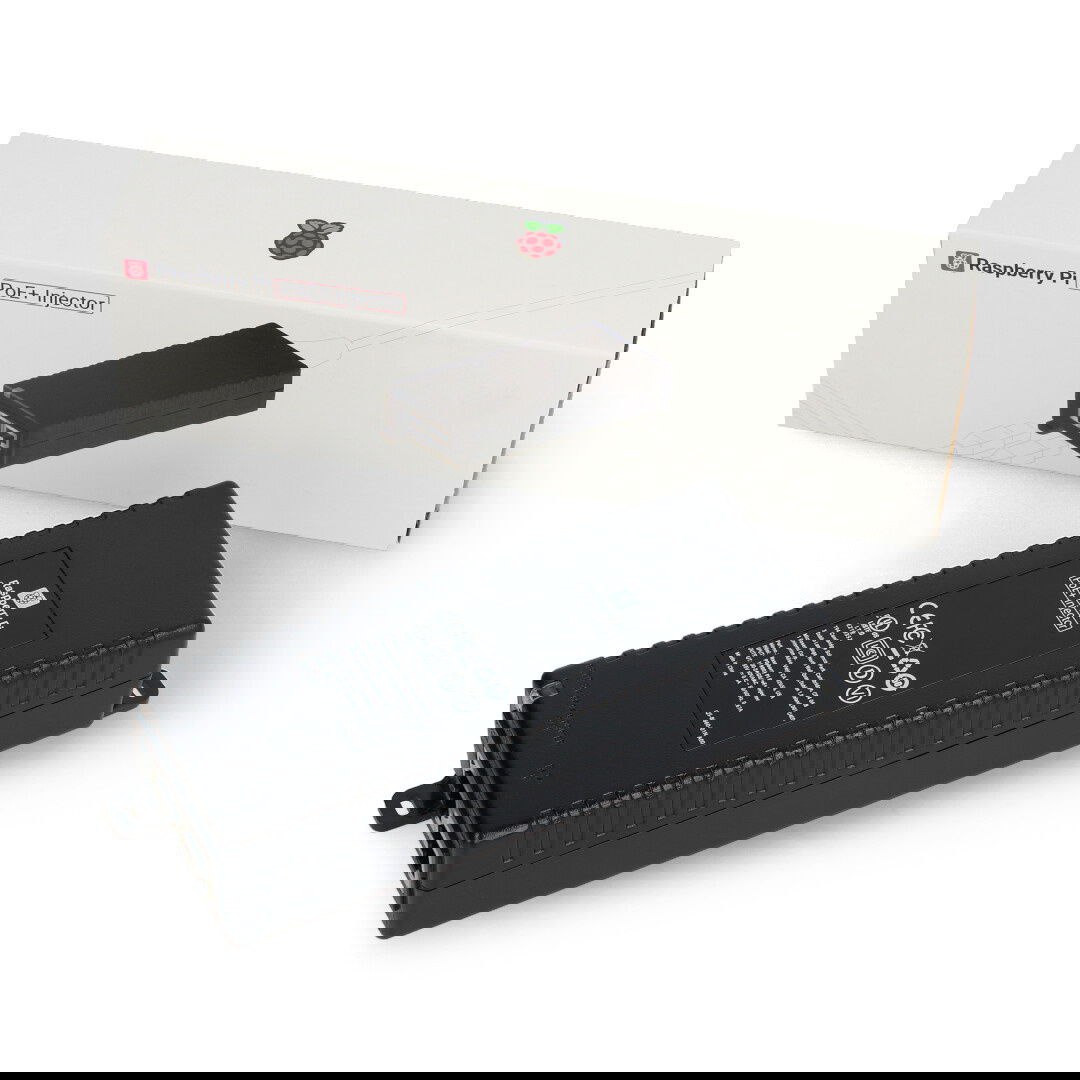

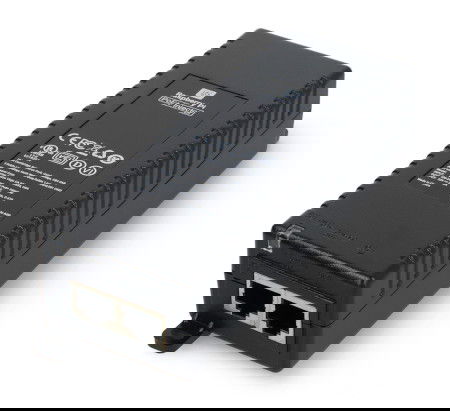

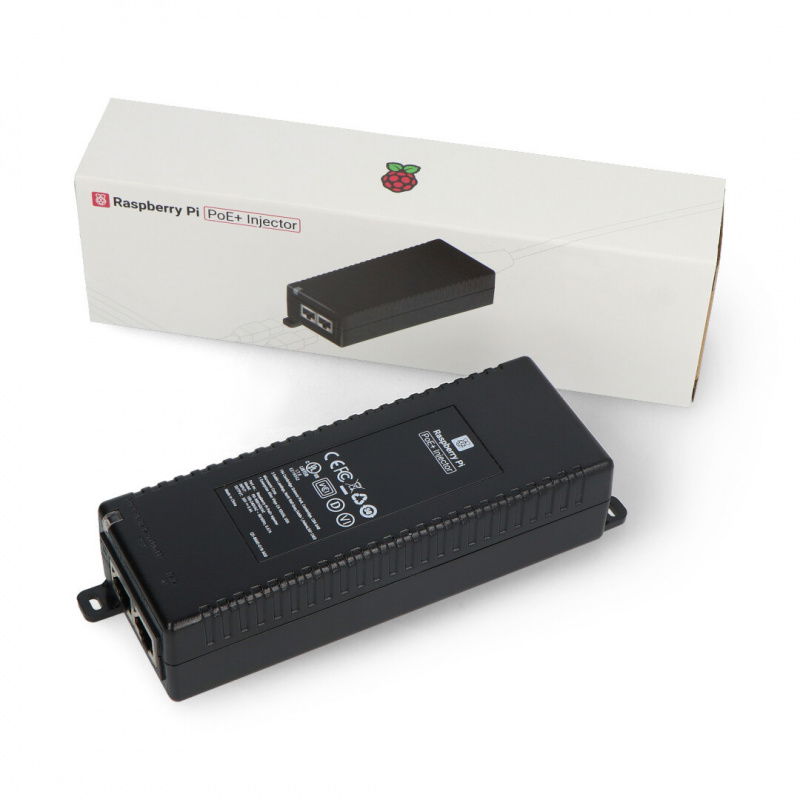

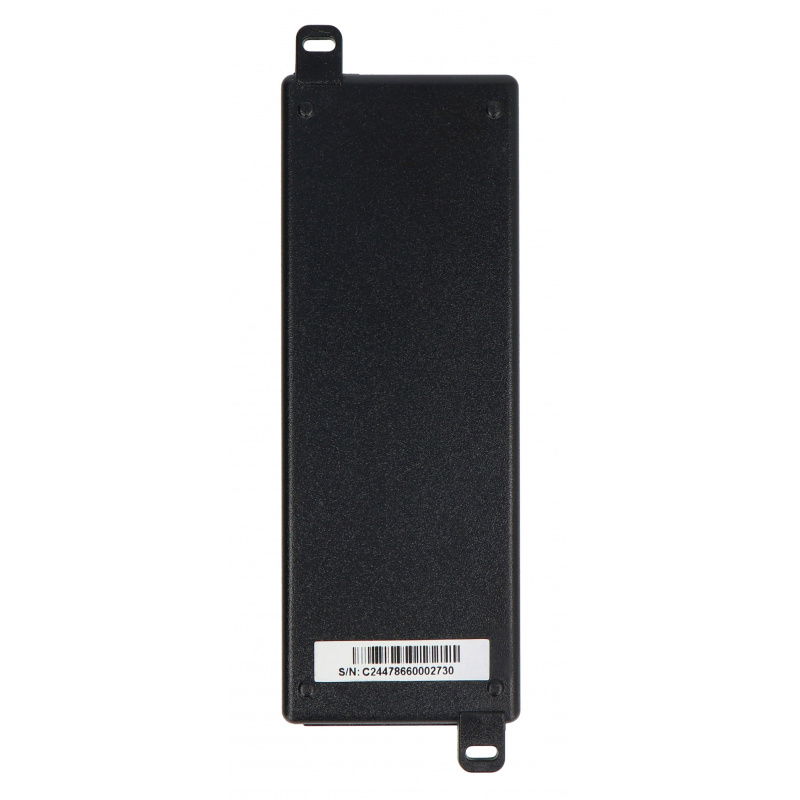

Product description: Raspberry Pi PoE+ Injector - official PoE power supply - RJ45 - with IEC socket - 30 W - for Raspberry Pi - black
The Raspberry Pi PoE+ Injector is a reliable solution for powering and transferring data to Raspberry Pi minicomputers supporting Power over Ethernet . With a power output of 30W and an output voltage of 55V/550mA , it provides stable and safe power, eliminating the need for additional power cables . The injector supports network throughput of up to 1Gb/s , ensuring fast and reliable communication. Its compact size and wide temperature and humidity range make it suitable for both home and industrial environments. One example is powering Raspberry Pi minicomputers equipped with a PoE HAT , which is useful in installations without access to a standard power outlet, such as home automation servers . The Raspberry Pi PoE+ Injector can also be used to power remote WiFi access points , mounted on walls or ceilings, where running a separate power supply may be difficult. Other examples include: use in monitoring systems and IoT components , particularly in remote locations where minimizing cable count is crucial; in industrial installations and server rooms; or as a midspan element in situations where the existing infrastructure is based on a standard non-PoE switch, eliminating the need to replace it. Standard RJ45 connectors enable easy integration with existing infrastructures.

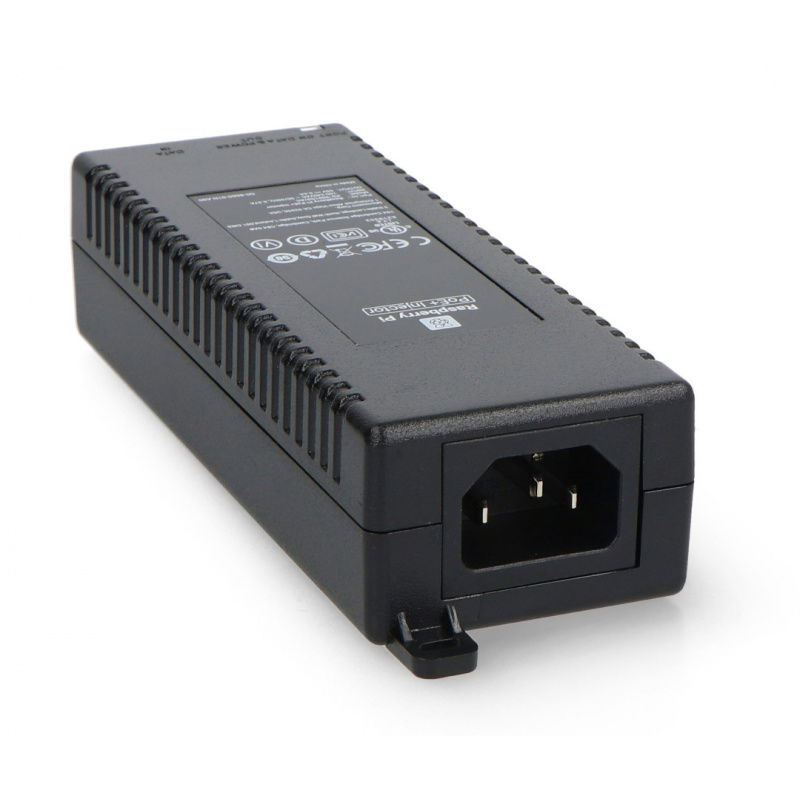

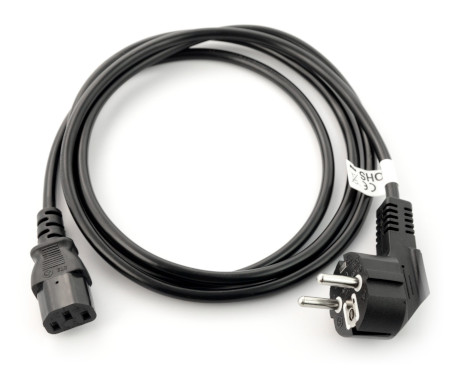

For proper operation, an IEC mains cable is required, which must be purchased separately.

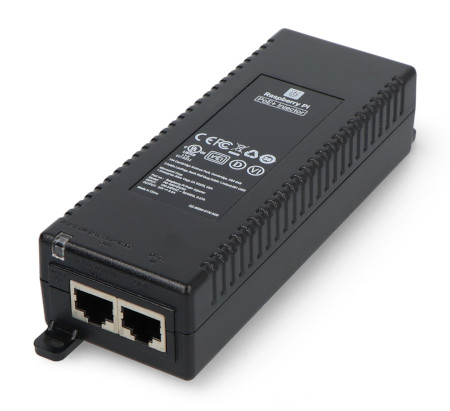

Raspberry Pi PoE+ Injector - official PoE power supply - RJ45 - with IEC socket - 30 W - for Raspberry Pi - black.
The original power supply guarantees safe operation of the Raspberry Pi minicomputer using its full capabilities.
The Raspberry Pi 5 is equipped with an Ethernet port for fast wired network connections at speeds up to 1000 Mbps. The minicomputer is not included.
Main features of the power supply
- Power and data transfer over a single cable - eliminating the need for an additional power supply for PoE+ compatible Raspberry Pi devices (requires a PoE HAT)
- Output power 30 W (55 V / 550 mA) - stable and efficient power supply for network devices
- Supports network speeds of 10/100/1000 Mb/s - full compatibility with modern Ethernet networks

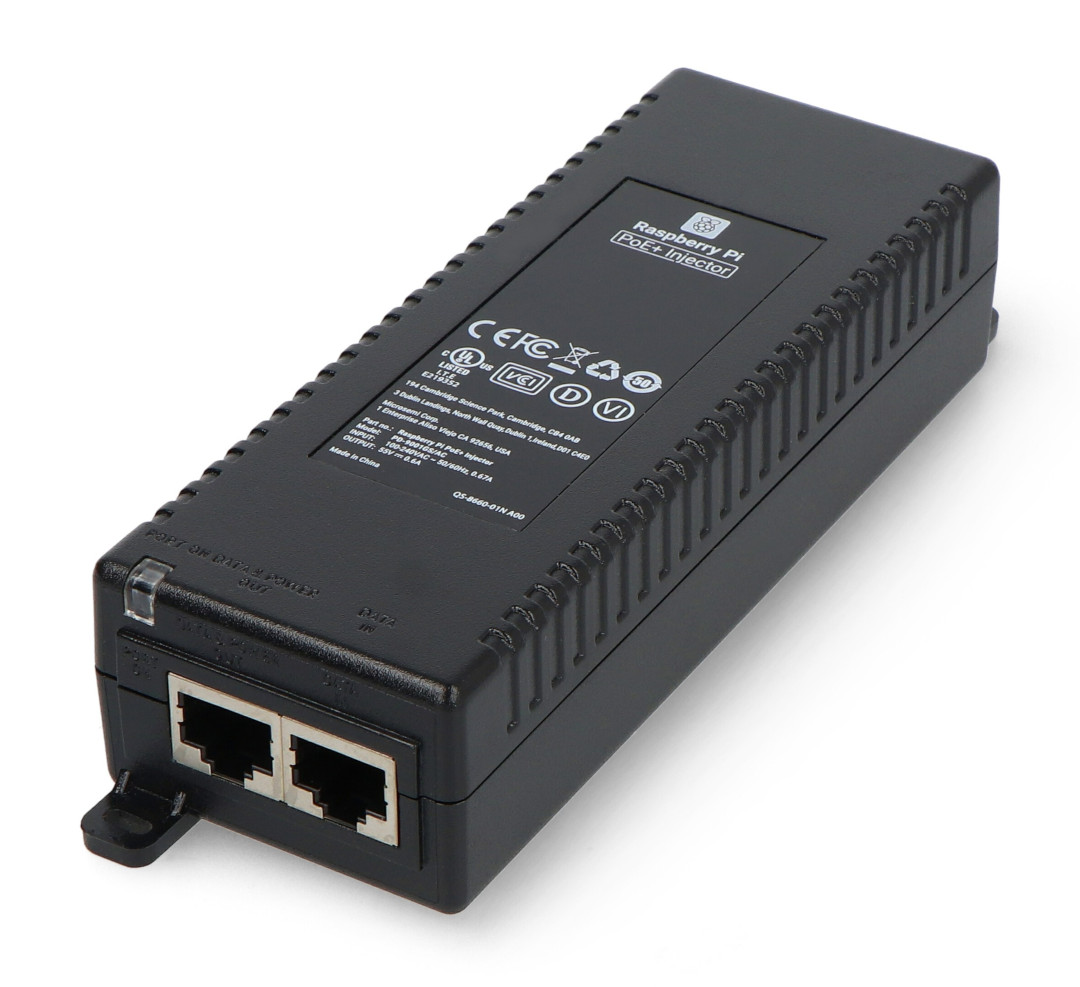

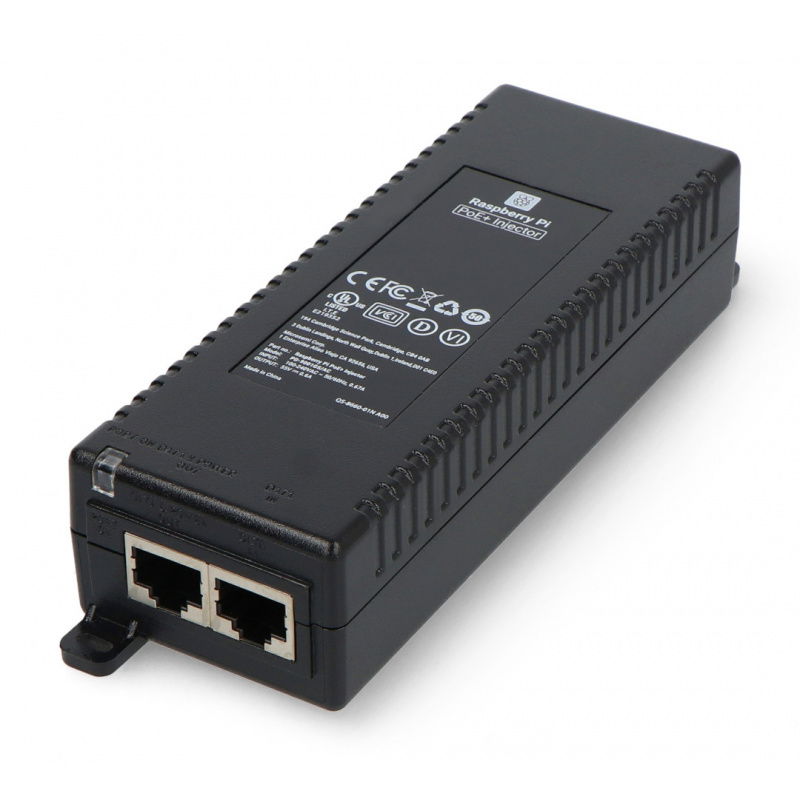

- RJ45 connectors - easy integration with existing network infrastructure
- Wide input voltage range (100V to 240V AC) - can be used worldwide
- Compact housing - can be used in various places, including those with limited space
- Operation in a wide range of temperatures (-10°C to +50°C) and humidity (max. 90%) - suitable for use in both home and industrial conditions
- Plug‑and‑play - immediate operation, no configuration required
- LED indicator (for some variants, such as Waveshare) – solid when device is properly powered; flashing when no PoE-compatible device is detected
Raspberry Pi PoE+ Injector Technical Specifications
- Power input: 100V to 240V AC
- Power output: 55V/550mA
- Rated power: 30 W
- Input connector: RJ45 (Data)
- Output connector: RJ45 (Data + Power)
- Data throughput: 10 / 100 / 1000 Mb/s
- Color: black
- Dimensions: 140 x 53 x 32.5 mm
- Weight: 200 g
The Raspberry Pi PoE+ Injector requires the purchase of an IEC power cable.
