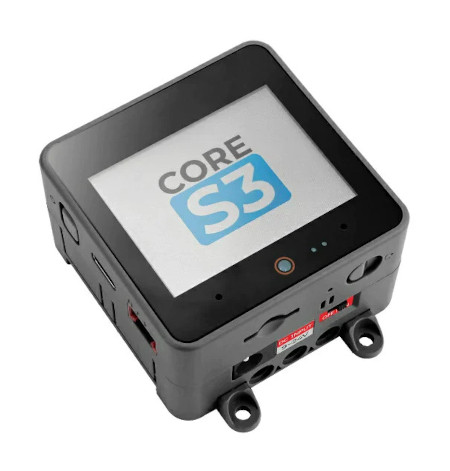

Product description: M5Stack CoreS3 ESP32S3 IoT Development Kit - development kit - M5Stack K128
M5Stack CoreS3 is the third release of the M5Stack Core series development module . This time the manufacturer used the ESP32-S3 system - a dual-core Xtensa LX7 processor with a clock frequency of 240 MHz , which additionally supports WiFi wireless communication and has 16 MB Flash memory and 8 MB PSRAM memory . In the central part of the module there is also a 2.0-inch IPS capacitive touch screen , which is made of high-quality components. Below the screen there is a built-in GC0308 camera with LTR-553ALS-WA sensor, the module also contains a 6-axis IMU BMI270 sensor, BMM150 magnetometer, microSD card slot, RTC BM8563 and many other useful extensions.

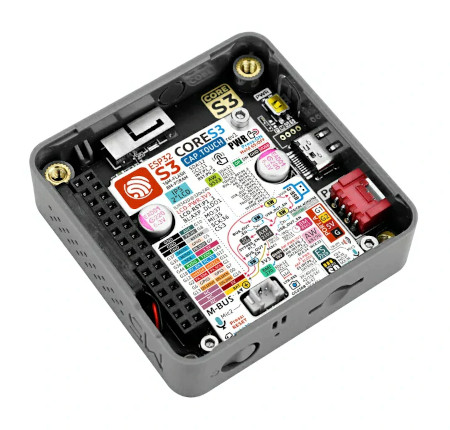

M5Stack CoreS3 ESP32S3 IoT Development Kit - development kit - M5Stack K128.
The manufacturer has also prepared a detailed user's guide , which significantly facilitates starting work with the module and allows you to use all the functionalities it offers.
M5Stack CoreS3 ESP32S3 IoT Development Kit from M5Stack.
Special features of the M5Stack CoreS3
- Based on the ESP32-S3 chip, it supports WiFi wireless communication
- Equipped with camera, proximity sensor, speaker, power indicator, RTC, I2S amplifier, dual microphone, capacitive touch screen, power button, reset button, gyroscope and magnetometer
- Includes TF (microSD) card slot
- Module screen made of high-strength glass
- Supports OTG and CDC functions
- It enables power management through the built-in AXP2101 chip
- Supported by development platforms such as Arduino, UIFlow
Check also other M5Stack modules available in our offer!
Suggested use of the module
- Smart home - the basis of IoT and Smart Home applications
- Prototypes of medical devices
- Development of DIY projects
- Industrial automation control system

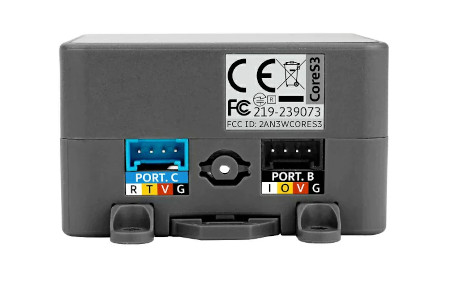

The module has numerous ports and leads that allow you to add more functionalities.

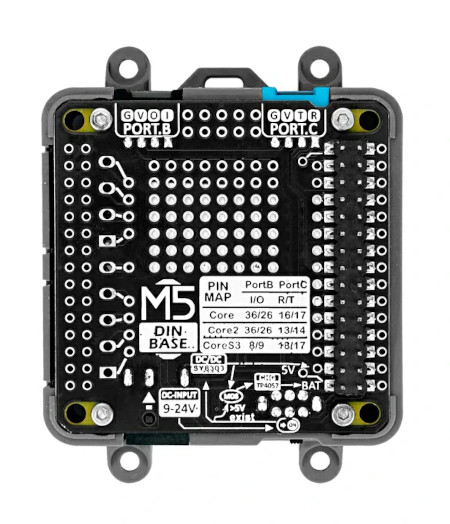

The kit also includes a DinBase board.
Module technical specification
- Built-in MCU chip: ESP32-S3
- Xtensa LX7 dual-core processor with a clock frequency of 240 MHz
- WiFi wireless communication
- 16 MB Flash and 8 MB PSRAM
- Touch display
- Diagonal: 2"
- Resolution: 320 x 240 px
- Driver: ILI9342C
- Built-in camera: GC0308
- Built-in proximity sensor: LTR-553ALS-WA
- Power management chip: AXP2101
- IMU sensor: 6-axis, BMI270
- Magnetometer: BMM150
- RTC: BM8563
- Speaker: 6 bits - I2S AW88298 @ 1W
- Audio decoding chip: ES7210, dual microphone inputs
- Module dimensions: 54 x 54 x 16 mm
- Weight: 73.3g
Kit contents
- M5Stack CoreS3 ESP32S3 IoT Development Kit
- DinBase board
- Fitting elements
- Allen key
- Assembly guide
The elements of the set are enclosed in a convenient container.
