Product description: M5Stamp Fly - programmable drone with StampS3 development module - M5Stack K138
The M5Stamp Fly by M5Stack is an innovative quadcopter kit designed for drone enthusiasts, researchers, and educators. Equipped with the StampS3 as the main controller, the M5Stamp Fly integrates advanced sensors that enable precise flight control. The BMI270 sensor provides position and movement information, while the BMM150 magnetometer provides precise direction determination. The BMP280 pressure sensor and two VL53L3 distance sensors enable precise altitude hold and obstacle avoidance, making this kit ideal for advanced drone projects. Additionally, the PMW3901MB optical flow sensor enables displacement detection, which is crucial during hovering and flight stabilization. The M5Stamp Fly is powered by a 300 mAh high-voltage battery , and the built-in RGB LEDs and buzzer enable user interaction. The entire system is open-source programmable, allowing full customization of functions to your needs.
Also check out the user guide prepared by the manufacturer!

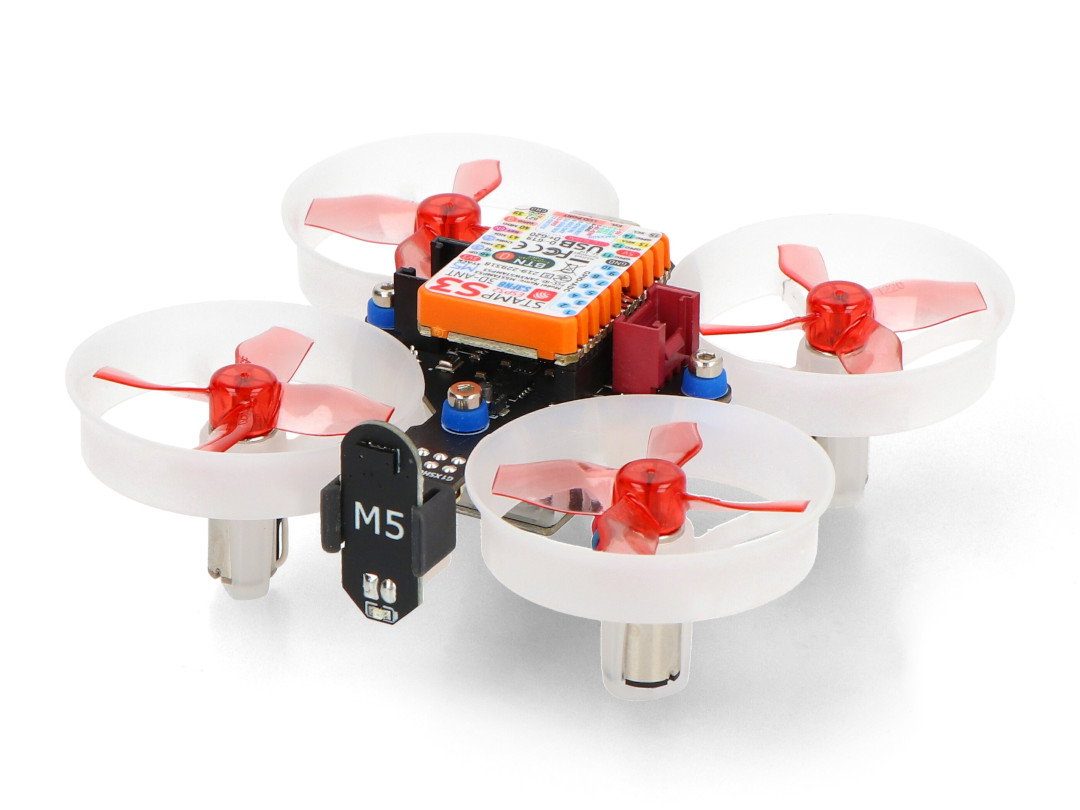

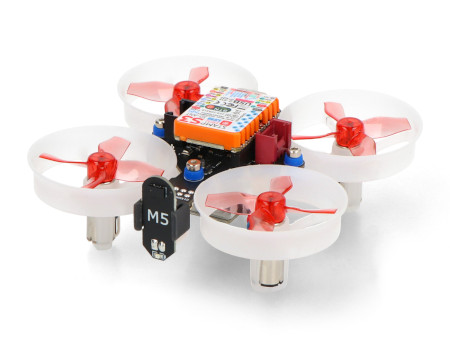

M5Stamp Fly - programmable drone with StampS3 development module - M5Stack K138.
Stamp Fly can be controlled with the JoyStick Atom via the ESP-NOW protocol.
Special Features of the M5Stamp Fly
- StampS3 Master Controller : Equipped with ESP32-S3, it provides high performance and versatility.
- BMI270 6-axis gyroscope : is responsible for precise detection of the drone's position and movement.
- BMM150 3-axis magnetometer : enables precise determination of the flight direction.
- BMP280 pressure sensor : used for precise monitoring of flight altitude.
- Two VL53L3 distance sensors : enable obstacle avoidance and stable altitude maintenance.
- PMW3901MB Optical Flow Sensor : facilitates displacement detection and stabilization while hovering.
- ESP-NOW Support : allows for wireless communication with the M5Atom JoyStick controller.
- Built-in buzzer : provides audible notification of system status.
- WS2812 RGB LEDs : are responsible for visual status indication and interactions.
- Current and voltage monitoring : with INA3221AIRGVR provides accurate real-time measurements.
- Grove Connector Extension : enables easy integration with additional sensors and peripherals.
- Open source firmware source code : allows for full customization of drone functions.
Quadrocopter applications
- Education – the perfect kit for learning programming and electronics.
- Research – perfect for experimenting and developing drone technology.
- Drone development – a great platform for designers and engineers working on new solutions.
- DIY Projects – Perfect for hobbyists creating their own drones and robots.

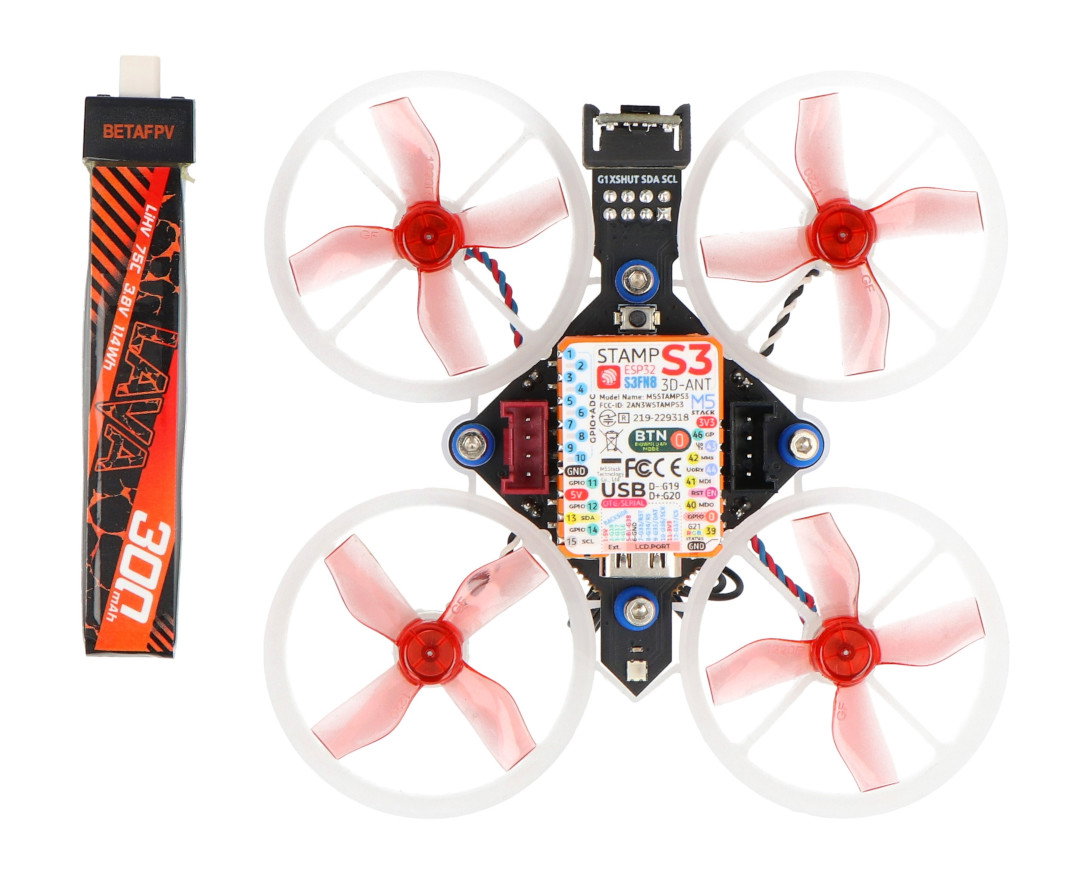

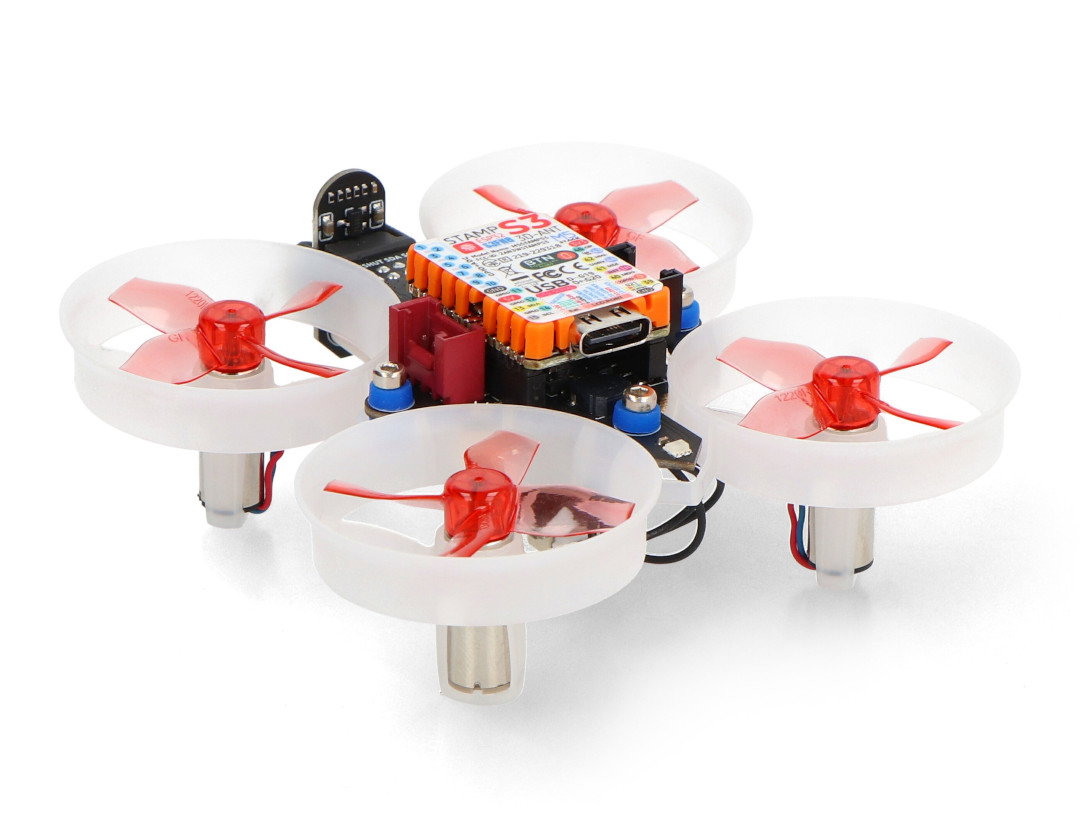

M5Stamp Fly equipped with the StampS3 module.

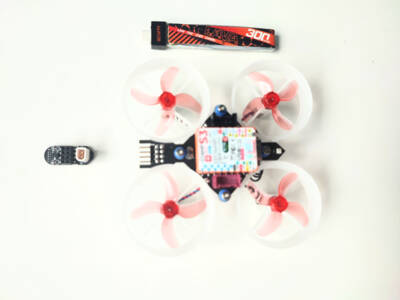

Items included in the set.
M5Stamp Fly Technical Specification
- Model: M5Stamp Fly
- Main Controller: M5StampS3
- Motors: 716kv to 17600kv
- Distance sensor: VL53L3CXV0DH/1 (0x52) at max. 3 m
- Optical Flow Sensor: PMW3901MB-TXQT
- Pressure sensor: BMP280 (0x76) at 300 hPa to 1100 hPa
- Magnetometer: BMM150 (0x10)
- Gyroscope and accelerometer: BMI270 (6-axis IMU)
- Grove: I2C + UART
- Battery: 300mAh 1S (4.35V)
- Current and Voltage Detection: INA3221AIRGVR (0x40)
- Buzzer: Built-in passive at 5020 Hz
- Dimensions: 81.5 x 81.5 x 31mm
- Weight: 36.8 g
Contents of the set
- 1x M5Stamp Fly with M5StampS3
- 1x 300mAh high voltage lithium-ion battery
