Gravity - analog AC current sensor - up to 10A - DFRobot SEN0288
An analog sensor from DFRobot that measures the AC current flowing in a wire without cutting it. The measurement range is up to 10 A, and the measurement itself is done through insulation on a single wire. The output is an analog voltage in the range of 0 V to 1 V. The module works with Arduino modules and boards operating at 3.3 V / 5 V. It also has a Gravity connector, which streamlines the process of connecting elements.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Gravity - analog AC current sensor - up to 10 A - DFRobot SEN0288
An analog sensor from DFRobot that measures the AC current flowing in a wire without cutting the wire. The measurement range is up to 10 A, and the measurement itself is done through insulation on a single wire. The output is an analog voltage in the range of 0 V to 1 V. The module works with Arduino modules and boards operating at 3.3 V / 5 V. It also has a Gravity connector, which streamlines the process of connecting elements.
Set contents

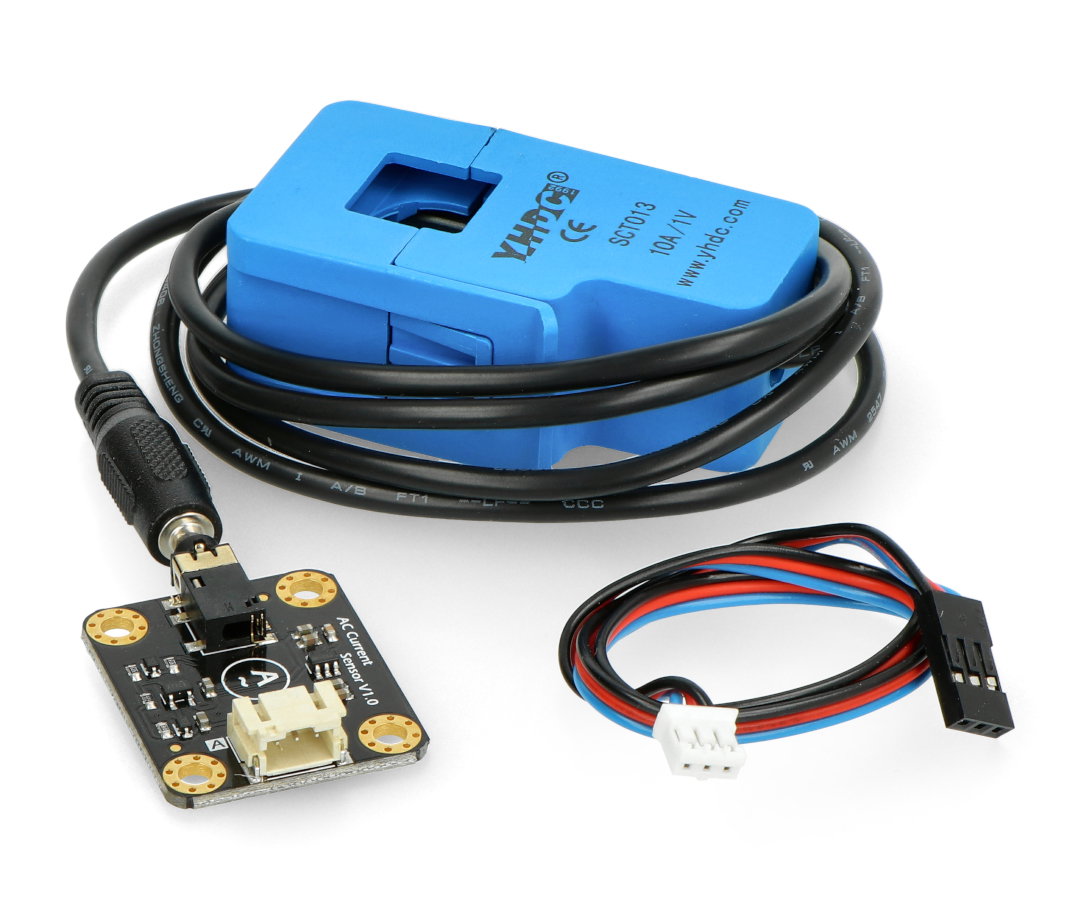

- AC signal conversion module
- Open type AC transformer probe (10 A)
- Cable for sensor 1m long - analog - Gravity
Product compatible with Arduino
Detailed user's guide is available on manufacturer's website. It makes getting started with the module much easier. You can find there instructions for connecting the components and sample program code.
Gravity - analog AC current sensor - up to 10 A.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

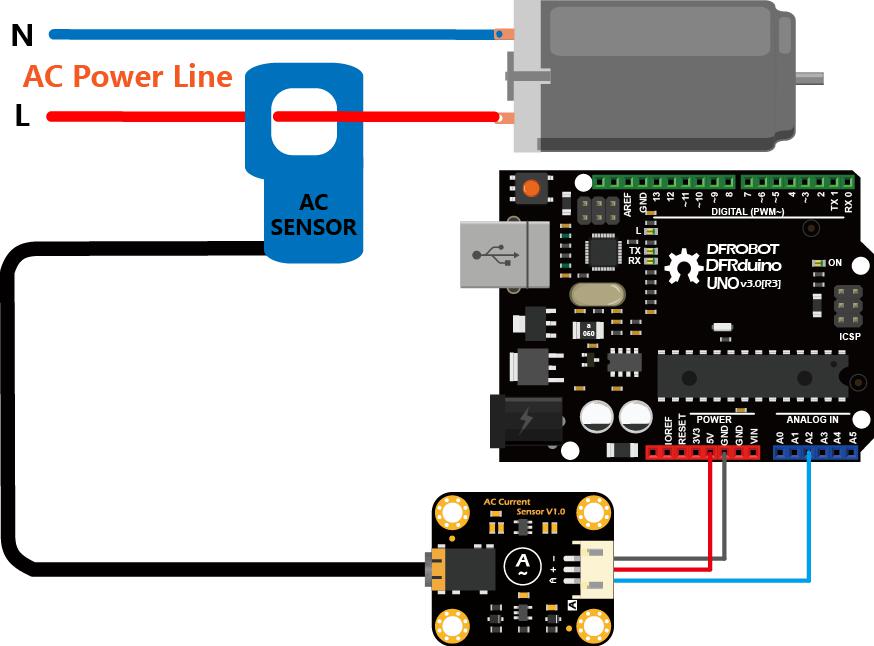

Elements connection with DFRduino board.

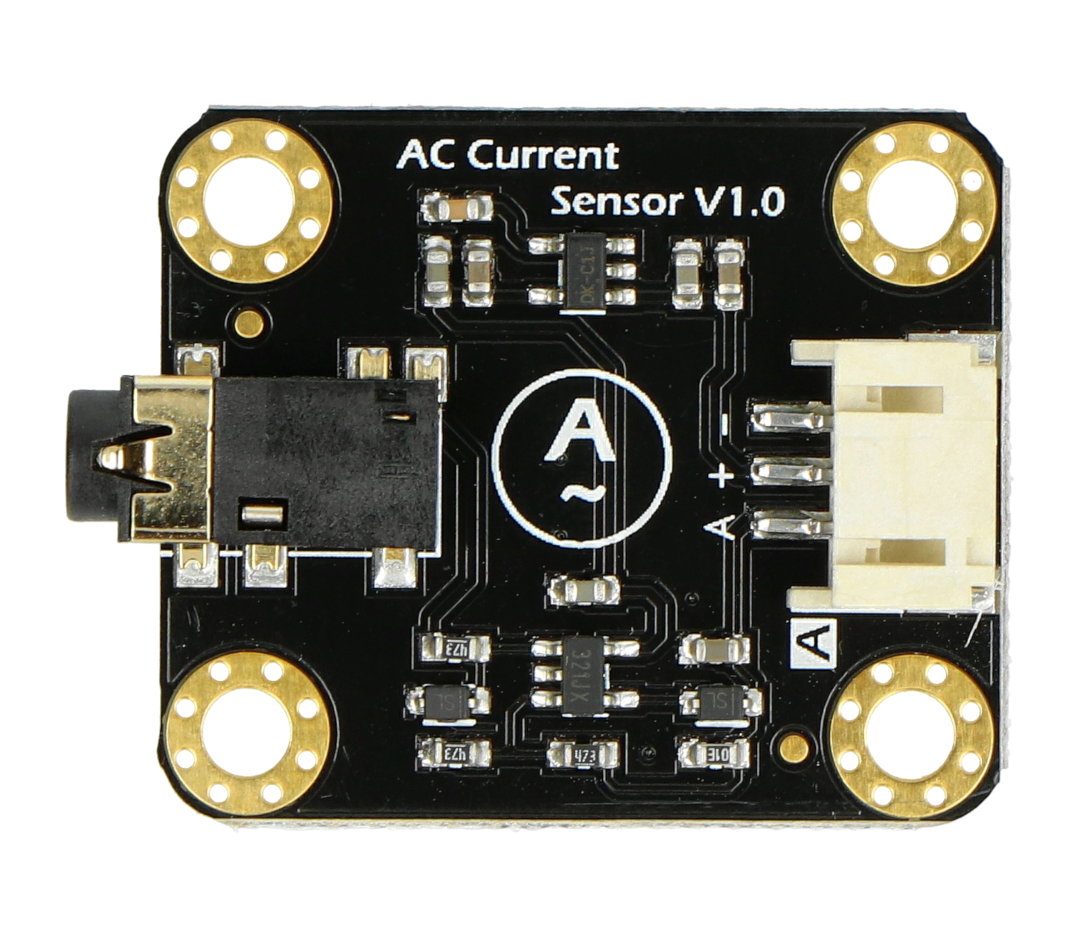

Pinout description of AC sensor
- 1 - "-" - GND - system ground
- 2 - "+" - power input from 3.3 V to 5.5 V
- 3 - "A" - signal output from 0.2 V to 2.8 v DC
- 4 - 3,5 mm connector 3P - AC transformer input signal
Detail features and application of AC sensor
- Non-contact measurement for high safety during operation
- Multiple ranges to choose from for different measurement scenarios
- Compatible with microcontroller operating at 3.3 V / 5 V
- Used for automatic AC motor monitoring
- Used when measuring lighting and electrical equipment
- As a core component of projects to measure and display AC current in household appliances
Technical specifications of the sensor and probe from DFRobot
- Type: AC current sensor
- Type: analog
- Input voltage range (VCC): 3.3 V to 5.5 V
- Connector interface: Gravity PH2.0-3P
- AC input voltage range: 0 V to 1 V AC RMS
- Relative error: +/- 4%
- Module dimensions: 32 x 27 mm
- Module weight: 5 g
NO type AC transformer probe
- AC current range: 0 to 10 A
- Signal output: voltage from 0 V to 1 V AC (linear from 0 A to 10 A
- Accuracy: +/- 1%
- Non-linearity: ≤ +/- 0.2%
- Frequency range: from 50 Hz to 1kHz
- Operating temperature range: from -25°C to 70°C
- Cable length: 1 m
- Probe bore size: 13 x 13 mm
- Probe weight: 50 g
The module has 4 mounting holes which can be used to fix the element at its destination.
