DFRobot Gravity: Analog 20A Current Sensor

Index: DFR-08367 EAN: 6959420911530

Current sensor operating in the range up to 20 A and up to 311 Volts on the basis of the Hall effect. The output is an analog voltage. The supply voltage is 5 V.

DFRobot Gravity: Analog 20A Current Sensor
€10.90
€8.86 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Description

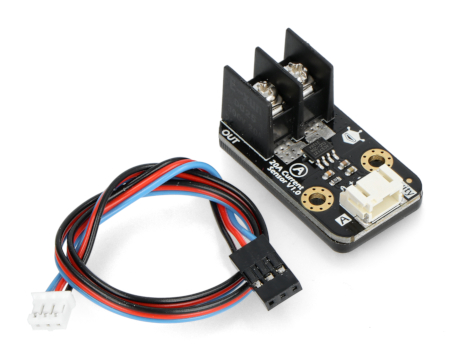

Current sensor operating in the range of up to 20 A and up to 311 Volts on the basis of Hall effect. It works with AC and DC. The output is an analog voltage. The supply voltage is 5 V. The sensor has the insulation protecting from high voltage and nonconducting stand, in order to avoid danger. The kit includes a cable adapted to Gravity DFRobot IO Expansion Shield.

The product is compatible with Arduino

Sample code and detailed information can be found inthe user guide.



Connection

The module works with any microcontroller that has analog inputs, includingArduino. For this, you need to connect power supply and ground, and any analog pin of the microcontroller. On the other side of the module, you must connect the measured device.

Example of connecting the sensor withArduino.

Specification

  • Supply voltage: 5 V
  • Range of current intensity:
    • from 0 A to 20 A DC
    • from 0 to 17 A (RMS) AC
  • Maximum measured voltage:
    • 220 V AC
    • 311 V DC
  • Error: +/- 3 %
  • Included is connection cable
  • Board sizes: 39 x 22 x 17 mm
  • Weight: 18 g



Package width 5.5 cm
Package height 2.5 cm
Package depth 6 cm
Package weight 0.019 kg
