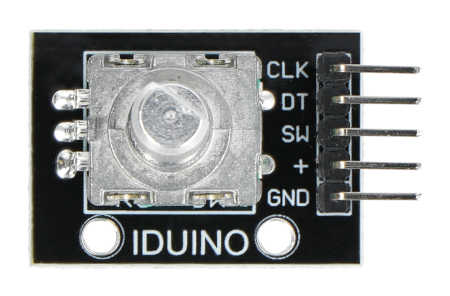

Product description: The rotation sensor, pulser, encoder with a button - module Iduino
Knob in the form ofan encoder with a buttonthat allows you to create a simple user interface. The module sendsa digital signalon the CLK and DT pins, depending on the direction of rotation. It works with the voltage of 5 V.
Using the rotation sensor
The sensor has a 5-pin connector with digital outputs SIA, SIB and SW to be connected to the pin of the microcontroller, e.g.an Arduino.
| Pin | Description |
|---|---|
| VCC | The supply voltage of 5 V. |
| GND | The ground of the system. |
| SW | An output, digital signal from the button. |
| CLK | Frequency output from the quadrature encoder A. |
| DT | Frequency output from the quadrature encoder B. |
|
The product is compatible withArduino |
The operating principle of the encoder
Specification of rotation sensor Iduino
-
Supply voltage: 5 V
- It detects the clockwise and counterclockwise rotation
- Button in the knob
- Diameter of knob: 5 mm
- Type of knob: D
- Module dimensions: 32 x 30 x 20 mm
- Weight: 20 g
