Load Sensor Combinator (Ver. 1.1) - SparkFun BOB-13878

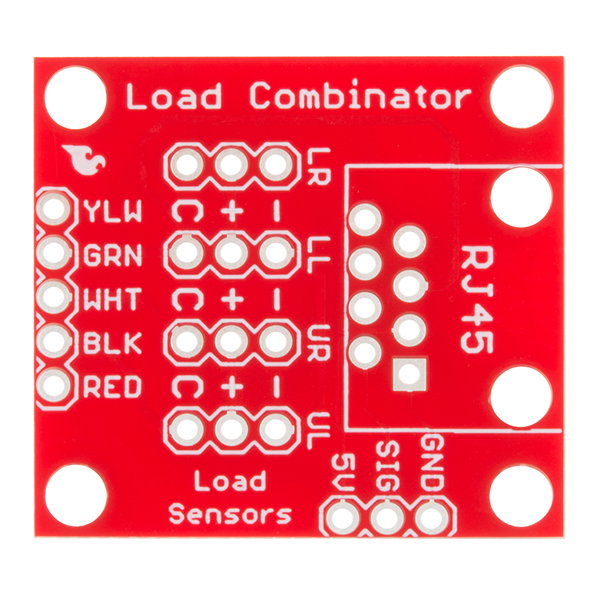

The module allows you to connect 4 load sensors - strain-gauge beams to one of the bridge via 4-wire cable. It finds application, for example, in the construction of the bathroom scales. The board has space for a temperature sensor DS18 B20 and RJ45 connector.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
A module that allows you to connect 4strain-gauge beams with twelve wires in 4-wire Wheatstone bridge configuration, i.e. wires connected in the following way:
Wiring Configuration
- Red (RED): excitation is positive or VCC (power supply)
- Black (BLK): negative excitation or GND (ground)
- White (WHT): the gain is positive, a positive signal or a positive output
- Green (GRN): the gain is negative, the signal is negative or the output is negative
- Yellow (YLW): ground, optional input enables to reduce the electromagnetic interference
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.
The module works withthe HX711 amplifier. In addition, the board has a place for the temperature sensorDS18B20, in the case of significant temperature difference between the sensors and amplifier. The temperature read can be carried out remotely via RJ45 connector, usingthe Ethernet cable.
Specification
- The possibility to connect 4 strain-gauge beams in 4-pin Wheatstone's bridge
- The possibility of mounting a temperature sensor DS18B20
- The possibility of mounting RJ45 connector
- Pins: holes forgoldpin connectors - 2.54 mm(strap can be purchased separately)
- Module dimensions: 30 x 22 mm
