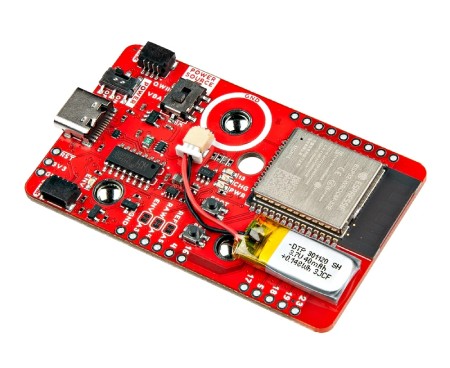

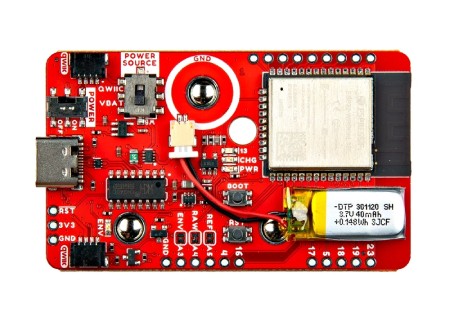

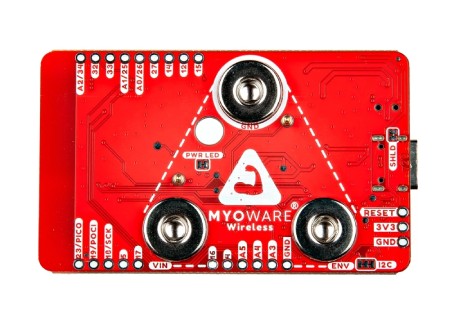

MyoWare 2.0 Wireless Shield - expansion module for MyoWare 2.0 Muscle Sensor - ESP32-WROOM - SparkFun DEV-23387
MyoWare 2.0 Wireless Shield is an advanced extension for the MyoWare 2.0 Muscle Sensor that enables wireless data transmission using the ESP32-WROOM module. With a built-in Li-Pol battery and a range of protections, it allows for full isolation from the mains and convenient use in projects.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: MyoWare 2.0 Wireless Shield - expansion module for the MyoWare 2.0 Muscle Sensor - ESP32-WROOM - SparkFun DEV-23387
MyoWare 2.0 Wireless Shield is a module that extends the functionality of the MyoWare 2.0 Muscle Sensor by adding a wireless data transmission function. Equipped with the ESP32-WROOM module, it allows for fast and stable transmission of information about muscle activity in real time. Thanks to the built-in 40 mAh Li-Pol battery and a dedicated charging system via USB Type-C connector, the sensor can operate independently of an external power supply. The board has snap connectors and low-profile pogo pins , which allow for easy and trouble-free connection to the MyoWare 2.0 Muscle Sensor. Thanks to this, there is no need to solder components. Additionally, the system has numerous protections , such as ESD diodes on USB data lines, a PTC fuse for VUSB and protective diodes on the VUSB and VBATT lines.
The manufacturer has prepared a detailed user guide for the MyoWare 2.0 ecosystem.
MyoWare 2.0 Wireless Shield - expansion module for the MyoWare 2.0 Muscle Sensor - ESP32-WROOM - SparkFun DEV-23387.
Attention!
MyoWare 2.0 series products are not intended to diagnose, treat, cure, mitigate or prevent disease or other conditions in humans or animals.
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.
USB Type-C and the CH340 USB to serial converter enable programming using the Arduino IDE.
Main features of the module
- Wireless data transmission : thanks to the ESP32-WROOM module, it is possible to send information about muscle activity to other devices
- Built-in 40 mAh Li-Pol battery : allows operation without the need for an external power source
- Programming via USB Type-C: Thanks to the CH340 chip, it can be easily configured via the Arduino IDE
- Easy connection : snaps and pogo pins eliminate the need for soldering
- Isolation from the power grid : increases user safety and reduces measurement interference
- Voltage regulation : the operating voltage of the module is 3.3 V, which ensures compatibility with most logic circuits
- Qwiic support : two Qwiic connectors allow easy connection of additional modules using the I2C interface
- Additional PTH pins : enable advanced expansion and adaptation of the module to specific projects
Compatibility, connection and programming
The MyoWare 2.0 Wireless Shield is compatible with the MyoWare 2.0 ecosystem , allowing you to easily expand the functionality of your muscle sensor. It can be programmed using the Arduino IDE , using the CH340 converter to connect via USB Type-C. Once the appropriate code has been uploaded, data can be sent wirelessly to devices that support ESP32 . Connecting the board is intuitive - just place it on the MyoWare 2.0 Muscle Sensor, select a power source, and turn the module on . Additional configuration jumpers give you control over features such as pull-up resistors for the I2C bus or select a reference voltage.

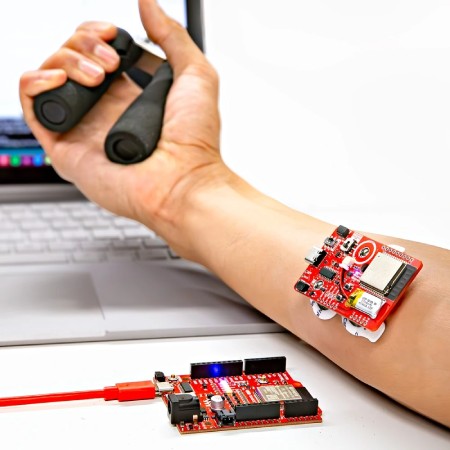

The MyoWare 2.0 Wireless Shield is used to read data from the MyoWare 2.0 sensor.
The module transmits data wirelessly thanks to ESP32-WROOM.
MyoWare 2.0 Ecosystem
MyoWare 2.0 is an ecosystem of overlays that can be easily connected to muscle sensors , as well as to Arduino , to create a universal electromyography (EMG) sensor. The innovative snap-in connector system allows easy connection of modules, and the analogue TRS Jack 3.5 mm is used to connect to a microcontroller, which measures the raw, filtered and rectified electrical activity of the target muscle.
MyoWare 2.0 Wireless Shield Technical Specifications
- Communication module: ESP32-WROOM
- Input voltage: 5V via USB Type-C connector
- Output Voltage (VIN): 3.3V via voltage regulator (RT9080) and Qwiic connector
- Power supply: built-in 3.7 V Li-Pol battery with a capacity of 40 mAh
- Charging system: MCP73831
- Battery charging: via USB Type-C
- USB Port: USB Type-C with CH340 Chip
- GPIO pins: standard 0.1'' PTH connectors
- Communication interfaces: I2C (with Qwiic support)
- Safety elements: ESD diodes, PTC fuse, ideal diodes
- Additional features: Reset and Boot buttons Status LEDs (PWR, CHG, ENV, LED 13)
- Dimensions: 63.5 x 38 mm
- Weight: 16.7 g

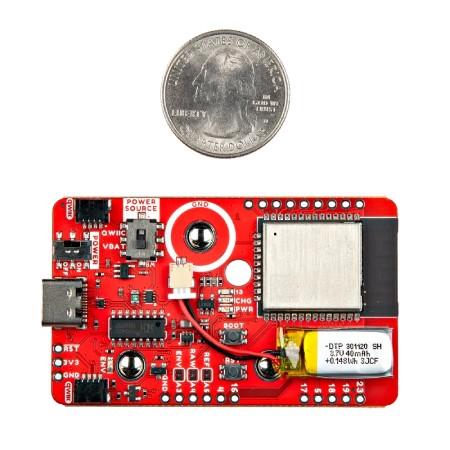

The board offers compact dimensions of 63.5 x 38 mm.
