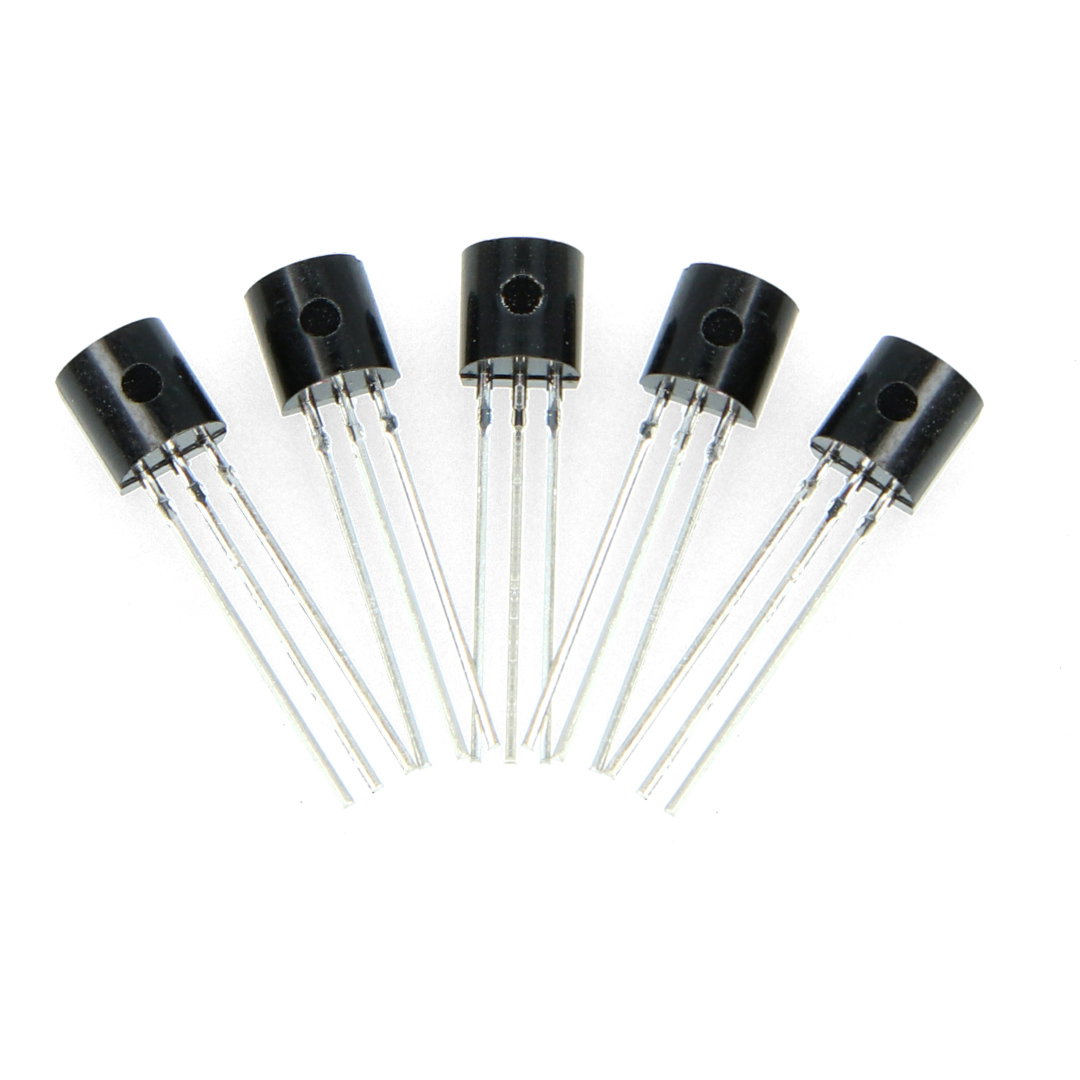

Bipolar transistor PNP BC556B 65V/0,1A - 5pcs.
Set of five PNP BC556B bipolar transistors in TO-92 package. Transistors equipped with three leads: emitter, base, collector. They are designed for through-hole THT mounting. Polarization of PNP transistors means that the current flow is activated by low potential. Maximum voltage from collector to emitter is 65 V, and collector current is 100 mA. The power of a single transistor is 500 mW.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Bipolar PNP transistor BC556B 65 V / 0,1 A - 5 pieces
Set of five PNP BC556Bbipolar transistors inTO-92package. Transistors equipped with three leads: emitter, base, collector. They are designed for through-holeTHTmounting. Polarization ofPNPtransistors means that the current flow is activated by low potential. Maximum voltage from collector to emitter is65 V, and collector current is100 mA. The power of a single transistor is500 mW. The transistors can be used for various electronic projects.
The elements are sold in packages of 5 pieces.

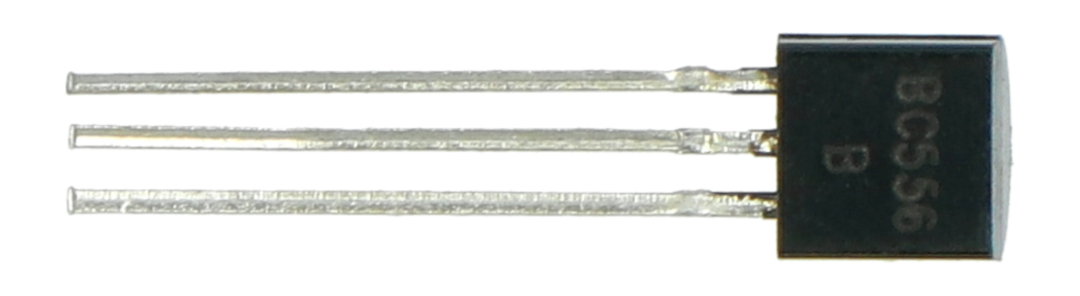

Bipolar PNP transistor BC556B in TO-92 package.
Bipolar PNP transistor BC556B 65 V / 0,1 A - 5 pcs.
Specifications of BC556B transistor
- Housing: TO-92
- Transistor polarity: PNP
- Transistor type: bipolar
- Transistor assembly: THT
- Maximum voltage collector-emitter: 65 V
- Collector current: 100 mA
- Collector - base voltage: 80 V
- Emitter to base voltage: 5 V
- Power: 500 mW
- Frequency: 150 MHz
- Number of pieces per package: 5
| Name | Value |
|---|---|
| Width | 5 cm |
| Height | 0.3 cm |
| Depth | 7 cm |
| Weight | 0.001 kg |
