Touch Screen B - resistive LCD 3,2'' 320x240px GPIO for Raspberry Pi 4B/3B+/3B/Zero - Waveshare 9201

Index: WSR-04510 EAN: 5904422371319

Waveshare touch screen, 3.2" resistive for Raspberry Pi with 320 x 240 px resolution. Works with Raspberry Pi in 4B, 3B+, 3B, Zero and Zero W through GPIO pins.

Touch Screen B - resistive LCD 3,2'' 320x240px GPIO for Raspberry Pi 4B/3B+/3B/Zero - Waveshare 9201
€27.99
€22.76 tax excl.
Available, 24h shipping!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: Waveshare B touch screen - resistance LCD TFT 3.2'' 320x240px GPIO for Raspberry Pi 4B/3B+/3B/Zero

Touch screen, 3.2" resistive for Raspberry Pi with 320 x 240 px resolution. Works with the RaspberryPi in 4B, 3B_ 3B, 2, B+, Zero and Zero W versionsvia GPIO pins - as a minicomputer cap. A stylus for operating the screen is also included.

The device communicates via GPIO pins - as an overlay to the minicomputer.

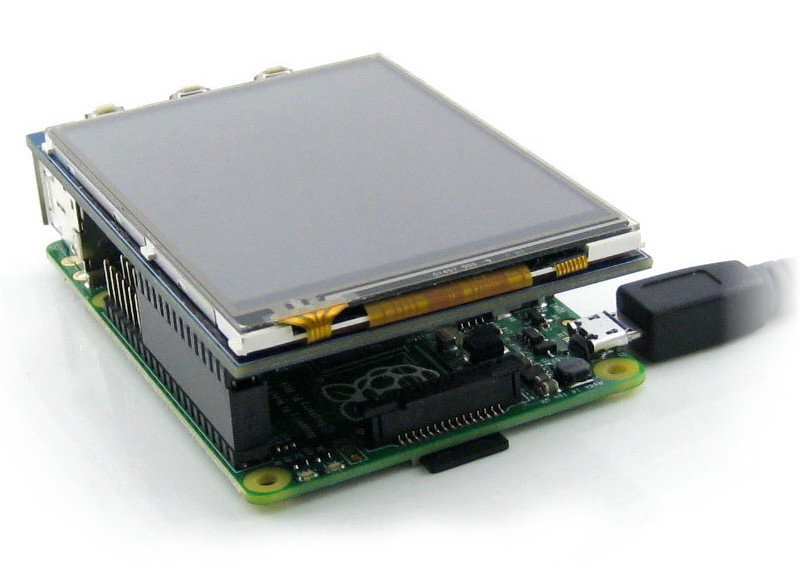

Example of connecting a screen with Raspberry Pi.

Connection with Raspberry Pi

To start the screen, put the screen on the GPIO Raspberry Pi pins.

Screen software

The manufacturer has prepared an operating system with the drivers installed. The system should be unpacked by an appropriate program, e.g. WinZip, and uploaded to the card usingWin32 Disk Imager.

Detailed description of connecting and installing the drivers without changing the Raspberry Pi system and a picture of the finished system can be found onthe manufacturer's website.

A screenshot ofWin32 Disk Imager, after selecting the system, just click Write button and wait for the installation process to be completed.

GPIO interface

Pin GPIO Symbol Description
1, 17 3,3V Power supply 3.3 V.
2, 4 5V 5 V power supply.
3, 5, 7, 8, 10, 22 NC Not connected.
6, 9, 14, 20, 25 GND The weight.
11 TP_IRQ Break from the touch panel.
12 KEY1 The key.
13 RST Reset.
15 LCD_RS Selection: commands or data for the LCD panel.
16 KEY2 The key.
18 KEY3 The key.
19

LCD_SI/

TP_SPI

SPI interface data input for touch panel and LCD screen.
21 TP_SO SPI interface data output for the touch panel.
23

LCD_SCK/

TP_SCK

SPI clock signal for touch panel and LCD screen.
24 LCD_CS Chip select for LCD screen.
26 TP_CS Chip select for the touch panel.

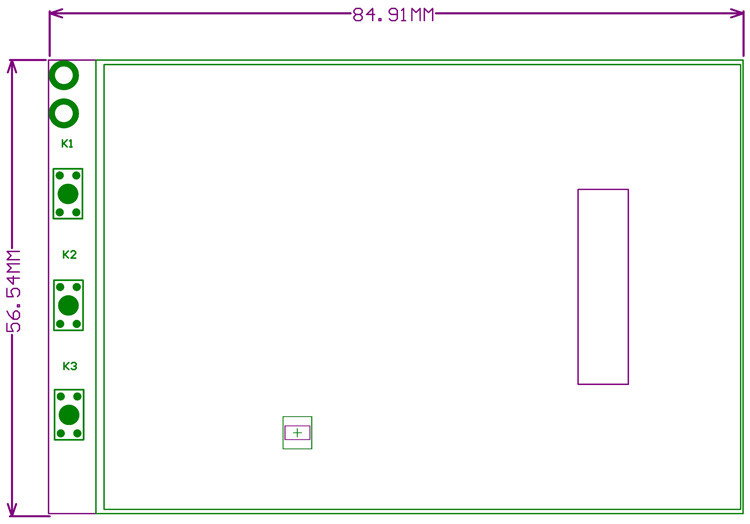

External dimensions of the screen.

Waveshare touch screen specifications

  • Type: touch screen, resistive
  • Diagonal: 3.2 "
  • Resolution: 320 x 240 px
  • He works with:Raspberry Piin wesji 3, 2, B+, Zero and Zero W (works directly withthe systemfrom the manufacturer)
  • Also works with all HDMI devices (touch is not available)
  • Screen dimensions: 85 x 56.5 mm

The set includes

  • 3.2" touch screen, resistive
  • Mounting screws
  • Stylus

Screen - type LCD TFT
Screen - diagonal 3.2''
Screen - interface GPIO
Screen - touch yes
Screen - resolution 320x240px
