Product description: SCS10UU linear bearing for 3D printer
Installed linear bearing. It is used, among others, as a structural element of3D printers. It is used as a support for rotating smooth linear shafts. There are mounting holes in a metal body of the block, which enables installation of the whole assembly. The product is made of high quality materials, which ensures precise movement of elements. The bearing is matched to linear shafts of10 mmdiameter.

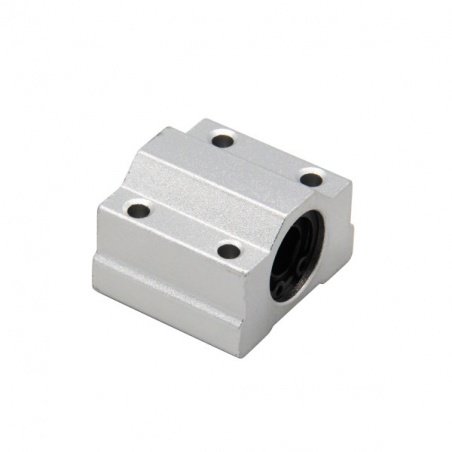

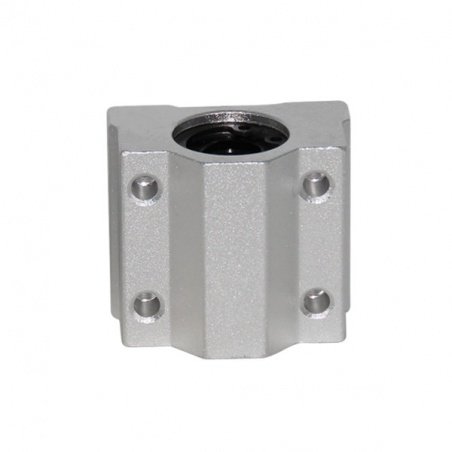

Linear bearing SCS10UU.

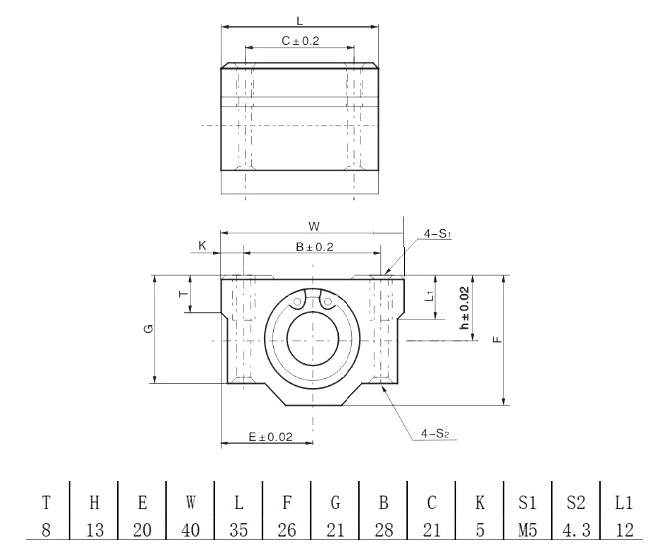

Detailed dimensions of the installed bearing (mm).
Application of linear bearings
Linear bearings are used in numerous devices that use linear displacement technology. The accuracy of movement of individual sliding elements of the equipment depends on their precision. The bearings, which are usually in the form of a small sleeve, can be found, among other things, in
- 3D printers
- CNC milling machines
- Plotters
- Sorters
Bearing specifications
- Material: metal, plastic
- Total length: 40 mm
- Total width: 26 mm
- Overall height: 35 mm
- Compatible with linear shafts with a diameter of 10 mm
- Weight: 92 g
