Product description: 20T toothed belt pulley GT2 10mm - hole 5mm
The wheel equipped with20 teeth, used together with GT2 toothed belt as power transmission elements in 3D printers andCNC milling machines. The wheel is used in the mechanism of linear movement of moving elements of a3D printer. They are usually found in printers in the design of the movement mechanism of the heating table and extruder. The gear wheel can be placed on the shaft of a stepper motor or act as a pulley. The product is used withGT2 belts with a width of 10 mm. The diameter of the inner hole is5 mmand total height is 19.5 mm.

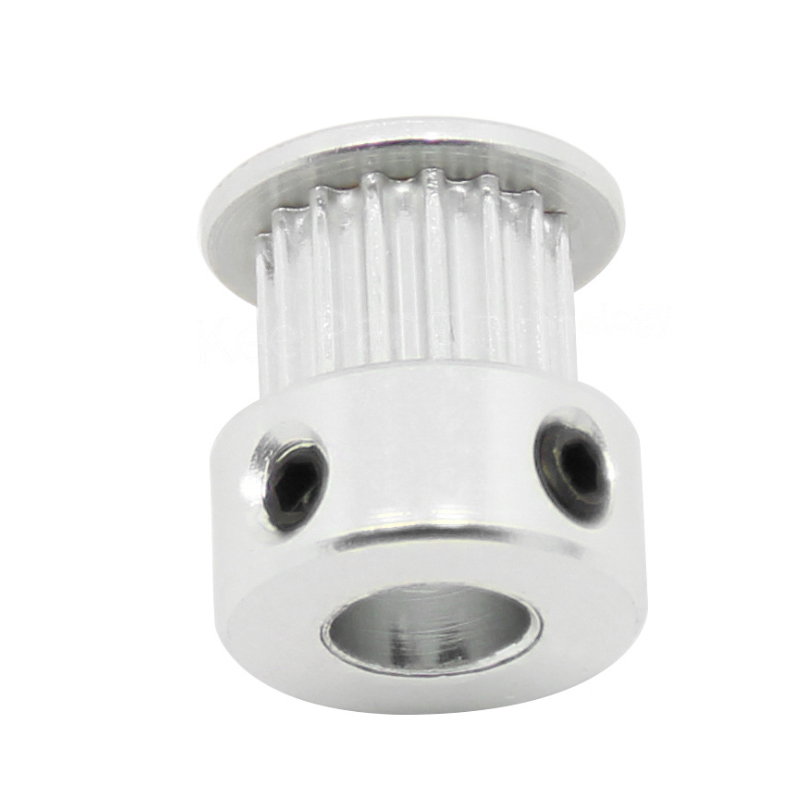

Idler20T for GT2 belt 10 mm - hole 5 mm.
Detailed dimensions of the idler pulley 20T (mm).
Application of the idlers 20T
Specifications of Idler 20T for belt GT2 10 mm
- Material: aluminum
- Number of teeth: 20
- Diameter of the gear wheel: 16 mm
- Bore diameter: 5 mm
- Height of the wheel: 19.5 mm
- Pressure adjusting screw size: M2
- Compatible with GT2 timing belts with a width of 10 mm
- High quality material ensures long tooth life and precision of belt operation
