Product description: 5 x 8 mm aluminium fixed clutch
Aluminium fixed clutch, used as a construction part of RepRap3D printers. It acts as a connector between the stepper motor shaft and the trapezoidal screw. Using a rigid connection between these two elements allows to eliminate the undesirable phenomenon of striations appearing on the walls of 3D prints. The coupling has the form of a solid block of aluminium with two mounting holes: with adiameter of 5 mmfor installation on the stepper motor shaft and8 mmfor the trapezoidal screw. Additionally, there are holes with pressure screws in the body. Total height of the product is 25 mm, and outer diameter of the whole block is 14 mm.

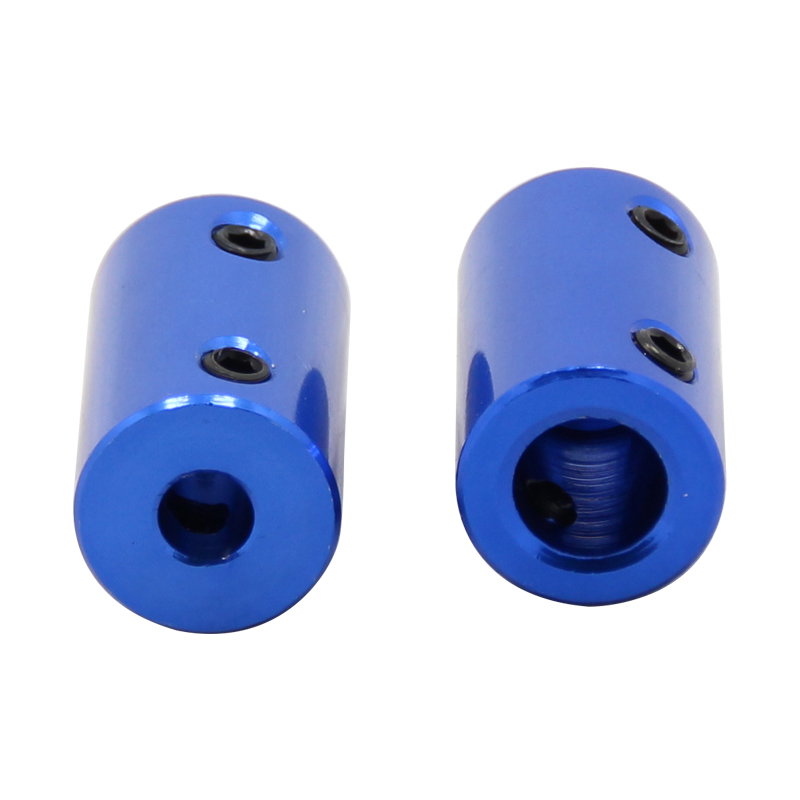

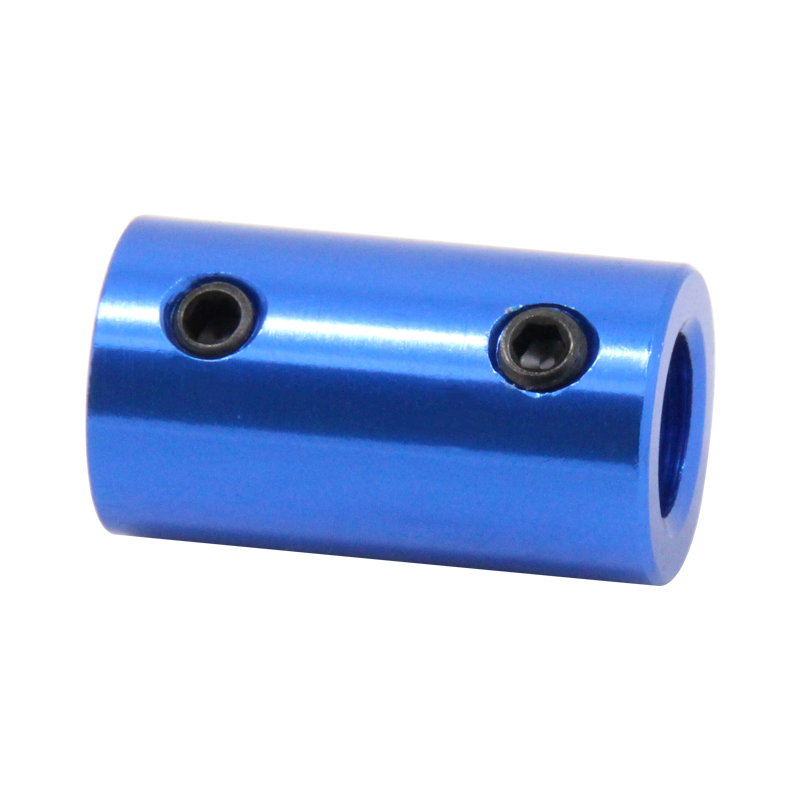

Aluminium fixed coupling 5 x 8 mm.
The object of sale is onefixed coupling.
Specification of fixed coupling
- Material: aluminum
- Dimensions of mounting hole for motor: 5 mm.
- Dimensions of mounting hole for screw: 8 mm
- Coupling height: 25 mm
- Outside diameter of clutch: 14 mm
- Clutch has holes with pressure screws
- Colour: blue
