Product description: Fermion - SHT40 I2C temperature and humidity sensor - DFRobot SEN0428
A module from the Fermion series by DFRobot featuring the Sensirion SHT40 temperature and humidity sensor. The SHT40 sensor measures humidity from 0% to 100% RH with an accuracy of ±1.8% RH and temperature from -40°C to 125°C with an accuracy of ±0.2°C. A built-in variable-power heater enables proper operation in extreme conditions, such as condensing environments. The module uses an I2C interface for communication, is powered from 3.3 V to 5 V and consumes up to 0.15 mA in low power mode. The module is ideal for battery-powered mobile and wireless applications. It can be used for urban environmental monitoring, smart buildings, industrial automation and other Internet of Things applications.

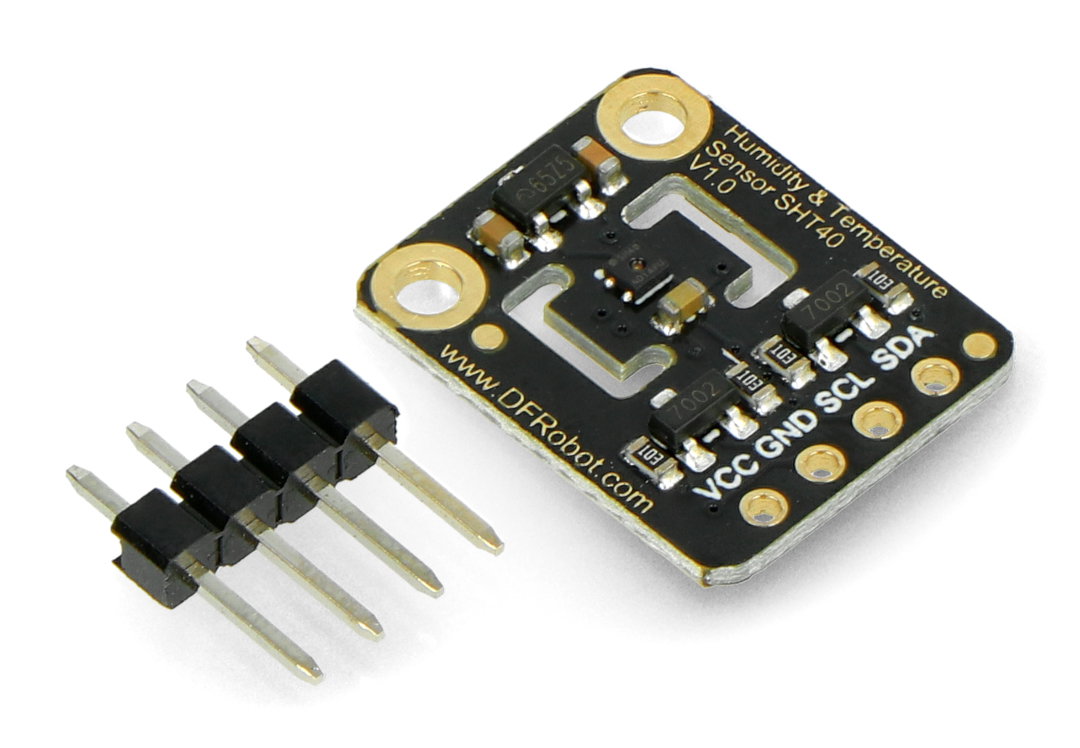

Module with SHT40 temperature and humidity sensor. Goldpin connector included.
DFRobot Fermion module.Main features of the SHT40 sensor module
- High accuracy
- Low power consumption
- Small size
- Fast response time
Application of the temperature and humidity sensor
- Intelligent buildings
- Weather stations
- Warehouses
- Animal and plant environments
- Incubator for animals
- Plant seed germination containers
SHT40 sensor terminals
The SHT40 temperature and humidity sensor module uses the I2C bus for communication. It is powered from 3.3 V to 5 V. Its pinouts are:
- VCC: supply voltage from 3.3 V to 5 V
- GND: system ground
- SCL: I2C bus clock line
- SDA: I2C bus data line

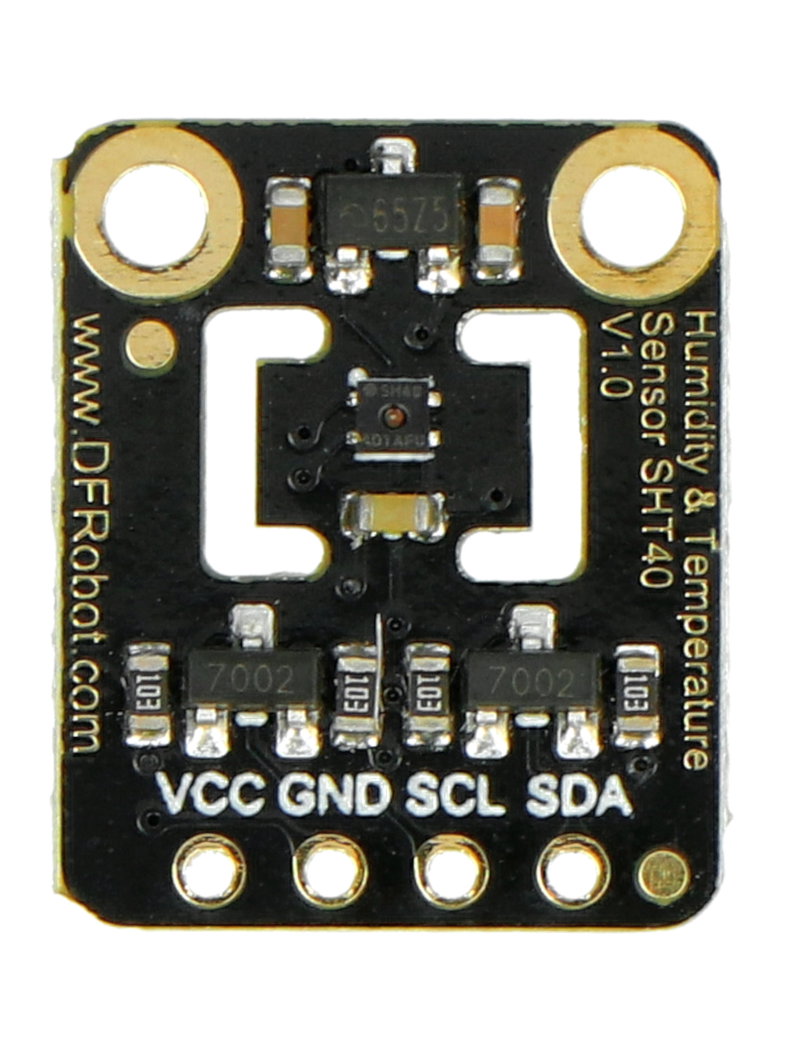

Module with SHT40 sensor.SHT40 sensor specification
- Supply voltage: 3.3 V to 5 V
- Current consumption: 0.45 mA
- Communication interface: I2C
- Response time: 8 s
- Humidity measurement range: 0% to 100% RH
- Accuracy of humidity measurement: ±1.8% RH
- Temperature measurement range: -40°C to 125°C
- Accuracy of temperature measurement: ±0,2°C
- Mounting holes: M2 (2 mm)
- Mounting hole spacing: 10 mm
- Dimensions: 17 x 14 mm
