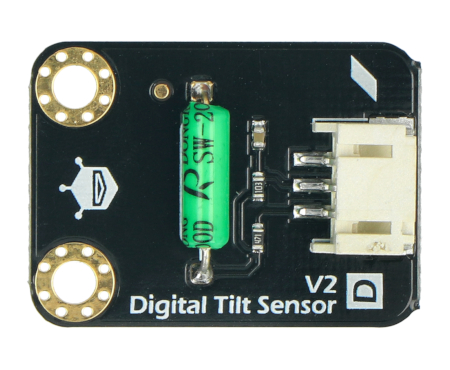

Description
A simple tilt sensor with digital output. It is powered with the voltage from 3.3 V to 5 V, it works with Arduino modules. The kit includes a cable adapted toDFRobot IO Expansion Shield.
|
The product is compatible with Arduino Sample code and detailed information can be found inthe user guide. |
Connection
The sensor works with any microcontroller having digital inputs, includingArduino. To read data, just connect the power and output pin to any input of the microcontroller and read its status.

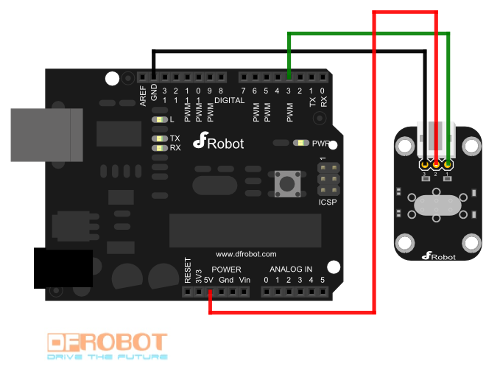

Example of connecting the sensor withArduino.
Specification
- Supply voltage: 3.3 V to 5 V
- Communication: digital signal 0/1
- The cable connecting withDFRobot IO Expansion Shield
- Board sizes: 22 x 30 mm
Board is suitable for connectors of DFRobot IO Expansion Shield for Arduino V7.1.

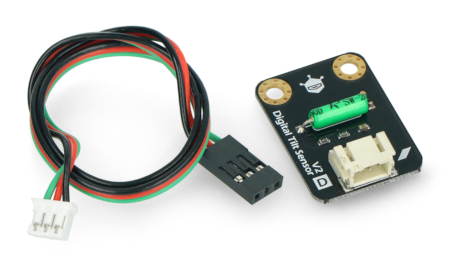

Set includes:
- Digital tilt sensor
- Connecting cable
