Product description: Gravity - Digital 360° Tilt Sensor for Arduino - DFRobot DFR0830
Gravity - Digital 360° Tilt Sensor is a tilt sensor manufactured by DFRobot. It has a metal ball that moves along an internal track - under the influence of gravity. Using this phenomenon, a circuit is connected or disconnected, so the sensor can be used as a simple tilt switch. The product has a cylindrical design that allows for 360° tilt detection. The module can also be used as a teaching experiment to detect tilt. It is much safer than mercury sensors.
Product compatible with Arduino!
A detailed user guide is available on the manufacturer's website, which makes it significantly easier to get started with the sensor. Check it out!
Also included is a dedicated connection cable with Gravity connector.
Schematic diagram of the internal structure of Digital 360° Tilt Sensor.
Special features of Gravity - Digital 360° Tilt Sensor
- Cylindrical construction allows for detection of tilt angle in 360°.
- Ball moving inside the module track causing connection and disconnection
- Wide range of applications - from a simple tilt switch, fun interactive projects to educational experiments
- Compatible with 3.3V and 5V controllers
Technical specifications of the sensor
- Type: tilt sensor
- Tilt detection angle: 360°
- Construction type: cylindrical
- High trigger sensitivity
- Operated using graphical programming such as Mind+
- Supply voltage: 3.3 V to 5 V
- Communication type: digital
- Connector standard: Gravity
- Tilt switch angle: 40° ±10°
- PCB dimensions: 22 x 30 mm
Package contents

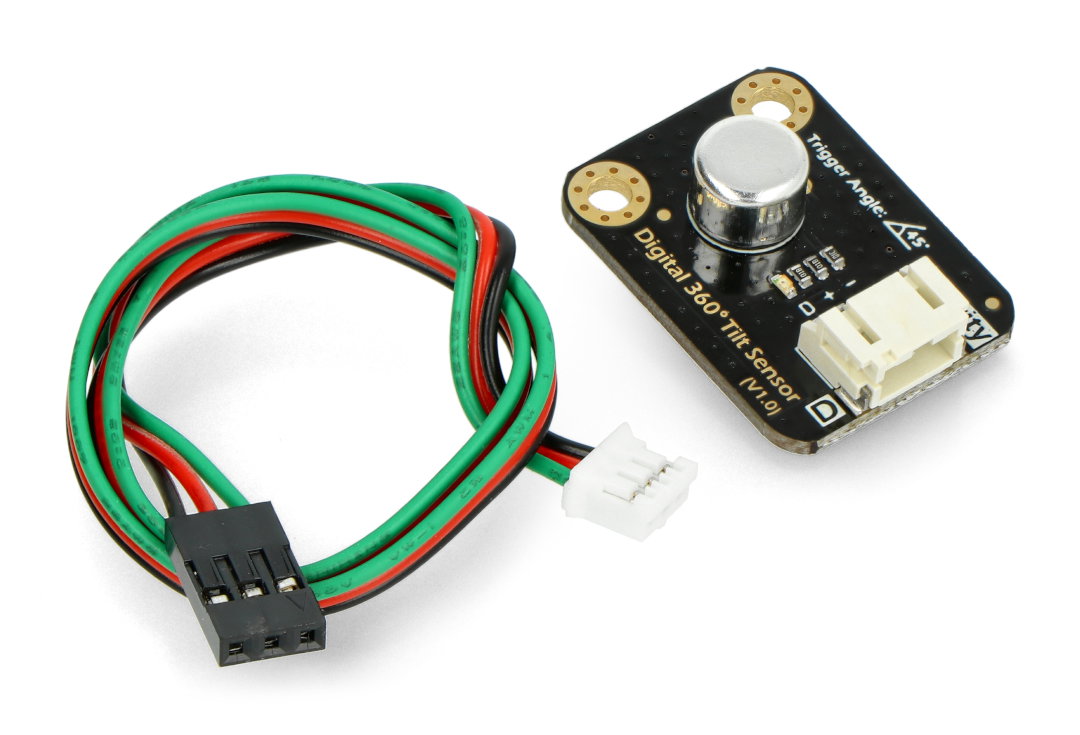

- Gravity - Digital 360° Tilt Sensor for Arduino - DFRobot DFR0830
- Dedicated 3-pin connection cable with Gravity connector

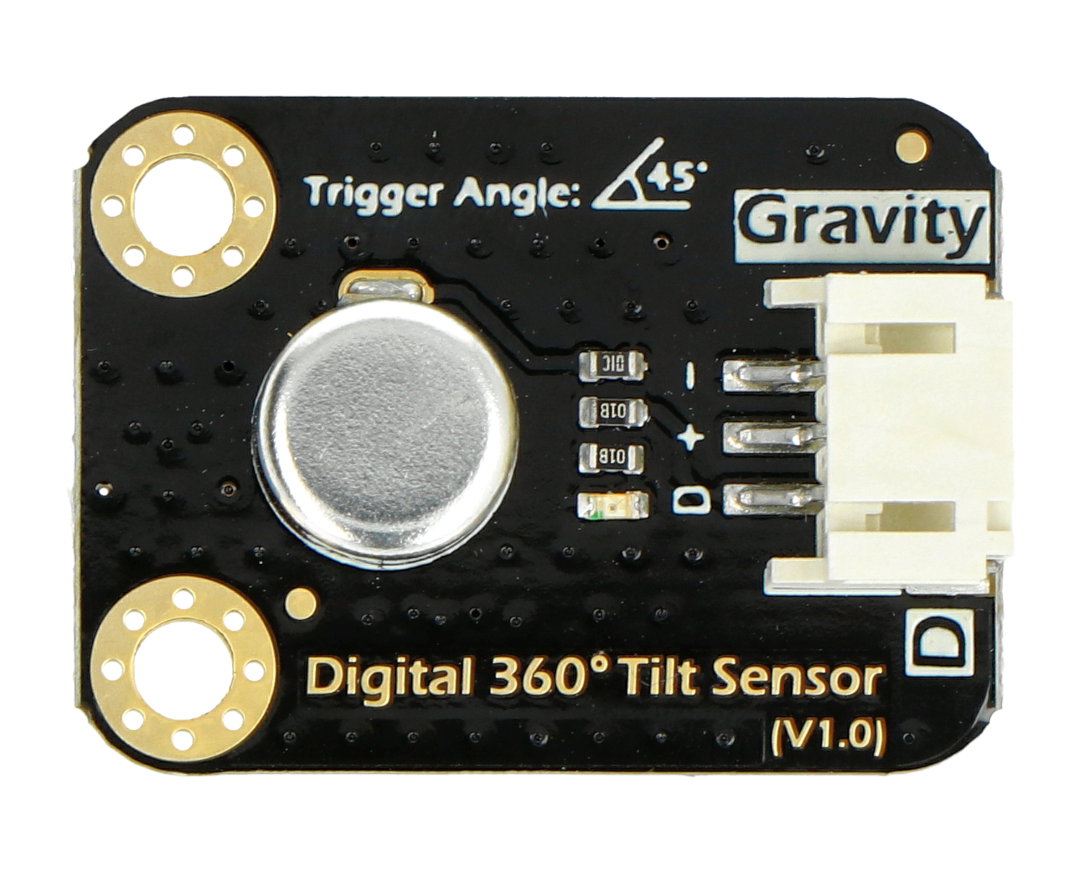

Gravity - Digital 360° Tilt Sensor for Arduino - DFRobot DFR0830.
