Hall sensor AH49E - Waveshare 9522

Index: WSR-04494 EAN: 5904422366230

Module with Hall sensor with analog and digital output. It works with voltage from 2.3 V to 5.3 V. It provides the detection of a magnetic field.

Hall sensor AH49E - Waveshare 9522
€3.47
€2.82 tax excl.
Waiting for confirmation of delivery date
Temporarily unavailable
30-day returns
PayPal payment
Manufacturer: Waveshare
Compatibility: Arduino

Description

Module with Hall sensor with analog and digital output. It works with voltage from 2.3 V to 5.3 V. It provides the detection of a magnetic field. The output voltage of the sensor is proportional to the value of the induction of the magnetic field.

The product is compatible with Arduino

The manufacturer has prepared a user guide along witha sample program for Arduino and STM32.



Specification

  • Supply voltage: from 2.3 V to 5.3 V
  • Analog and digital output signal
  • It is equipped with a Hall sensor AH49E (documentation)
  • Sensitivity: 1,6 mV/GS
  • The kit includes a cable with female ends

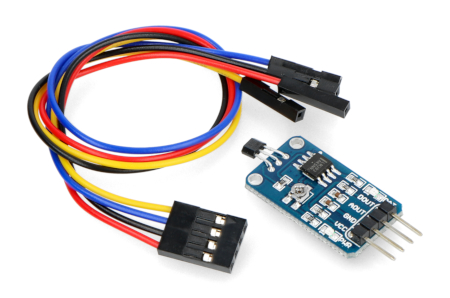

  • Module dimensions: 26 x 16 mmCzujnik Halla wraz z dołączonym przewodem

The included cable allows you to easily connect the device.



Pins

The device has a 4-pin connector. The output signal can lead, for example, to an input of the analogmodule of Arduino.

Pin Description
VCC Supply voltage: from 2.3 V to 5.3 V.
GND The ground of the system.
AOUT Analog output signal.
DOUT The digital output signal, the sensitivity is adjusted using the integrated potentiometer.
