Luxonis Oak-1 - AI kit for image recognition - Auto-Focus

Index: LUX-20384 EAN: 5904422351267
Luxonis Oak-1 module is an artificial intelligence powerhouse with 4 trillion operations per second. It allows you to take full advantage of the Myriad X VPU with the platform of your choice. Luxonis Oak-1 is an integrated 12 MPx camera module with Auto-Focus that communicates via an embedded 2.1 Gbps MIPI interface directly with Myriad X, which acquires that data and performs neural inference on it, returning the results via USB. It works with Raspberry Pi 4B, Nvidia Jetson Nano Dev Kit, Google Coral Edge TPU and other popular platforms, among others.
Luxonis Oak-1 - AI kit for image recognition - Auto-Focus
€184.90
€150.33 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Luxonis

Product description: Luxonis Oak-1 - AI kit for image recognition - Auto-Focus

Luxonis Oak-1 module is an artificial intelligence powerhouse with a performance of 4 trillion operations per second. It allows you to take full advantage of the Myriad X VPU with the platform of your choice. Luxonis Oak-1 is an integrated 12 MPx camera module with Auto-Focus that communicates via an embedded 2.1 Gbps MIPI interface directly with Myriad X, which acquires that data and performs neural inference on it, returning the results via USB. It works with Raspberry Pi 4B, Nvidia Jetson Nano Dev Kit, Google Coral Edge TPU and other popular platforms, among others. The device is equipped with an OAK-FFC-IMX378 12MPx RGB camera, capable of capturing color images in 4K, 60 Hz resolution. It is equipped with a digital zoom control.

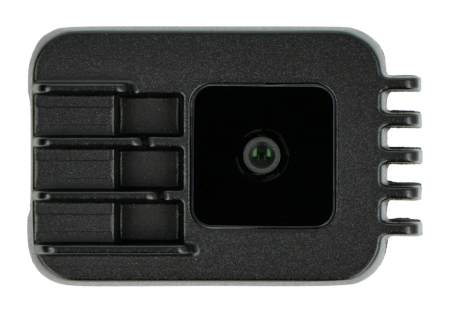

Luxonis Oak-1.

Luxonis Oak-1.

The DeptAI platform - what is it?

The DeptAI platform was created by Luxonis to enable the embedding of Spatial Artificial Intelligence (Spatial AI) into products. DepthAI hardware, firmware, and software combine depth perception, object detection (neural inference), and object tracking that can be easily leveraged using the Python language API.

Kit contents

  • Oak-z module
  • USB cable type C
  • Cloth

Special features of Oak-1

  • DepthAI is compatible with any operating system that supports OpenVINO:
    • Linux: Ubuntu, Yocto Project, CentOS, Raspbian
    • Mac OS X
    • Windows 10
    • DepthAI module can also be used without software, with microcontrollers
  • Built-in 12 MPx, 4K, 60 Hz camera with Auto-Focus for color and digital zoom
  • USB type C interface
  • Applied heat sink on the housing of the device
  • AUX connector for 5V power supply
  • LED indicators for power supply via USB

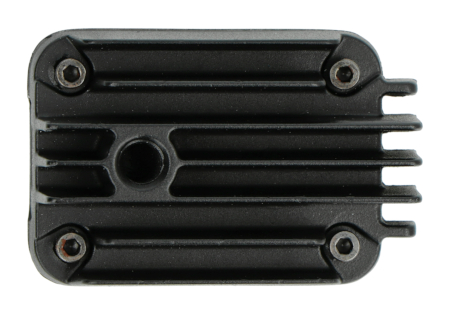

Luxonis Oak-1 - widok z tyłu.

Luxonis Oak-1 - rear view.

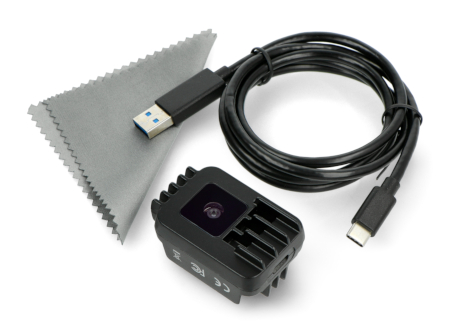

Zawartość zestawu.
Kit contents.

Technical specification Luxonis Oak-1

  • RGB camera:
    • sensor: IMX378
    • maximum frame rate: 60 fps
    • H.265: 30 fps
    • resolution: 12 MPx (4056 x 3040 px)
    • viewing angle: 81 DFOV° - 68.8 HFOV°
    • lens: 1/2,3''
    • Autofocus: from 8 cm to infinity
    • F-number: 2.0
  • Dimensions: 27.8 x 36 x 54.5 mm
  • Weight: 53.1 g
Specification and comparison Luxonis Oak-1 and Luxonis Oak-1 MAX

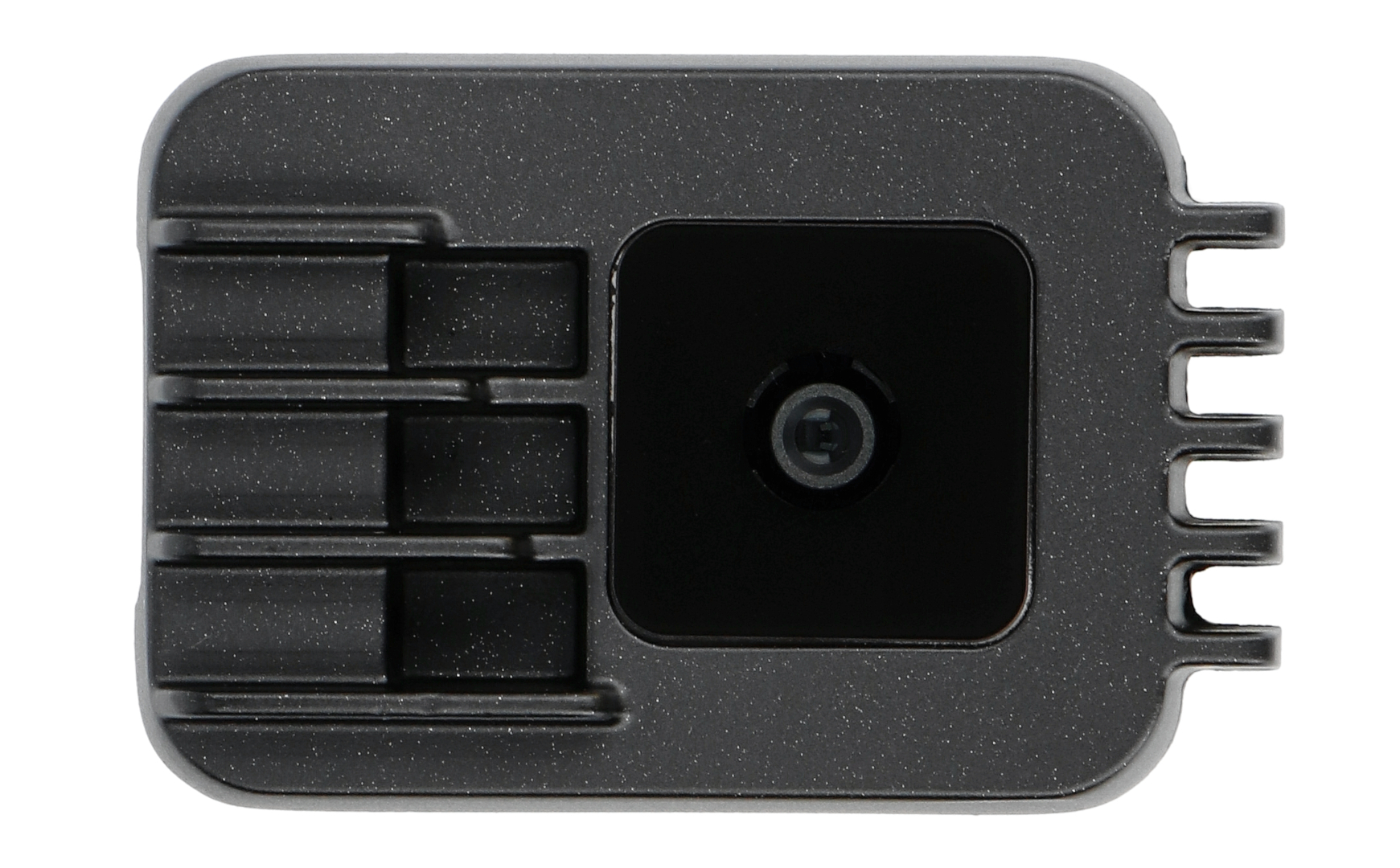

Odroid H3 Odroid H3+
Model Luxonis Oak-1 Luxonis Oak-1 MAX
Camera IMX378 IMX582
Camera resolution 12MP (4032x3040) 32MP (5312x6000)
Camera angle of view DFOV / HFOV / VFOV: 81° / 69° / 55° DFOV / HFOV / VFOV: 82° / 68° / 55°
Autofocus from 8 cm to infinity from 20 cm to infinity
Lens 1/2,3'' 1/2''
F-number 2,0 1,79 ± 5%
Maximum number of frames per second 60 FPS 42 FPS
Effective focal length 4.81mm 4.74mm
Distortion < 1% AF, < 1.5% FF < 1.5%
Pixel size 1.55µm x 1.55µm 0.8µm x 0.8µm
Coding H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
System compatibility Linux (Ubuntu, Yocto Project, CentOS, Raspbian), Mac OS X, Windows 10 Linux (Ubuntu, Yocto Project, CentOS, Raspbian), Mac OS X, Windows 10
Radiator built-in built-in
Dimensions 27,8 x 36 x 54,5 mm 27,8 x 36 x 54,5 mm
Weight 53,1 g 53,1 g

Package width 13.1 cm
Package height 7 cm
Package depth 11 cm
Package weight 0.145 kg
