Product description: CamModule SC850SL - 8 Mpx camera module for the LLM630 Compute Kit - M5Stack A157
The CamModule SC850SL from M5Stack is a compact and powerful camera module equipped with an 8MP SmartSens SC850SL CMOS image sensor, designed specifically for the LLM630 Compute Kit platform. It supports 4K video recording at 60 fps , has a wide dynamic range (HDR) , excellent low-light sensitivity , and an integrated AI-ISP function that improves image quality using artificial intelligence algorithms. The camera is ideal for advanced projects in the fields of machine vision , surveillance, drone inspection, and urban systems.

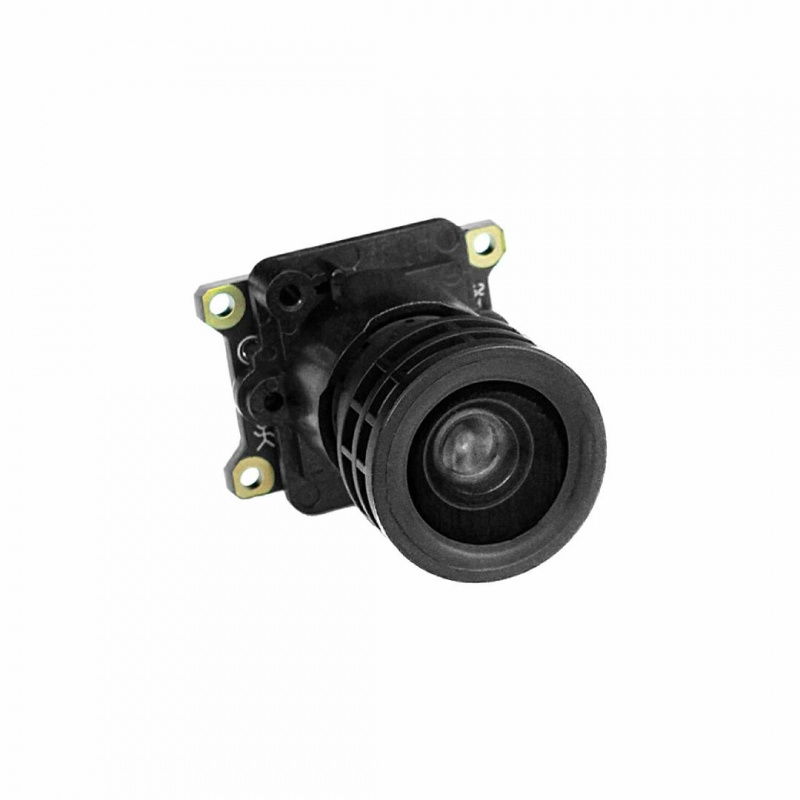

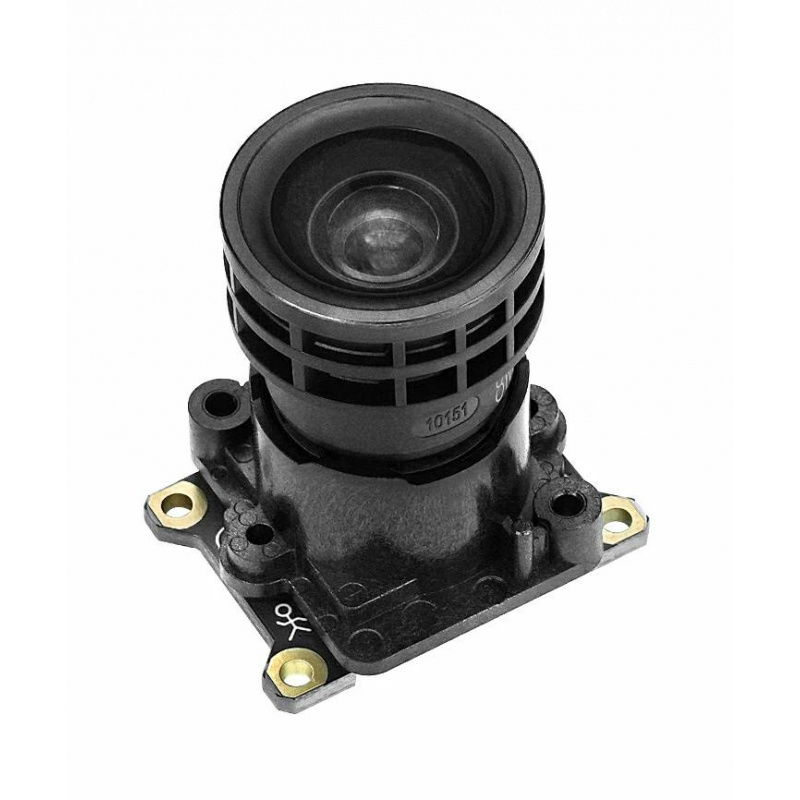

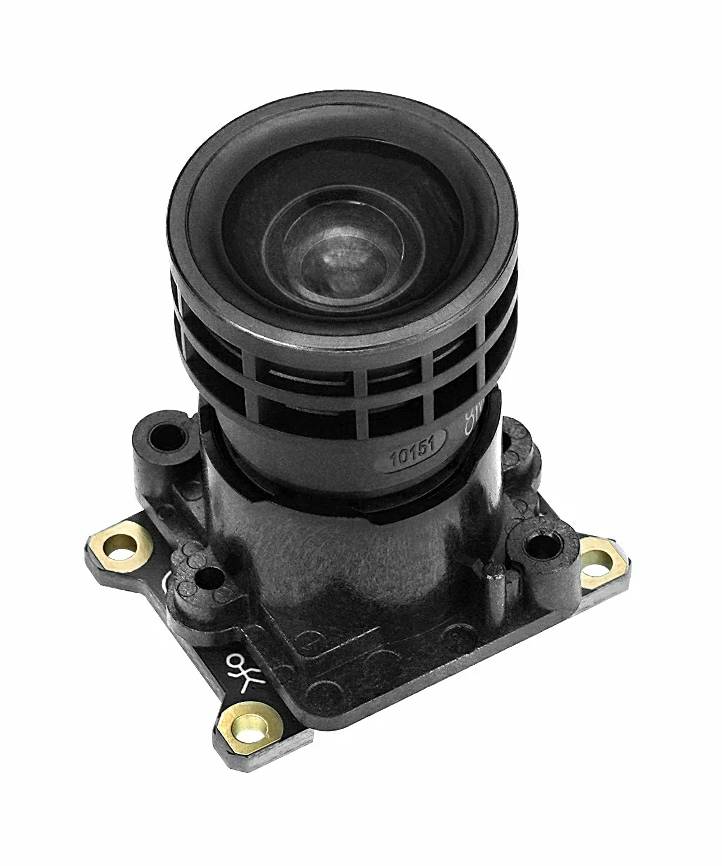

CamModule SC850SL - 8 Mpx camera module for LLM630 Compute Kit - M5Stack A157.

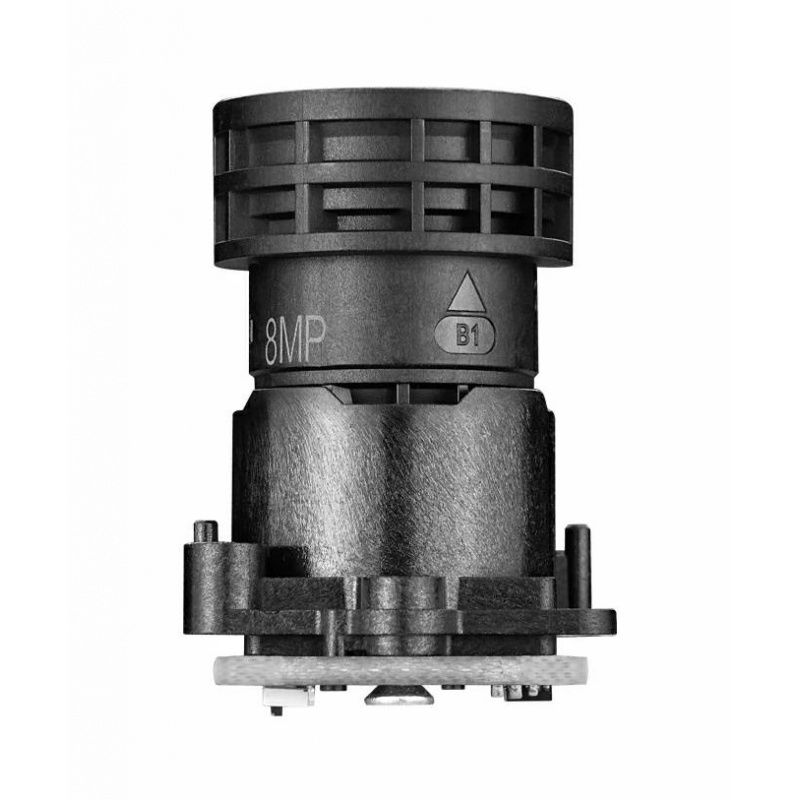

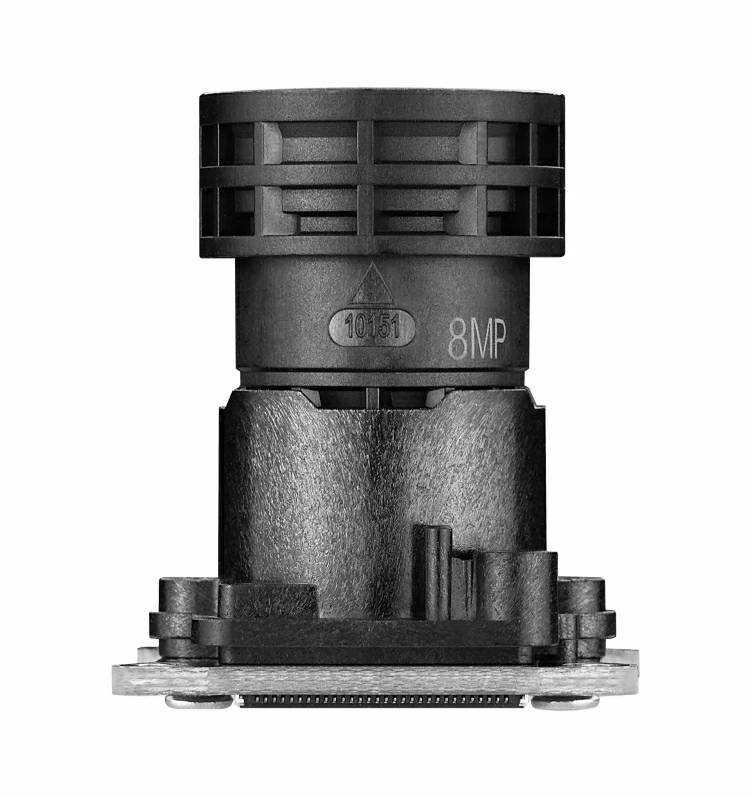

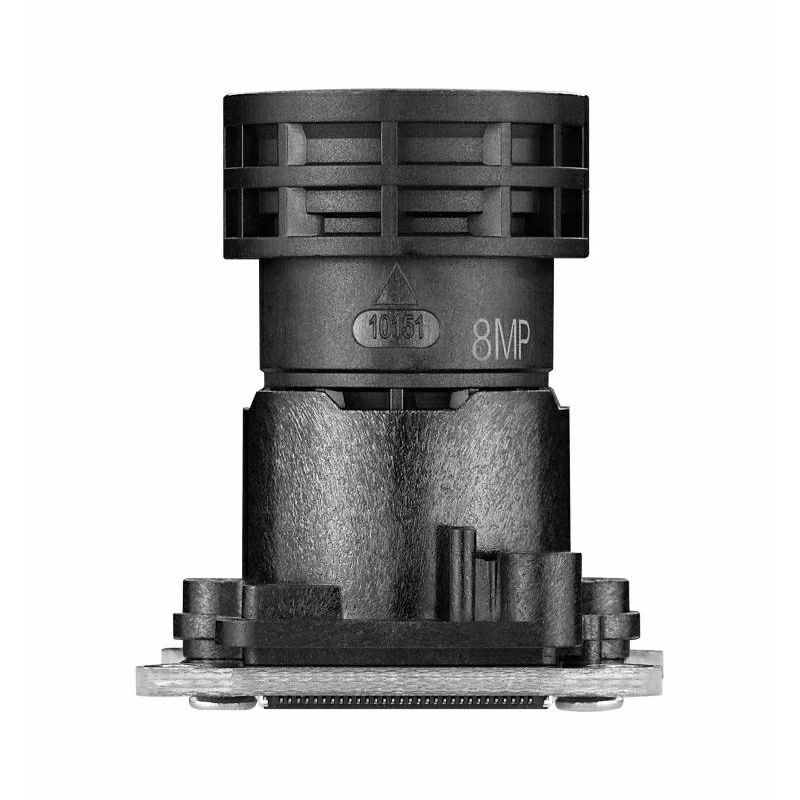

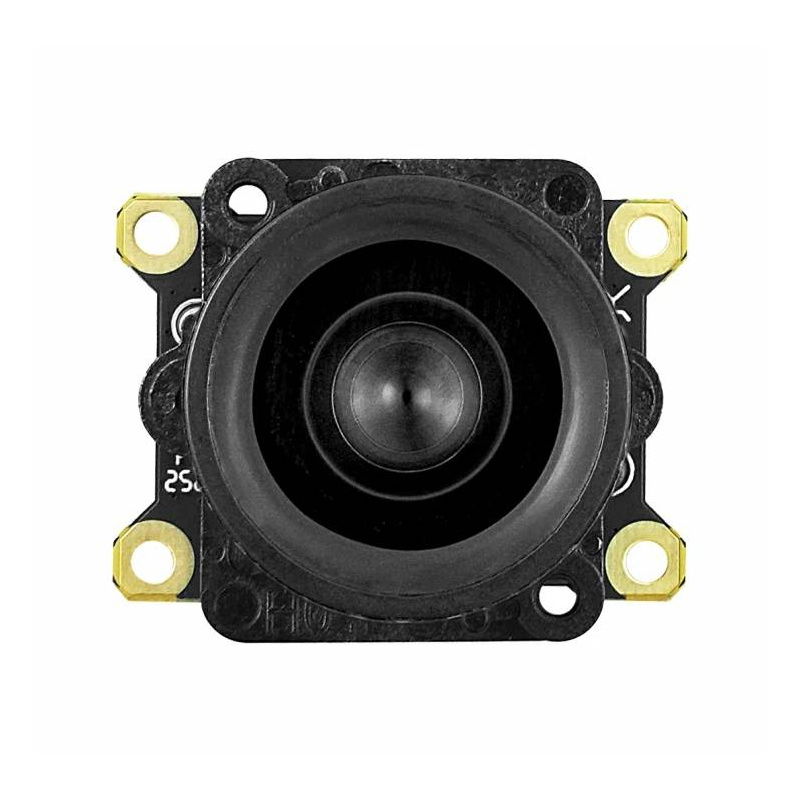

The camera module has a SmartSens SC850SL sensor with an 8 MPx resolution.
Main features of the camera module
- Dedicated to the LLM630 Compute Kit : full hardware and software compatibility
- SmartSens SC850SL CMOS : high image quality, low noise and HDR up to 100 dB
- YT10151 8 MPx lens : 110.8° field of view, ideal for real-time image analysis
- MIPI CSI-2 (4 lanes) : high-speed data transmission for AI and machine learning applications
- AI-ISP : Intelligent image processing, better low-light performance
- Small size and weight : only 13 g, ideal for drones and mobile robots
- Wide operating temperature range : from -30°C to 85°C, suitable for operation in harsh conditions
Compatible with LLM630 Compute Kit
The SC850SL module is designed specifically for full interoperability with the LLM630 Compute Kit . Thanks to its MIPI CSI-2 interface and 200mm FPC cable, it enables easy integration and flexible placement within a chassis or robotic system. The camera works seamlessly with software, libraries, and demos available for the LLM630, supporting the StackFlow API and AI algorithms (e.g., YOLO, DepthAnything).

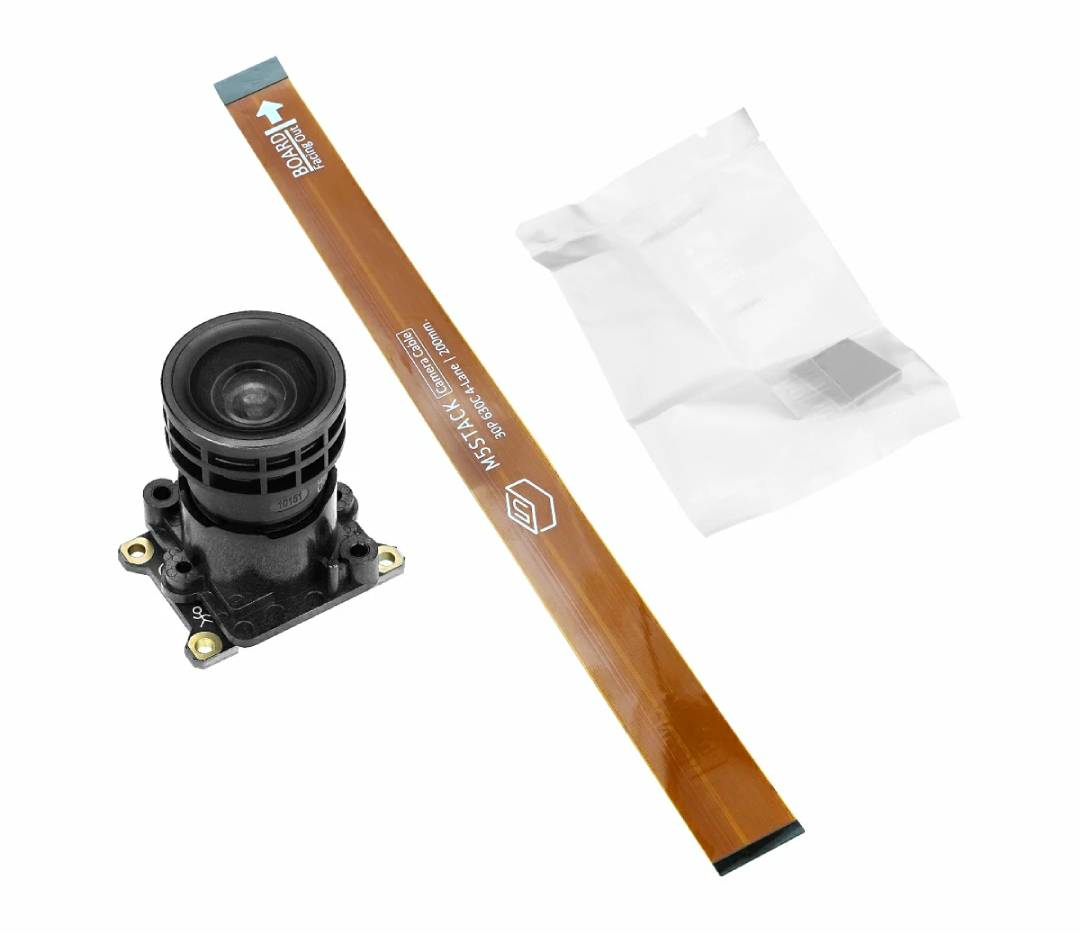

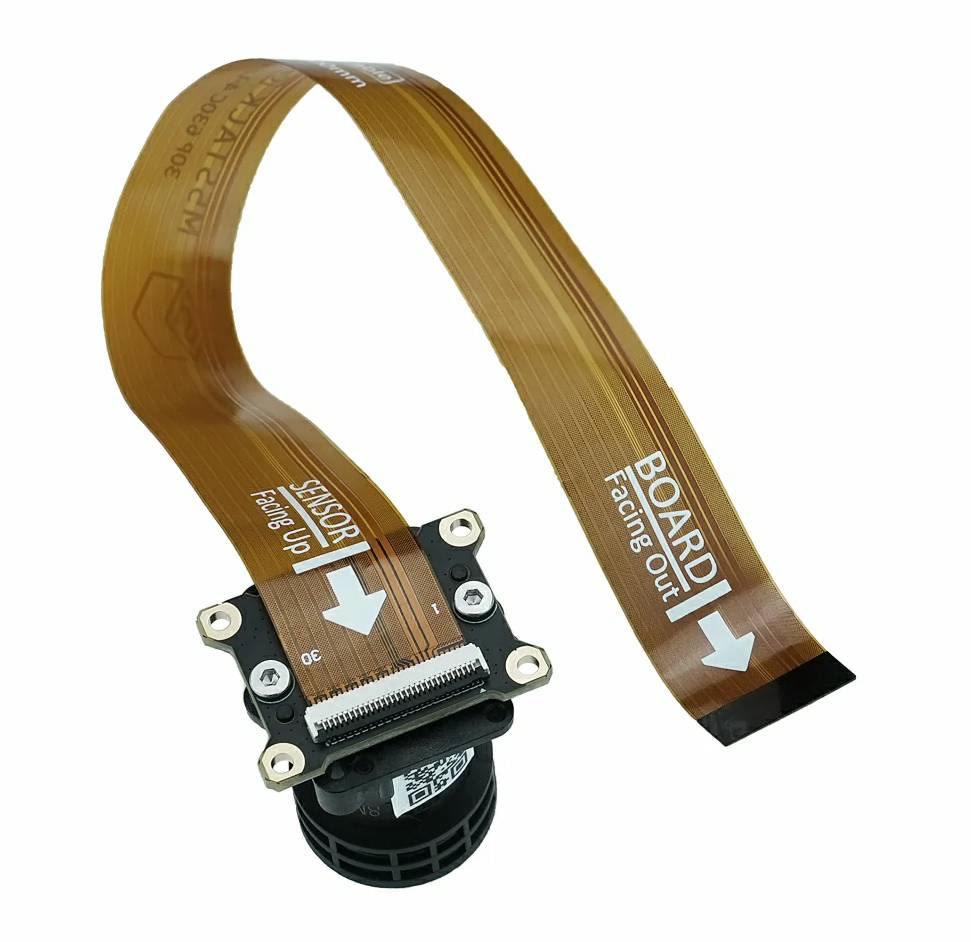

The set includes a 200 mm long FPC cable.

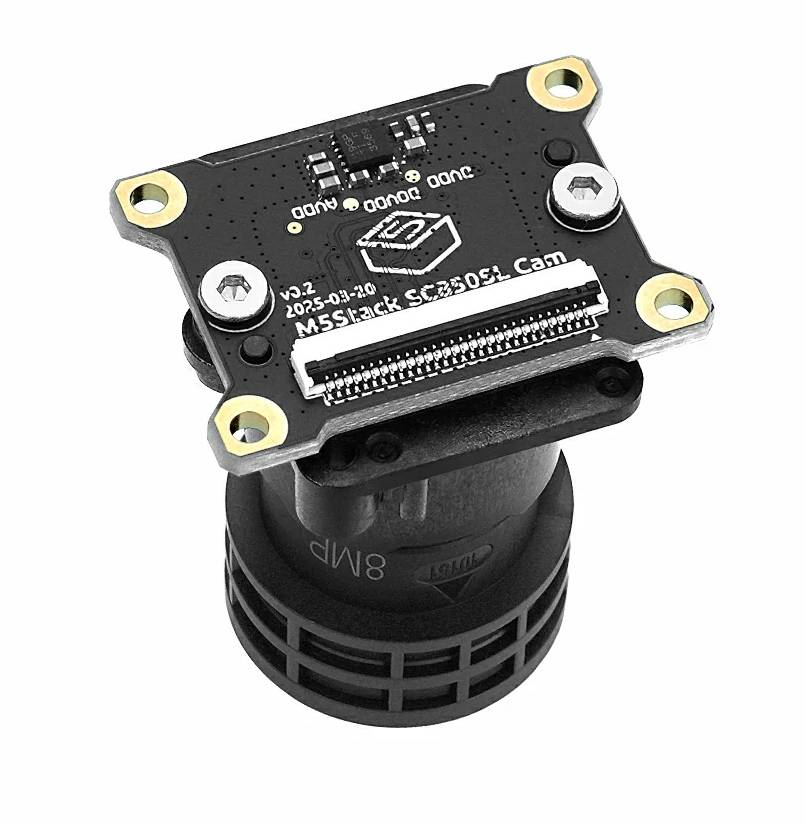

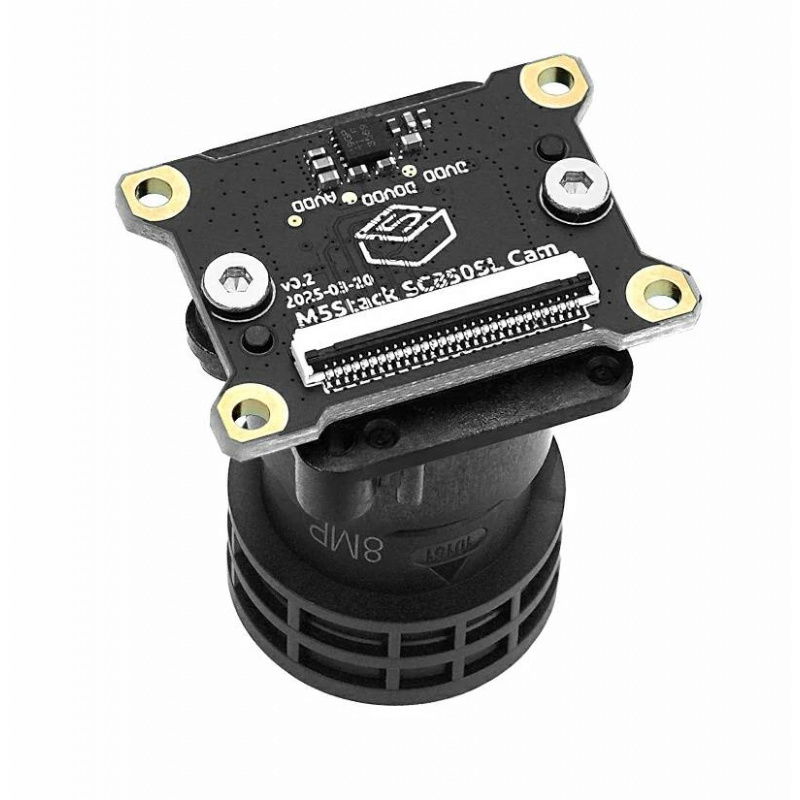

The module transmits images to the LLM630 via the MIPI CSI-2 interface.
Programming and integration with AI
Thanks to its compatibility with the LLM630 and support for the MIPI CSI-2 standard, the SC850SL module can be easily integrated into AI-based projects. It supports applications such as object detection, image classification, visual navigation , and 3D mapping . AI-ISP enables automatic image enhancement in real time, utilizing a portion of the NPU's resources. Programming is possible using pre-built libraries and frameworks (e.g., StackFlow API), and users have access to documentation, examples, and source code.
CamModule SC850SL Technical Specifications
- Image sensor: SmartSens SC850SL CMOS
- Resolution: 8 MPx
- Pixel matrix: 3856 x 2176 px
- Pixel size: 2.0 x 2.0 µm
- Image processing: AI-ISP (active by default)
- Lens: YT10151 8 MPx (M16)
- Field of view: 110.8°
- Image format: RAW RGB
- Output interface: MIPI CSI-2 (4 lines)
- Maximum frame rate: 3840 x 2160 px at 60 fps
- Sensitivity: 5034 mV/(Lux・s)
- Dynamic range: up to 100 dB (HDR), 75 dB (linear mode)
- Signal-to-noise ratio (SNR): 39 dB
- Physical Interface: 200mm FPC Cable
- Operating temperature: -30°C to 85°C
- Optimum temperature: -20°C to 60°C
- Dimensions: 28 x 23.5 x 33.9 mm
- Weight: 13 g
Contents of the set
- 1x CamModule SC850SL
- 1x FPC cable 200mm long
- 1x Thermal pad

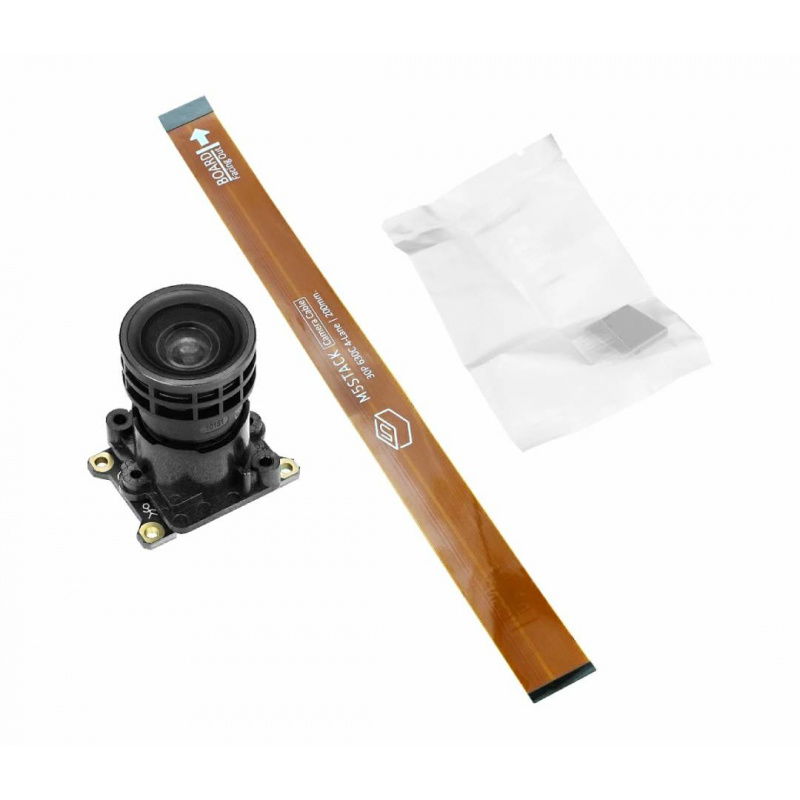

Elements included in the set.
