Product description: Tuya - single-channel WiFi gate controller with antenna and sensor - Android/iOS application - OXT T211G
The Tuya OXT T211G single-channel WiFi controller with antenna and sensor is the smallest module available on the market dedicated to gate drives. It enables remote control and automation via WiFi and the Tuya Smart app. The included external signal-boosting antenna allows the relay to be installed even further from the router , without the need for additional amplifiers. Users can set schedules , create automatic scenarios , such as opening/closing the gate at specific times, and use a recorded event history that records when the gate opened or closed. Furthermore, the module supports notifications and works with voice assistants such as Google Assistant and Amazon Alexa . The device does not require a gateway; it connects directly to the home WiFi router. The OXT T211G module is compatible with most standard gate drives, and its compact size facilitates installation even in hard-to-reach spaces. The power supply is from a 100 V to 240 V AC network and requires the presence of phase (L) and neutral (N) wires in the gateway mounting box.

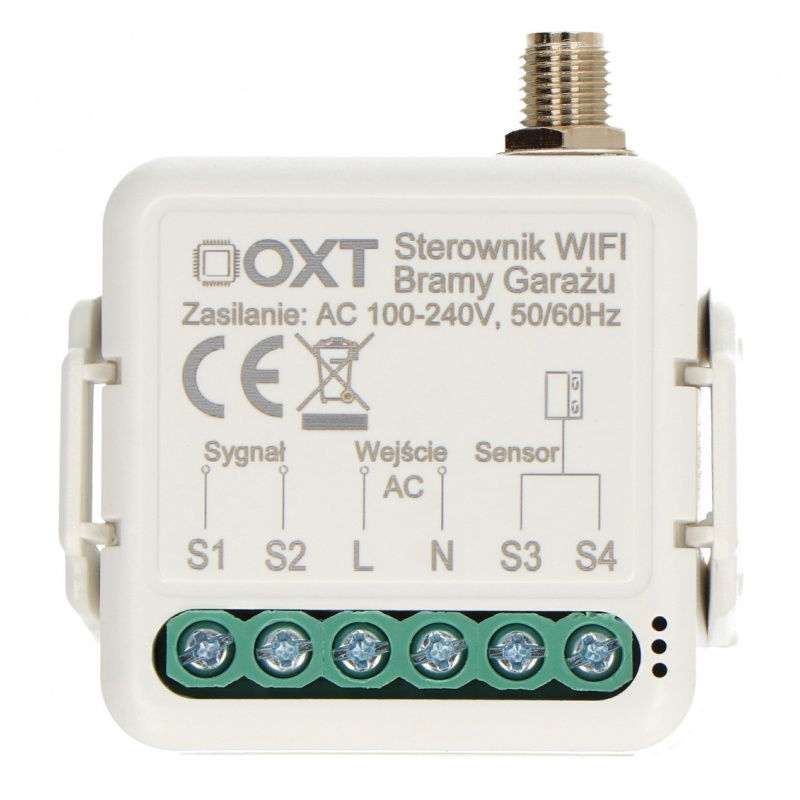

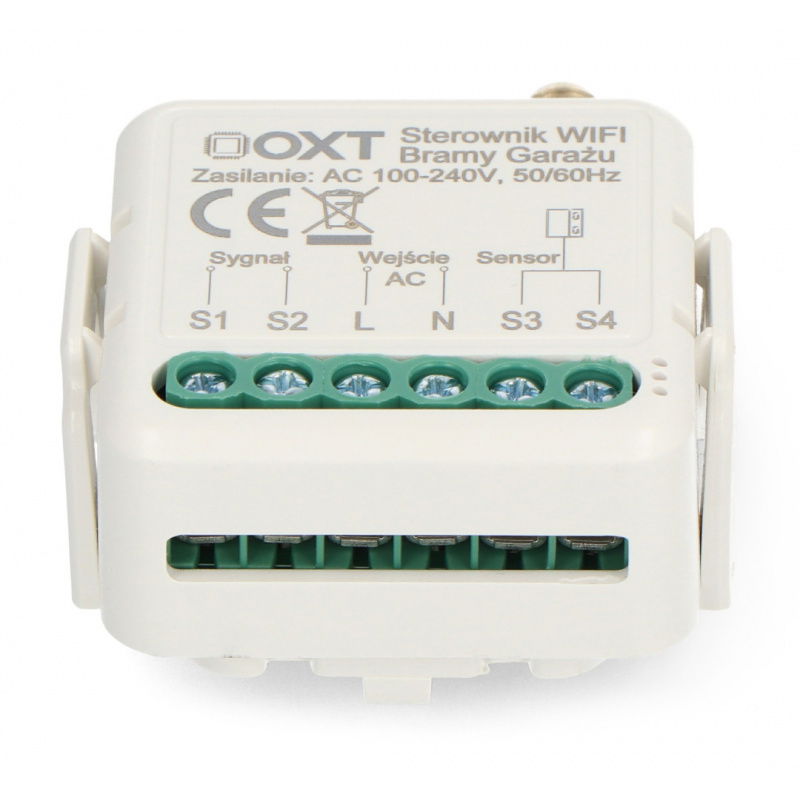

Tuya - single-channel WiFi gate controller with antenna and sensor - Android/iOS application - OXT T211G.

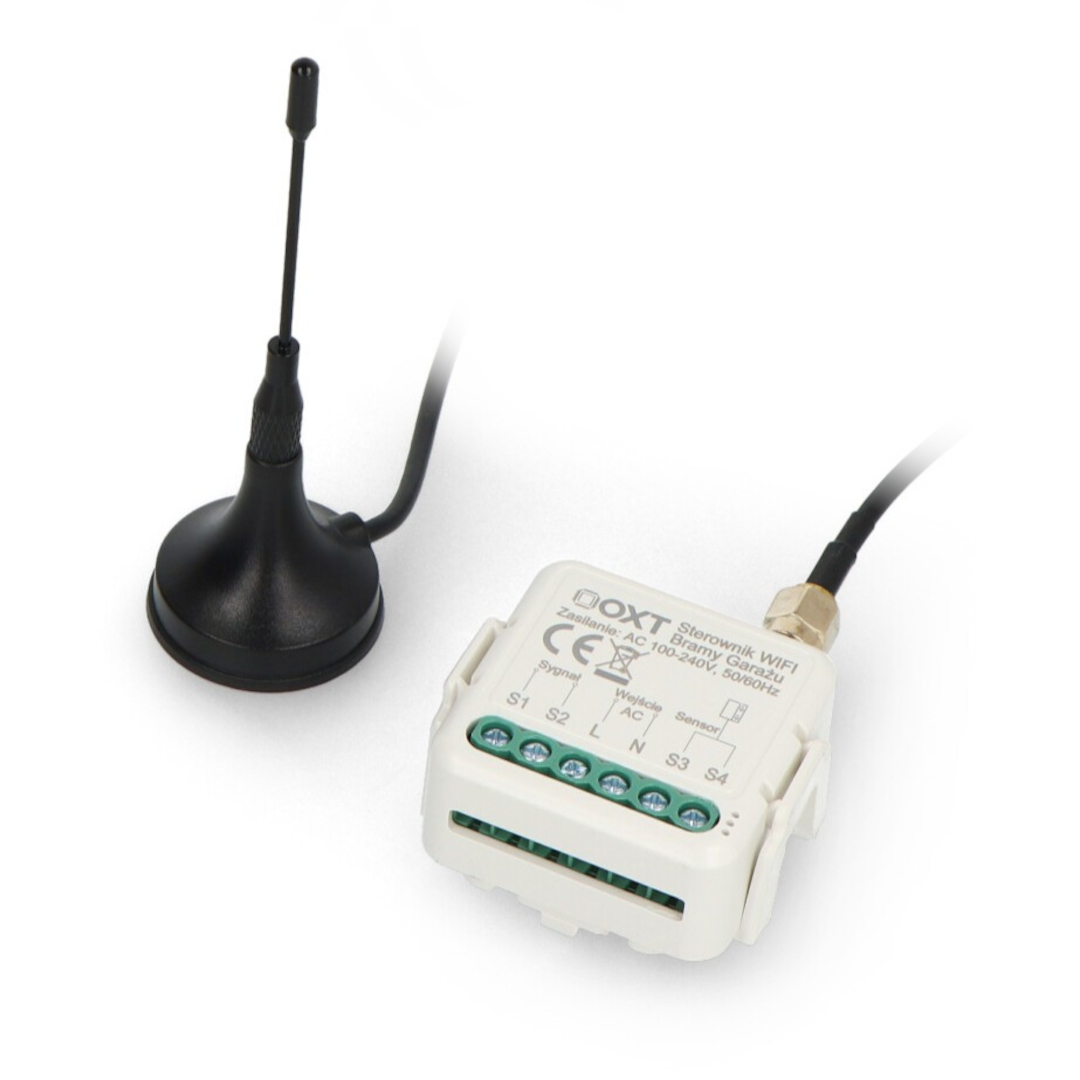

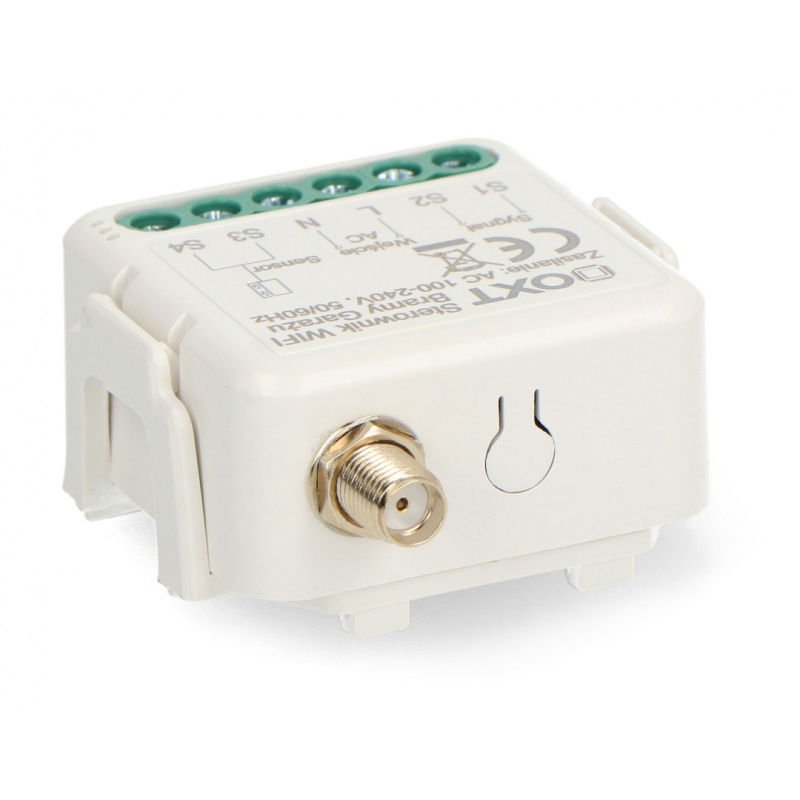

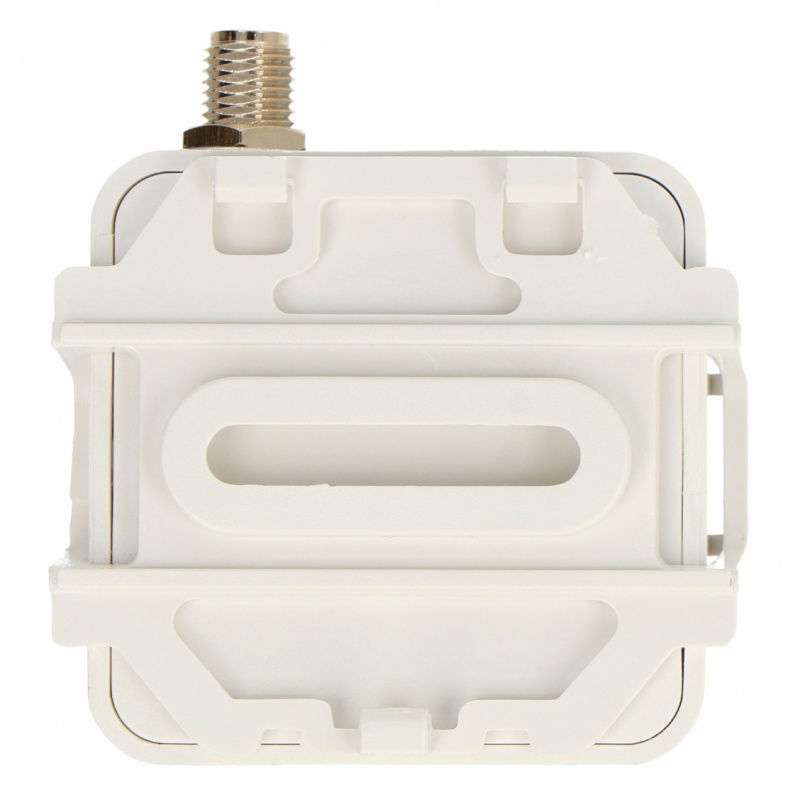

The controller with an external RP-SMA threaded antenna provides a better, amplified WiFi signal.
Main features of the controller
- Remote control from anywhere: the ability to open and close the gate via the app
- Creating automation and schedules : automatic opening/closing of the garage door at a specific time or depending on the prevailing weather conditions
- Voice assistant integration: works with Google Home and Amazon Alexa
- Compatibility with Tuya Smart and Smart Life: support for Android and iOS applications without the need for an additional gateway
- Wire-connected WiFi antenna: provides stable, enhanced coverage, allowing the controller to be mounted further away from the WiFi router without the need for additional amplifiers
- Gate position sensor: allows you to monitor the gate status in real time
- Push notification support: informing the user about the opening or closing of the gate
- Application event history: access to saved opening and closing operations
- Access management: ability to share access passwords with other users
- Wide compatibility: works with most gate drives available on the market
- Cloud control: the ability to create a kind of ecosystem consisting of compatible devices and create your own operating scenarios
Full support for the Tuya Smart app
The Tuya Smart app support offered by the OXT module makes it an extremely versatile and easy-to-use solution for those looking for home automation tools. The Tuya Smart app, available for free on the App Store and Google Play , allows remote control of lighting and other electrical devices, regardless of the user's location. Thanks to its intuitive interface, users can create schedules and advanced automation scenarios , set timers , and more. and monitor energy consumption. Additionally, integration with Tuya Smart enables synchronization with other smart home devices, providing consistent and convenient control over the entire system.

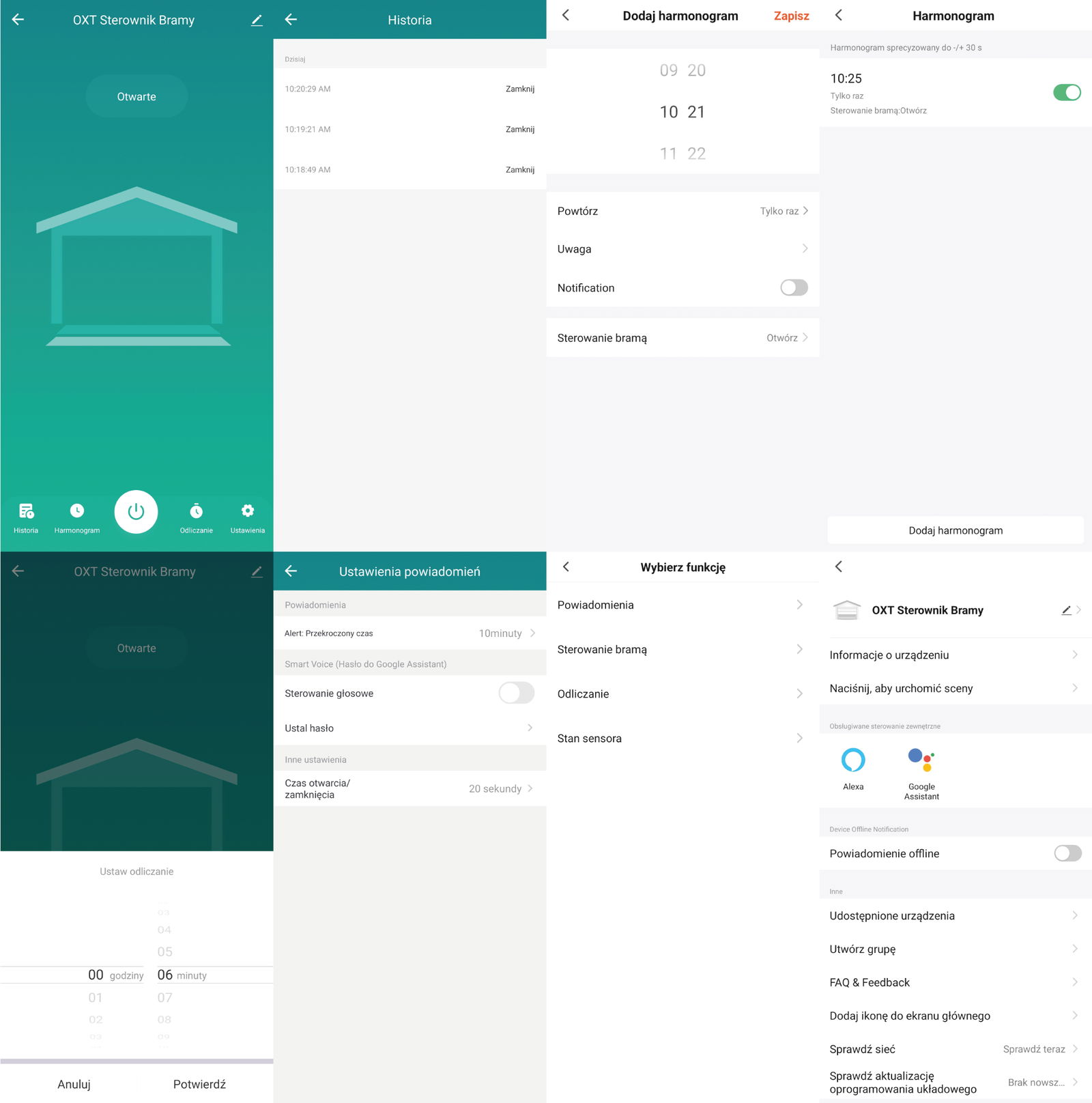

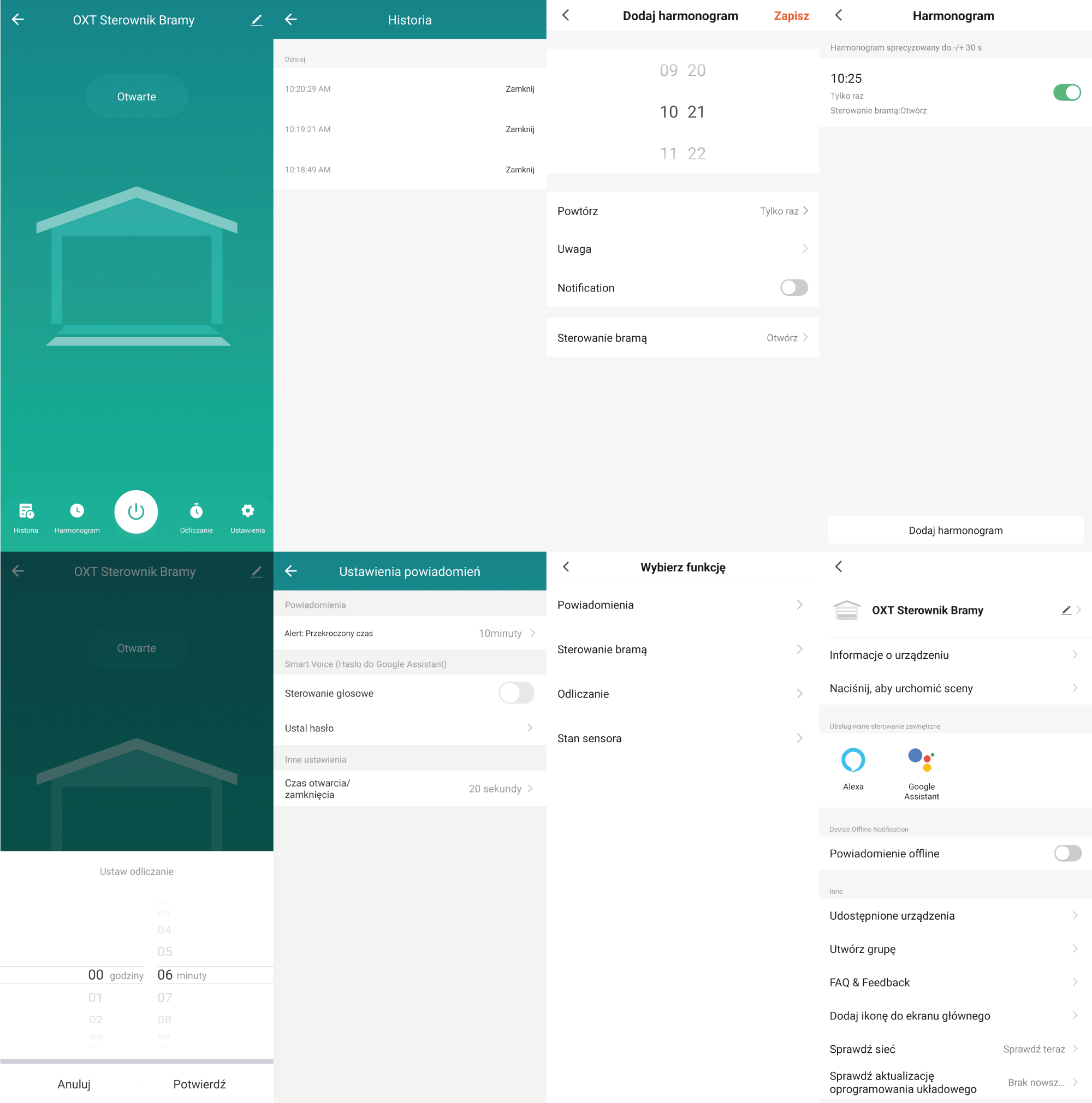

The dedicated Tuya Smart application allows you to create schedules, advanced scenarios, timers, and monitor energy consumption levels.

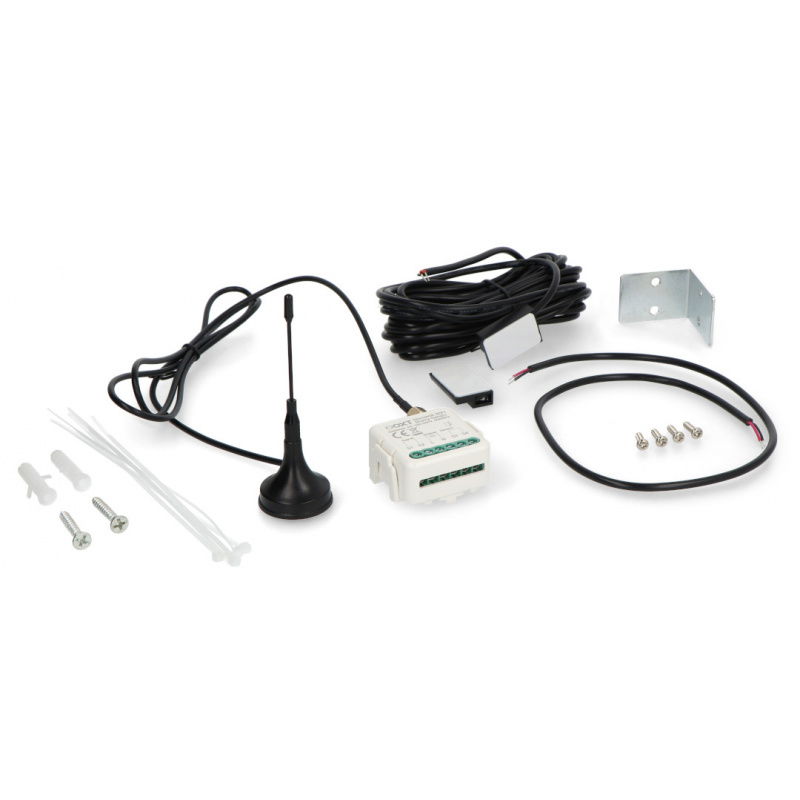

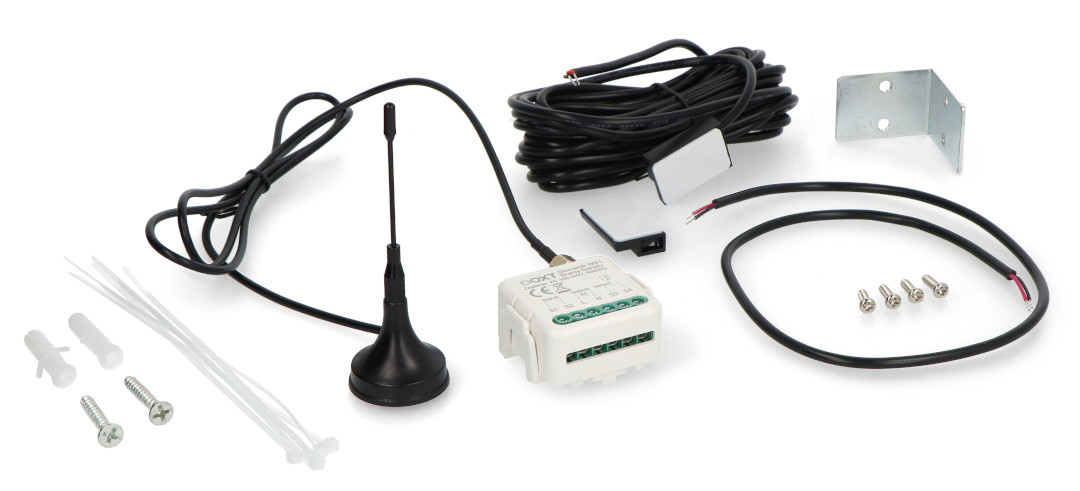

Tuya OXT T211G controller kit contents.
Technical specifications of the OXT T211G controller
- Type: 1-channel WiFi gate controller
- Model: OXT T211G
- Wireless connectivity: WiFi 2.4 GHz (IEEE 802.11 b/g/n)
- Input voltage: 100V to 240V AC, 50/60Hz
- Maximum power: 10 A / 240 V
- Requires full power at the box: L and N
- Antenna: external, RP-SMA connector
- Position sensor: reed switch
- Push notification support: yes (in-app)
- Event history: yes
- Shared access: yes (via app)
- Compatibility with systems: Google Assistant, Amazon Alexa
- Application: iOS / Android
- Operating temperature: -10°C to 40°C
- Degree of protection: IP20
- Dimensions: 39.2 x 39.2 x 18 mm
Contents of the set
- OXT 1-Channel WiFi Tuya Module for Gate Motors
- Antenna with 1 m cable
- Sensor with 5 m cable
- Extension cable
- Mounting screws
- Angular plate
- Cable ties
- User manual
