Product description: Tuya - 4-channel mini ZigBee scene controller - 12 actions - 230 V - OXT T254
The OXT T254 is a compact scene controller designed for smart home automation. Thanks to ZigBee 3.0 communication, compatibility with Tuya and Smart Life systems, and the ability to configure up to 12 actions , the device allows you to perform multiple functions with a single button. The controller is designed for flush-mounted installation and supports doorbell buttons (momentary), allowing you to assign different scenes to a single, double, or long click.
Attention!
To work correctly, the controller requires connection to a ZigBee gateway , which can be purchased separately.

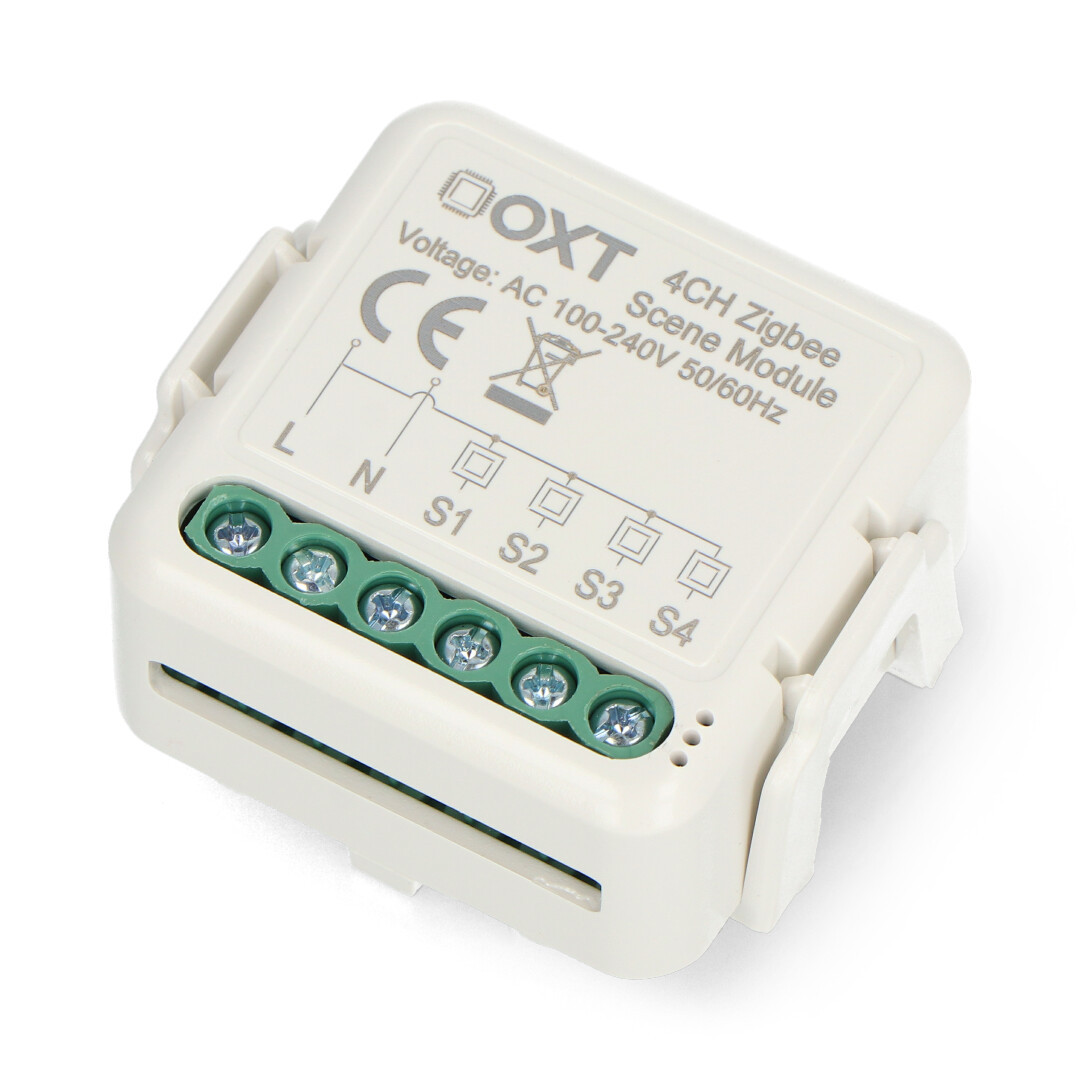

Tuya - 4-channel mini ZigBee scene controller - 12 actions - 230 V - OXT T254.
The controller also works perfectly with traditional monostable buttons.
Main features of the controller
- Supports up to 12 actions: for a 3-button module with single-click, double-click and hold functions
- Compatibility with Tuya Smart and Smart Life: full configuration via the mobile app
- ZigBee 3.0 connectivity: fast, stable, energy-efficient and WiFi-independent
- Voice assistant support: control via Google Assistant and Amazon Alexa
- Miniature dimensions: allow for installation in installation boxes or hiding anywhere
- 230 V power supply: no need for batteries, always ready to work
- Safety and reliability: certified components and a robust housing
ZigBee 3.0, Tuya compatibility and intelligent control functions
The OXT module operates in the ZigBee 3.0 standard, ensuring very fast response time (approx. 0.2 seconds), low power consumption, and the ability to operate in a mesh topology. The device is compatible with the Tuya Smart and Smart Life apps, enabling full configuration, scene assignment, and automation. It requires a ZigBee hub to operate. Each button can handle three different actions: click, double-click, and hold , providing up to 12 programmable scenes in a single device . Scenes can be triggered manually or automatically, for example, at a specific time, upon temperature change, or upon motion detection.
Connection and assembly

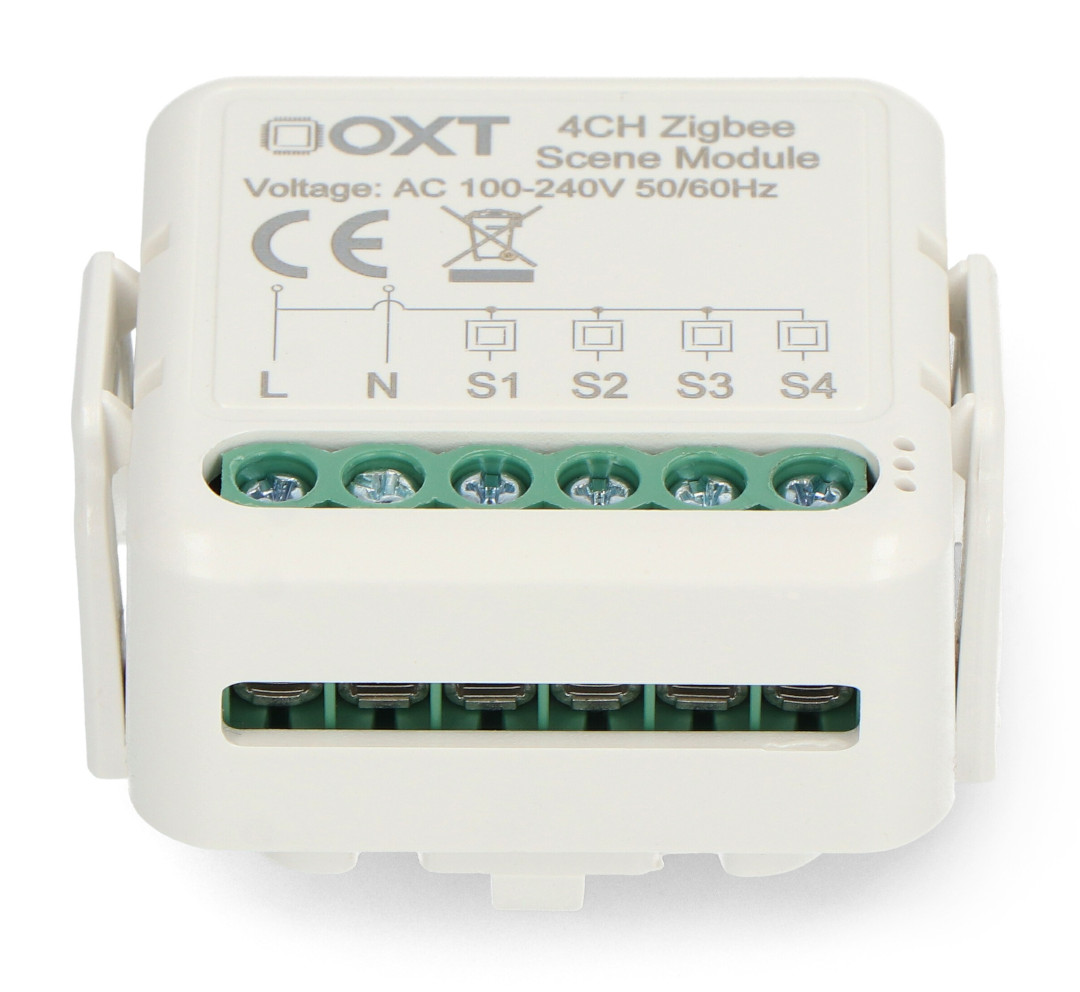

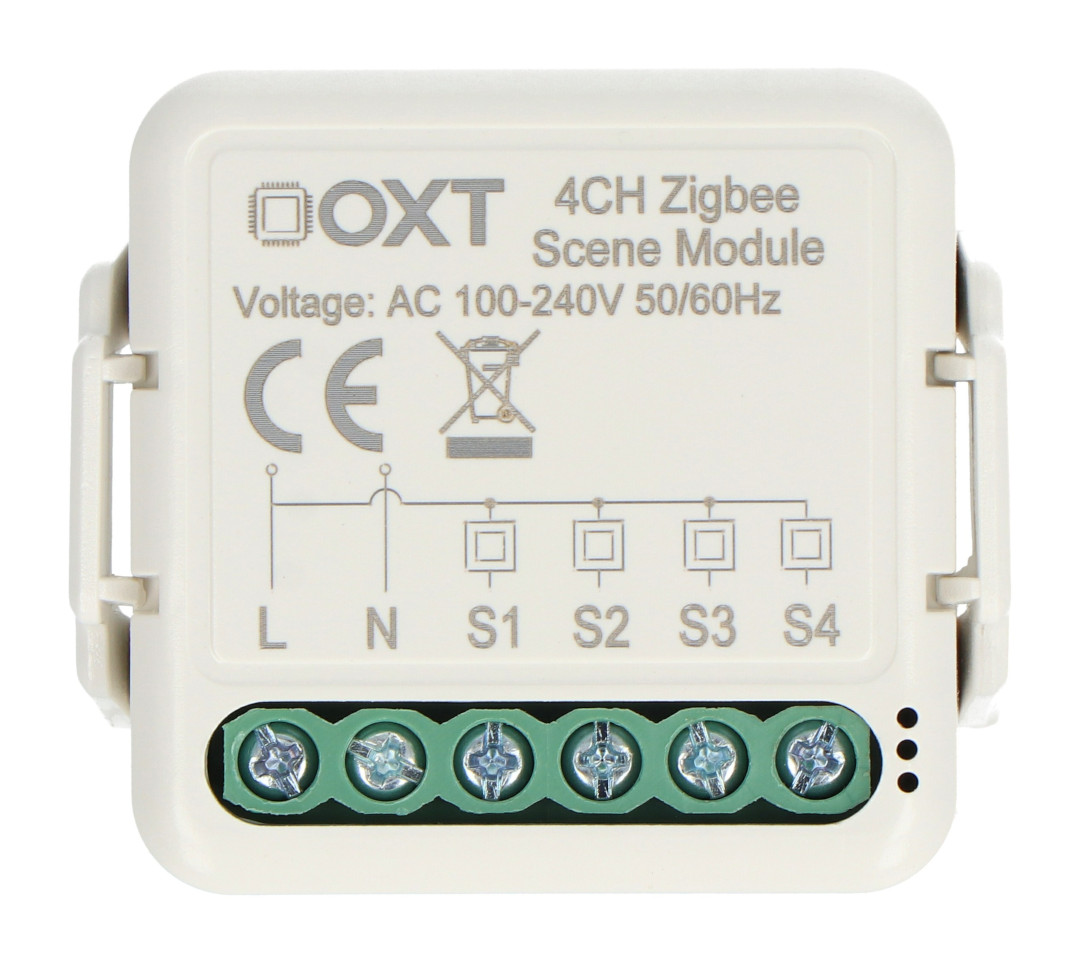

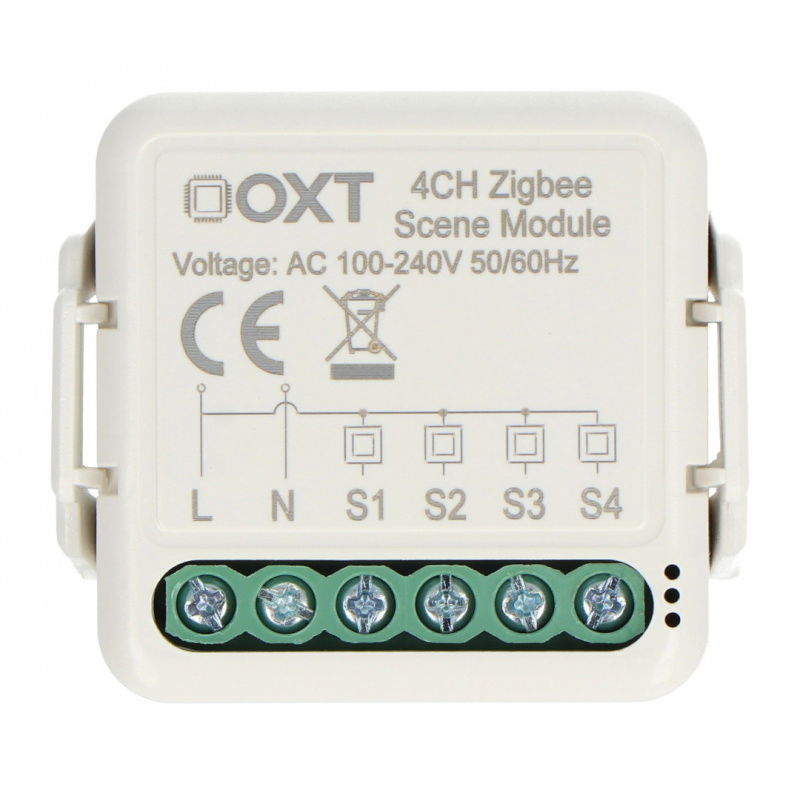

The module is designed for installation in standard 60 mm diameter junction boxes. It supports doorbell buttons (monostable) , which are connected to inputs S1-S4. The device measures just 39.2 x 39.2 x 18 mm (without the clip), allowing the controller to be discreetly hidden, for example, behind a switch. Power is connected to terminals L and N (230 V AC). eliminating the need for batteries. The device is equipped with a 6-terminal screw terminal for quick installation.
The OXT module ensures full compatibility with the Tuya Smart application.

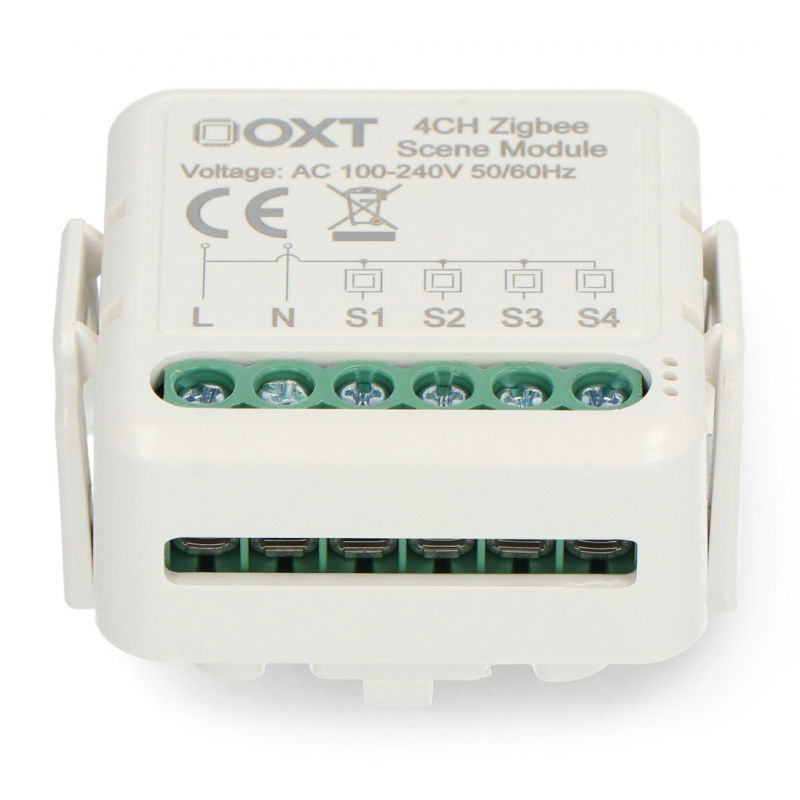

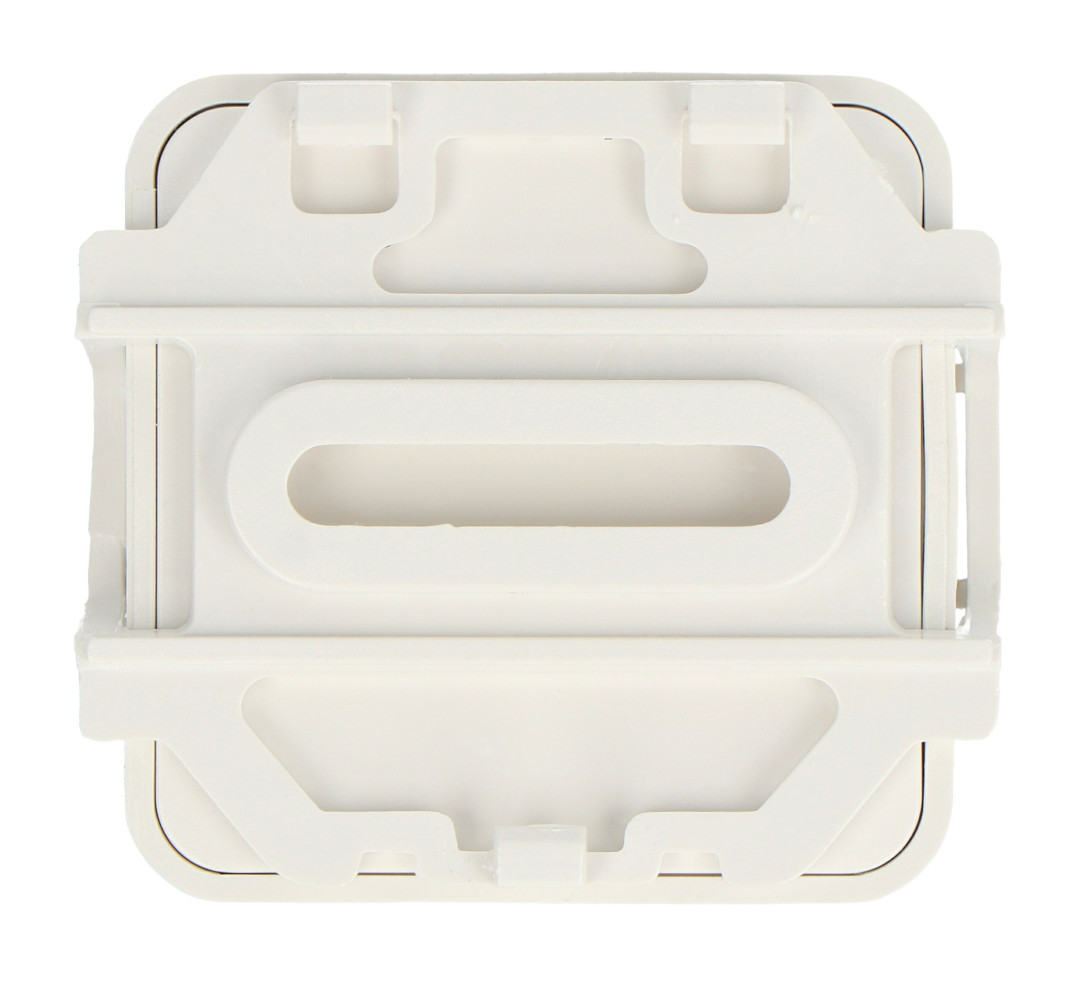

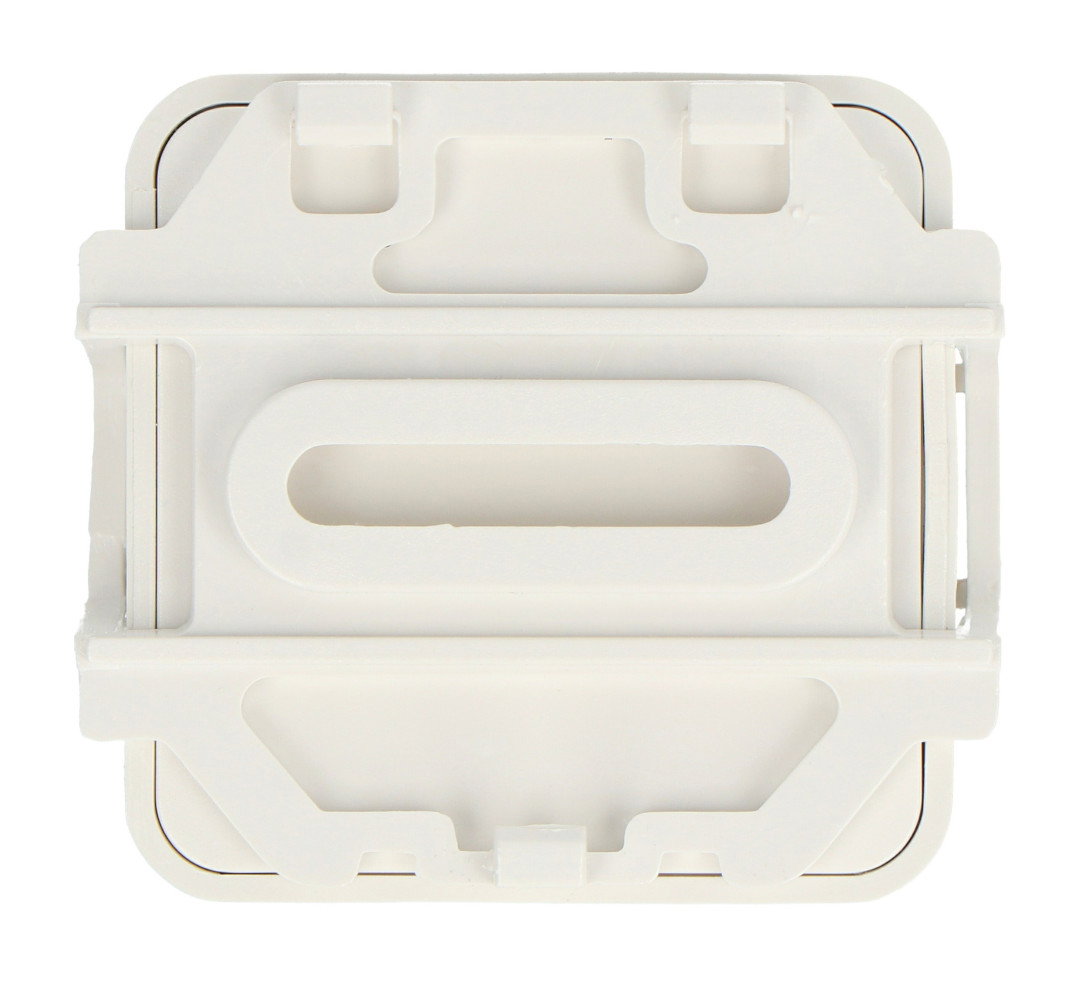

Thanks to its small size, it will easily fit in a flush-mounted box.
Controller technical specifications
- Power supply: 100V to 240V AC, 50/60Hz
- Communication: ZigBee 3.0
- Number of scenes: up to 12 (3 actions per each of the 4 channels)
- Operation: monostable (momentary) buttons
- App: Tuya Smart / Smart Life (Android, iOS)
- Installation: in a 60 mm flush-mounted box

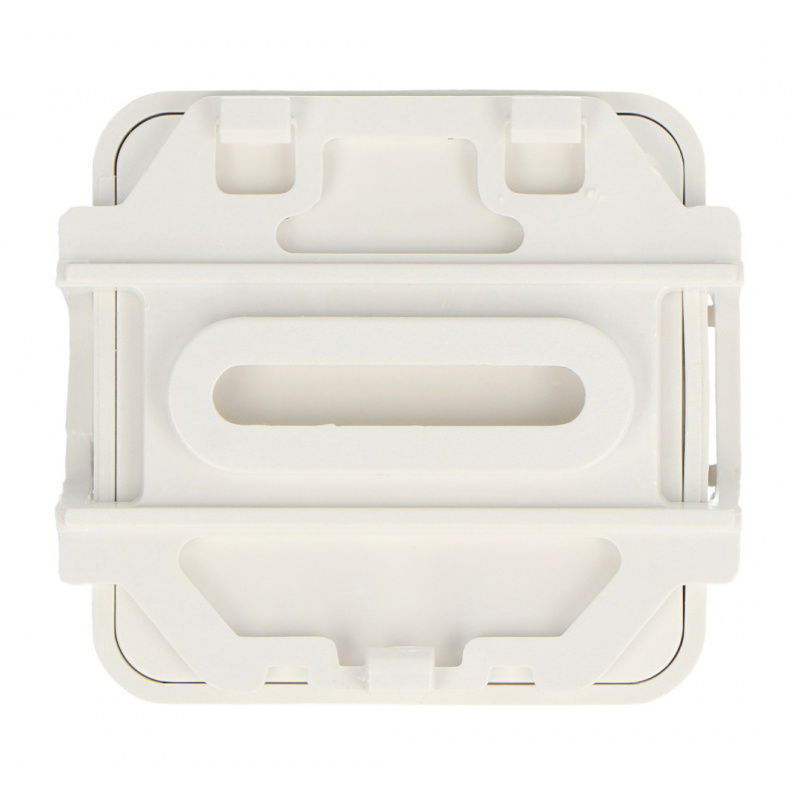

- Dimensions: 39.2 x 39.2 x 18 mm (without clip) / 43 x 39.2 x 22.3 mm (with clip)
Contents of the set
- 1x Tuya - 4-channel mini ZigBee scene controller - 12 actions - 230V - OXT T254
