Product description: Tuya - smart 3/4'' valve with water consumption measurement - ZigBee - RTX ZVG3
The Tuya RTX ZVG3 is a smart valve designed for the convenience and simplicity of controlling your garden irrigation system. The device utilizes ZigBee communication and works with the Tuya/Smart Life app, allowing for both local and remote water flow control, as well as the creation of automation and irrigation schedules. The RTX ZVG3 is powered by four 1.5V AA batteries , so it doesn't require a power connection and offers flexible installation options. Its IP65 -rated housing increases the device's resistance to outdoor conditions, and a built-in strainer helps protect the mechanism from contaminants. The valve's design also allows for combining multiple devices into a single system , facilitating independent control of different irrigation sections. The built-in flow meter allows for real-time monitoring of water usage, as well as checking total water consumption and watering history. The app also allows you to monitor battery status and reset the usage counter. The valve works with Google Home, Amazon Alexa and Home Assistant and can act as one of the elements of an extensive home automation system.
Attention!
For proper operation, the device requires connection to a ZigBee gateway , which must be purchased separately.

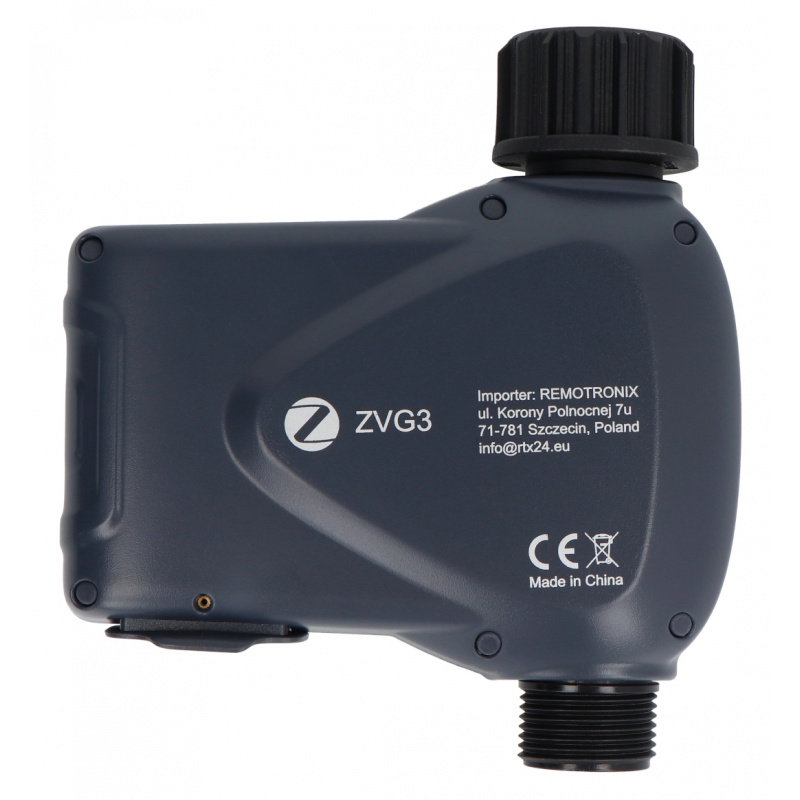

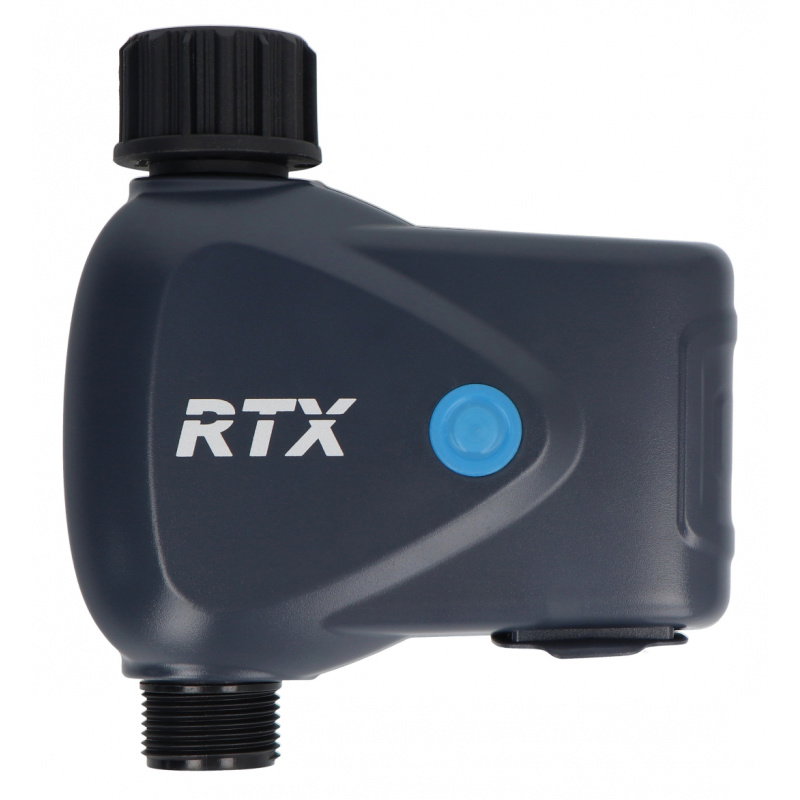

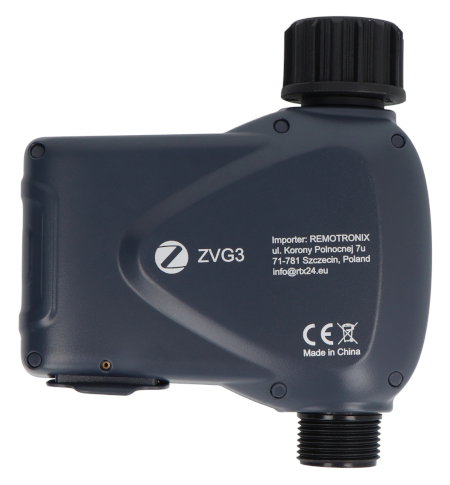

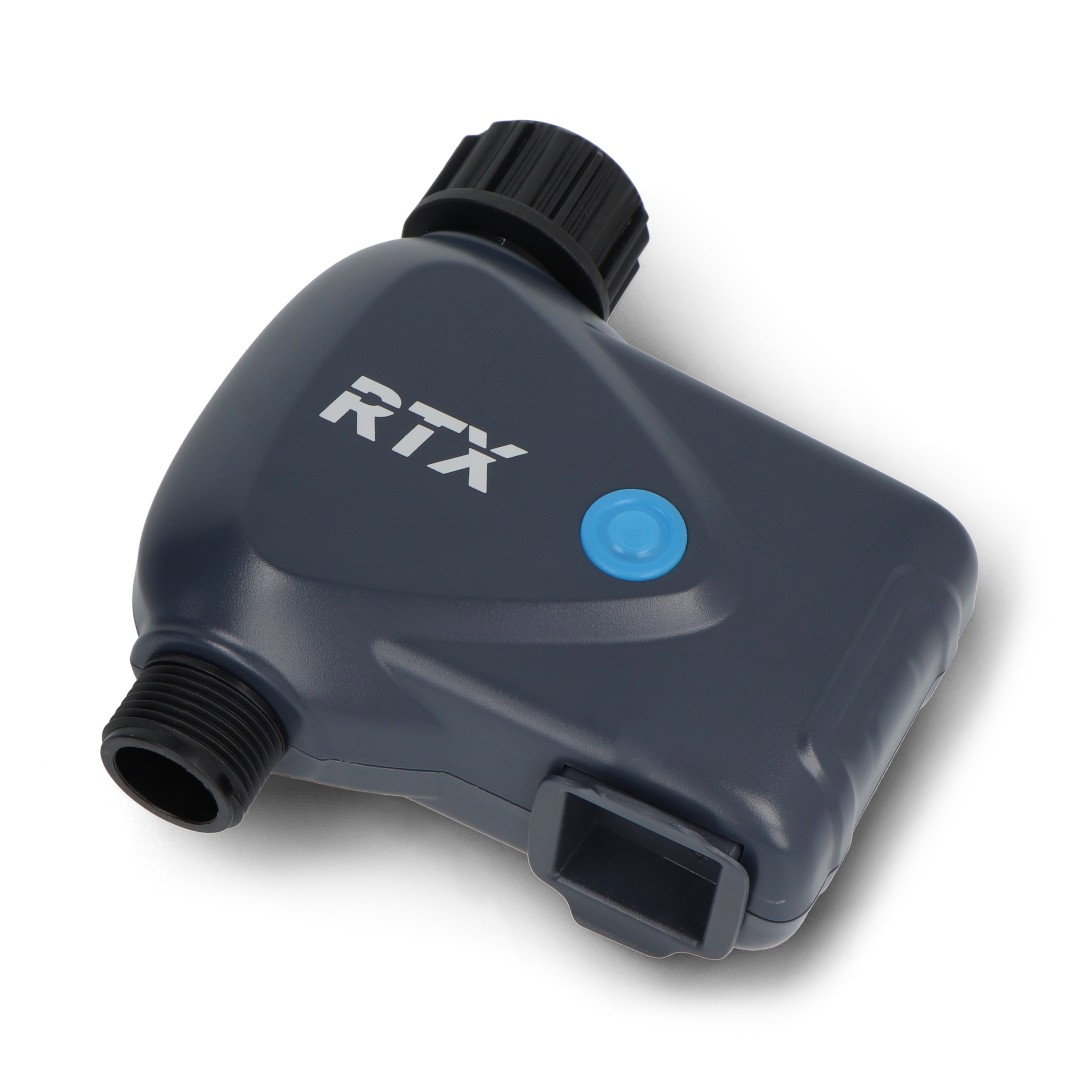

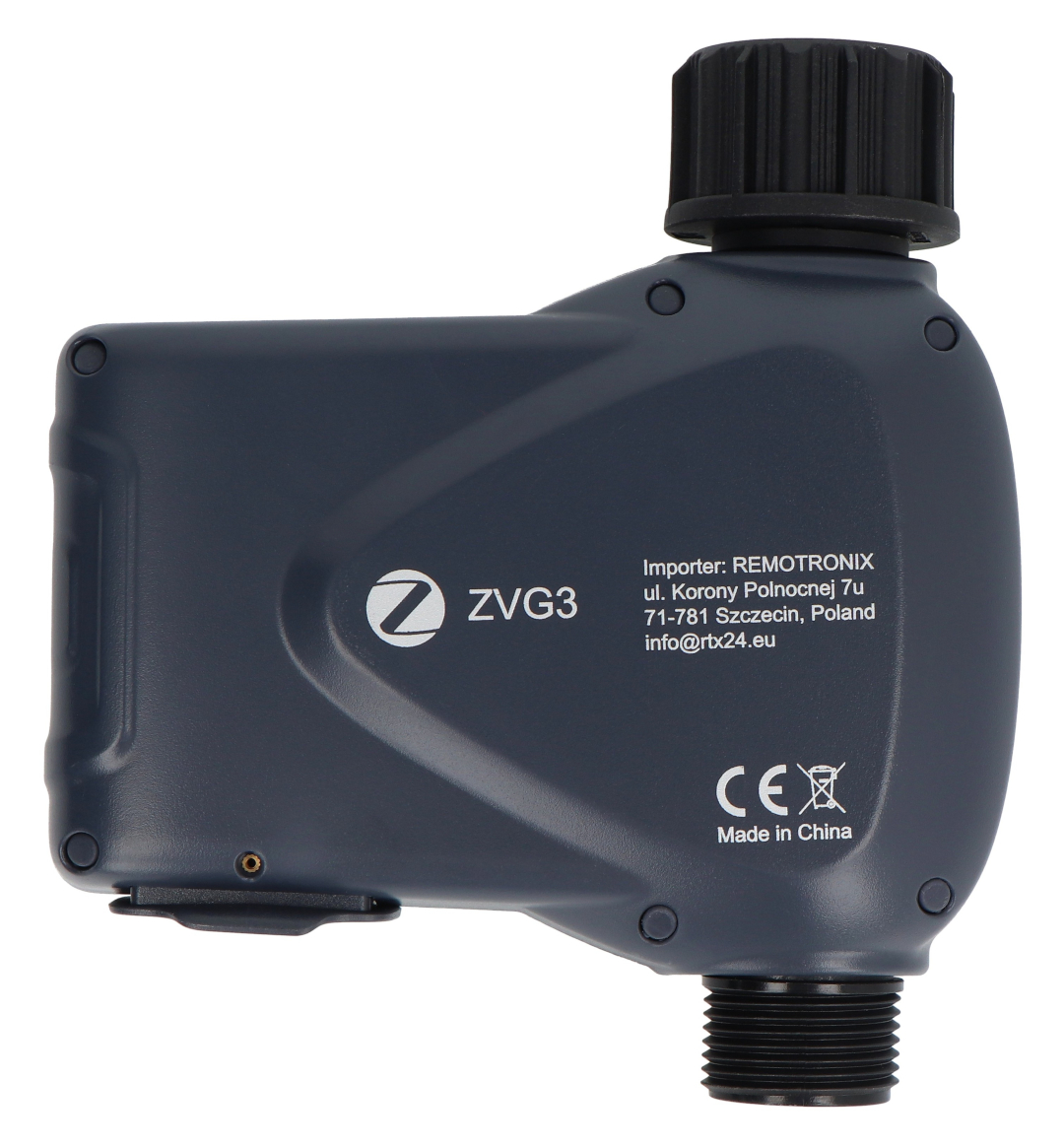

Tuya - smart 3/4'' valve with water consumption measurement - ZigBee - RTX ZVG3.

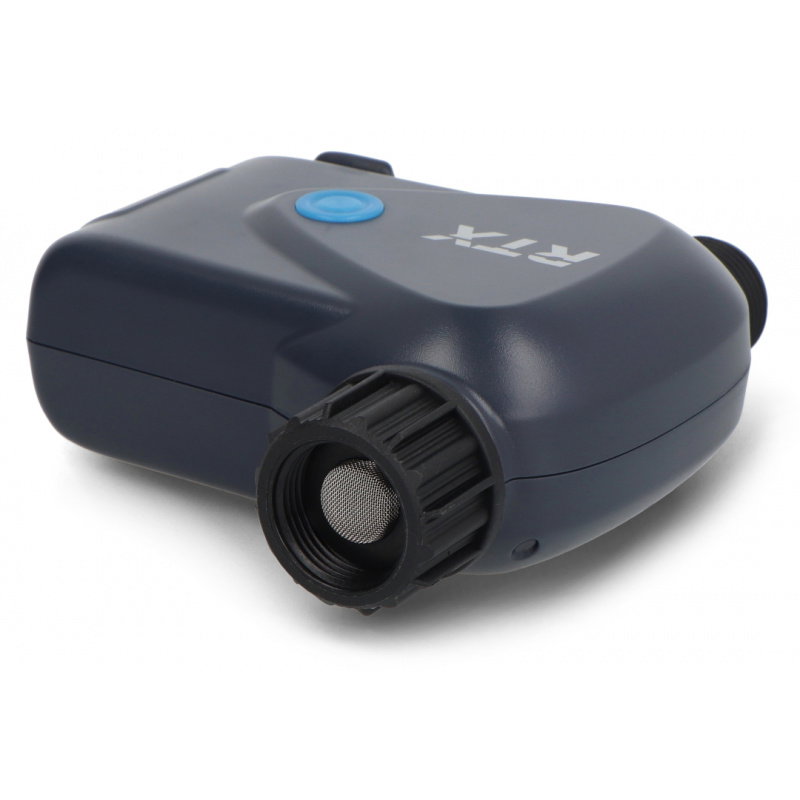

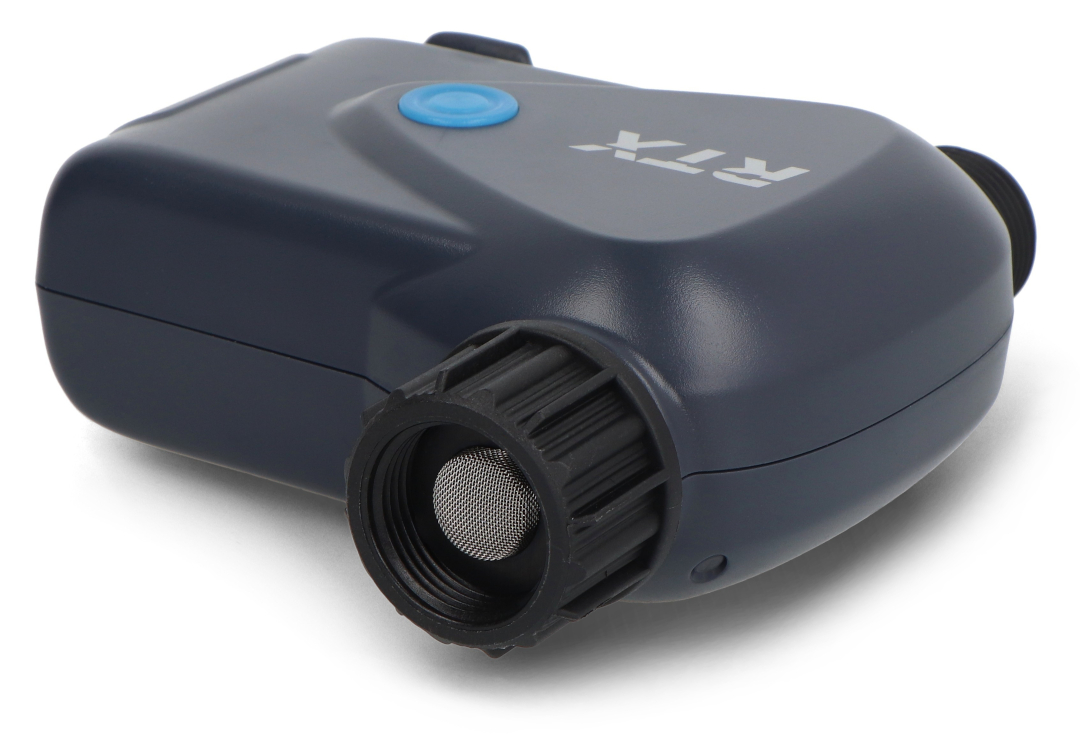

The built-in strainer prevents dirt from entering the valve mechanism.
Main features of the Tuya RTX ZVG3 valve
- Smart irrigation: the ability to control water flow in your garden system both locally and remotely using automation and scheduling
- Water usage monitoring: measuring current flow and total water used
- Watering by time or water consumption: Provides the ability to stop irrigation after a specified time or after a set amount of water has flowed
- Valve operation history: allows you to view data in the application regarding watering time and water consumption
- Battery powered: ensuring the device's operation without the need for a wired power source thanks to the use of four 1.5 V AA batteries
- IP65 housing: protection against changing weather conditions, enabling the valve to be used outdoors
- Built-in strainer: reduces dirt from entering the valve mechanism and helps it function properly
- Integration with Smart Home systems: enabling cooperation with Google Home, Amazon Alexa and Home Assistant
- Expandable installation: connect multiple valves to control multiple sections of the irrigation system
Remote control of water consumption and valve control thanks to the ZigBee standard and the Tuya application
The RTX ZVG3 valve uses the ZigBee standard to communicate with a compatible Tuya gateway, allowing it to be integrated into a smart home system and conveniently managed via the Tuya Smart Life app. Users can remotely open and close the valve, set schedules, and control the watering process without needing direct access to the device. The app also allows users to monitor water consumption, check operating history, and monitor battery charge levels. ZigBee communication allows for the creation of a self-contained, stable automation system, allowing the valve to work with other compatible Tuya devices. This allows for the creation of automation scenarios and tailoring the irrigation system to the user's individual needs. Remote control simplifies garden watering management, especially for larger installations or during extended absences. To use the remote functions, the valve must be connected to a compatible ZigBee gateway compatible with the Tuya ecosystem.
The use of ZigBee communication allows the creation of a stable ecosystem that is not dependent on the WiFi network.
Elements included in the set.Technical specifications of the Tuya RTX ZVG3 valve
- Device type: smart valve with water consumption measurement
- Manufacturer: RTX
- Model: ZVG3
- Mount: 3/4''
- Maximum capacity: 35 l/h
- Maximum operating water pressure: 9 bar
- Communication standard: ZigBee
- Transmission range: up to 30 m in open space
- Power supply: 4 AA 1.5V batteries
- App: Tuya/Smart Life
- Additional Gateway: ZigBee compatible gateway required
- Compatibility: Google Home, Amazon Alexa, Home Assistant
- Tightness class: IP65
- Operating temperature: 1°C to 60°C
- Dimensions: 137 x 126 x 54 mm

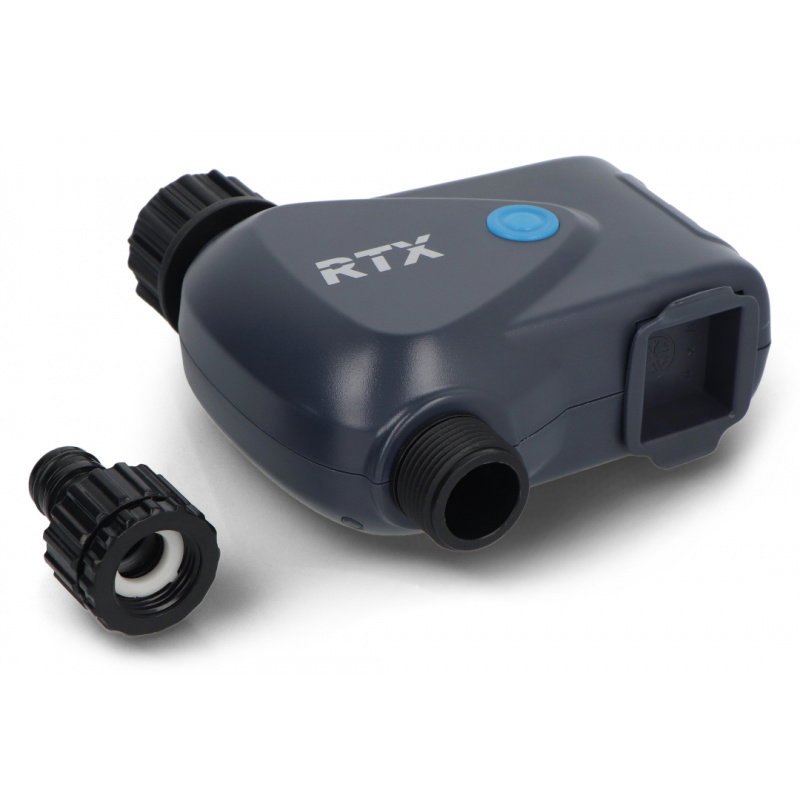

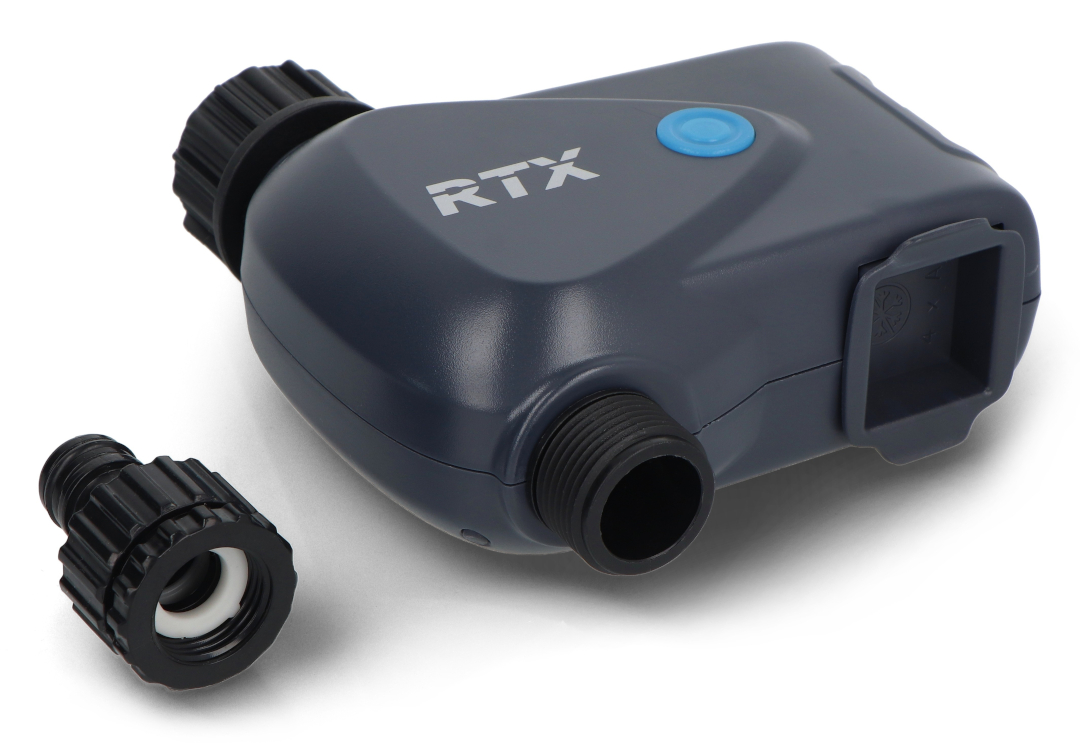

RTX ZVG3 Kit Contents
- RTX ZVG3 Smart Valve
- 3/4'' end for quick connector
- User manual
