Product description: Tuya - gate controller with magnetic sensor - ZigBee - Android / iOS application - RTX ZGM2
RTX brand module for intelligent garage door management. Supports ZigBee 3.0 wireless communication, offering fast and stable connection. The controller allows you to remotely open and close the gate using the Tuya Smart application available for Android and iOS systems. Thanks to integration with Google Home and Amazon Alexa, voice control is also possible. The set includes a reed sensor that informs about unauthorized opening of the gate. The application allows you to set schedules, automations and notifications about the gate status. Thanks to the 230 V AC power supply, you do not need an additional power supply, and the small dimensions allow easy installation of the module in a wall box, lighting fixture or on a DIN rail in a fuse box.
Attention!
To work correctly, the device requires connection to a ZigBee gateway , which can be purchased separately.
Main features of the controller
- Remote control : open and close your gate from anywhere in the world using the Tuya Smart app
- Voice Control : Compatible with Google Home and Amazon Alexa for voice control
- Reed switch sensor : notifications about unauthorized gate opening
- Automation schedules : possibility to set planned gate opening/closing cycles
- Security : notifications about gate being left open and event history
- No additional power supply required : powered directly from the 230 V AC network
Compatibility with the Tuya app
The controller has a built-in Bluetooth communication module, thanks to which it is automatically detected in the Tuya ecosystem. The application allows remote management of the gate using a phone and is available for free on Android and iOS systems. With this application, you can easily control the status of the gate, set schedules, receive notifications about opening / closing and monitor the security of the system. Integration of the module with the application also allows you to create scenarios, such as automatic opening of the gate after detecting movement by the sensor , which significantly increases the comfort of use. The module also integrates with over 11,000 smart devices in the Tuya environment, offering wide functionality.
ZigBee connectivity
The ZigBee 3.0 protocol, operating at 2.4 GHz, provides excellent signal propagation in buildings . ZigBee devices create a mesh network in which each fully powered device acts as a signal amplifier. Thanks to this, the system is characterized by reliability and stability . The ability to connect multiple devices to one central unit and low energy consumption make ZigBee an ideal solution in Smart Home systems.
RTX ZGM2 Controller Technical Specifications
- Type: Gate Controller
- Model: ZGM2
- Communication: ZigBee 3.0
- Power supply: 100V to 240V AC, 50/60Hz
- Contact type: NO (Normally Open)
- Contact load capacity: 10 A
- Application: Tuya / Smart Life
- Compatibility with systems: Amazon Alexa and Google Assistant
- Operating temperature: 0°C to 50°C
- Dimensions: 39 x 39 x 19 mm
- Weight: 72 g

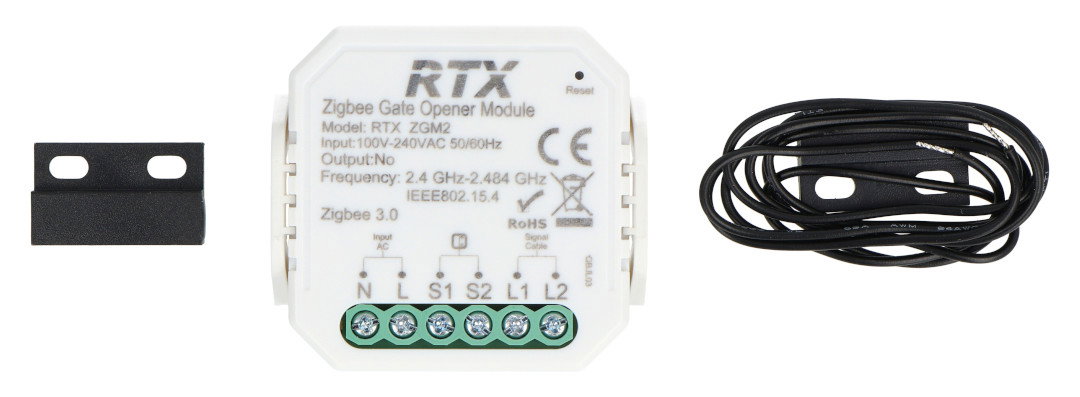

Kit Contents
- Driver module
- Reed switch sensor with wires
- Mounting clip
